Caloric
Gas Range

Model # RSS343 Official Caloric gas self-cleaning range

Here are the diagrams and repair parts for Official Caloric RSS343 gas self-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Switch, Lico 31-300521-02-0
Switch, lico

Part #31-300521-02-0

Replaced by #WPY0300521

?
Manufacturer substitution
This part replaces 31-300521-02-0. Substitute parts can look different from the original.
$51.09
In Stock
Door Handle Mounting Screw 01-059574-01-0

#NI

All parts diagram

Door handle mounting screw

Part #01-059574-01-0

The manufacturer no longer makes this part, and there's no substitute part

Support, Broil Burner 63-300072-00-0
#11

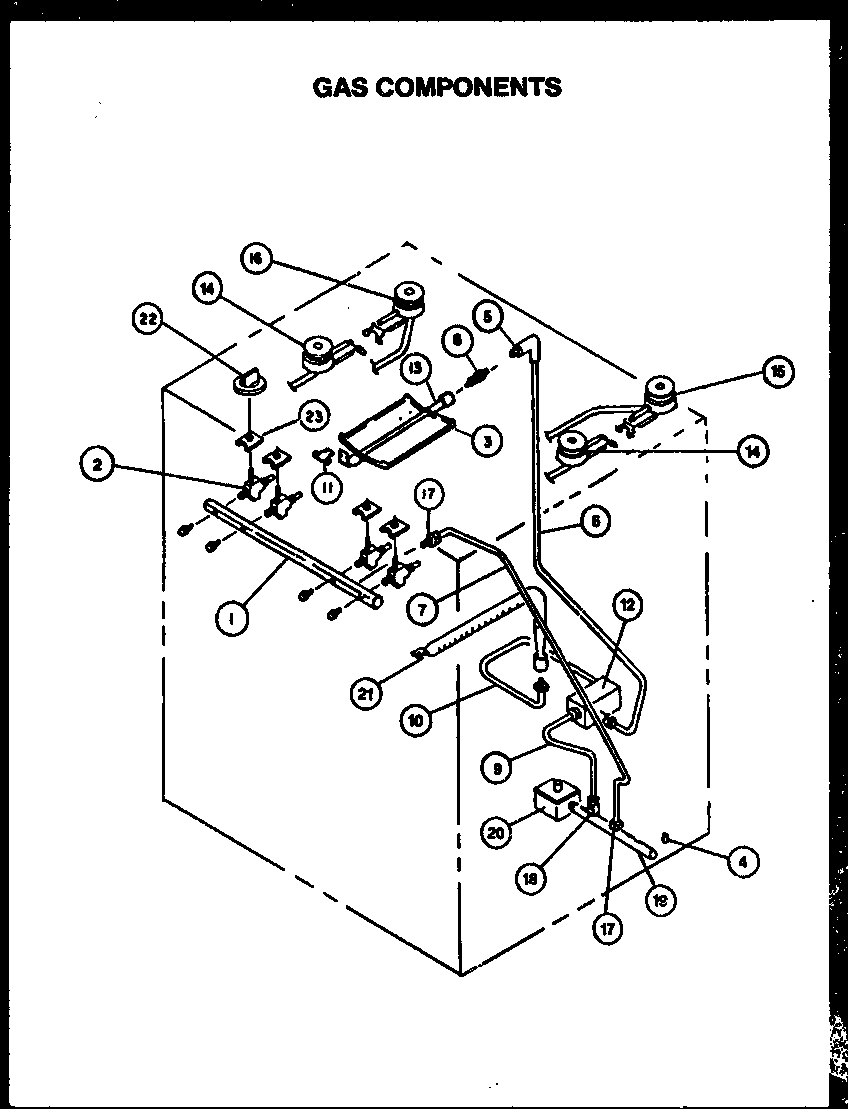

Gas components diagram

Support, broil burner

Part #63-300072-00-0

The manufacturer no longer makes this part, and there's no substitute part

Plug, Ignitor Wires 32-059417-10-0
#2

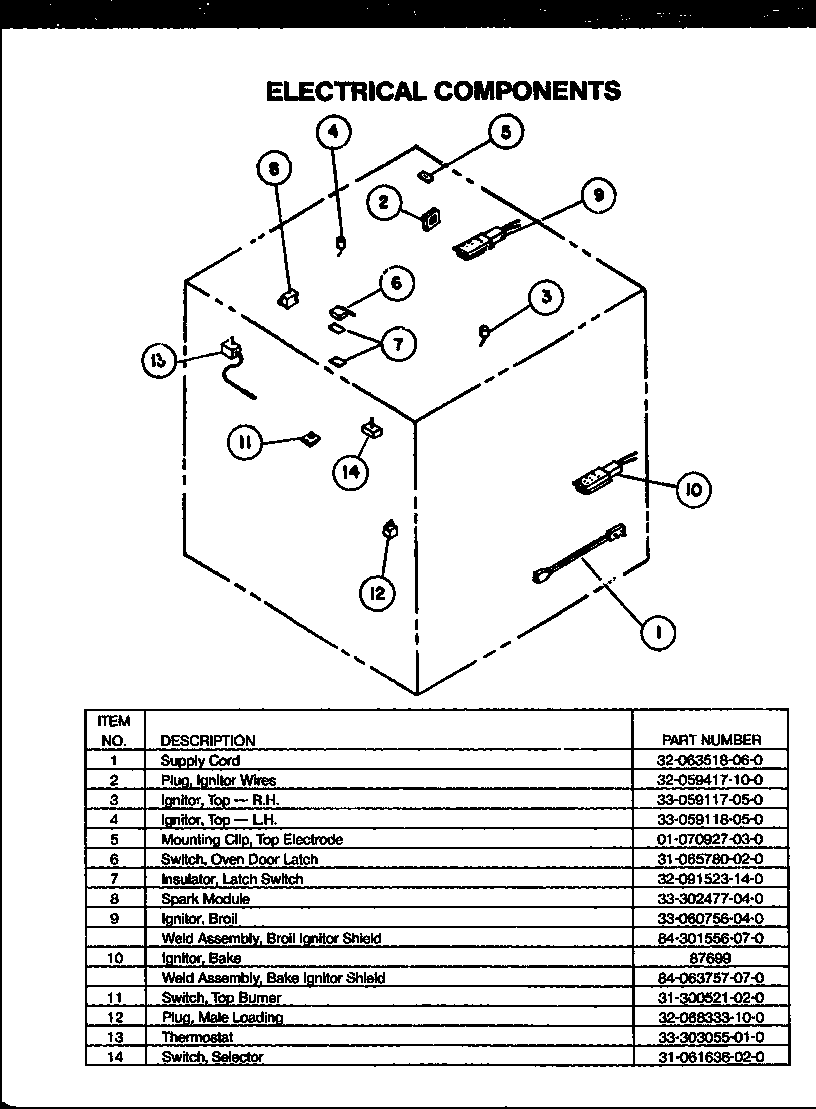

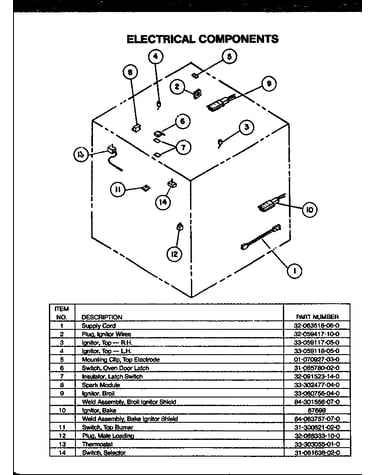

Electrical components diagram

Plug, ignitor wires

Part #32-059417-10-0

The manufacturer no longer makes this part, and there's no substitute part

Runner, Drawer - R.h. 05-300477-03-0
#5

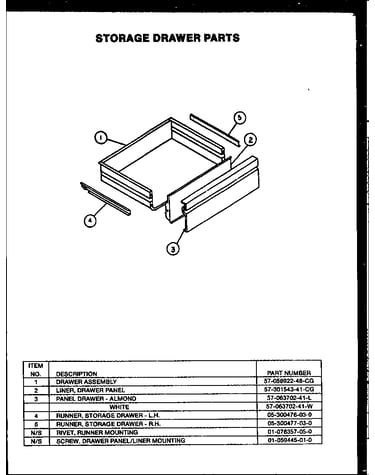

Storage drawer parts diagram

Runner, drawer - r.h.

Part #05-300477-03-0

The manufacturer no longer makes this part, and there's no substitute part

Lower Trim 07-061800-04-0
#4

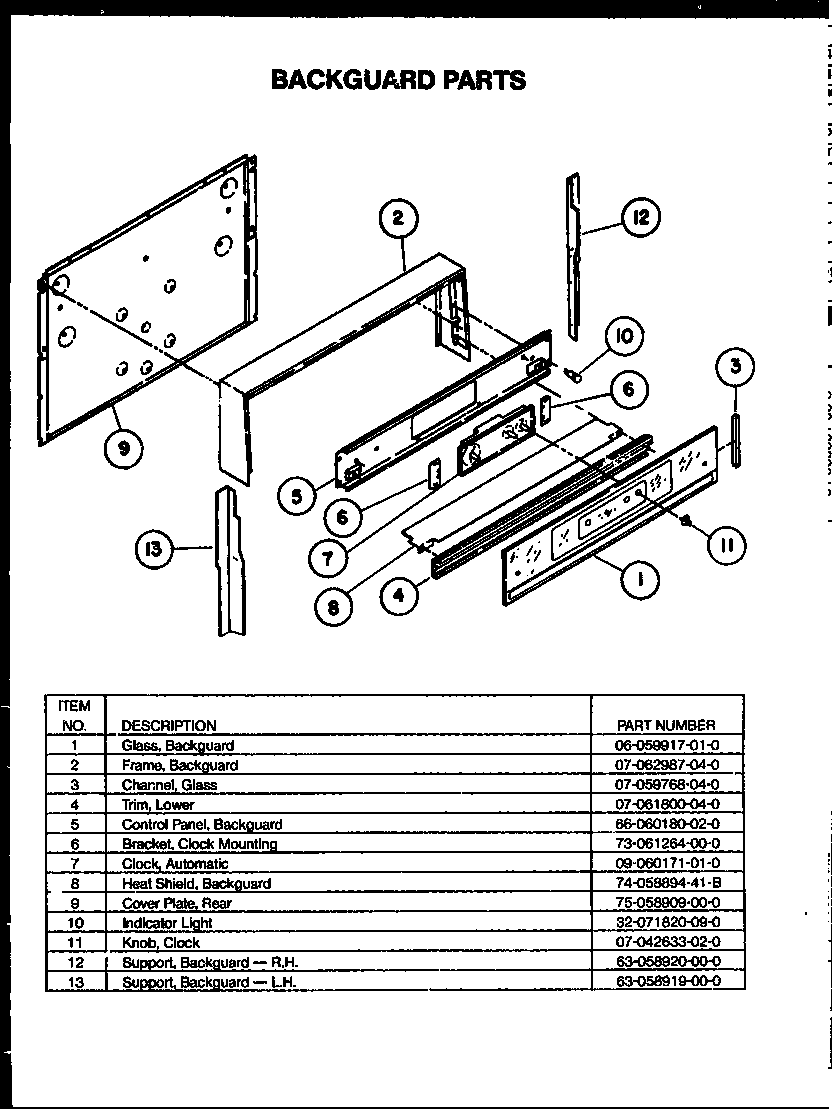

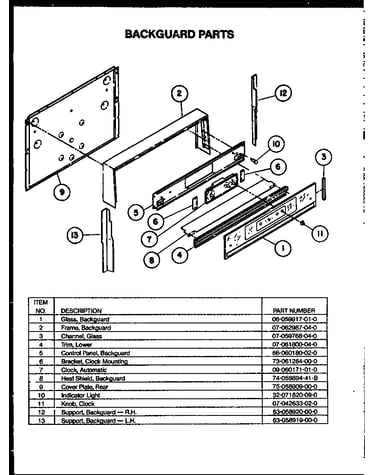

Backguard parts diagram

Lower trim

Part #07-061800-04-0

The manufacturer no longer makes this part, and there's no substitute part

Pressure Regulator 34-063684-10-0
#20

Gas components diagram

Pressure regulator

Part #34-063684-10-0

The manufacturer no longer makes this part, and there's no substitute part

Snap Bushing 04-042659-04-0
#32

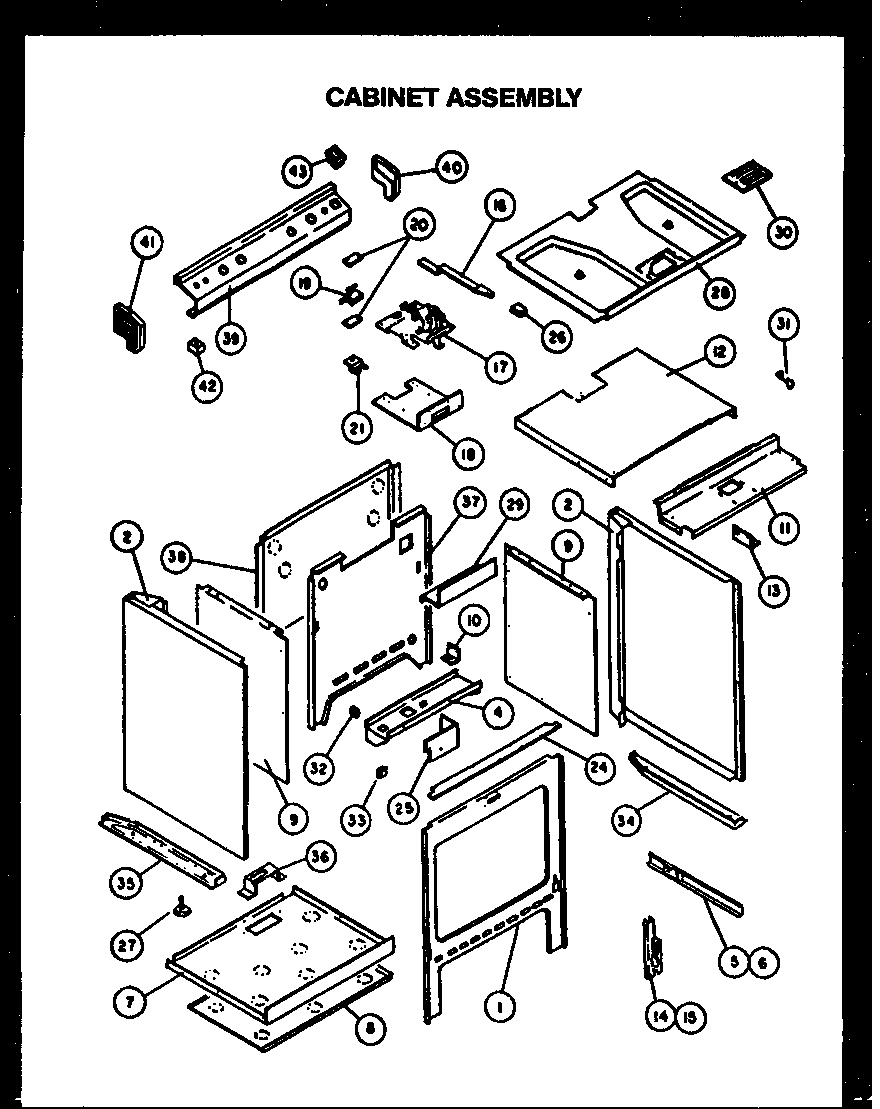

Cabinet assembly diagram

Snap bushing

Part #04-042659-04-0

The manufacturer no longer makes this part, and there's no substitute part

Handle Spacer 04-079978-06-0
#6

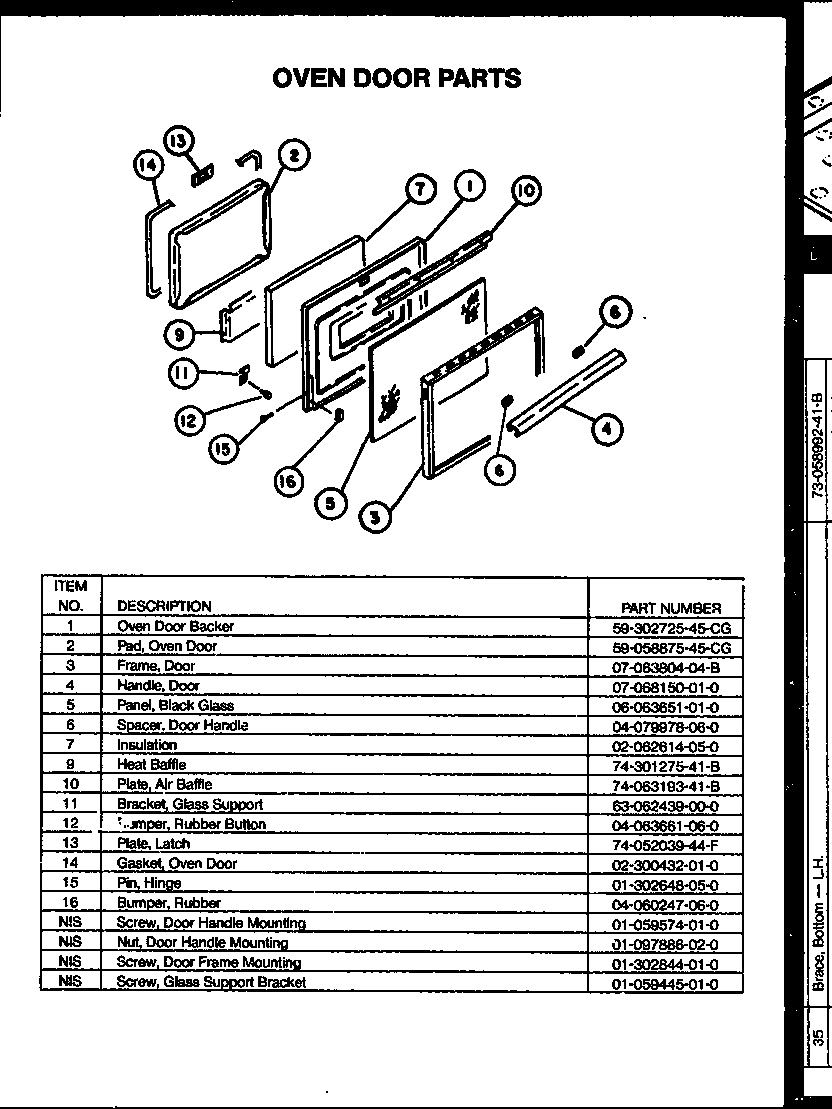

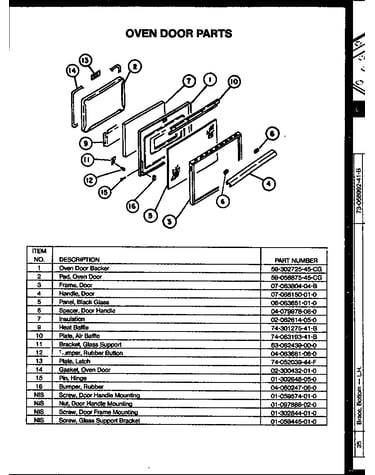

Oven door parts diagram

Handle spacer

Part #04-079978-06-0

The manufacturer no longer makes this part, and there's no substitute part

Flue, Inner 69-300081-45-CG
#15

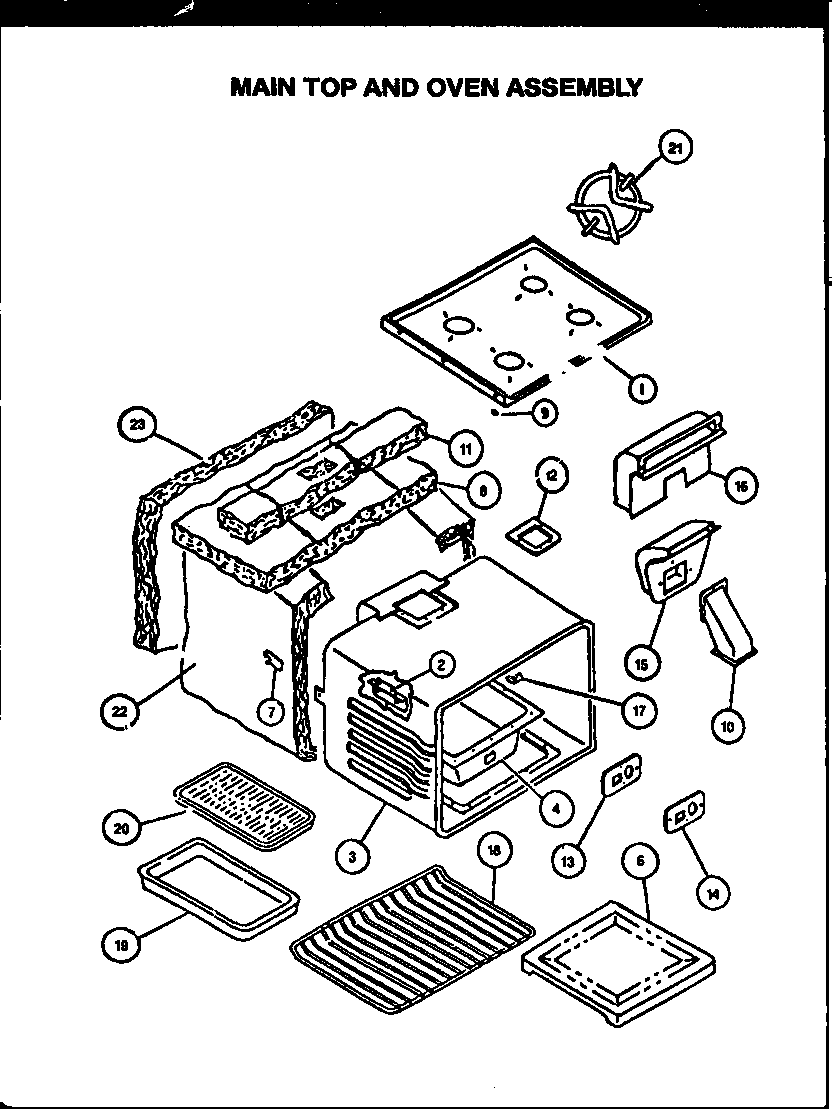

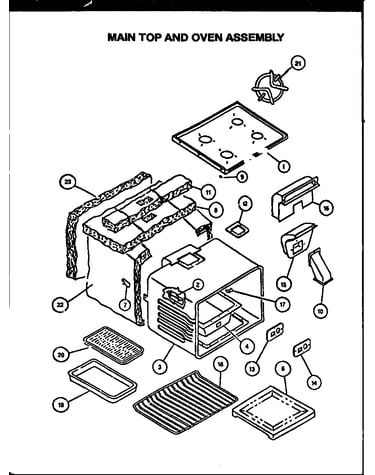

Main top/oven assembly diagram

Flue, inner

Part #69-300081-45-CG

The manufacturer no longer makes this part, and there's no substitute part
