Model # 7218922281 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218922281 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

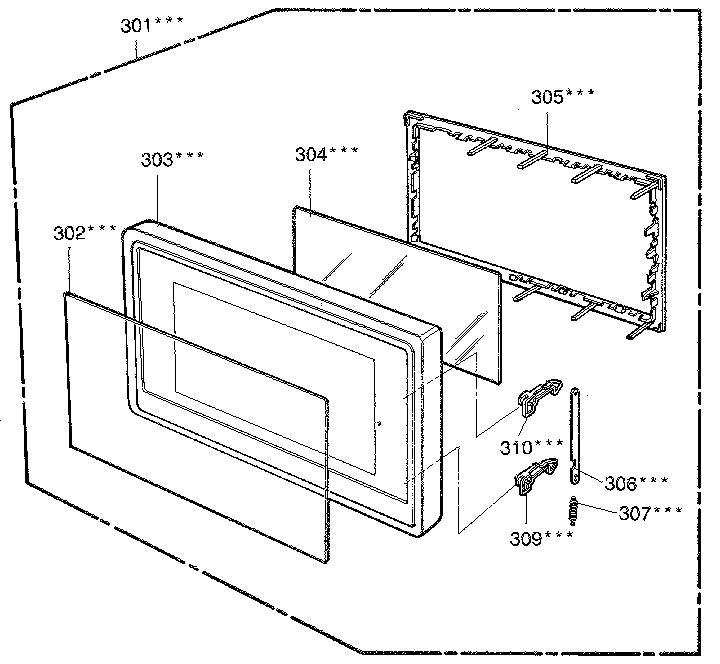

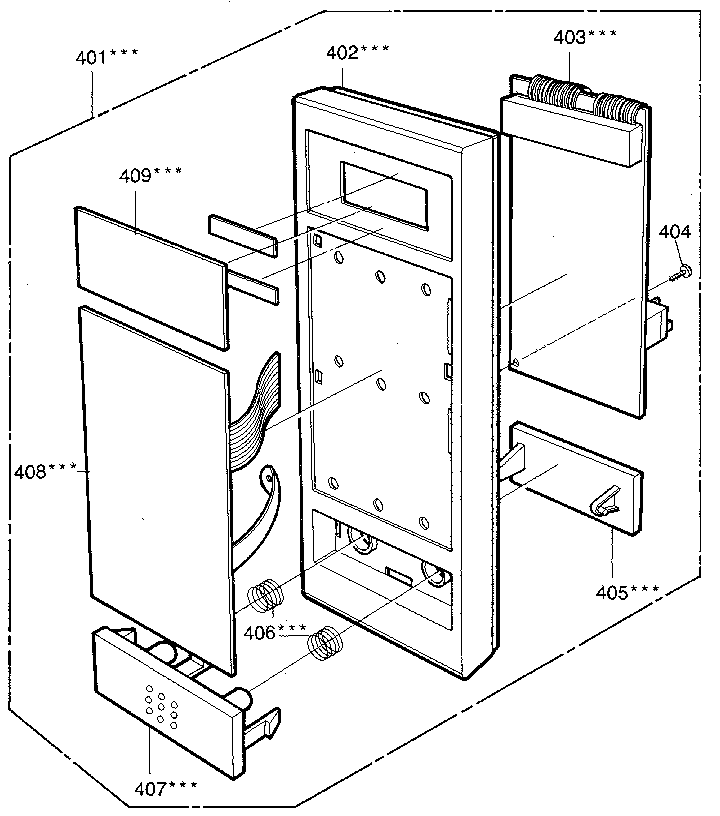

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Shaft 503315
#116

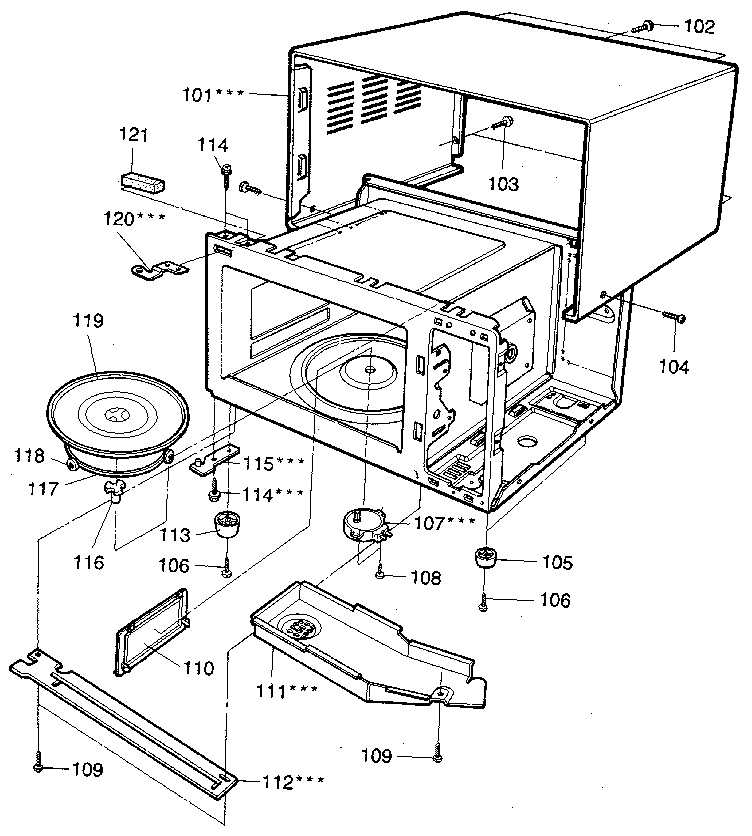

Cabinet diagram

Shaft

Part #503315

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 503315. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Screw 500218
#106

Cabinet diagram

Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Magnetron 501388
#213

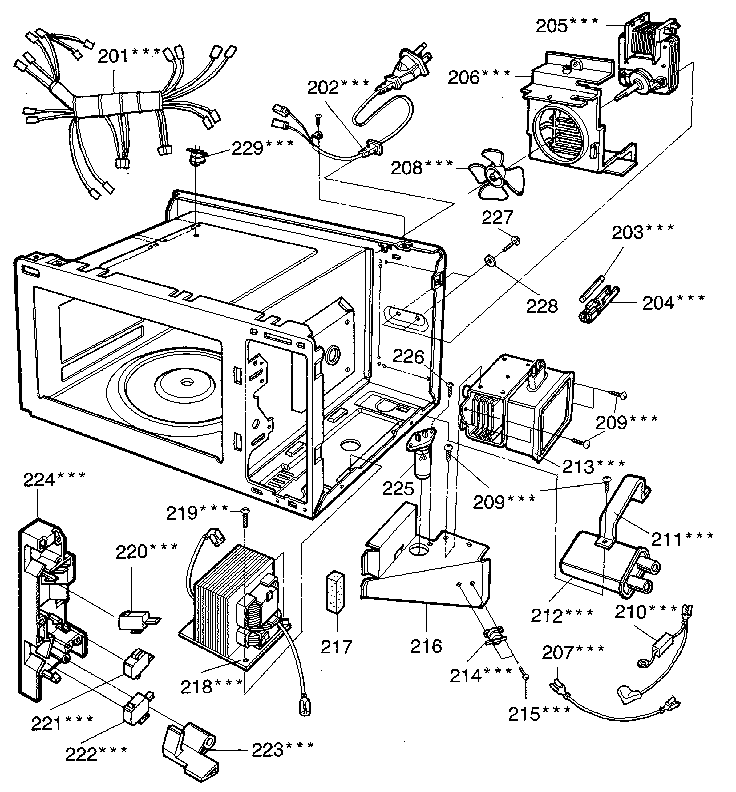

Switches and microwave diagram

Magnetron

Part #501388

The manufacturer no longer makes this part, and there's no substitute part

4.7k 1/4w J 503647
#46

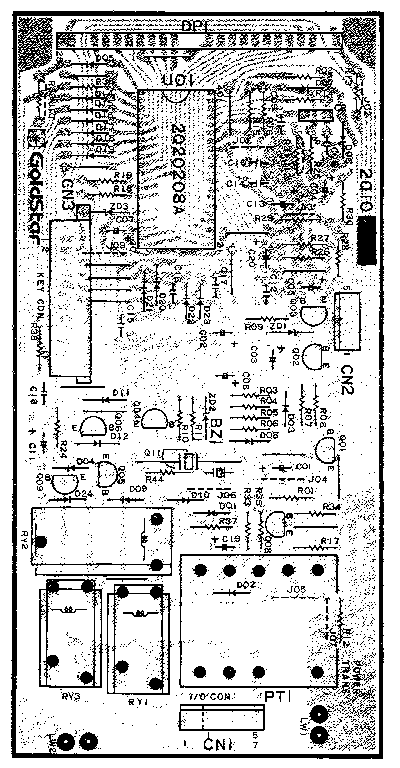

Power and control circuit diagram

4.7k 1/4w j

Part #503647

The manufacturer no longer makes this part, and there's no substitute part

Screw 501098
#209

Switches and microwave diagram

Screw

Part #501098

Replaced by #1SBF0402418

?
Manufacturer substitution
This part replaces 501098. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Oven Switch 503387
#220

Switches and microwave diagram

Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
$10.27 |
16% OFF Phone Price : $12.27
In Stock
100pf 50v 500895
100pf 50v

Part #500895

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15a 500081
#203

Switches and microwave diagram

Fuse 15a

Part #500081

The manufacturer no longer makes this part, and there's no substitute part

Transistor 500277
#61

Power and control circuit diagram

Transistor

Part #500277

The manufacturer no longer makes this part, and there's no substitute part

Screw 500063
#215

Switches and microwave diagram

Screw

Part #500063

The manufacturer no longer makes this part, and there's no substitute part
