Model # MC-4401 Official Panasonic commercial vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-4401 commercial vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

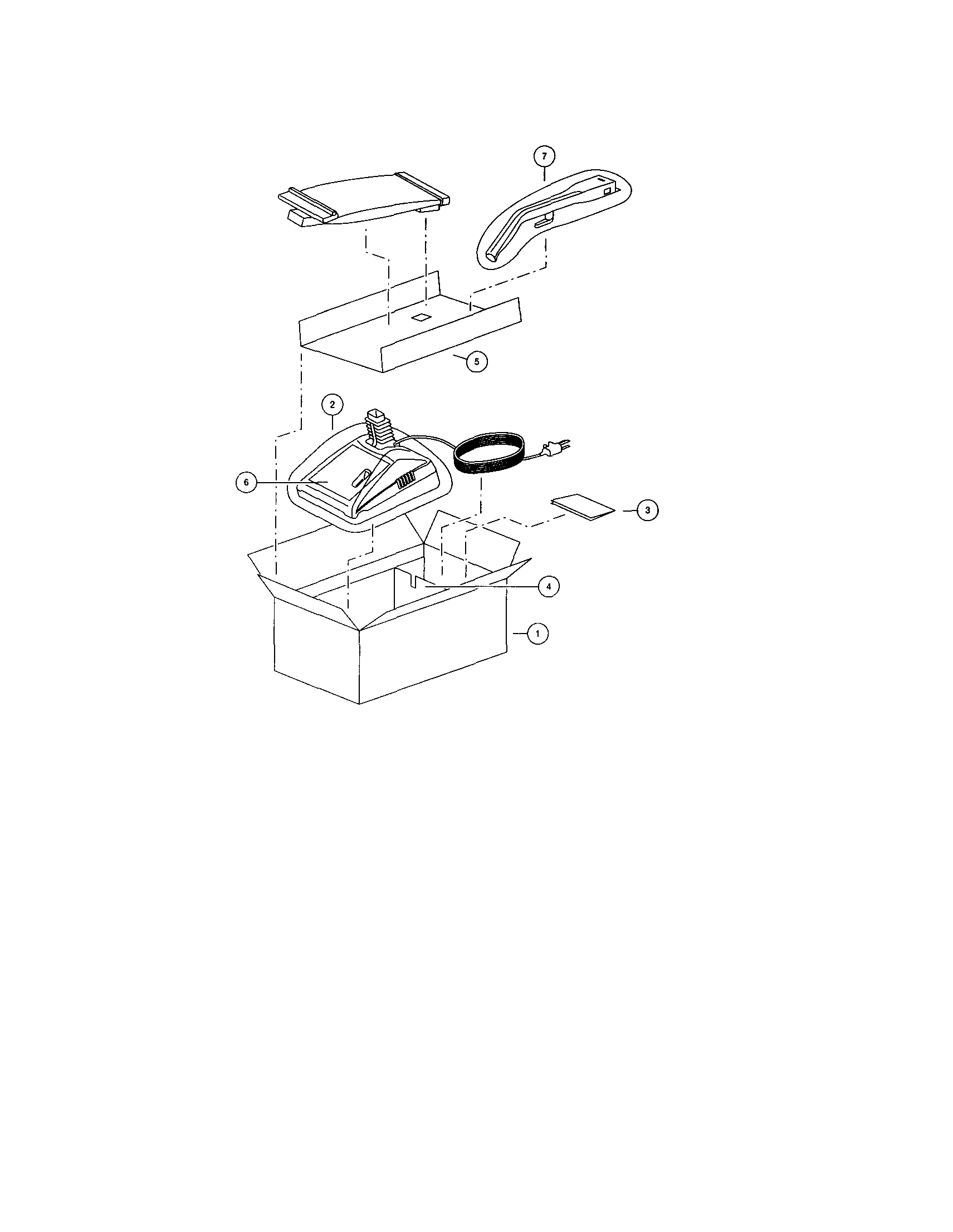

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Agitator Unit AMC85R-TFZ0000
#B-21

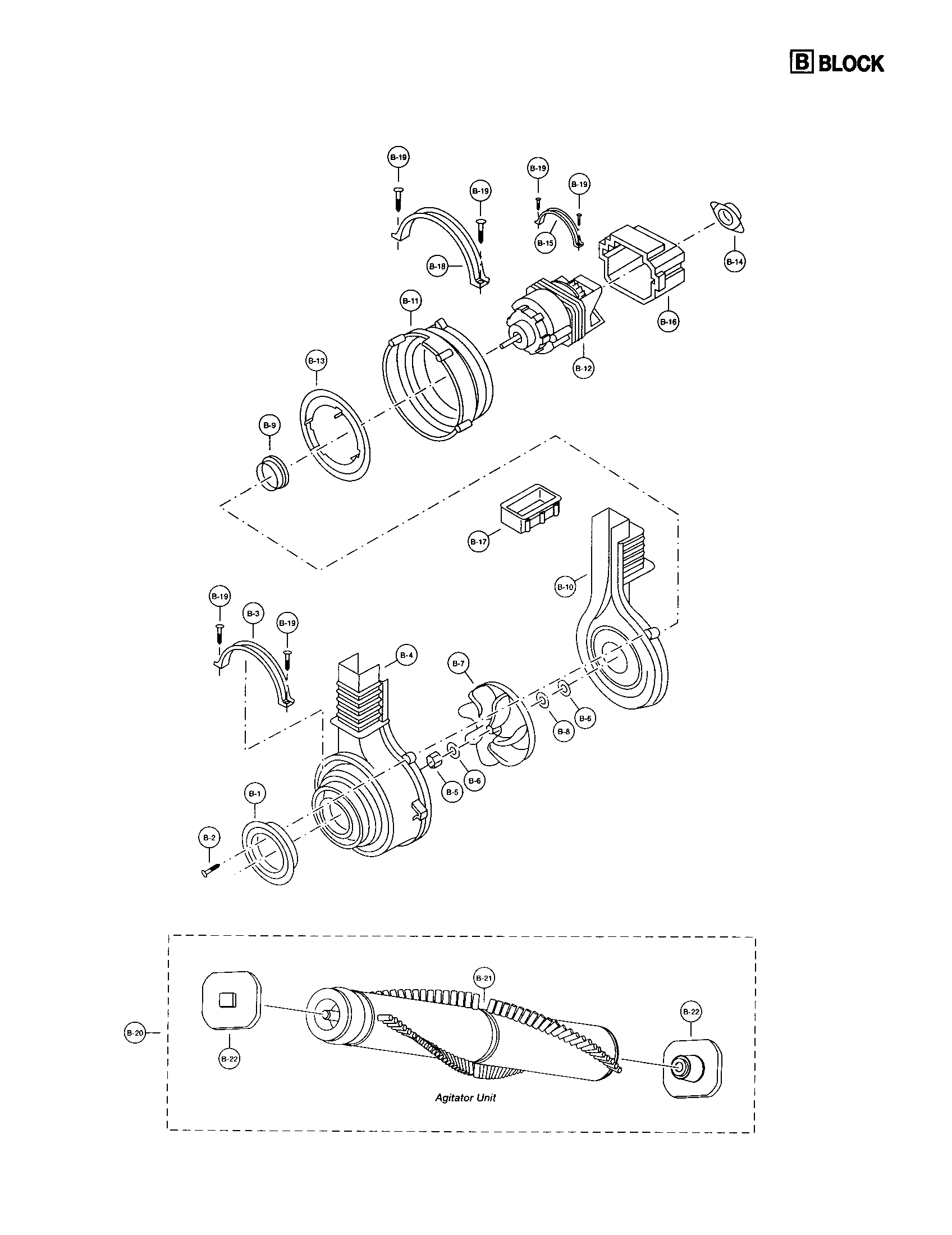

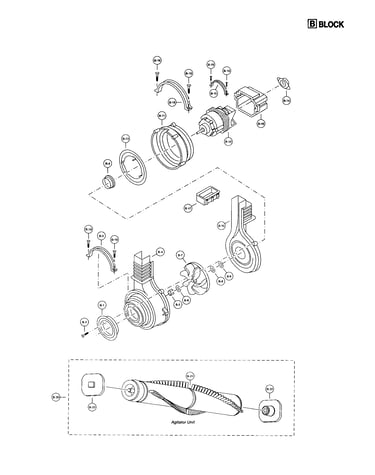

Motor/motor housing/agitator diagram

Agitator unit

Part #AMC85R-TFZ0000

The manufacturer no longer makes this part, and there's no substitute part

Washer (4) AMC-XWE7FY
#A-18

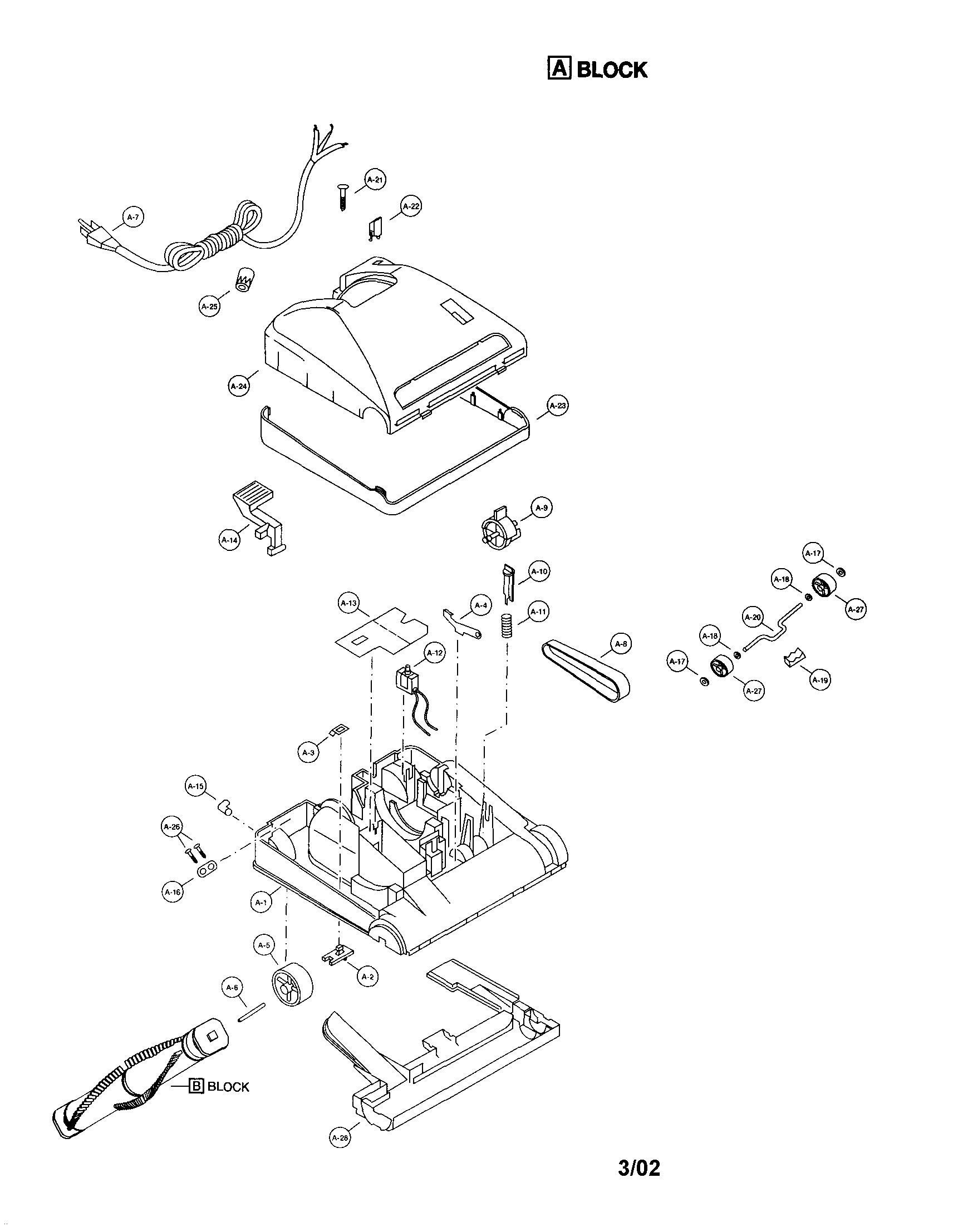

Nozzle housing diagram

Washer (4)

Part #AMC-XWE7FY

The manufacturer no longer makes this part, and there's no substitute part

On/off Switch AMC01E-ZFZ0U00
#A-12

Nozzle housing diagram

On/off switch

Part #AMC01E-ZFZ0U00

The manufacturer no longer makes this part, and there's no substitute part

Latch (2) AMC68N-ZFZVU04
#A-02

Nozzle housing diagram

Latch (2)

Part #AMC68N-ZFZVU04

The manufacturer no longer makes this part, and there's no substitute part

Support Slider AMC53K-TFZVU07
#C-06

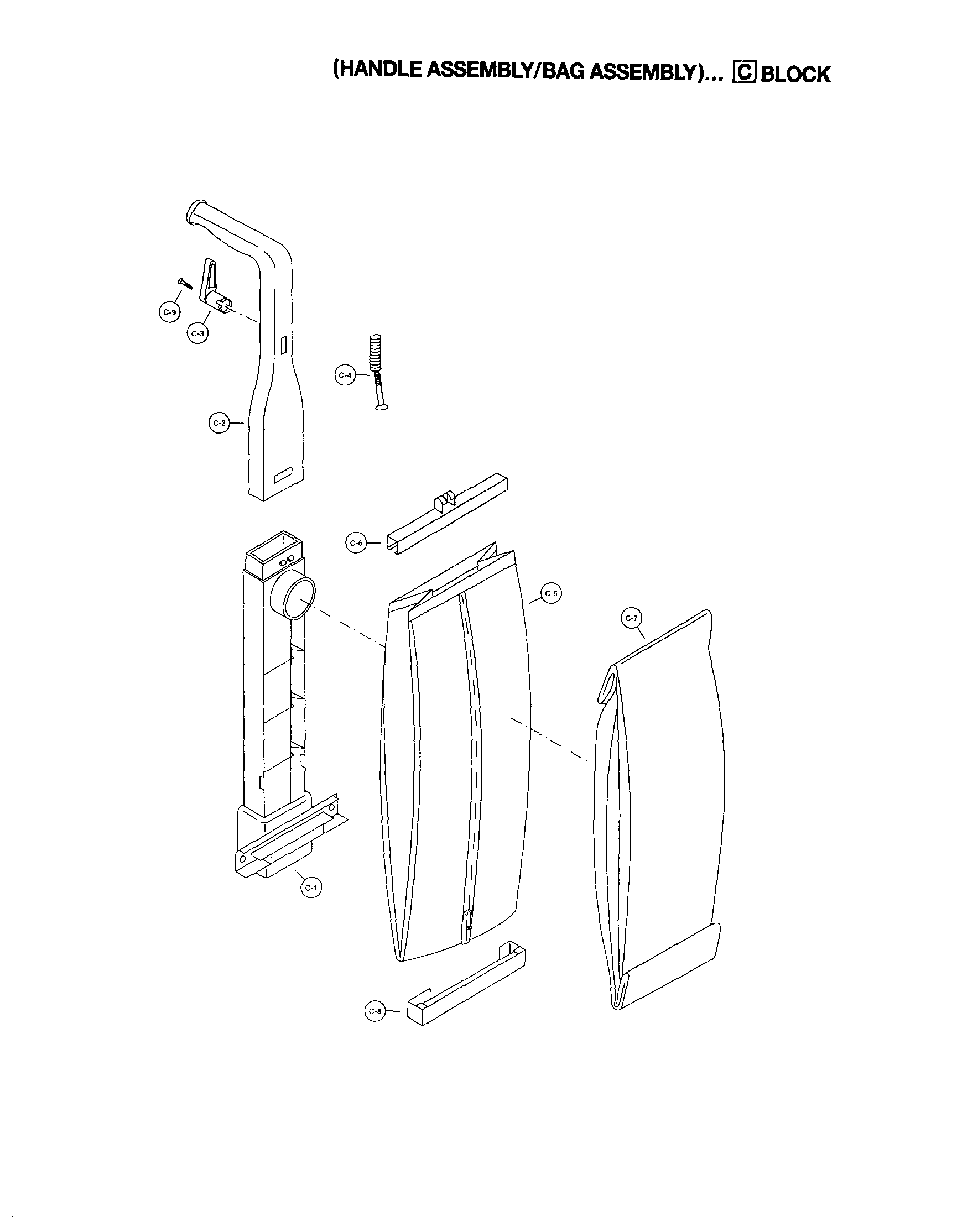

Handle/bag assembly diagram

Support slider

Part #AMC53K-TFZVU07

The manufacturer no longer makes this part, and there's no substitute part

Belt (type Ub-5) AMC28S-TFZ0000
#A-08

Nozzle housing diagram

Belt (type ub-5)

Part #AMC28S-TFZ0000

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle Shaft (2) AMC04C-ZF10U00
#A-06

Nozzle housing diagram

Rear axle shaft (2)

Part #AMC04C-ZF10U00

The manufacturer no longer makes this part, and there's no substitute part

Motor Support (metal) AMC04F-ZFZ0U00
#B-15

Motor/motor housing/agitator diagram

Motor support (metal)

Part #AMC04F-ZFZ0U00

The manufacturer no longer makes this part, and there's no substitute part

Motor Support Plate AMC08F-ZFZ0U00
#B-13

Motor/motor housing/agitator diagram

Motor support plate

Part #AMC08F-ZFZ0U00

The manufacturer no longer makes this part, and there's no substitute part

Right Angle Strain Relief AMC62E-TF1U001
#A-15

Nozzle housing diagram

Right angle strain relief

Part #AMC62E-TF1U001

The manufacturer no longer makes this part, and there's no substitute part
