GE
Room Air Conditioner

Model # AGM14AHG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGM14AHG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

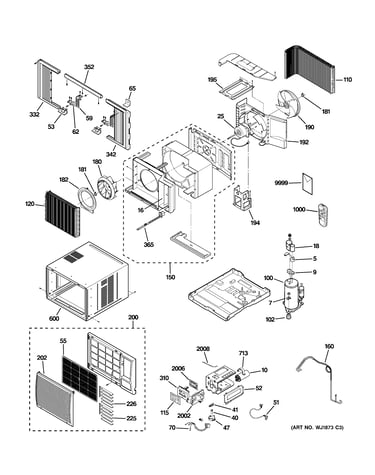

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Link WJ01X10093
#41

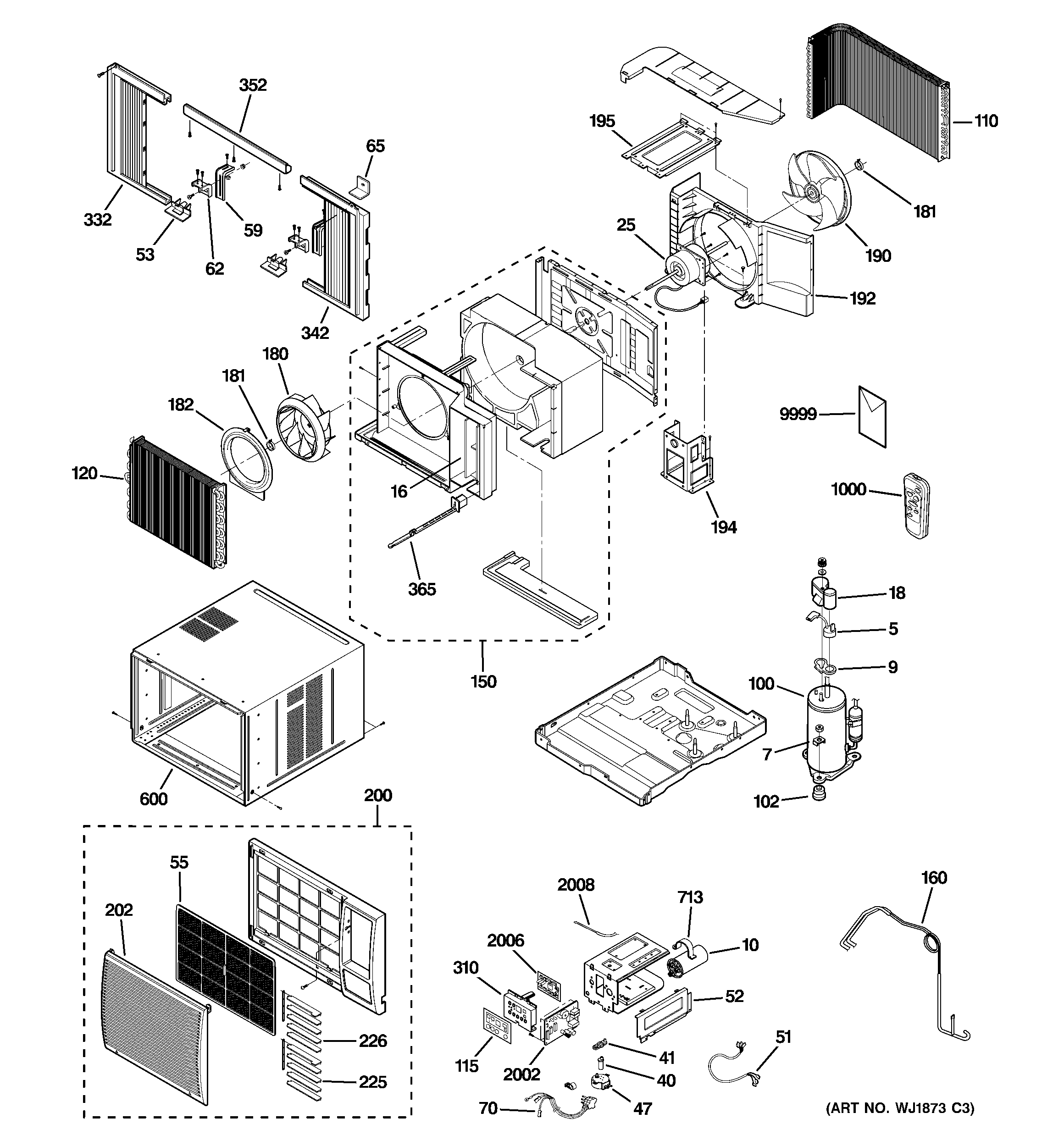

Room air conditioner diagram

Link

Part #WJ01X10093

The manufacturer no longer makes this part, and there's no substitute part

Remote Control WJ26X10154
#1000

Room air conditioner diagram

Remote control

Part #WJ26X10154

The manufacturer no longer makes this part, and there's no substitute part

Motor WJ94X10225
#25

Room air conditioner diagram

Motor

Part #WJ94X10225

The manufacturer no longer makes this part, and there's no substitute part

Evaporator WJ87X10100
#120

Room air conditioner diagram

Evaporator

Part #WJ87X10100

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WJ20X10079
#10

Room air conditioner diagram

Capacitor

Part #WJ20X10079

The manufacturer no longer makes this part, and there's no substitute part

Louver - Hor WJ85X10100
#225

Room air conditioner diagram

Louver - hor

Part #WJ85X10100

The manufacturer no longer makes this part, and there's no substitute part

Compressor B WJ01X10077
#102

Room air conditioner diagram

Compressor b

Part #WJ01X10077

The manufacturer no longer makes this part, and there's no substitute part

Cabinet WJ90X10095
#600

Room air conditioner diagram

Cabinet

Part #WJ90X10095

The manufacturer no longer makes this part, and there's no substitute part

Cover WJ79X10084
#18

Room air conditioner diagram

Cover

Part #WJ79X10084

The manufacturer no longer makes this part, and there's no substitute part

Bracket Support WJ66X10022
#59

Room air conditioner diagram

Bracket support

Part #WJ66X10022

The manufacturer no longer makes this part, and there's no substitute part
