GE
Central Air Conditioner

Model # A2B548DAELSA Official GE air conditioner

Here are the diagrams and repair parts for Official GE A2B548DAELSA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |

Screw WZ5X153
#983

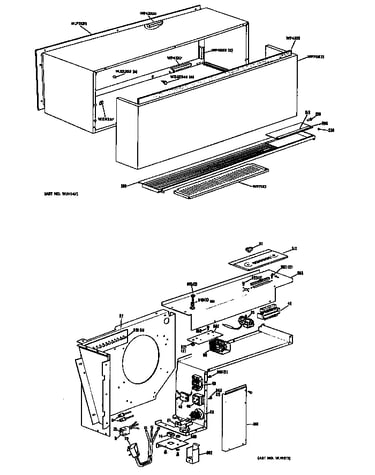

Cabinet diagram

Screw

Part #WZ5X153

This item is not returnable
In Stock
Screw WZ4X288
#959

Cabinet diagram

Screw

Part #WZ4X288

This item is not returnable
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
In Stock
Condenser WJ88X159
#110

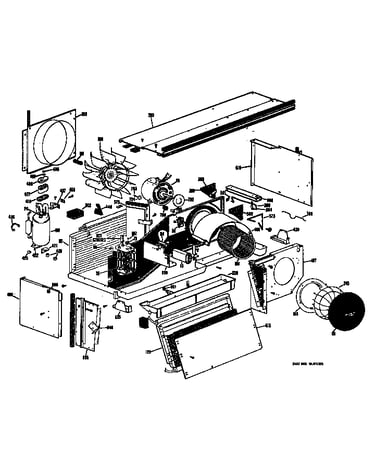

Chassis diagram

Condenser

Part #WJ88X159

In Stock
Zoneline  H& 49-7067

#NI

All parts diagram

Zoneline h&

Part #49-7067

Replaced by #49-7140-1

?
Manufacturer substitution
This part replaces 49-7067. Substitute parts can look different from the original.
In Stock
Zoneline  H& 49-7066

#NI

All parts diagram

Zoneline h&

Part #49-7066

Replaced by #49-7140-1

?
Manufacturer substitution
This part replaces 49-7066. Substitute parts can look different from the original.
In Stock
Control Door WP71X04
#205

Cabinet diagram

Control door

Part #WP71X04

The manufacturer no longer makes this part, and there's no substitute part

Compressor Kit WJ98X543
#100

Chassis diagram

Compressor kit

Part #WJ98X543

The manufacturer no longer makes this part, and there's no substitute part

Covep Control WP79X04
#561

Cabinet diagram

Covep control

Part #WP79X04

The manufacturer no longer makes this part, and there's no substitute part

Cover Terminal WP79X01
#407

Chassis diagram

Cover terminal

Part #WP79X01

The manufacturer no longer makes this part, and there's no substitute part
