Model # 260500110 Official LXI am/fm stereo radio with cassette tape player

Here are the diagrams and repair parts for Official LXI 260500110 am/fm stereo radio with cassette tape player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Screw M3x4 4-49145
#45

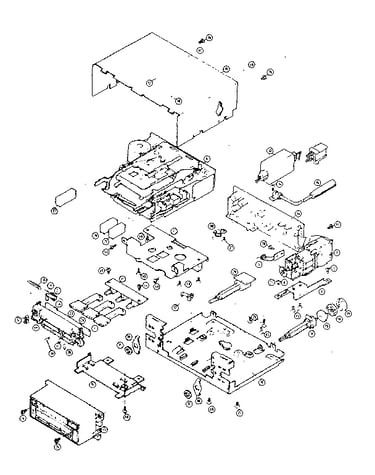

Cabinet & chassis diagram

Screw m3x4

Part #4-49145

The manufacturer no longer makes this part, and there's no substitute part

Pc Board Vol 4-44013
#29

Cabinet & chassis diagram

Pc board vol

Part #4-44013

The manufacturer no longer makes this part, and there's no substitute part

Washer 4-49128
#4

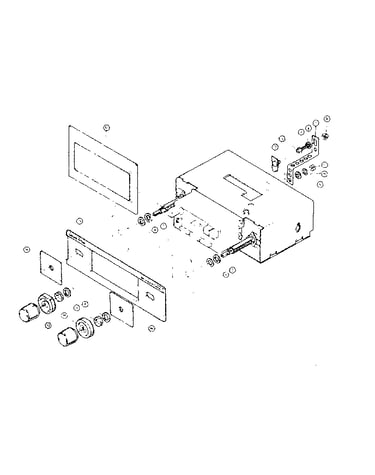

Unit diagram

Washer

Part #4-49128

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 4-46004
#1

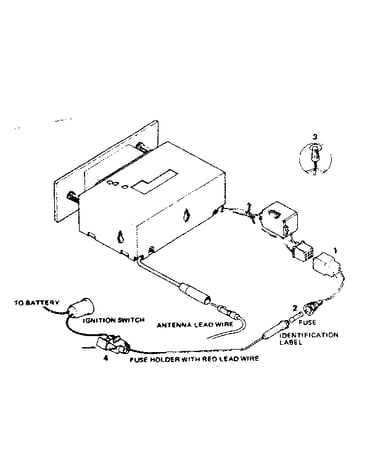

Electrical connections diagram

Wire harness

Part #4-46004

The manufacturer no longer makes this part, and there's no substitute part

Screw M2.6x4 4-49142
#27

Cabinet & chassis diagram

Screw m2.6x4

Part #4-49142

The manufacturer no longer makes this part, and there's no substitute part

Trim Plate 4-42079
#15

Unit diagram

Trim plate

Part #4-42079

The manufacturer no longer makes this part, and there's no substitute part

Antenna Receptacle 4-58000
#36

Cabinet & chassis diagram

Antenna receptacle

Part #4-58000

The manufacturer no longer makes this part, and there's no substitute part

Background 4-41007
#35

Cabinet & chassis diagram

Background

Part #4-41007

The manufacturer no longer makes this part, and there's no substitute part

Coupling 4-42001
#18

Cabinet & chassis diagram

Coupling

Part #4-42001

The manufacturer no longer makes this part, and there's no substitute part

Pilot Lamp 4-54002
#39

Cabinet & chassis diagram

Pilot lamp

Part #4-54002

The manufacturer no longer makes this part, and there's no substitute part
