Haier
Air Handler

Model # AS18TD1HRE Official Haier ductless split air conditioner

Here are the diagrams and repair parts for Official Haier AS18TD1HRE ductless split air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Ge Cross Flow Fan WJ73X23246
#5

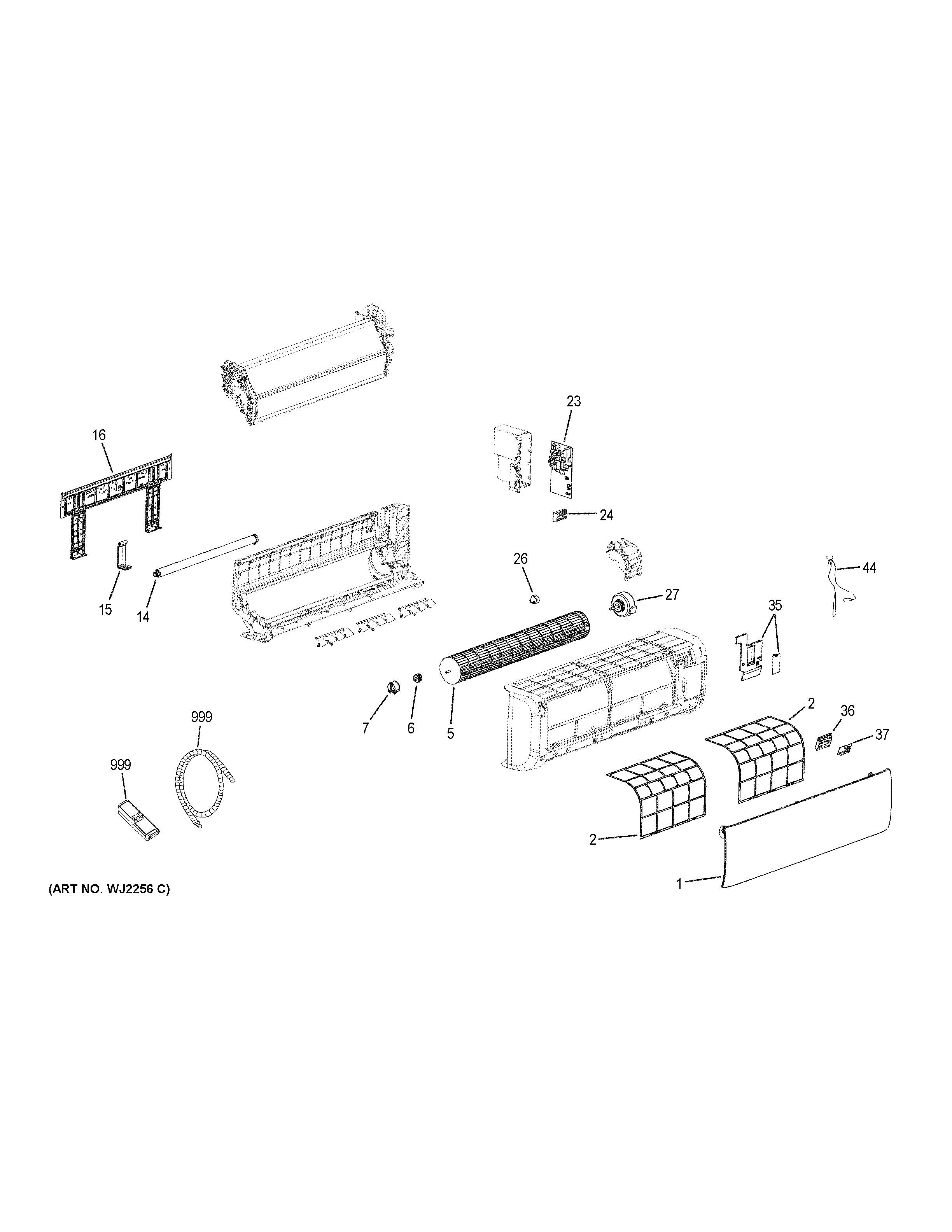

Room air conditioner diagram

Ge cross flow fan

Part #WJ73X23246

$41.24
In Stock
Stepper Motor WJ94X23241
#26

Room air conditioner diagram

Stepper motor

Part #WJ94X23241

$18.49
In Stock
Indoor Fan Motor WJ94X23249
#27

Room air conditioner diagram

Indoor fan motor

Part #WJ94X23249

$116.42
In Stock
Drain Pipe Bracket WJ65X23248
#15

Room air conditioner diagram

Drain pipe bracket

Part #WJ65X23248

$7.86
In Stock
Indoor Power Control Board WJ26X23250
#23

Room air conditioner diagram

Indoor power control board

Part #WJ26X23250

$59.82
In Stock
Drain Hose WJ53X23032
#999

Room air conditioner diagram

Drain hose

Part #WJ53X23032

$13.20
In Stock
Ge Air Filter WJ85X23244
#2

Room air conditioner diagram

Ge air filter

Part #WJ85X23244

$13.20
In Stock
Display Board Box WJ76X23264
#36

Room air conditioner diagram

Display board box

Part #WJ76X23264

This item is not returnable
$4.35
In Stock
Ge Drain Pipe WJ53X23247
#14

Room air conditioner diagram

Ge drain pipe

Part #WJ53X23247

$12.30 |
14% OFF Phone Price : $14.30
In Stock
Ge Board Cover WJ76X23245
#35

Room air conditioner diagram

Ge board cover

Part #WJ76X23245

$7.86
In Stock
