Homelite
Gas Chainsaw

Model # UT-10629 Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite UT-10629 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

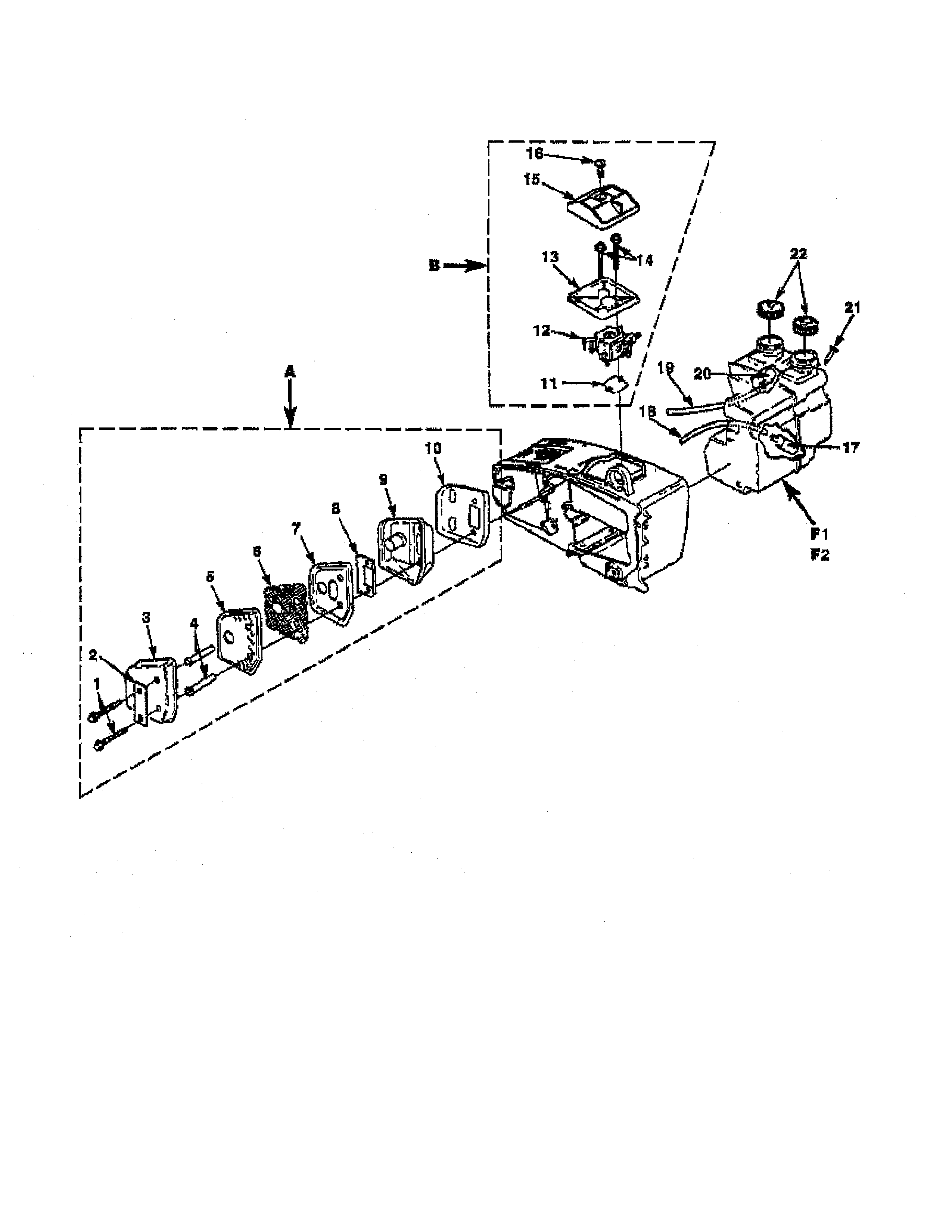

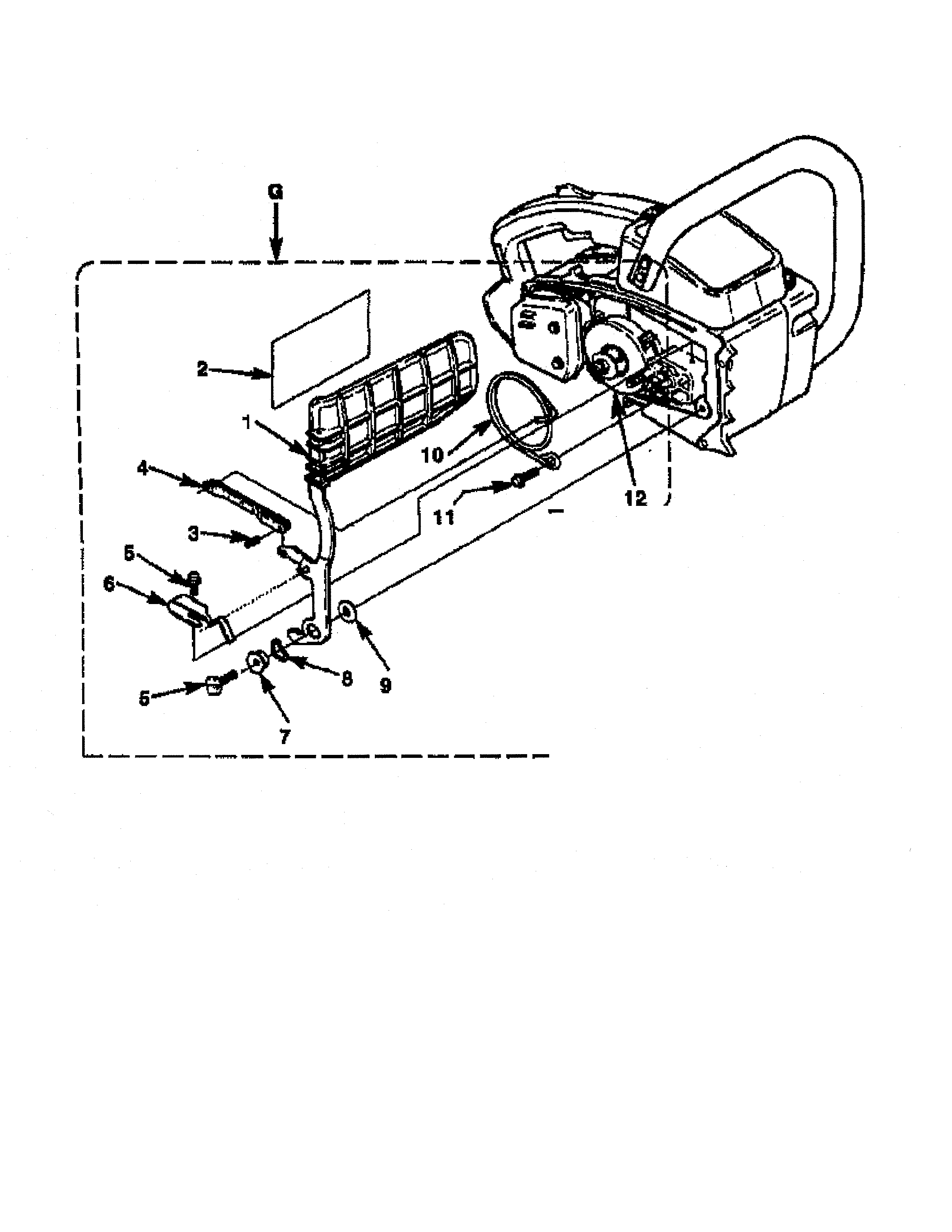

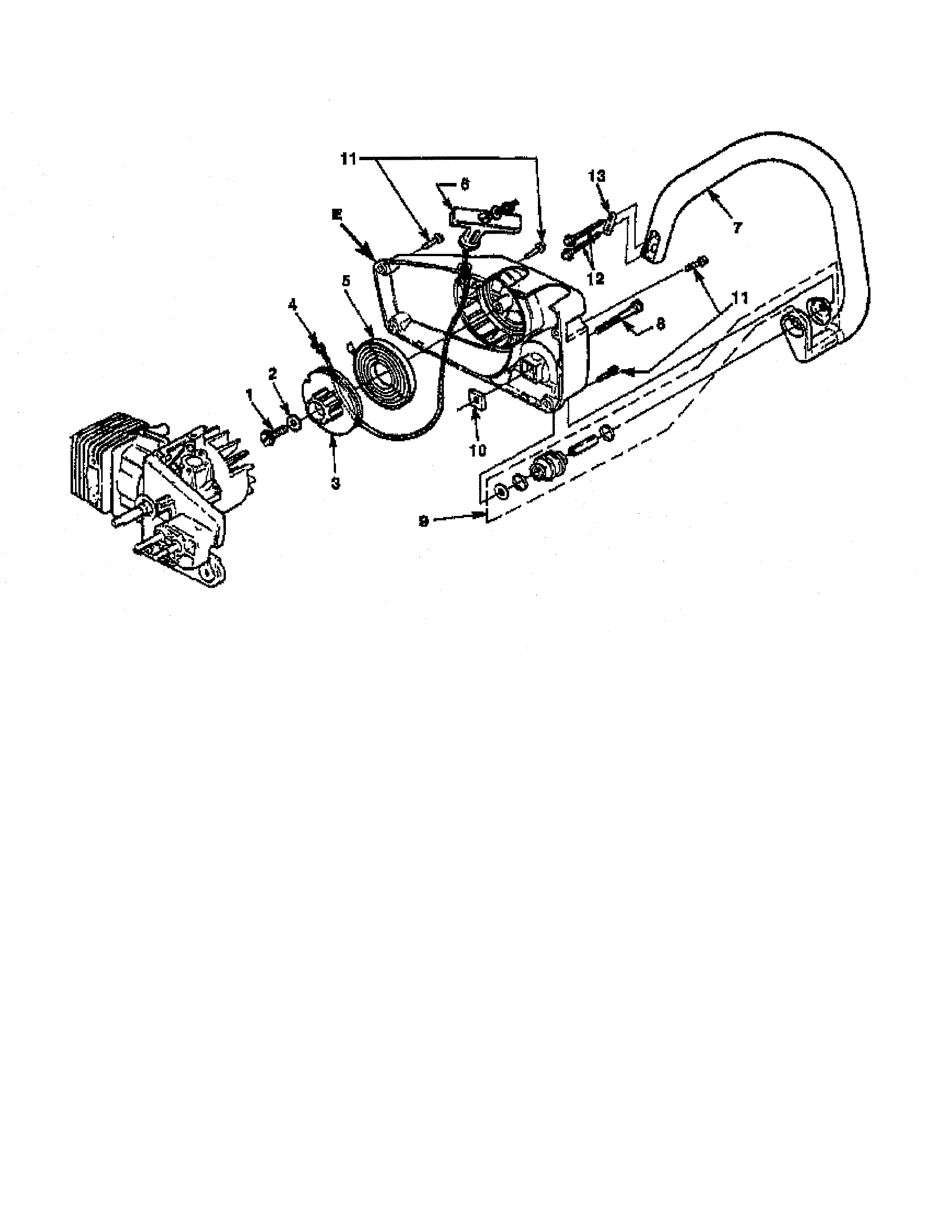

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Drive Case A01058B
#1

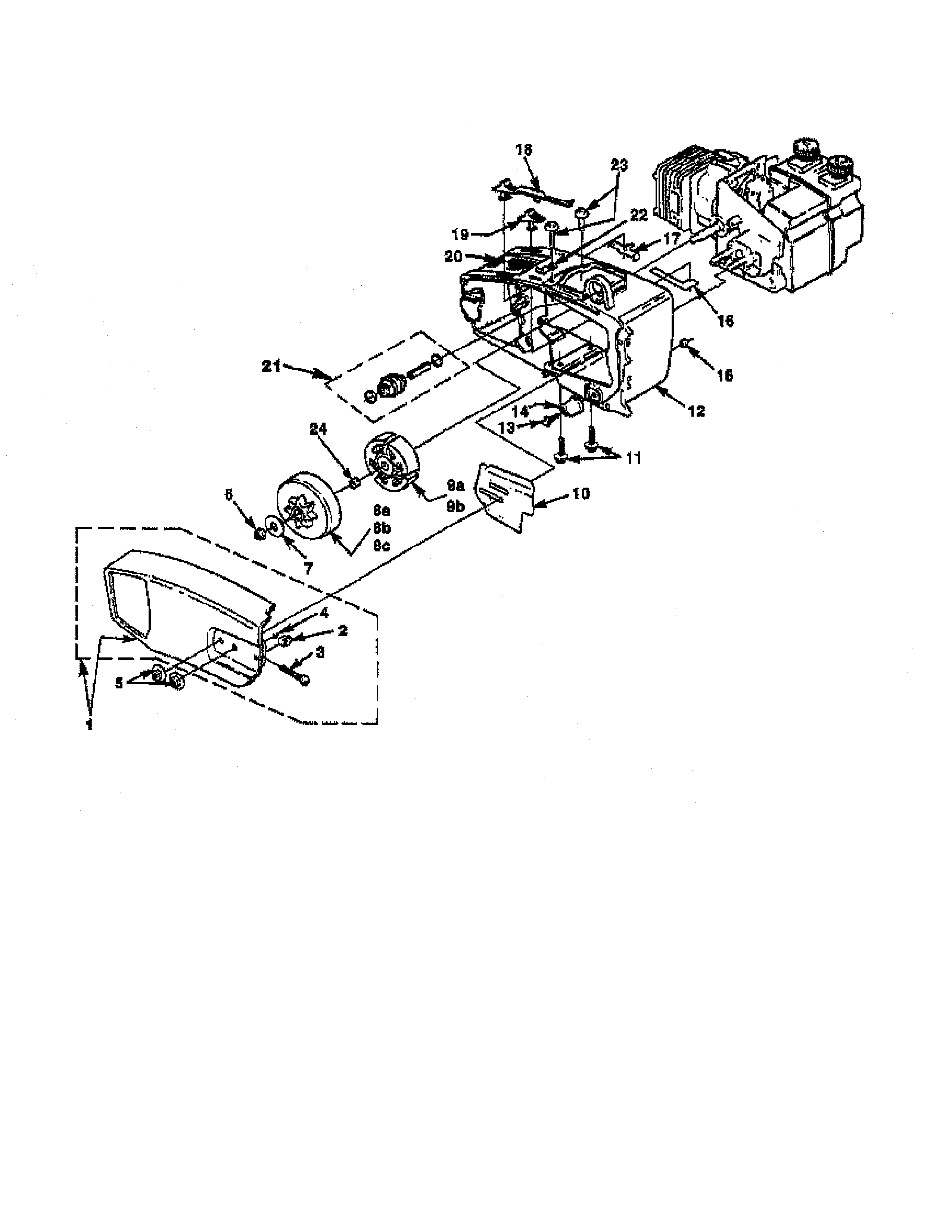

Engine housing/clutch diagram

Drive case

Part #A01058B

The manufacturer no longer makes this part, and there's no substitute part

Washer 96540
#26

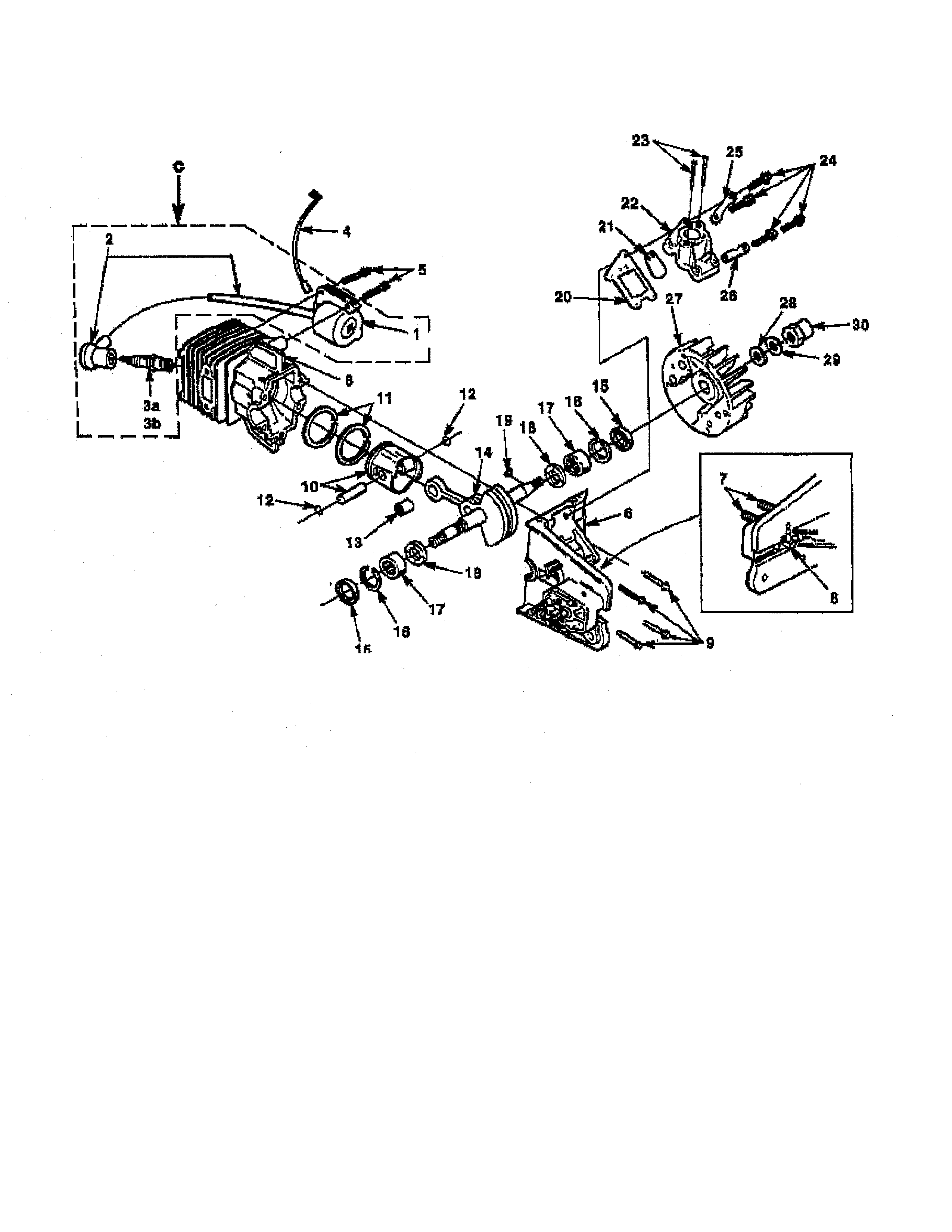

Engine internal diagram

Washer

Part #96540

The manufacturer no longer makes this part, and there's no substitute part

Safe*t*tip (standard On Units) DA70776C
#DA70776C

Tools & accessories diagram

Safe*t*tip (standard on units)

Part #DA70776C

The manufacturer no longer makes this part, and there's no substitute part

Washer 96539
#25

Engine internal diagram

Washer

Part #96539

The manufacturer no longer makes this part, and there's no substitute part

Key 69250
#19

Engine internal diagram

Key

Part #69250

The manufacturer no longer makes this part, and there's no substitute part

Retainer 95337
#19

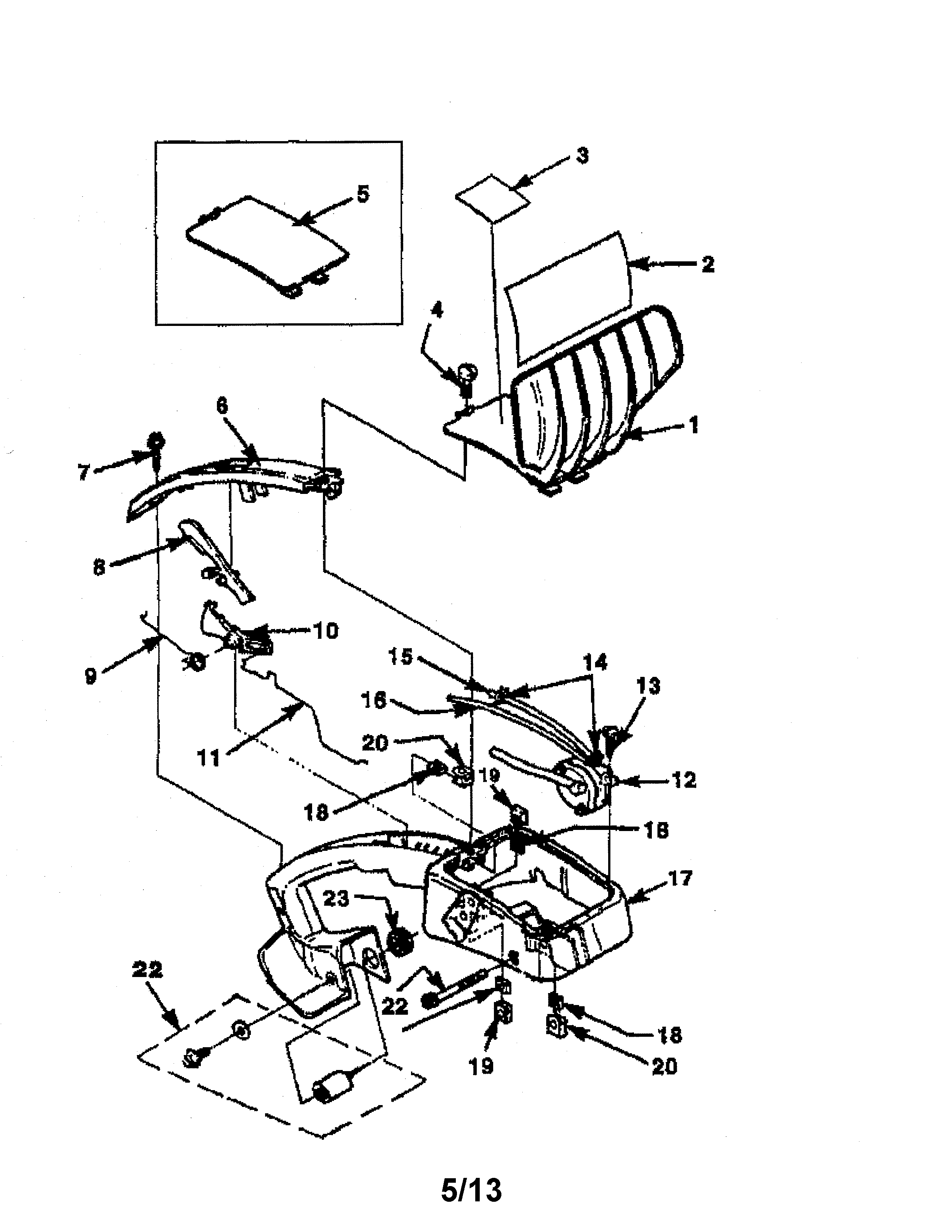

Carburetor chamber/rear handle diagram

Retainer

Part #95337

The manufacturer no longer makes this part, and there's no substitute part

Cover 95211
#6

Carburetor chamber/rear handle diagram

Cover

Part #95211

The manufacturer no longer makes this part, and there's no substitute part

Clutch A979561A
#9B

Engine housing/clutch diagram

Clutch

Part #A979561A

The manufacturer no longer makes this part, and there's no substitute part

Trigger 95032
#10

Carburetor chamber/rear handle diagram

Trigger

Part #95032

The manufacturer no longer makes this part, and there's no substitute part

Cover, A/f A03151
#1

Carburetor chamber/rear handle diagram

Cover, a/f

Part #A03151

The manufacturer no longer makes this part, and there's no substitute part
