Porter Cable
Power Sander

Model # 305 Official Porter Cable sander

Here are the diagrams and repair parts for Official Porter Cable 305 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Washer 803745
#3C

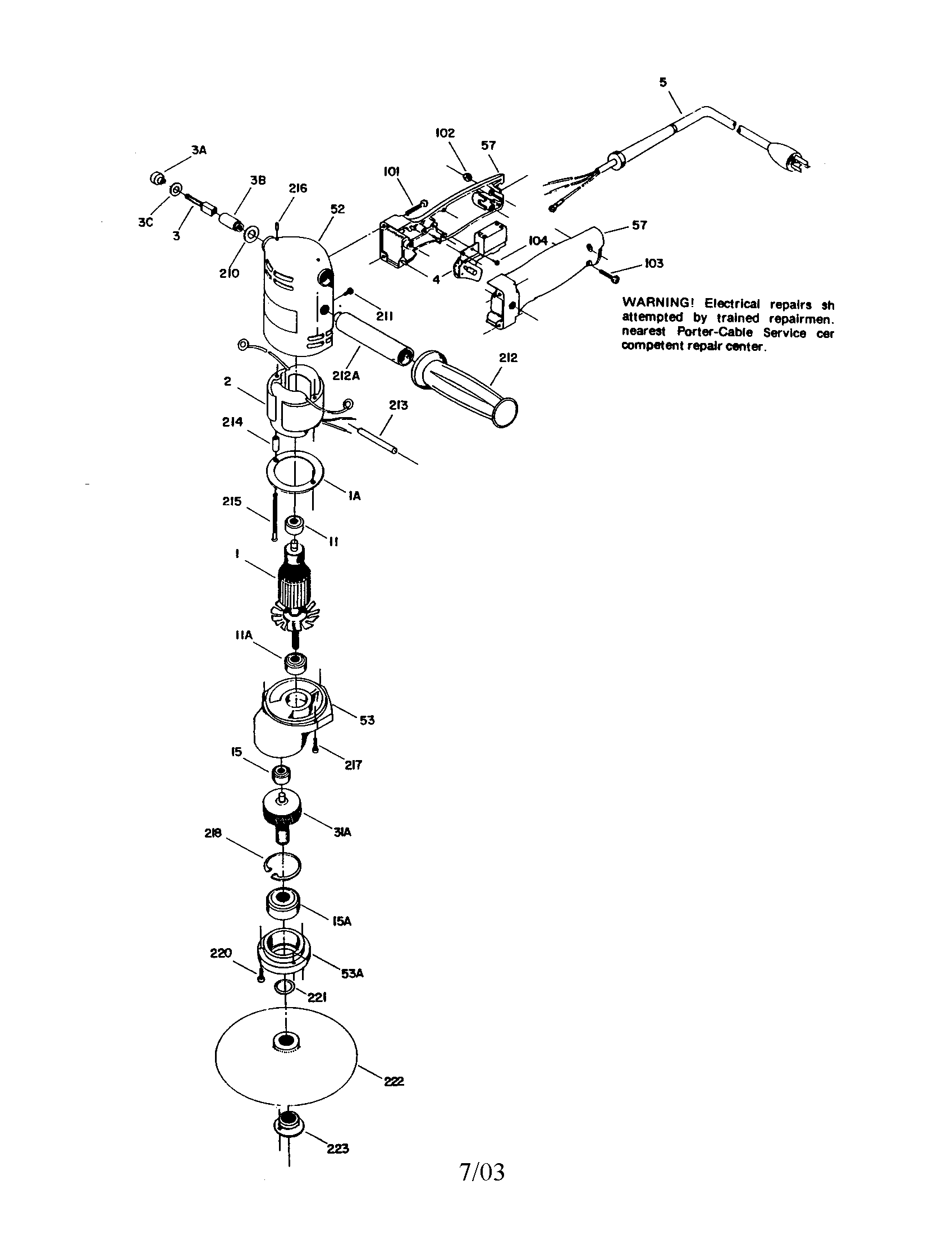

Disc sander and disc polisher diagram

Washer

Part #803745

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Brush And Spring 802173
#3

Disc sander and disc polisher diagram

Sander motor brush and spring

Part #802173

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder Washer 802211
#210

Disc sander and disc polisher diagram

Brush holder washer

Part #802211

The manufacturer no longer makes this part, and there's no substitute part

Sears Lever Screw, T1 802589
#103

Disc sander and disc polisher diagram

Sears lever screw, t1

Part #802589

The manufacturer no longer makes this part, and there's no substitute part

Sears Grnd Screw 844107
#104

Disc sander and disc polisher diagram

Sears grnd screw

Part #844107

The manufacturer no longer makes this part, and there's no substitute part

Sears Nut 862641
#102

Disc sander and disc polisher diagram

Sears nut

Part #862641

The manufacturer no longer makes this part, and there's no substitute part

Cover Screw 802207
#220

Disc sander and disc polisher diagram

Cover screw

Part #802207

The manufacturer no longer makes this part, and there's no substitute part

Lubricant 801946

#NI04

All parts diagram

Lubricant

Part #801946

The manufacturer no longer makes this part, and there's no substitute part

Washer 802223
#221

Disc sander and disc polisher diagram

Washer

Part #802223

The manufacturer no longer makes this part, and there's no substitute part

Aux. Handle Insert (current) 695055
#212A

Disc sander and disc polisher diagram

Aux. handle insert (current)

Part #695055

The manufacturer no longer makes this part, and there's no substitute part
