Electric Water Heater

Model # P661OMS Official State water heater

Here are the diagrams and repair parts for Official State P661OMS water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Owner's Manual 2917330
#NI

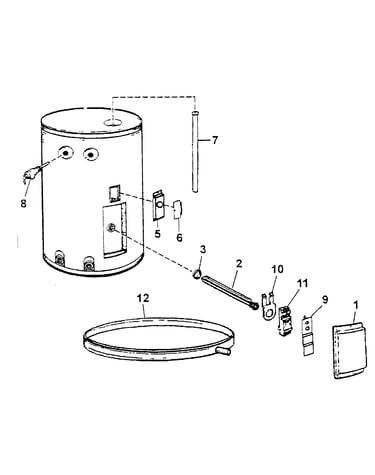

Water heater diagram

Owner's manual

Part #2917330

Replaced by #0002917330

?
Manufacturer substitution
This part replaces 2917330. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Release Valve 076527-000
#8

Water heater diagram

Release valve

Part #076527-000

Replaced by #100108279

?
Manufacturer substitution
This part replaces 076527-000. Substitute parts can look different from the original.
$32.22
In Stock
Element 042285-004
#2

Water heater diagram

Element

Part #042285-004

The manufacturer no longer makes this part, and there's no substitute part

Plastic Stnd 9002844
#12B

Water heater diagram

Plastic stnd

Part #9002844

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 9002842
#12

Water heater diagram

Drain pan

Part #9002842

The manufacturer no longer makes this part, and there's no substitute part

J.box Covr 184860-000
#6

Water heater diagram

J.box covr

Part #184860-000

The manufacturer no longer makes this part, and there's no substitute part

Gasket 5300370
#3

Water heater diagram

Gasket

Part #5300370

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 9002843
#12A

Water heater diagram

Drain pan

Part #9002843

The manufacturer no longer makes this part, and there's no substitute part

Bracket 184608-000
#10

Water heater diagram

Bracket

Part #184608-000

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 183523-009
#7

Water heater diagram

Anode rod

Part #183523-009

The manufacturer no longer makes this part, and there's no substitute part
