GE
Wall Oven/Microwave Combo

Model # PT970SR1SS Official GE wall oven

Here are the diagrams and repair parts for Official GE PT970SR1SS wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

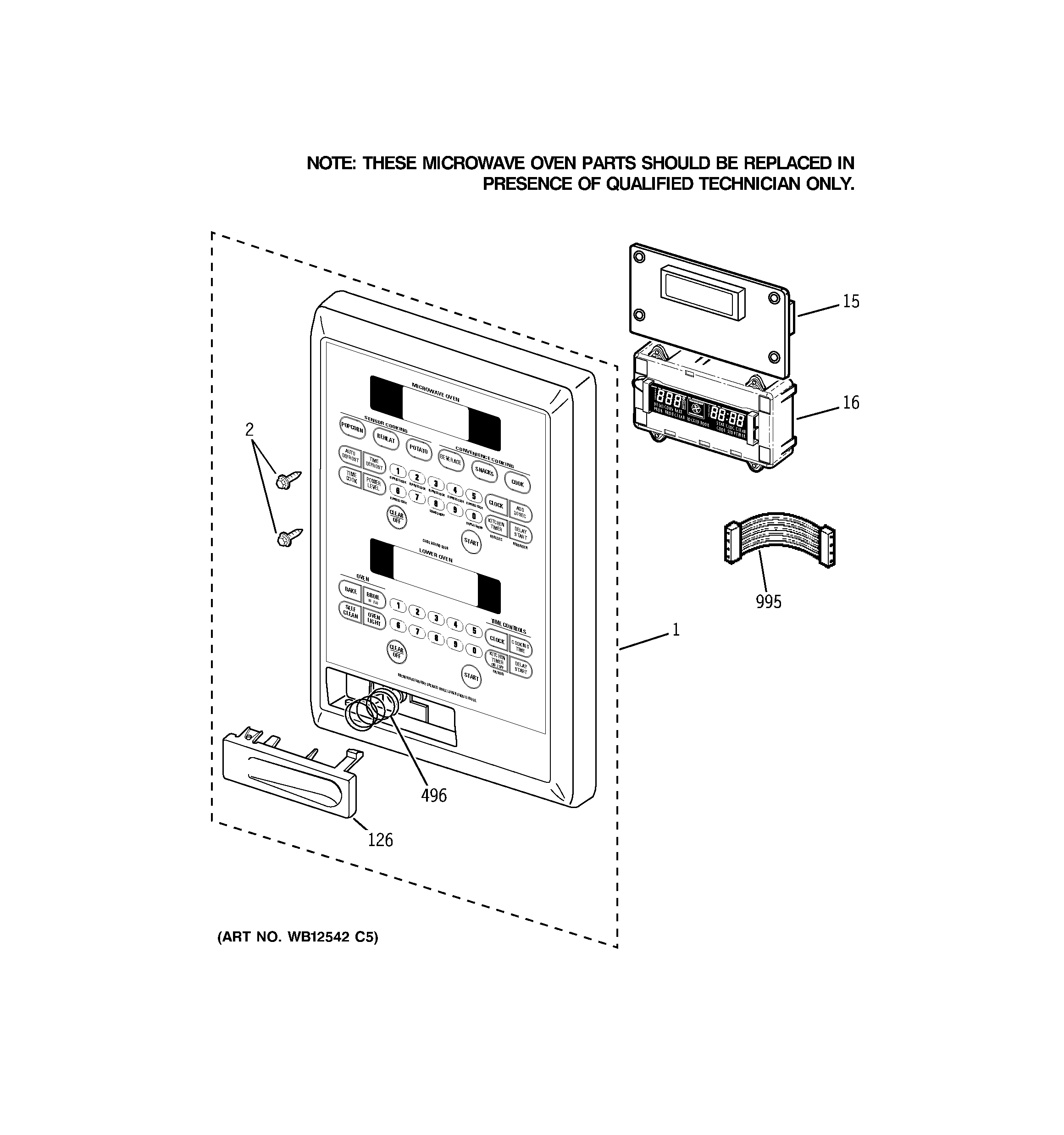

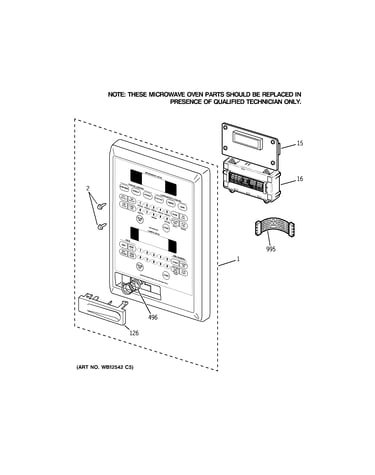

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Appliance Light Bulb, 40-watt 40A15
#257

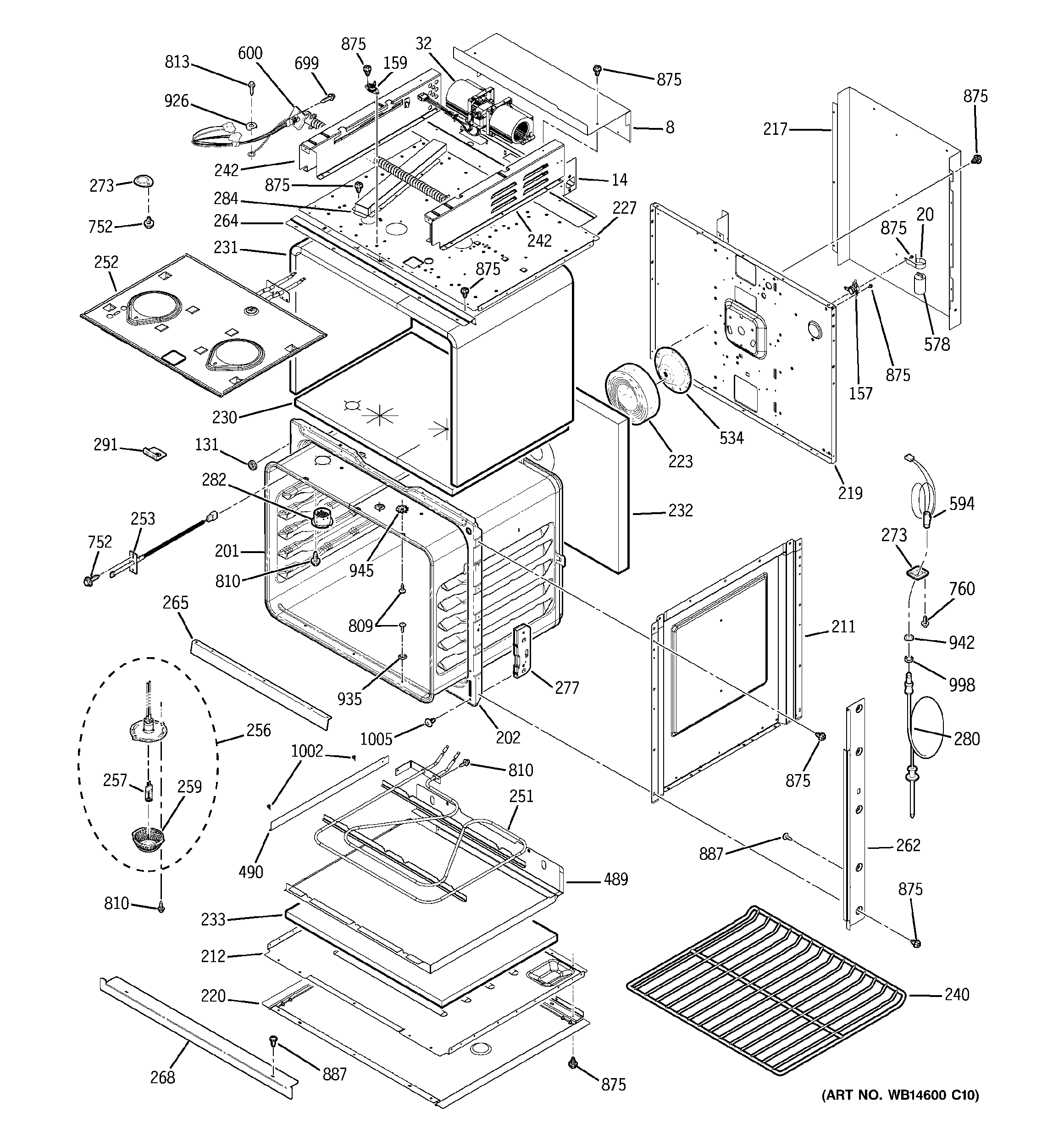

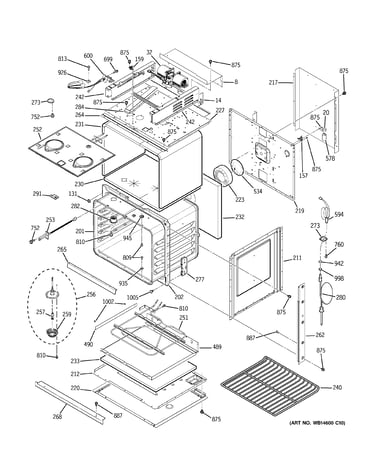

Body with microwave support diagram

Appliance light bulb, 40-watt

Part #40A15

Replaced by #40A15

?
Manufacturer substitution
This part replaces 40A15. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Switch-micro WB24X0829
#576

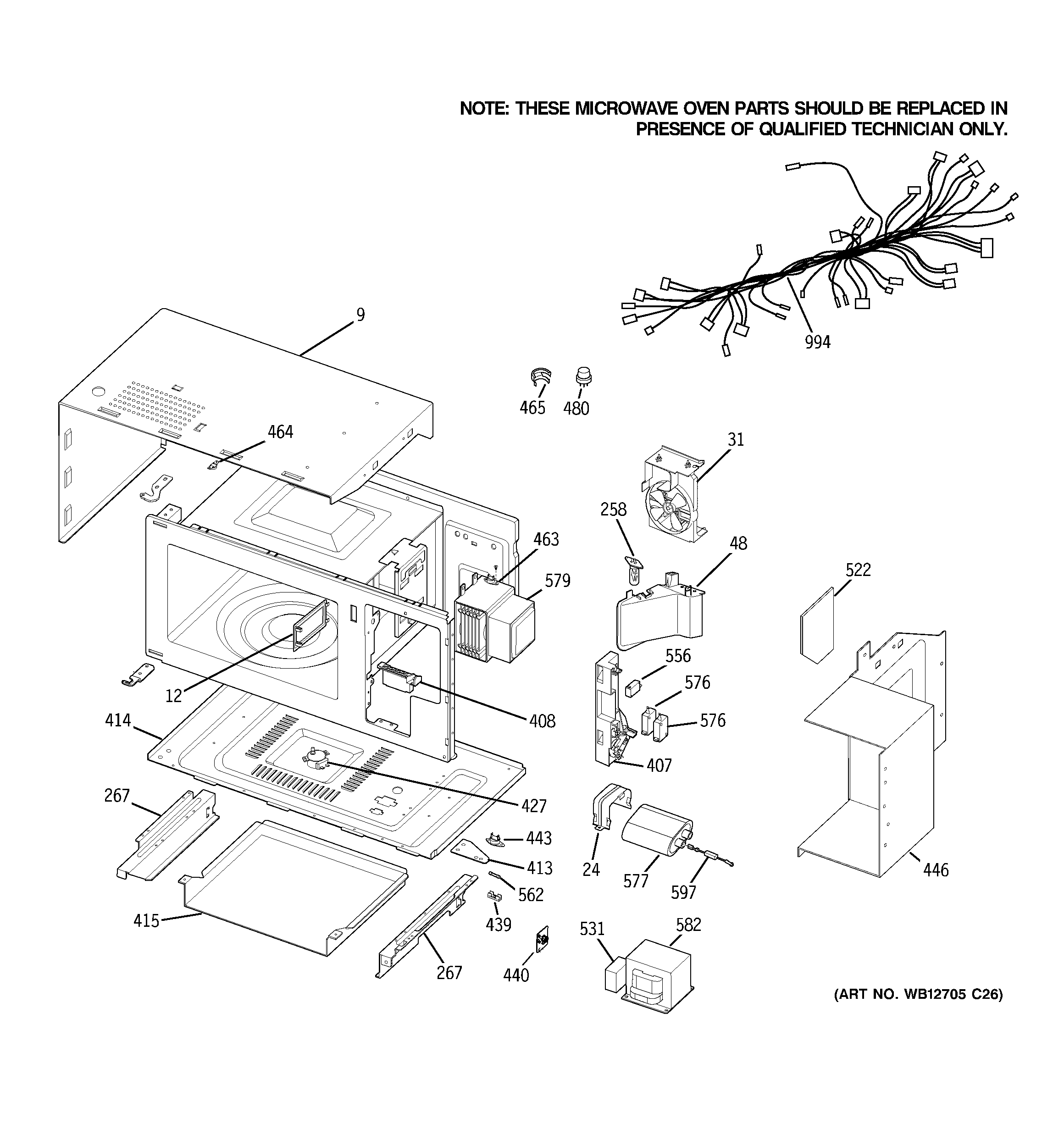

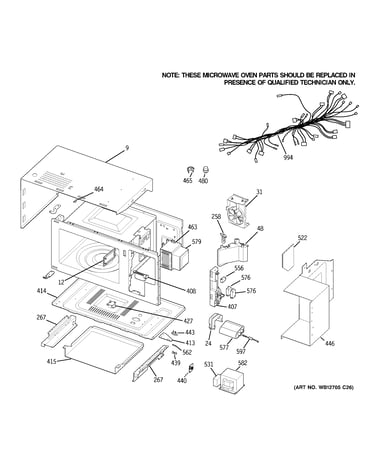

Microwave body parts diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Cartridge WB27X10474
#562

Microwave body parts diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Monitor Switch WB24X0830
#556

Microwave body parts diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

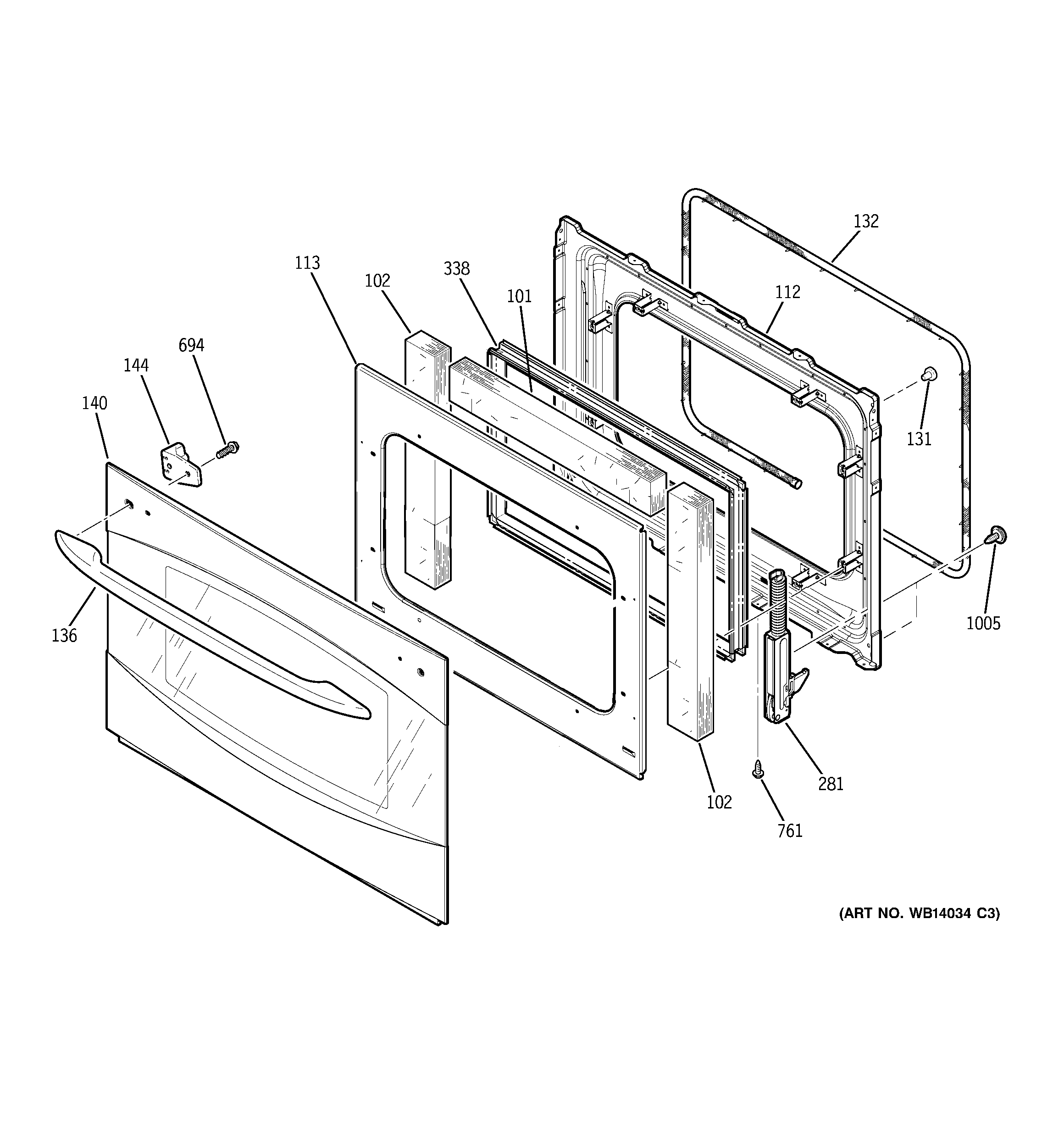

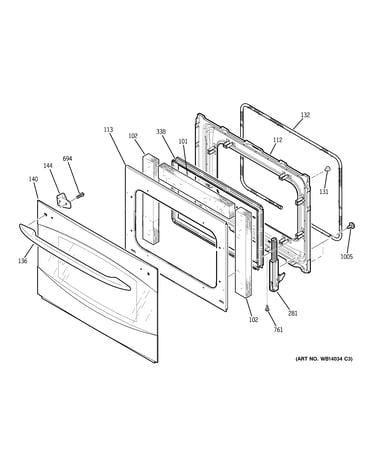

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Microwave Magnetron (replaces Wb27x10343, Wb27x1114) WB27X10516
#579

Microwave body parts diagram

Microwave magnetron (replaces wb27x10343, wb27x1114)

Part #WB27X10516

BEST SELLER
$263.24 |
$12.00 OFF Phone Price : $275.24
In Stock
Oven Lamp Holder WB08T10002
#256

Body with microwave support diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

Body with microwave support diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Microwave High-voltage Capacitor (replaces Wb27x254) WB27X10073
#577

Microwave body parts diagram

Microwave high-voltage capacitor (replaces wb27x254)

Part #WB27X10073

$67.21 |
8% OFF Phone Price : $73.21
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
