Model # 116C85PAKS0VU06 Official Kenmore powermate jr. vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 116C85PAKS0VU06 powermate jr. vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Screw 4152468
#3

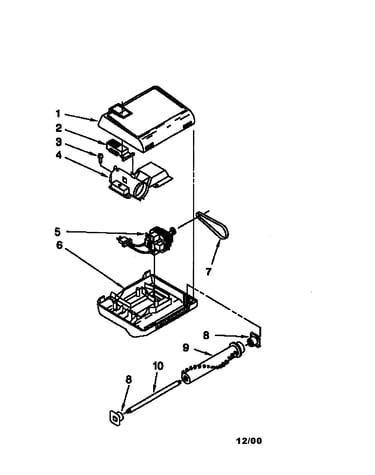

Power mate jr diagram

Screw

Part #4152468

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 4152468. Substitute parts can look different from the original.
$13.06
In Stock
(not Serviced, Use Old ) Screw, Motor Brush N/P
#5

Power mate jr diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 4370731
#1

Power mate jr diagram

Nozzle

Part #4370731

The manufacturer no longer makes this part, and there's no substitute part

Intake Tube 4368508
#4

Power mate jr diagram

Intake tube

Part #4368508

The manufacturer no longer makes this part, and there's no substitute part

Shaft 4152439
#10

Power mate jr diagram

Shaft

Part #4152439

The manufacturer no longer makes this part, and there's no substitute part

Lock Button 4370734
#2

Power mate jr diagram

Lock button

Part #4370734

The manufacturer no longer makes this part, and there's no substitute part

Cap 4152440
#8

Power mate jr diagram

Cap

Part #4152440

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 4368510
#7

Power mate jr diagram

Vacuum beater bar belt

Part #4368510

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base 4370732
#6

Power mate jr diagram

Nozzle base

Part #4370732

The manufacturer no longer makes this part, and there's no substitute part

Brush-rtry 4368511
#9

Power mate jr diagram

Brush-rtry

Part #4368511

The manufacturer no longer makes this part, and there's no substitute part
