Craftsman
Electric Walk-Behind Mower

Model # 31591400 Official Craftsman 18" electric rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 31591400 18" electric rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |

Chute Deflector 4-617542-02
#13

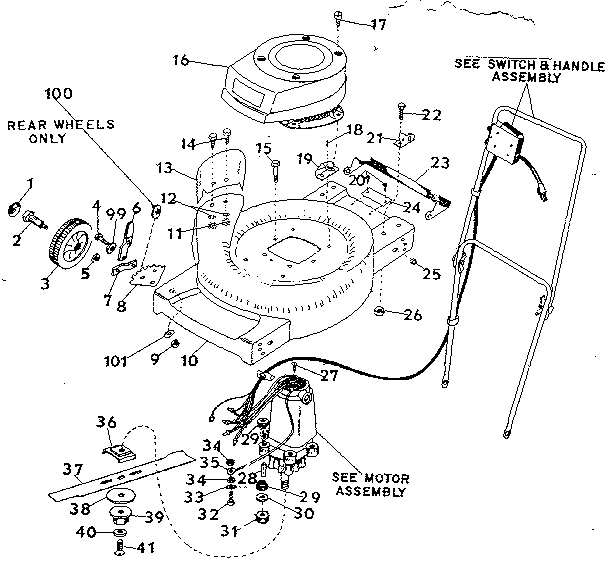

Mower housing diagram

Chute deflector

Part #4-617542-02

The manufacturer no longer makes this part, and there's no substitute part

El Connector 1-622165-01
#45

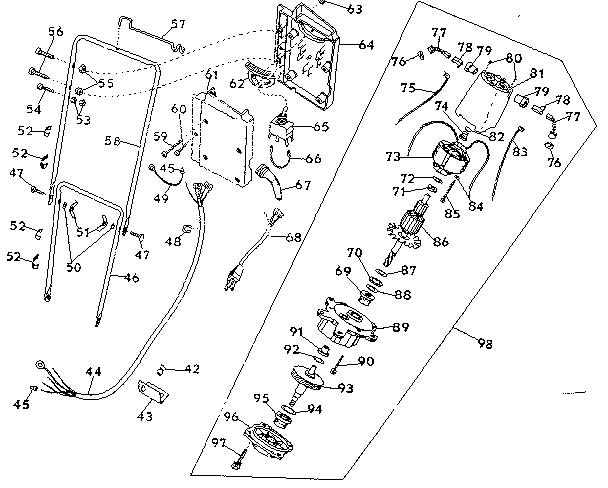

Motor diagram

El connector

Part #1-622165-01

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-706382-815
#12

Mower housing diagram

Washer

Part #1-706382-815

The manufacturer no longer makes this part, and there's no substitute part

Blade 3-617449-01
#37

Mower housing diagram

Blade

Part #3-617449-01

The manufacturer no longer makes this part, and there's no substitute part

Retaining Rg 1-617932-01
#87

Motor diagram

Retaining rg

Part #1-617932-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-615695-02
#97

Motor diagram

Screw

Part #1-615695-02

The manufacturer no longer makes this part, and there's no substitute part

Bracket 2-606936-03
#19

Mower housing diagram

Bracket

Part #2-606936-03

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-703428-10
#41

Mower housing diagram

Screw

Part #1-703428-10

The manufacturer no longer makes this part, and there's no substitute part

Core Field 3-617473-01
#73

Motor diagram

Core field

Part #3-617473-01

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 2-624197-01
#79

Motor diagram

Brush holder

Part #2-624197-01

The manufacturer no longer makes this part, and there's no substitute part
