Model # FR600V-AS06 Official Kawasaki engine

Here are the diagrams and repair parts for Official Kawasaki FR600V-AS06 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

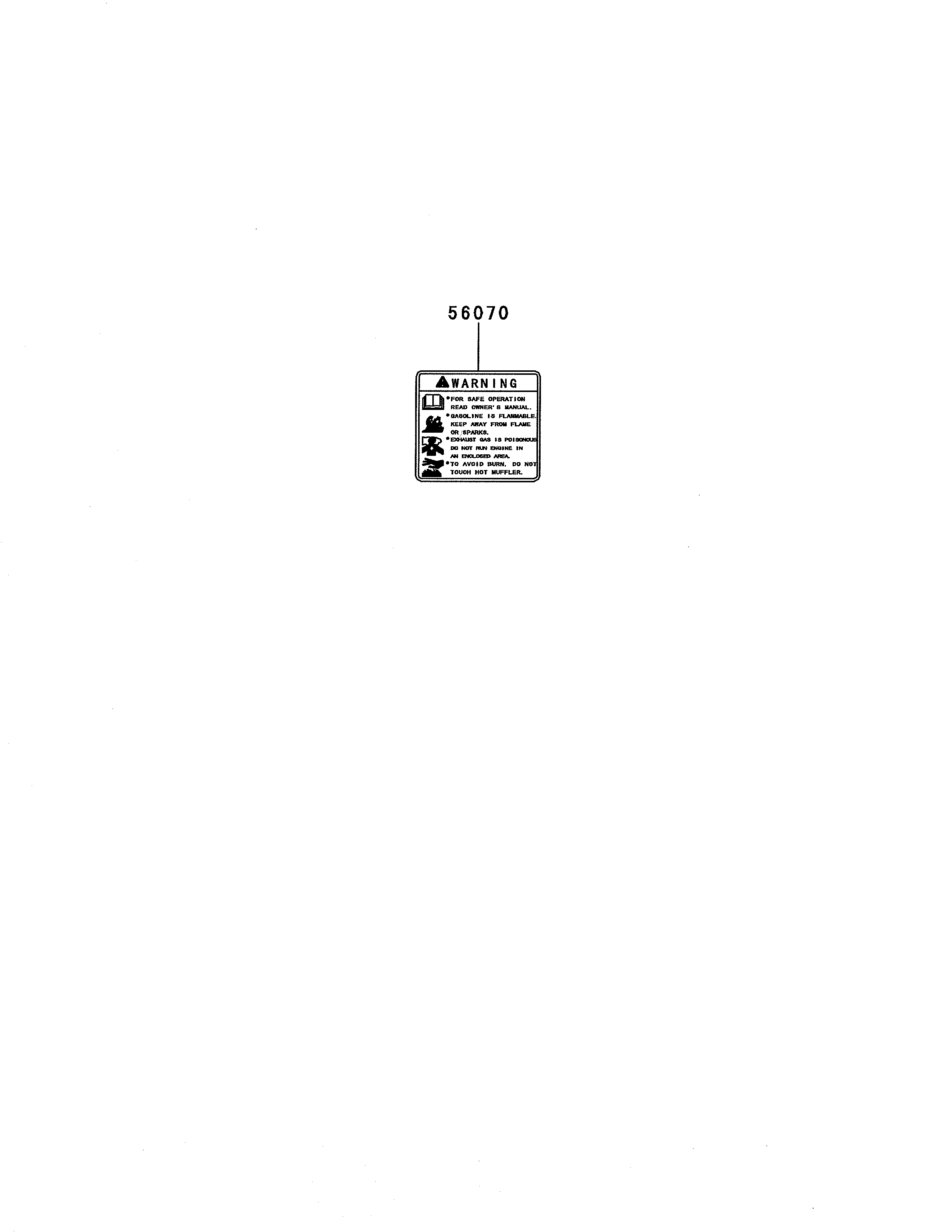

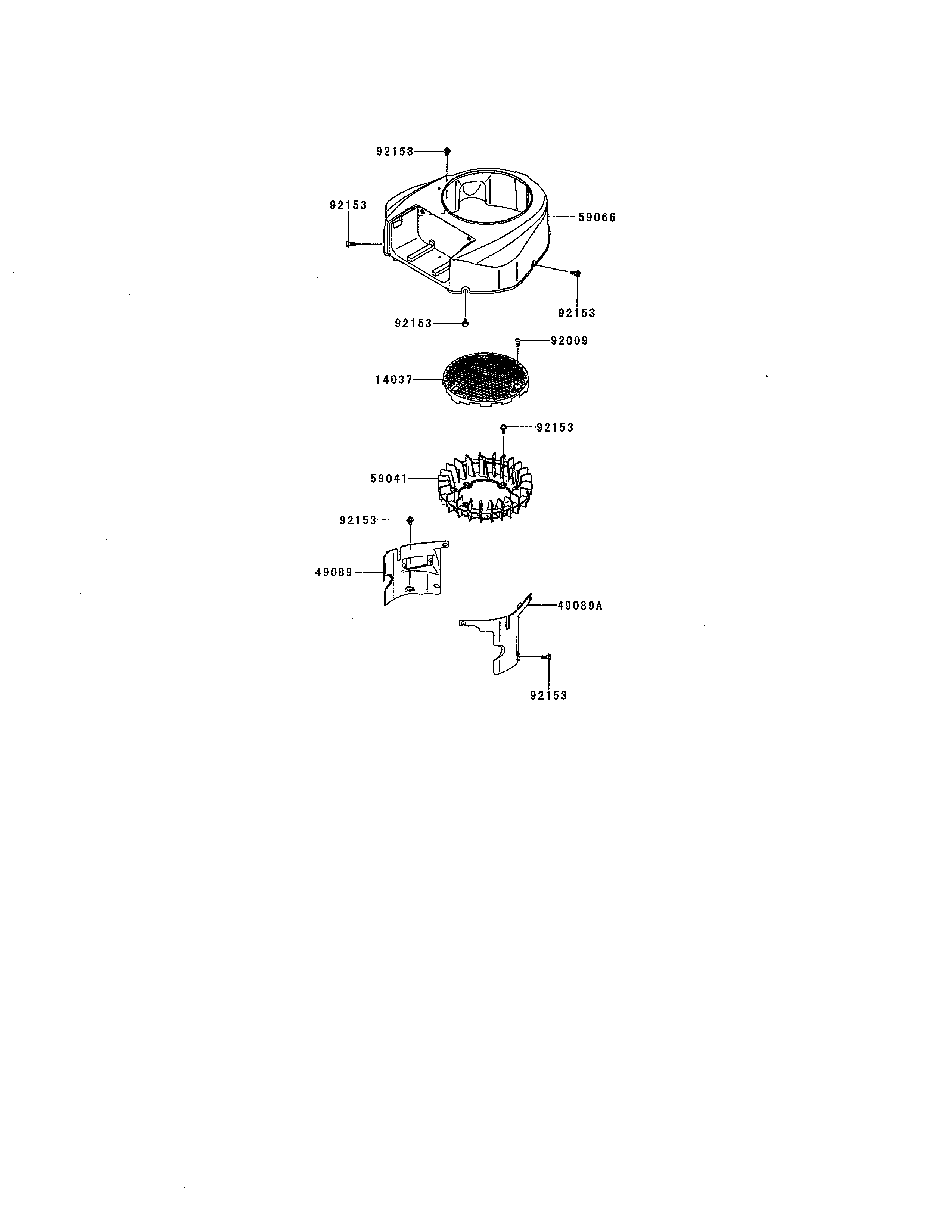

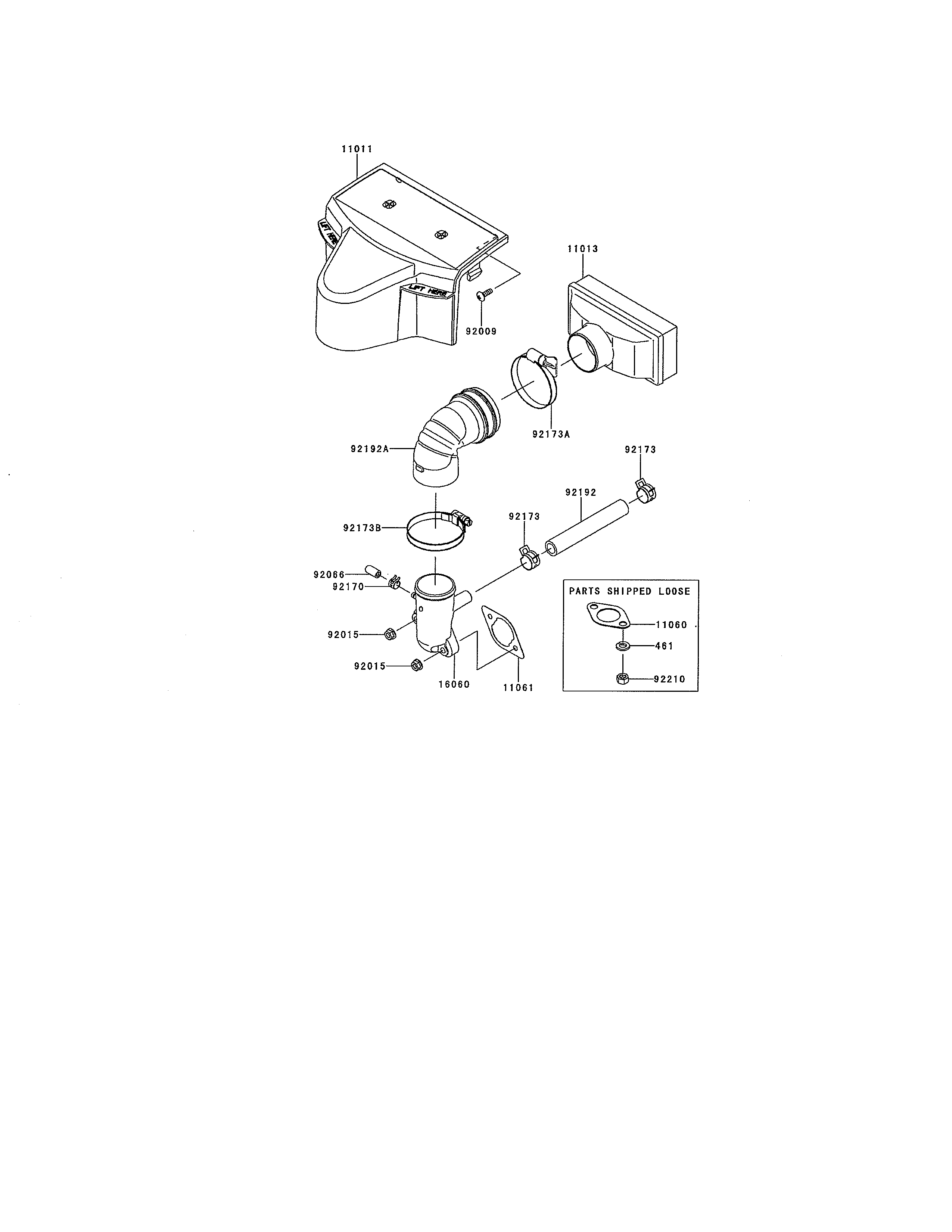

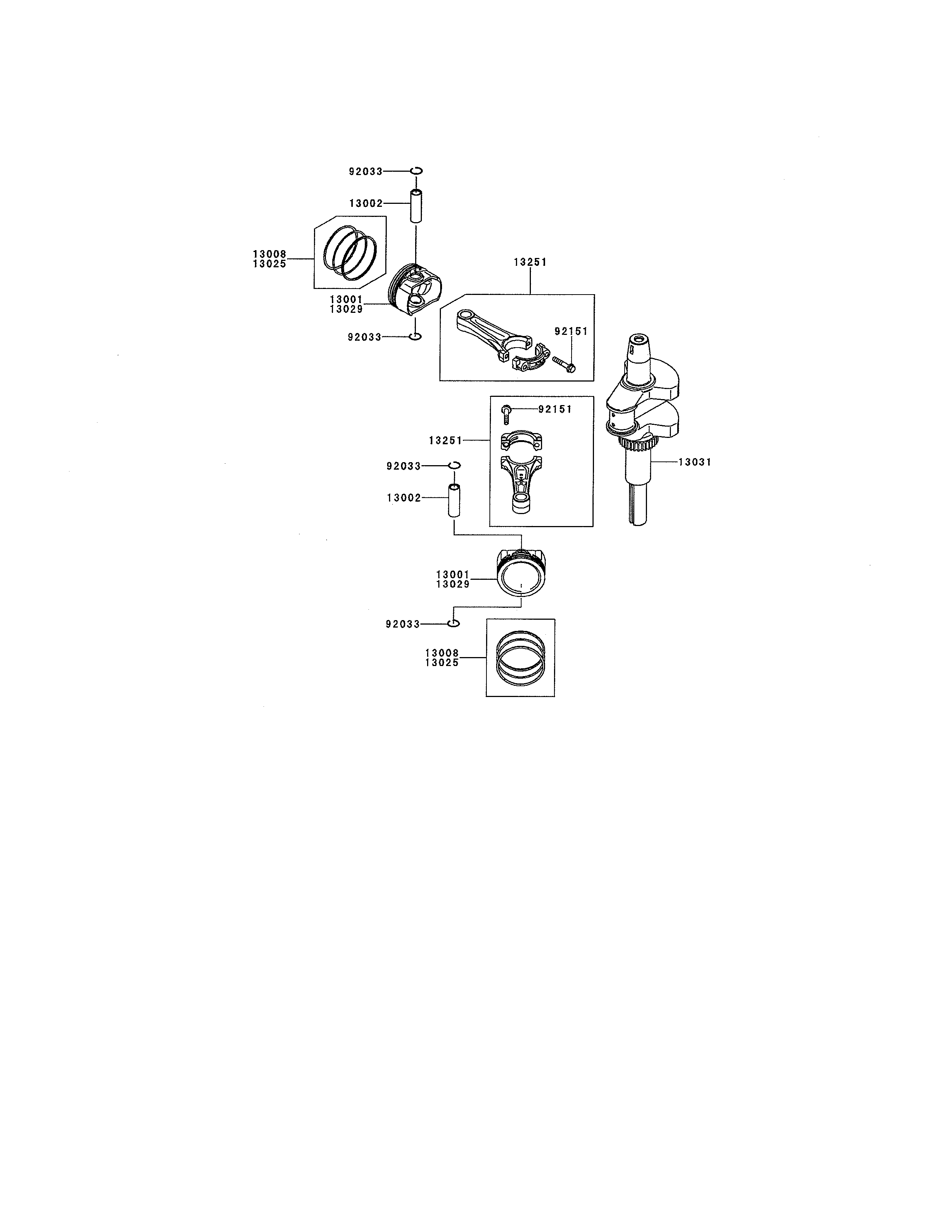

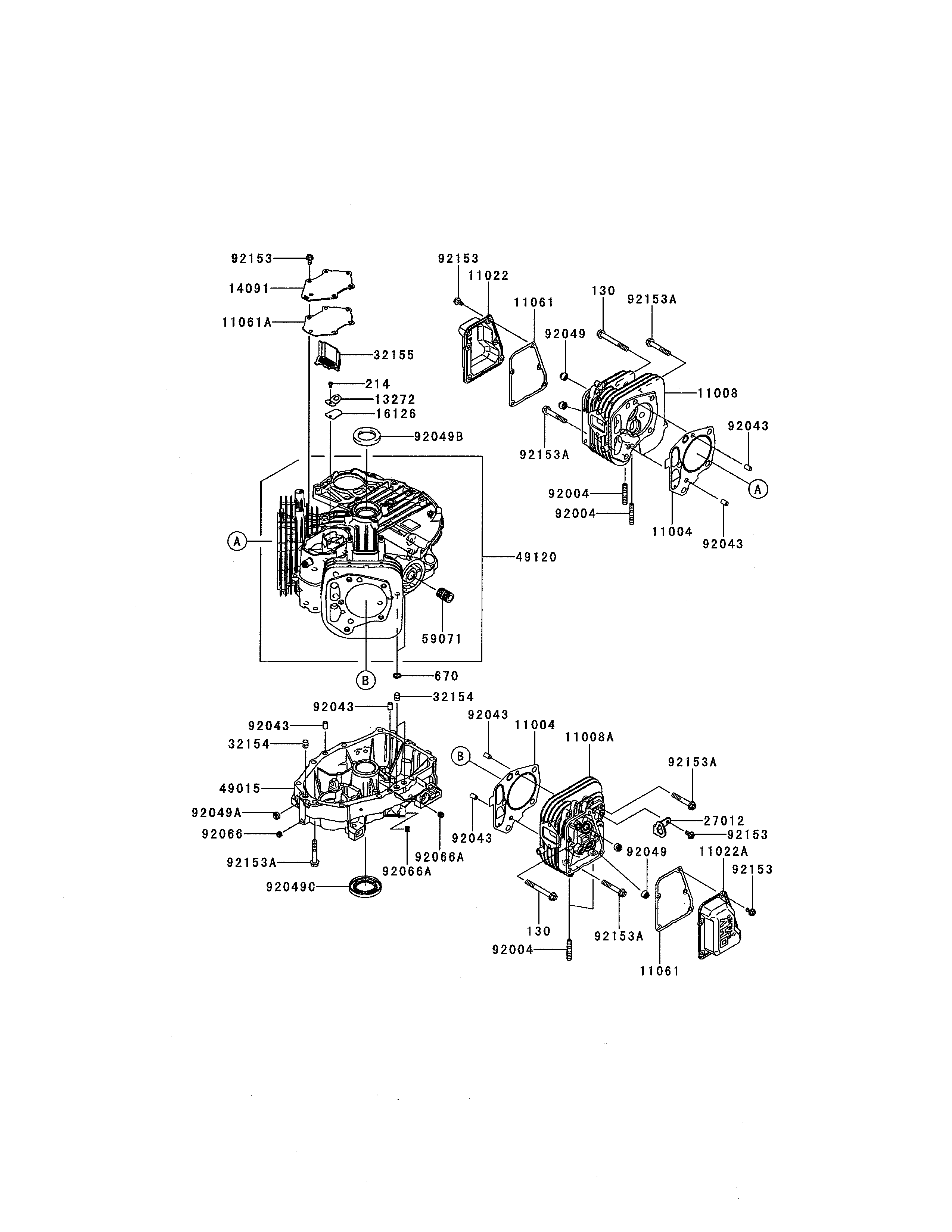

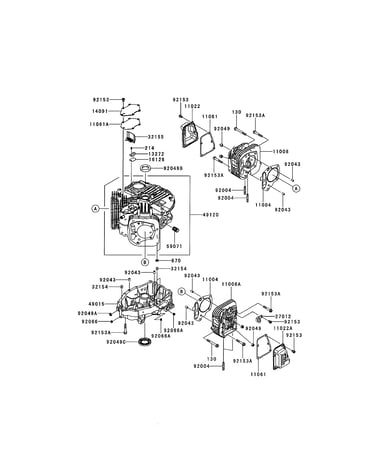

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Lawn & Garden Equipment Engine Spark Plug BPR4ES
#92070

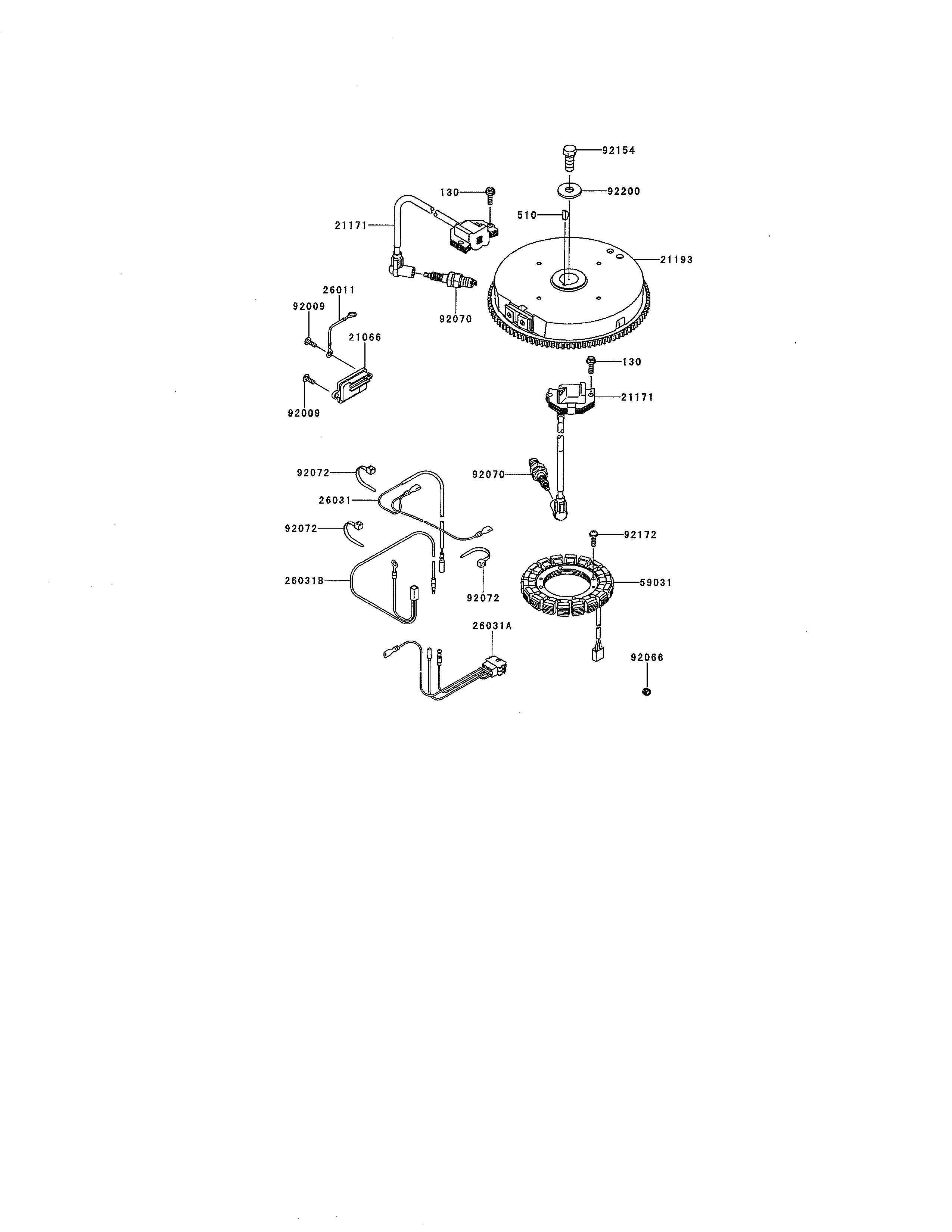

Electric equipment diagram

Lawn & garden equipment engine spark plug

Part #BPR4ES

Replaced by #6578

?
Manufacturer substitution
This part replaces BPR4ES. Substitute parts can look different from the original.
This item is not returnable
$5.60
In Stock
Starter 21163-7036
#21163

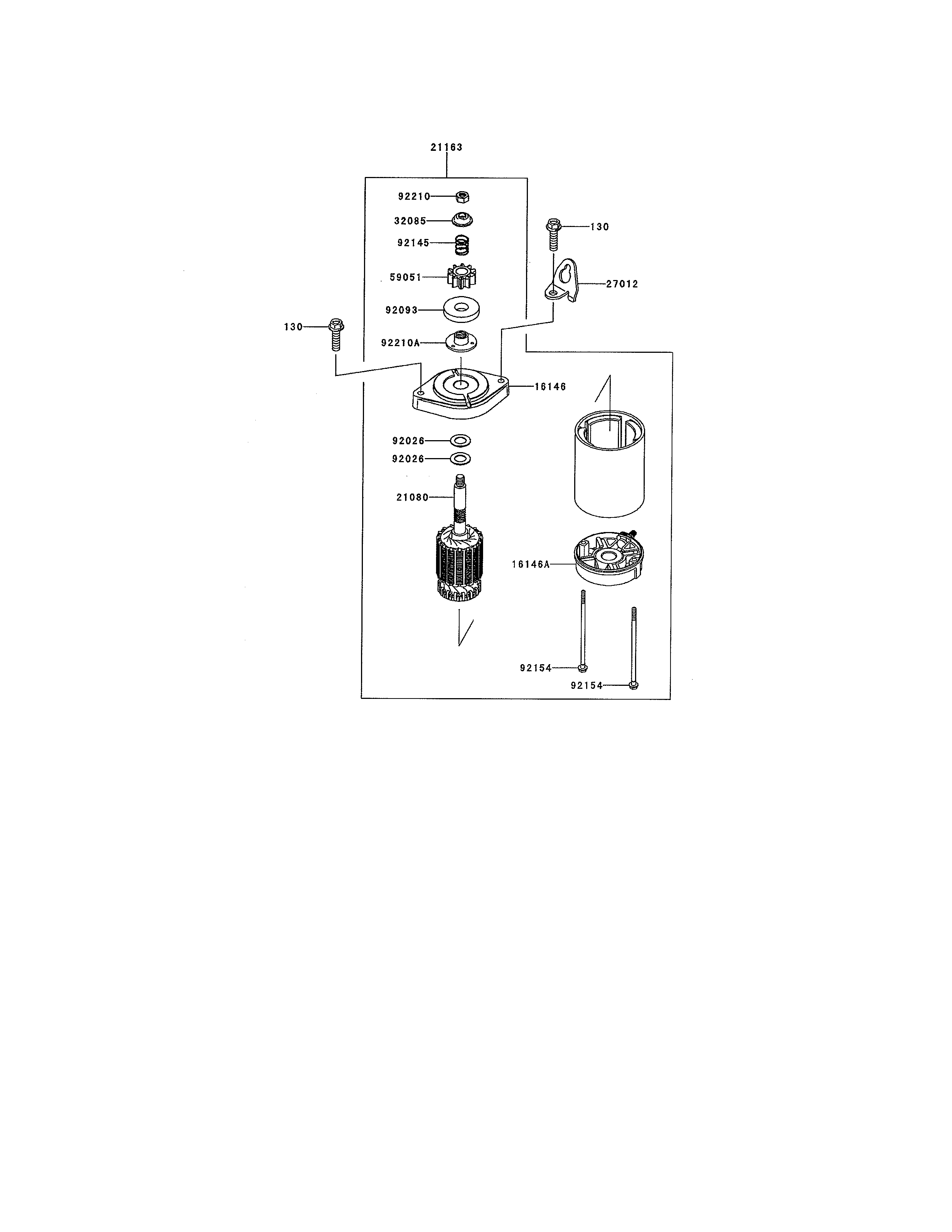

Starter diagram

Starter

Part #21163-7036

Replaced by #KM-21163-0804

?
Manufacturer substitution
This part replaces 21163-7036. Substitute parts can look different from the original.
$357.45
In Stock
Solenoid 21188-7002
#21188

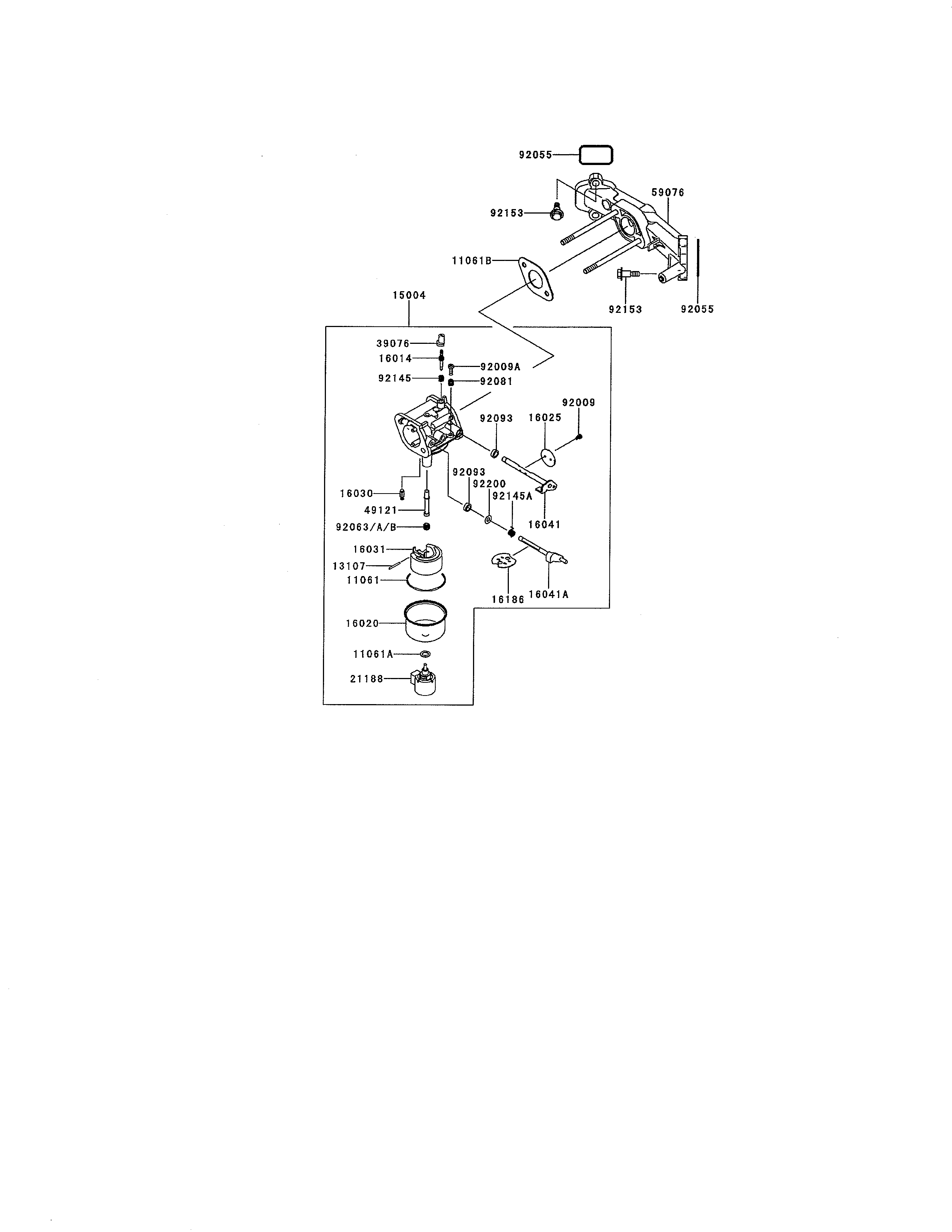

Carburetor diagram

Solenoid

Part #21188-7002

Replaced by #KM-21188-7002

?
Manufacturer substitution
This part replaces 21188-7002. Substitute parts can look different from the original.
$286.02
In Stock
Inner Pump 16154-7011
#16154A

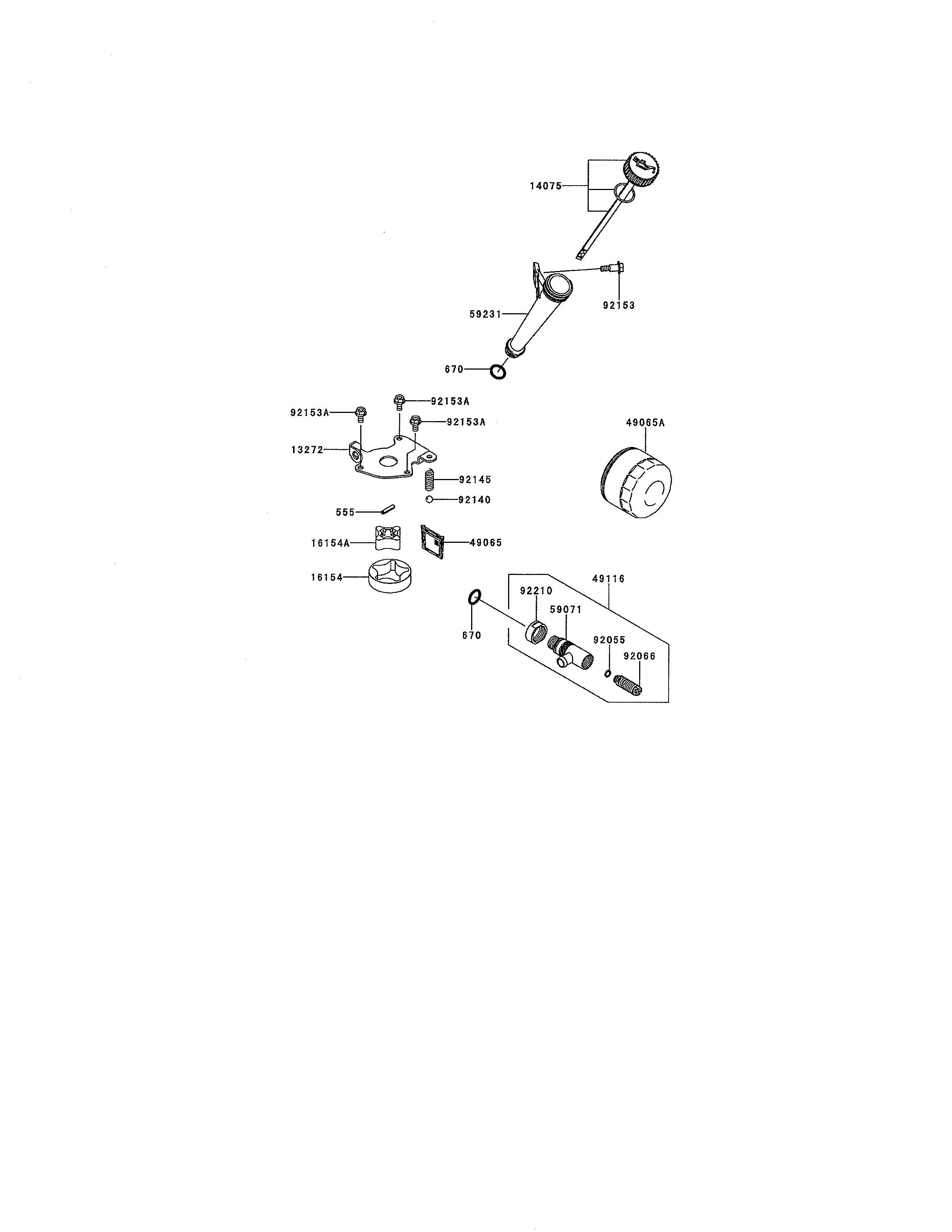

Lubrication equipment diagram

Inner pump

Part #16154-7011

Replaced by #KM-16154-7011

?
Manufacturer substitution
This part replaces 16154-7011. Substitute parts can look different from the original.
$18.83
In Stock
Screw 92009-2349
#92009A

Carburetor diagram

Screw

Part #92009-2349

Replaced by #KM-92009-2349

?
Manufacturer substitution
This part replaces 92009-2349. Substitute parts can look different from the original.
This item is not returnable
$3.44
In Stock
Spring 92145-7057
#92145A

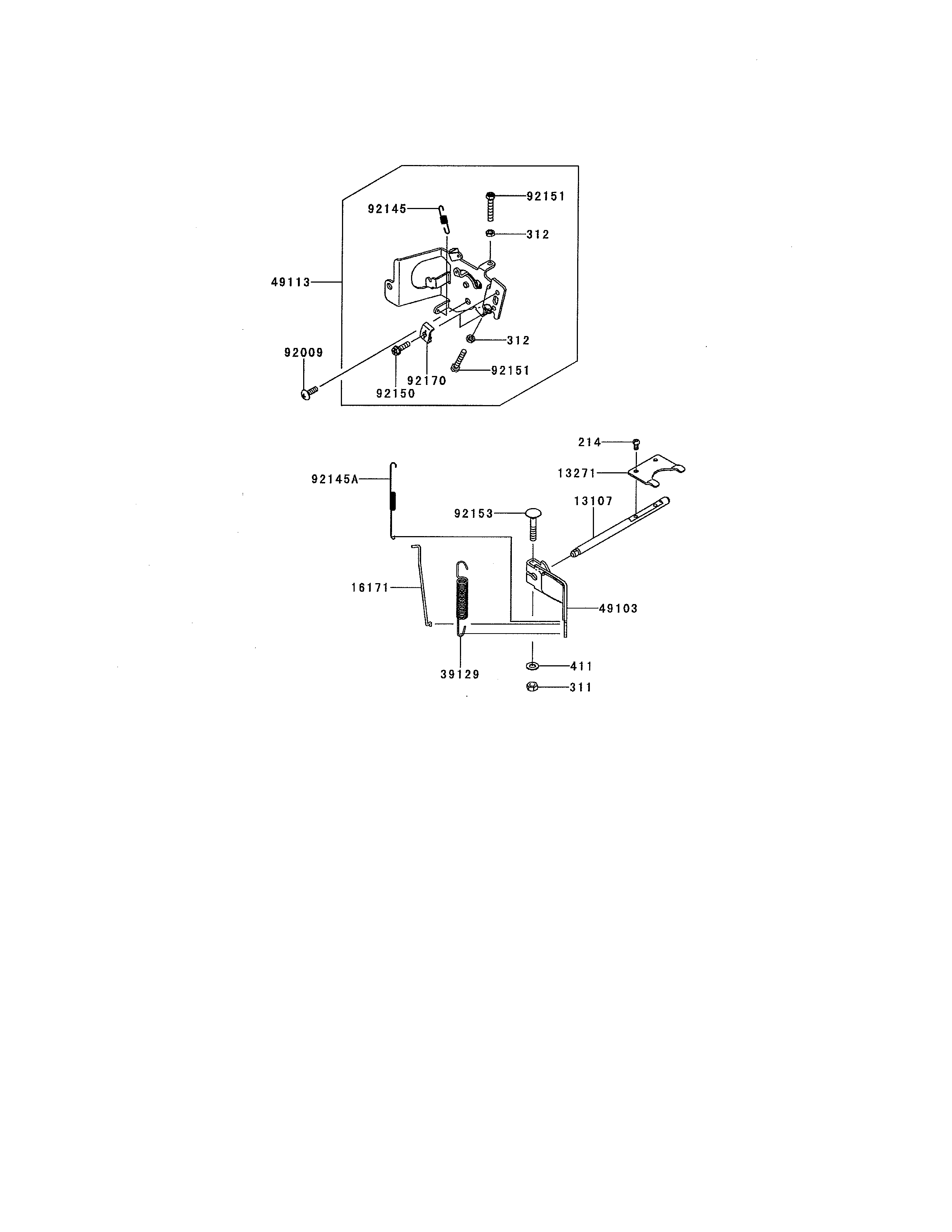

Control equipment diagram

Spring

Part #92145-7057

Replaced by #KM-92145-1811

?
Manufacturer substitution
This part replaces 92145-7057. Substitute parts can look different from the original.
This item is not returnable
$8.86
In Stock
Plate Rotor 13272-7011
#13272

Lubrication equipment diagram

Plate rotor

Part #13272-7011

Replaced by #KM-13272-7011

?
Manufacturer substitution
This part replaces 13272-7011. Substitute parts can look different from the original.
$16.51
In Stock
Tube 92192-7148
#92192

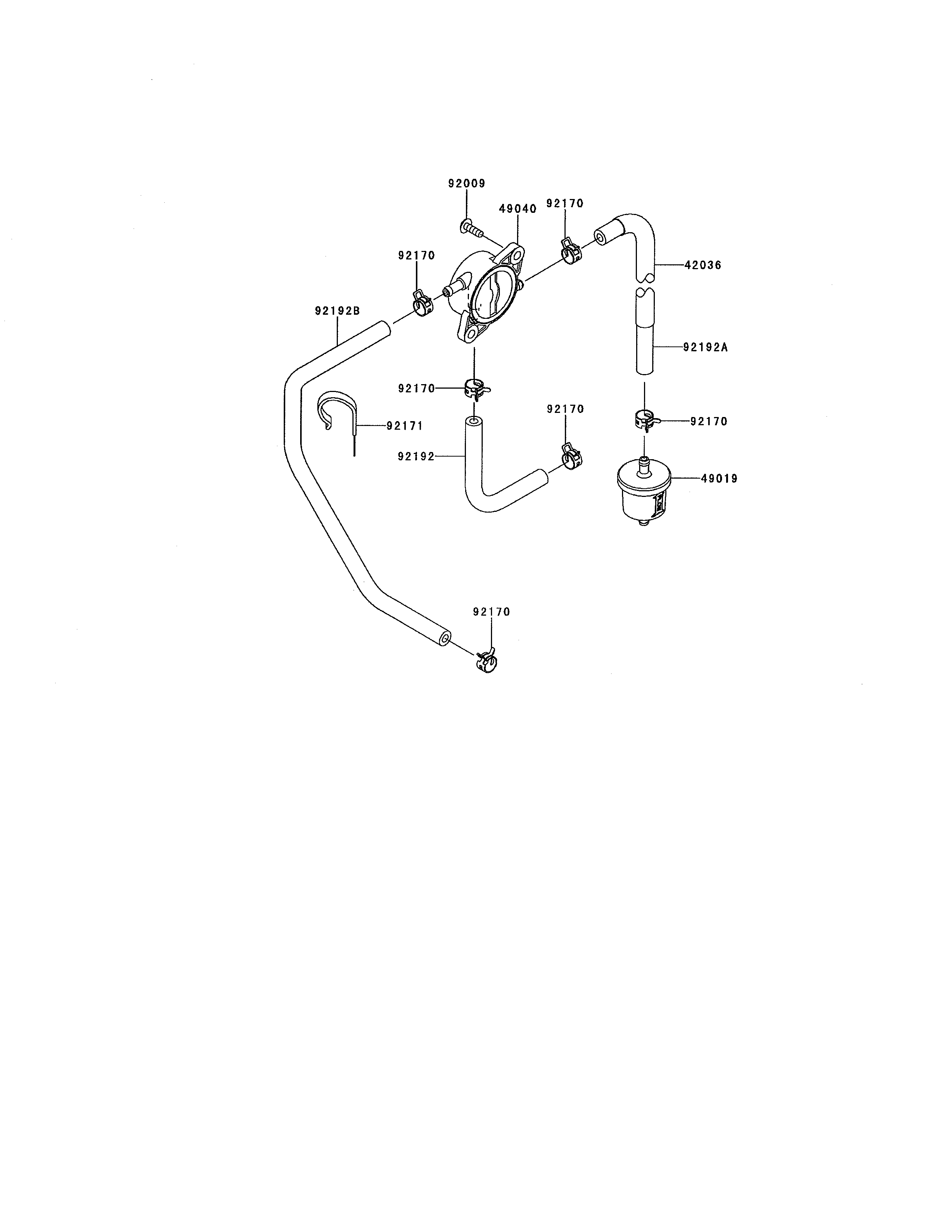

Fuel tank/fuel valve diagram

Tube

Part #92192-7148

Replaced by #KM-92192-7148

?
Manufacturer substitution
This part replaces 92192-7148. Substitute parts can look different from the original.
This item is not returnable
$5.23
In Stock
Washer 92200-7048
#92200B

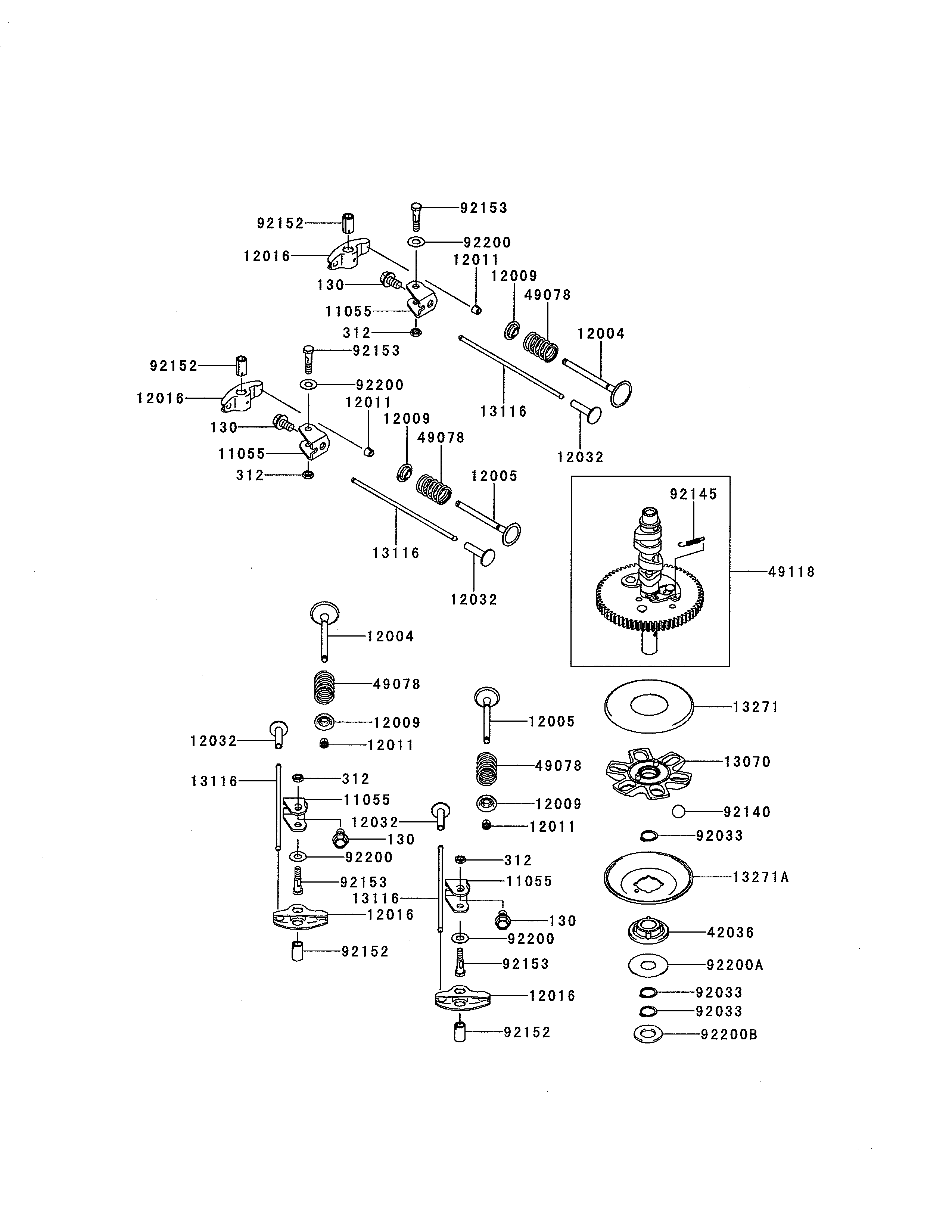

Valve/camshaft diagram

Washer

Part #92200-7048

Replaced by #KM-92200-7048

?
Manufacturer substitution
This part replaces 92200-7048. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Lawn Mower O-ring 670D2016
#670

Lubrication equipment diagram

Lawn mower o-ring

Part #670D2016

Replaced by #KM-670D2016

?
Manufacturer substitution
This part replaces 670D2016. Substitute parts can look different from the original.
This item is not returnable
$4.31
In Stock
