Kenmore
Canister Vacuum

Model # 11622992 Official Kenmore vacuum cleaner & attachment set

Here are the diagrams and repair parts for Official Kenmore 11622992 vacuum cleaner & attachment set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Dust Pad 20-21030
#28

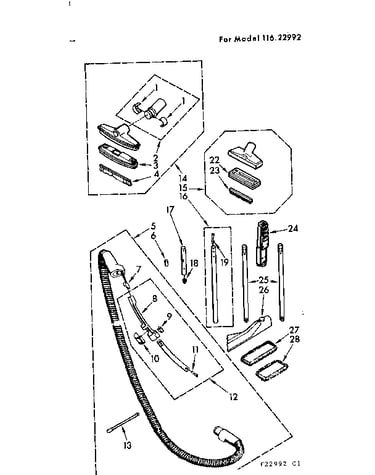

Attachment parts diagram

Dust pad

Part #20-21030

The manufacturer no longer makes this part, and there's no substitute part

Ring 670042
#1

Attachment parts diagram

Ring

Part #670042

The manufacturer no longer makes this part, and there's no substitute part

Switch 764300
#26

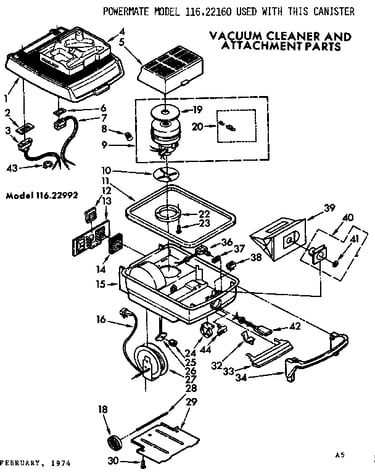

Base assembly diagram

Switch

Part #764300

The manufacturer no longer makes this part, and there's no substitute part

Insulation 764294
#14

Base assembly diagram

Insulation

Part #764294

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 764288

#NI

All parts diagram

Owner's manual

Part #764288

The manufacturer no longer makes this part, and there's no substitute part

Wand 701353
#25

Attachment parts diagram

Wand

Part #701353

The manufacturer no longer makes this part, and there's no substitute part

Handle 764171
#34

Base assembly diagram

Handle

Part #764171

The manufacturer no longer makes this part, and there's no substitute part

Cover 764183
#13

Base assembly diagram

Cover

Part #764183

The manufacturer no longer makes this part, and there's no substitute part

Base 764495
#15

Base assembly diagram

Base

Part #764495

The manufacturer no longer makes this part, and there's no substitute part

Kit Swivel 569657
#2

Attachment parts diagram

Kit swivel

Part #569657

The manufacturer no longer makes this part, and there's no substitute part
