Countertop Microwave

Model # 56568300791 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 56568300791 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

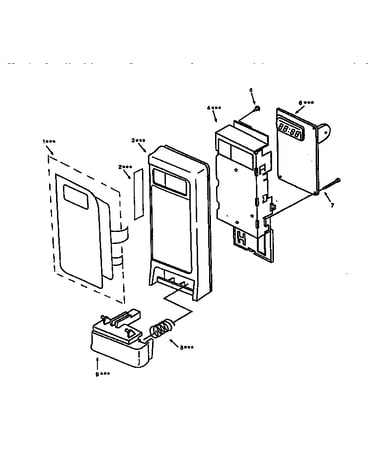

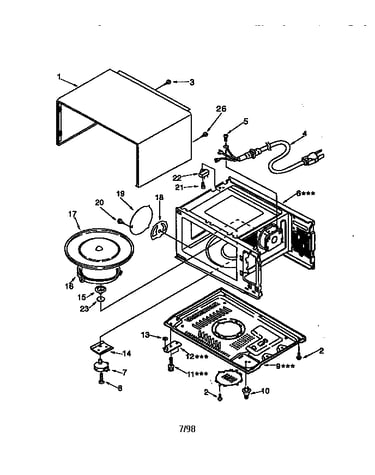

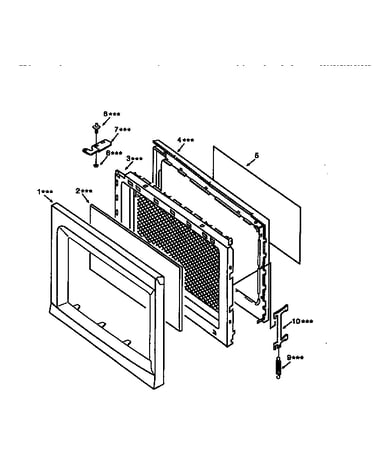

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Switch 617-152-4741
Switch

Part #617-152-4741

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 617-004-5575
#22

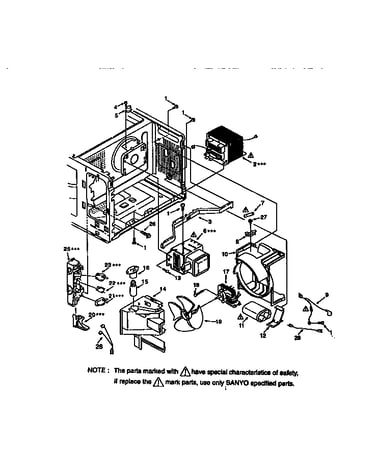

Switches and microwave diagram

Micro-switch

Part #617-004-5575

The manufacturer no longer makes this part, and there's no substitute part

Resistor 401-012-9201
#R109

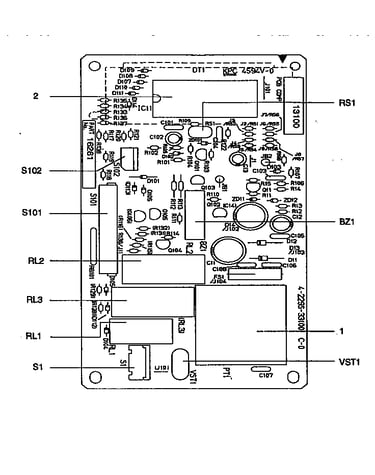

Power control circuit board 16261 diagram

Resistor

Part #401-012-9201

The manufacturer no longer makes this part, and there's no substitute part

El 1uf 50v 403-147-8807
#C102

Power control circuit board 16261 diagram

El 1uf 50v

Part #403-147-8807

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 617-137-8269
#8

Switches and microwave diagram

Fuse holder

Part #617-137-8269

The manufacturer no longer makes this part, and there's no substitute part

3.3k 5% 401-018-3708
#R111

Power control circuit board 16261 diagram

3.3k 5%

Part #401-018-3708

The manufacturer no longer makes this part, and there's no substitute part

1000uf 25v 403-152-7208
#C11

Power control circuit board 16261 diagram

1000uf 25v

Part #403-152-7208

The manufacturer no longer makes this part, and there's no substitute part

220 Ohm 5% 401-016-2505
220 ohm 5%

Part #401-016-2505

The manufacturer no longer makes this part, and there's no substitute part

Resistor 401-023-1607
#R101

Power control circuit board 16261 diagram

Resistor

Part #401-023-1607

The manufacturer no longer makes this part, and there's no substitute part

Diode 407-012-0200
Diode

Part #407-012-0200

The manufacturer no longer makes this part, and there's no substitute part
