Kenmore
Central Air Conditioner

Model # 2537741451 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2537741451 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Retainer 136663
#19

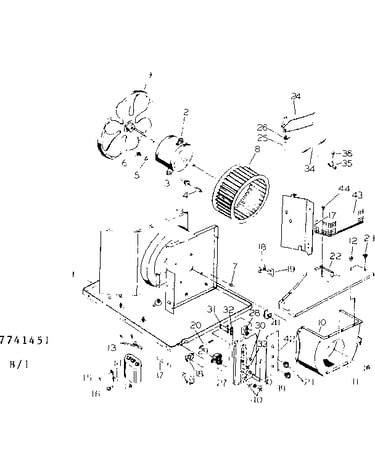

Electrical system & air handling parts diagram

Retainer

Part #136663

The manufacturer no longer makes this part, and there's no substitute part

Door Revrs 158819
#15

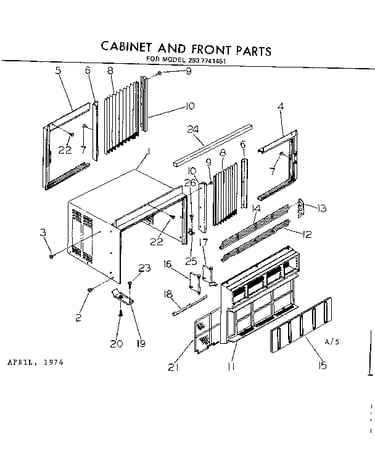

Cabinet and front parts diagram

Door revrs

Part #158819

The manufacturer no longer makes this part, and there's no substitute part

Flange Nut 156927
#5

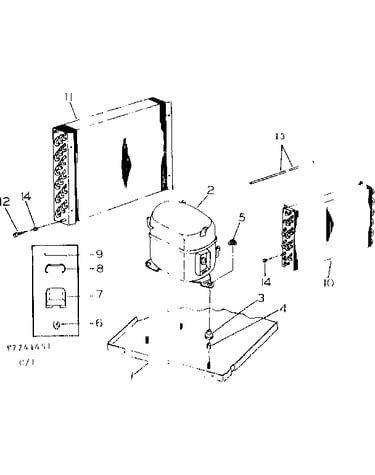

Refrigeration system & air handling parts diagram

Flange nut

Part #156927

The manufacturer no longer makes this part, and there's no substitute part

Screw 100773
#26

Cabinet and front parts diagram

Screw

Part #100773

The manufacturer no longer makes this part, and there's no substitute part

Grommet 119108
#3

Electrical system & air handling parts diagram

Grommet

Part #119108

The manufacturer no longer makes this part, and there's no substitute part

Decorative Panel 501150
#42

Electrical system & air handling parts diagram

Decorative panel

Part #501150

The manufacturer no longer makes this part, and there's no substitute part

Clip 131053
#41

Electrical system & air handling parts diagram

Clip

Part #131053

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 131920
#25

Electrical system & air handling parts diagram

Hinge pin

Part #131920

The manufacturer no longer makes this part, and there's no substitute part

Fan 157275
#9

Electrical system & air handling parts diagram

Fan

Part #157275

The manufacturer no longer makes this part, and there's no substitute part

Louver 158374-01
#12

Cabinet and front parts diagram

Louver

Part #158374-01

The manufacturer no longer makes this part, and there's no substitute part
