Model # FFRE15L3S11 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFRE15L3S11 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

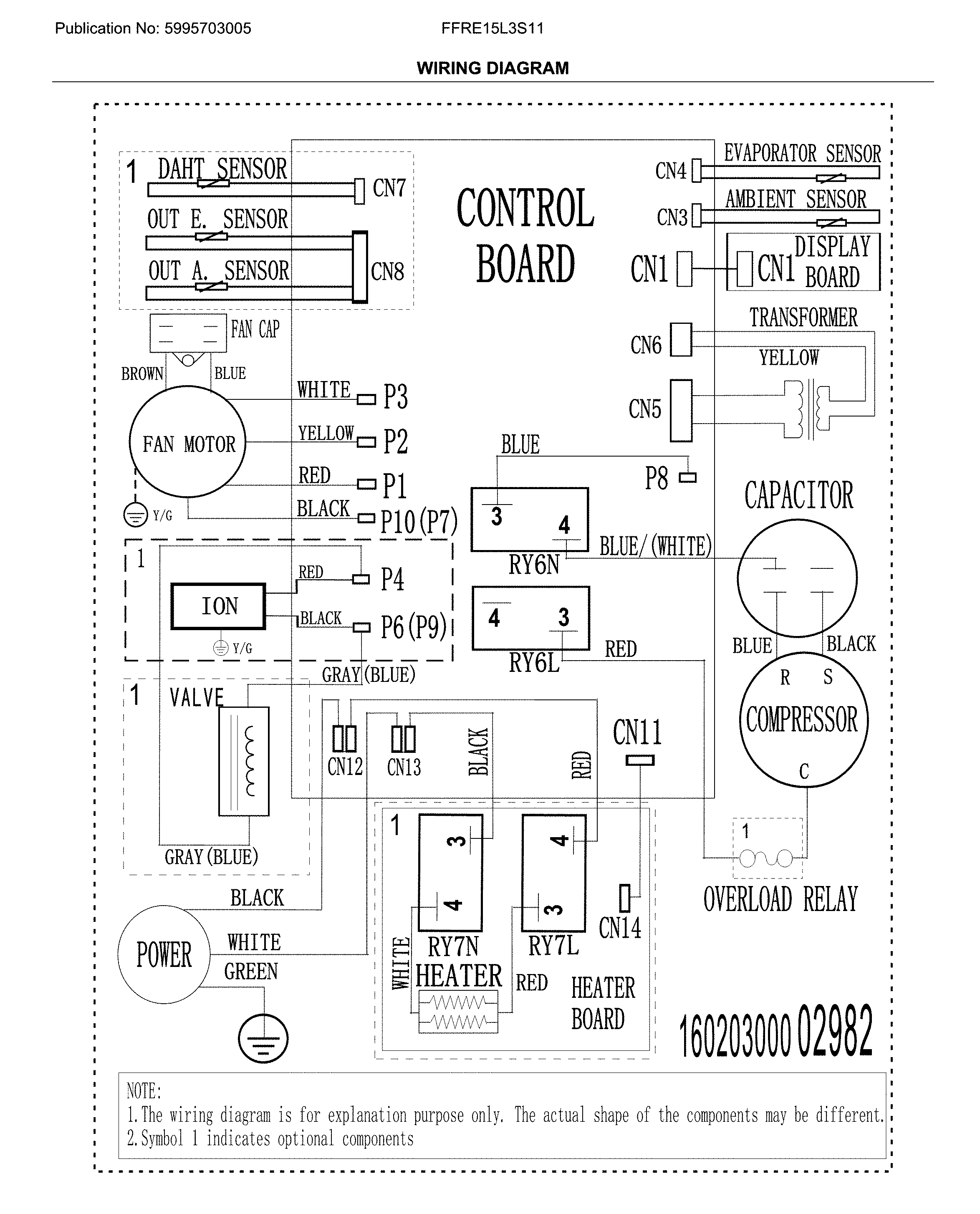

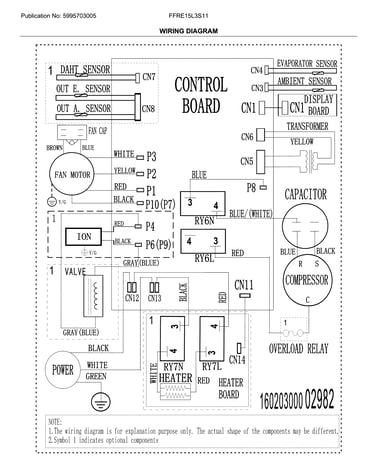

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Room Air Conditioner Air Filter 5304476957
#3

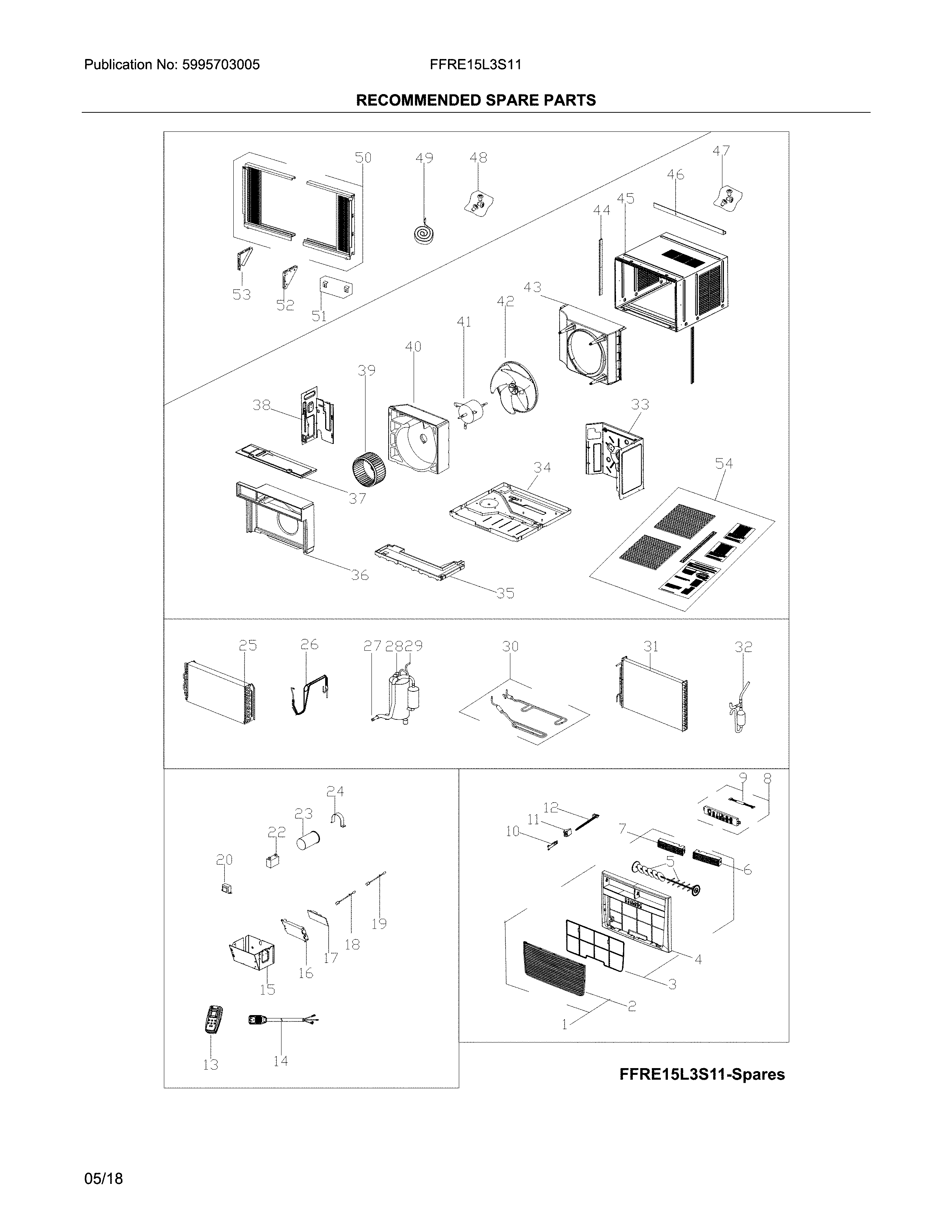

Parts unit diagram

Room air conditioner air filter

Part #5304476957

Replaced by #5304525602

?
Manufacturer substitution
This part replaces 5304476957. Substitute parts can look different from the original.
This item is not returnable
$16.23 |
11% OFF Phone Price : $18.23
In Stock
Capacitor 5304471214
#23

Parts unit diagram

Capacitor

Part #5304471214

$127.38
In Stock
Room Air Conditioner Filter Dryer 5304476367
#32

Parts unit diagram

Room air conditioner filter dryer

Part #5304476367

$34.29
In Stock
Kenmore Condenser 5304512411
#31

Parts unit diagram

Kenmore condenser

Part #5304512411

$295.55
In Stock
Room Air Conditioner Discharge Line 5304495628
#30

Parts unit diagram

Room air conditioner discharge line

Part #5304495628

$109.26
In Stock
Suction Tube 5304512410
#27

Parts unit diagram

Suction tube

Part #5304512410

$90.69
In Stock
Room Air Conditioner Accordion Filler Kit 5304504834
#50

Parts unit diagram

Room air conditioner accordion filler kit

Part #5304504834

$83.27 |
7% OFF Phone Price : $89.27
In Stock
Wire 5304495009
#9

Parts unit diagram

Wire

Part #5304495009

$37.56
In Stock
Room Air Conditioner User Interface Board 5304495622
#8

Parts unit diagram

Room air conditioner user interface board

Part #5304495622

This item is not returnable
$100.09 |
11% OFF Phone Price : $112.09
In Stock
Cover 5304495632
#37

Parts unit diagram

Cover

Part #5304495632

$52.24
In Stock
