DeWalt
Drill/Driver

Model # DW945K-2 Official DeWalt scrudrill

Here are the diagrams and repair parts for Official DeWalt DW945K-2 scrudrill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Spring 157976-00
#40

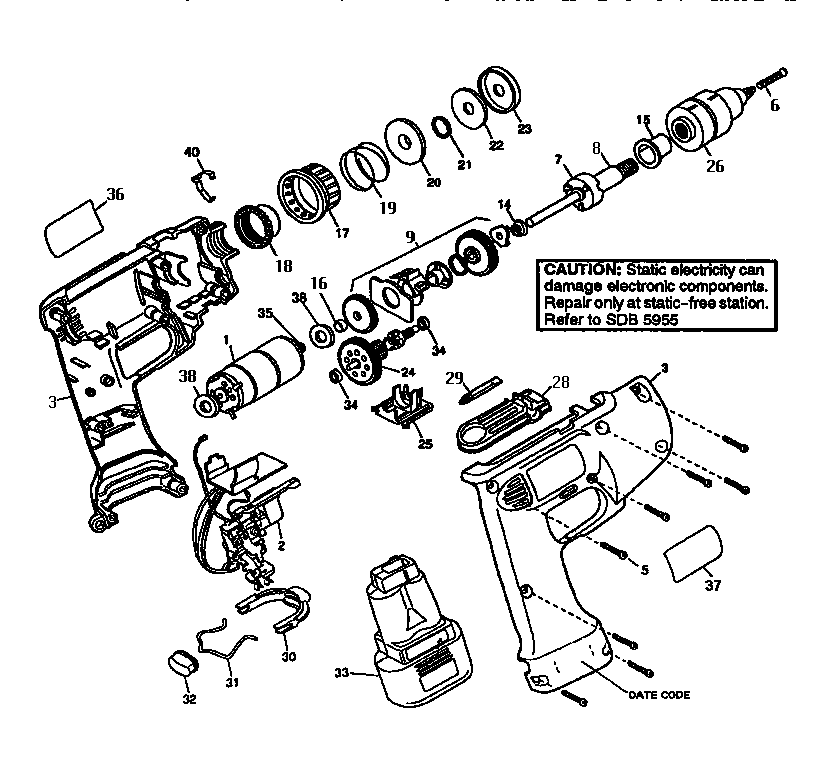

Unit parts diagram

Spring

Part #157976-00

The manufacturer no longer makes this part, and there's no substitute part

Housing 311359-05
#3

Unit parts diagram

Housing

Part #311359-05

The manufacturer no longer makes this part, and there's no substitute part

Spring 144501-00
#31

Unit parts diagram

Spring

Part #144501-00

The manufacturer no longer makes this part, and there's no substitute part

Cam 147005-03
#9

Unit parts diagram

Cam

Part #147005-03

The manufacturer no longer makes this part, and there's no substitute part

Slider 146992-01
#25

Unit parts diagram

Slider

Part #146992-01

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 263649-00
#37A

Unit parts diagram

Nameplate

Part #263649-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw 149518-01
#6

Unit parts diagram

Power tool screw

Part #149518-01

The manufacturer no longer makes this part, and there's no substitute part

Pinion 146985-00
#35

Unit parts diagram

Pinion

Part #146985-00

The manufacturer no longer makes this part, and there's no substitute part

Motor 147327-00
#1

Unit parts diagram

Motor

Part #147327-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 157991-00
#34

Unit parts diagram

Bearing

Part #157991-00

The manufacturer no longer makes this part, and there's no substitute part
