Model # THA15K25DCA Official ICP 230-v packaged terminal heat pump

Here are the diagrams and repair parts for Official ICP THA15K25DCA 230-v packaged terminal heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

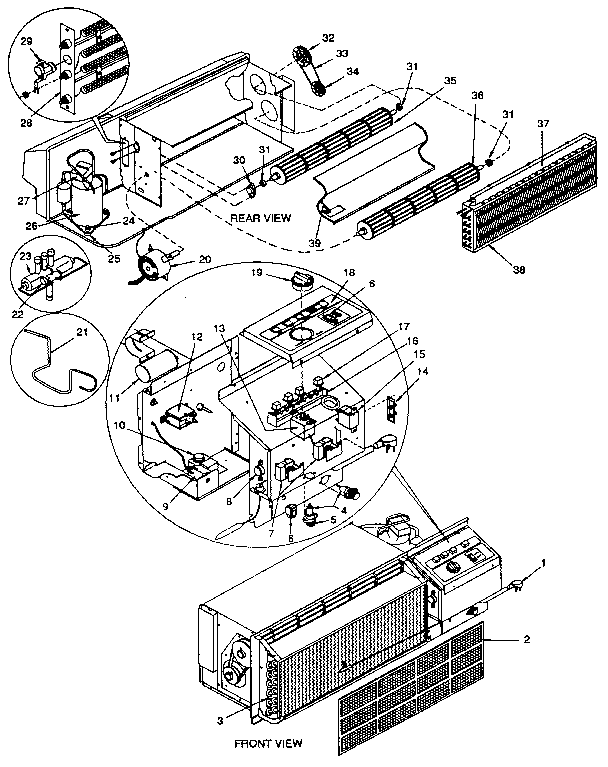

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Capacitor 1058515
#11

Functional diagram

Capacitor

Part #1058515

The manufacturer no longer makes this part, and there's no substitute part

Relay Defros 1091127
#7

Functional diagram

Relay defros

Part #1091127

Replaced by #90-342

?
Manufacturer substitution
This part replaces 1091127. Substitute parts can look different from the original.
$22.82 |
21% OFF Phone Price : $28.82
In Stock
Relay 43205003
#12

Functional diagram

Relay

Part #43205003

Replaced by #90-384

?
Manufacturer substitution
This part replaces 43205003. Substitute parts can look different from the original.
$25.39
In Stock
Relay Spdt 1058148
#15

Functional diagram

Relay spdt

Part #1058148

Replaced by #WR90-370

?
Manufacturer substitution
This part replaces 1058148. Substitute parts can look different from the original.
$21.63 |
22% OFF Phone Price : $27.63
In Stock
Rev Valve 1058469
#23

Functional diagram

Rev valve

Part #1058469

Replaced by #V3-410080-770

?
Manufacturer substitution
This part replaces 1058469. Substitute parts can look different from the original.
$203.70
In Stock
Plate Ctl Bo 1058427
#19

Non functional diagram

Plate ctl bo

Part #1058427

The manufacturer no longer makes this part, and there's no substitute part

Isolator Bea 1058987
#31

Functional diagram

Isolator bea

Part #1058987

The manufacturer no longer makes this part, and there's no substitute part

Cvr Blwr Acs 1059049
#15

Non functional diagram

Cvr blwr acs

Part #1059049

The manufacturer no longer makes this part, and there's no substitute part

Wall Divider 1060842
#18

Non functional diagram

Wall divider

Part #1060842

The manufacturer no longer makes this part, and there's no substitute part

Scroll Blwr 1059150
#16

Non functional diagram

Scroll blwr

Part #1059150

The manufacturer no longer makes this part, and there's no substitute part
