Briggs & Stratton
Lawn & Garden Engine

Model # 10L802-0713-F1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 10L802-0713-F1 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

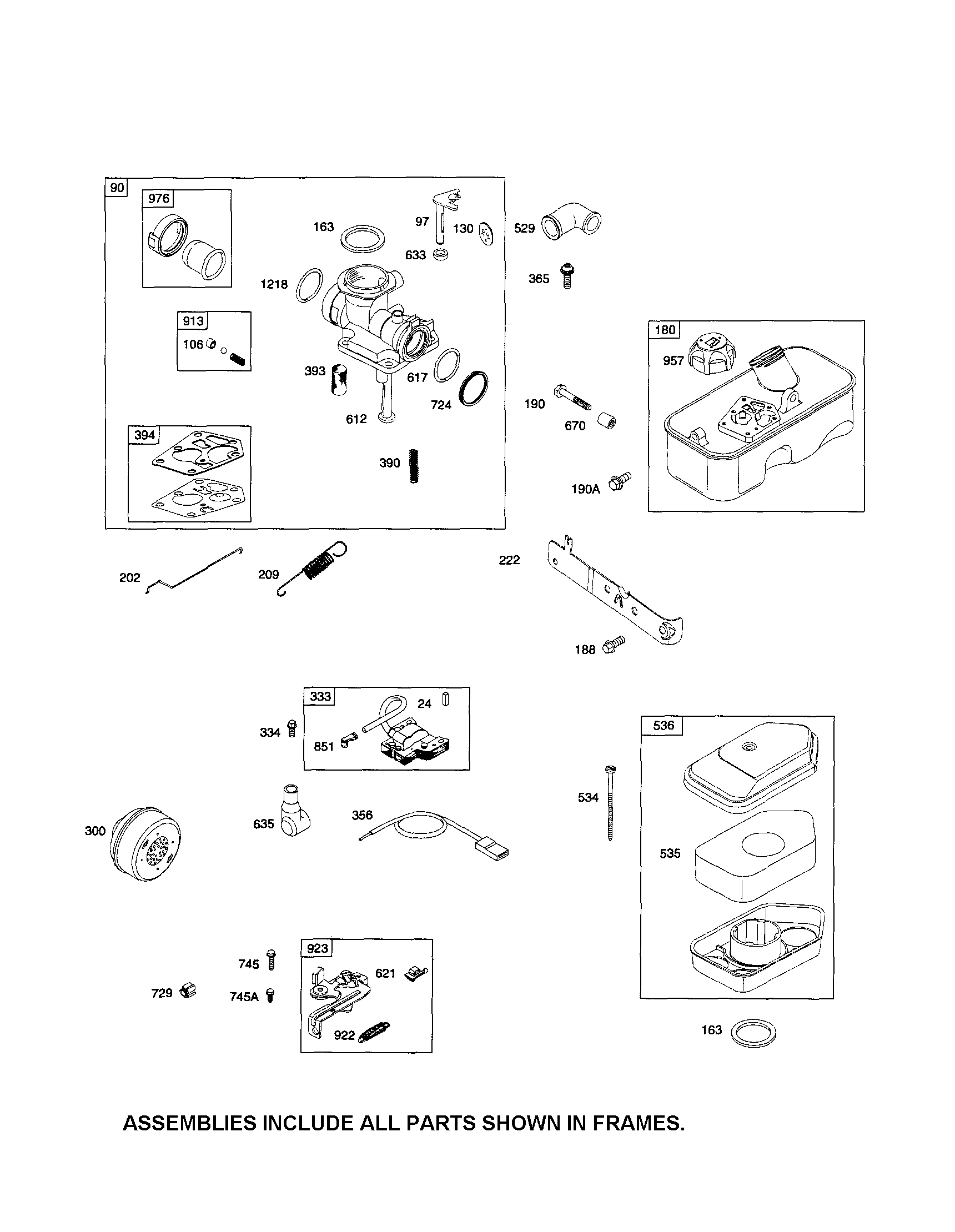

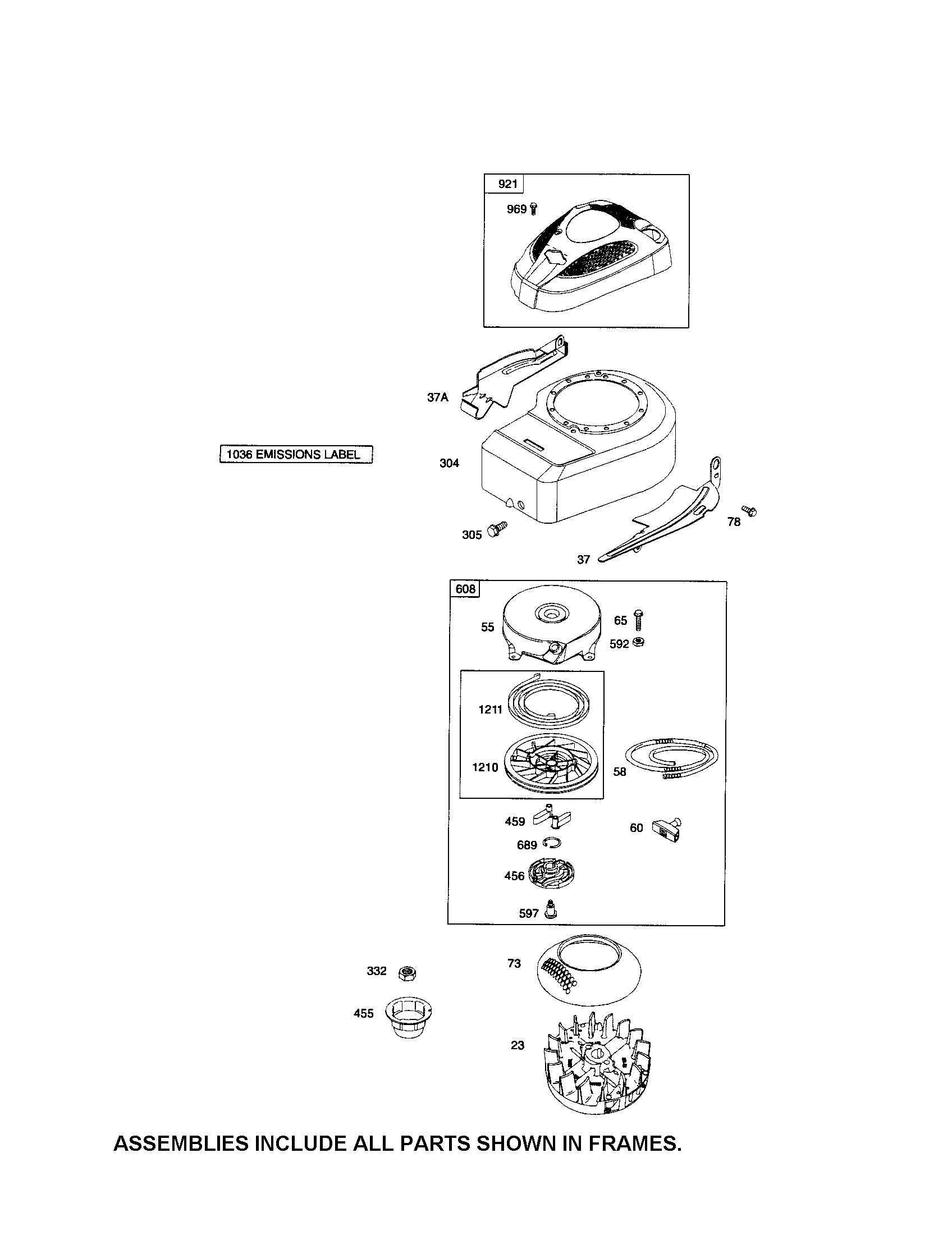

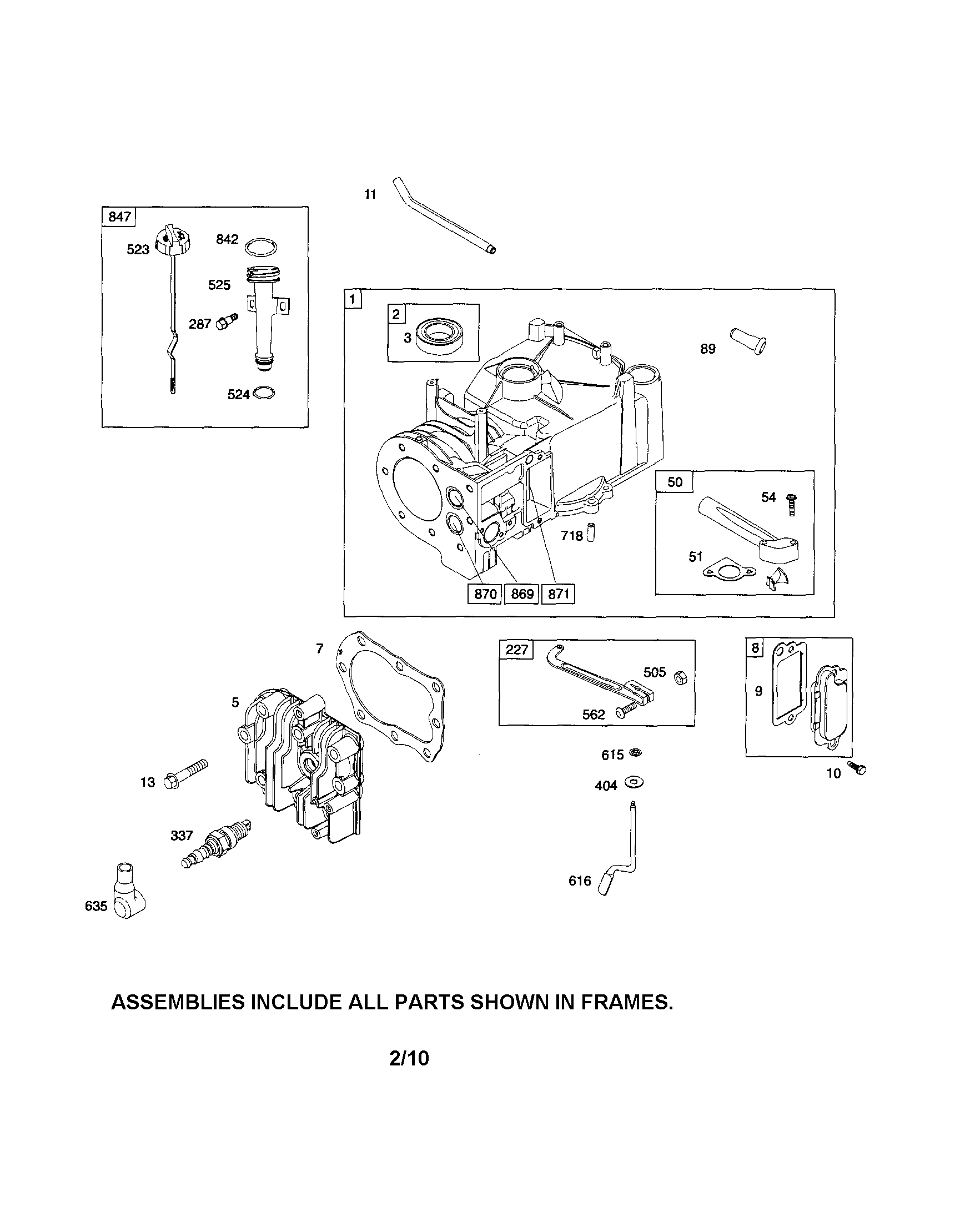

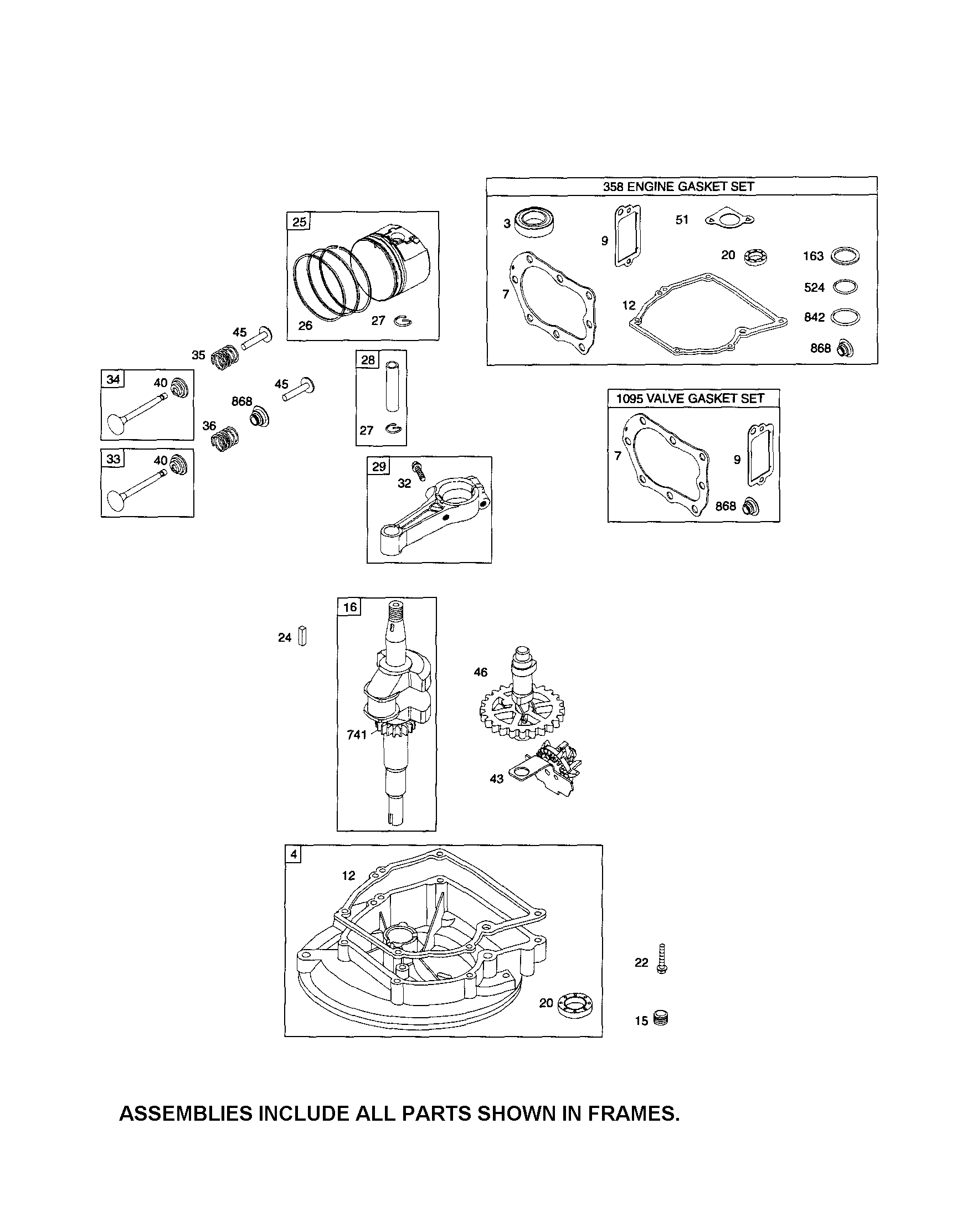

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Lawn & Garden Equipment Engine Air Filter 698369

#535

All parts diagram

Lawn & garden equipment engine air filter

Part #698369

BEST SELLER
$9.03 |
10% OFF Phone Price : $10.03
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl (replaces 281505, 692260, Bs-281505s) 281505S

#459

All parts diagram

Lawn & garden equipment engine recoil starter pawl (replaces 281505, 692260, bs-281505s)

Part #281505S

This item is not returnable
$5.80 |
15% OFF Phone Price : $6.80
In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl Friction Plate (replaces 281503, Bs-692299) 692299

#456

All parts diagram

Lawn & garden equipment engine recoil starter pawl friction plate (replaces 281503, bs-692299)

Part #692299

This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Lawn & Garden Equipment Engine O-ring (replaces 270344, 692216) 270344S

#617

All parts diagram

Lawn & garden equipment engine o-ring (replaces 270344, 692216)

Part #270344S

This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Lawn & Garden Equipment Engine Hex Screw (replaces 690960, 692126, 697551, 94744, Bs-691108) 691108

#190A

All parts diagram

Lawn & garden equipment engine hex screw (replaces 690960, 692126, 697551, 94744, bs-691108)

Part #691108

This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Lawn & Garden Equipment Engine Spark Plug Wire Terminal (replaces 493880, 691234, Bs-493880s) 493880S

#851

All parts diagram

Lawn & garden equipment engine spark plug wire terminal (replaces 493880, 691234, bs-493880s)

Part #493880S

This item is not returnable
$4.75 |
17% OFF Phone Price : $5.75
In Stock
Lawn & Garden Equipment Engine Hex Screw (replaces 555539, 94731, Bs-691061) 691061

#334

All parts diagram

Lawn & garden equipment engine hex screw (replaces 555539, 94731, bs-691061)

Part #691061

This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Lawn & Garden Equipment Engine Recoil Starter Friction Spring (replaces 263073, Bs-691855) 691855

#689

All parts diagram

Lawn & garden equipment engine recoil starter friction spring (replaces 263073, bs-691855)

Part #691855

This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Lawn & Garden Equipment Engine Recoil Starter Handle 691915

#60

All parts diagram

Lawn & garden equipment engine recoil starter handle

Part #691915

This item is not returnable
$7.78 |
11% OFF Phone Price : $8.78
In Stock
Armature 793281

#333

All parts diagram

Armature

Part #793281

Replaced by #591420

?
Manufacturer substitution
This part replaces 793281. Substitute parts can look different from the original.
$67.99 |
8% OFF Phone Price : $73.99
In Stock
