Carrier
Room Air Conditioner

Model # 73YHA323301D Official Carrier room air conditioner

Here are the diagrams and repair parts for Official Carrier 73YHA323301D room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Air Conditioner Exhaust Vent 03501031

#75

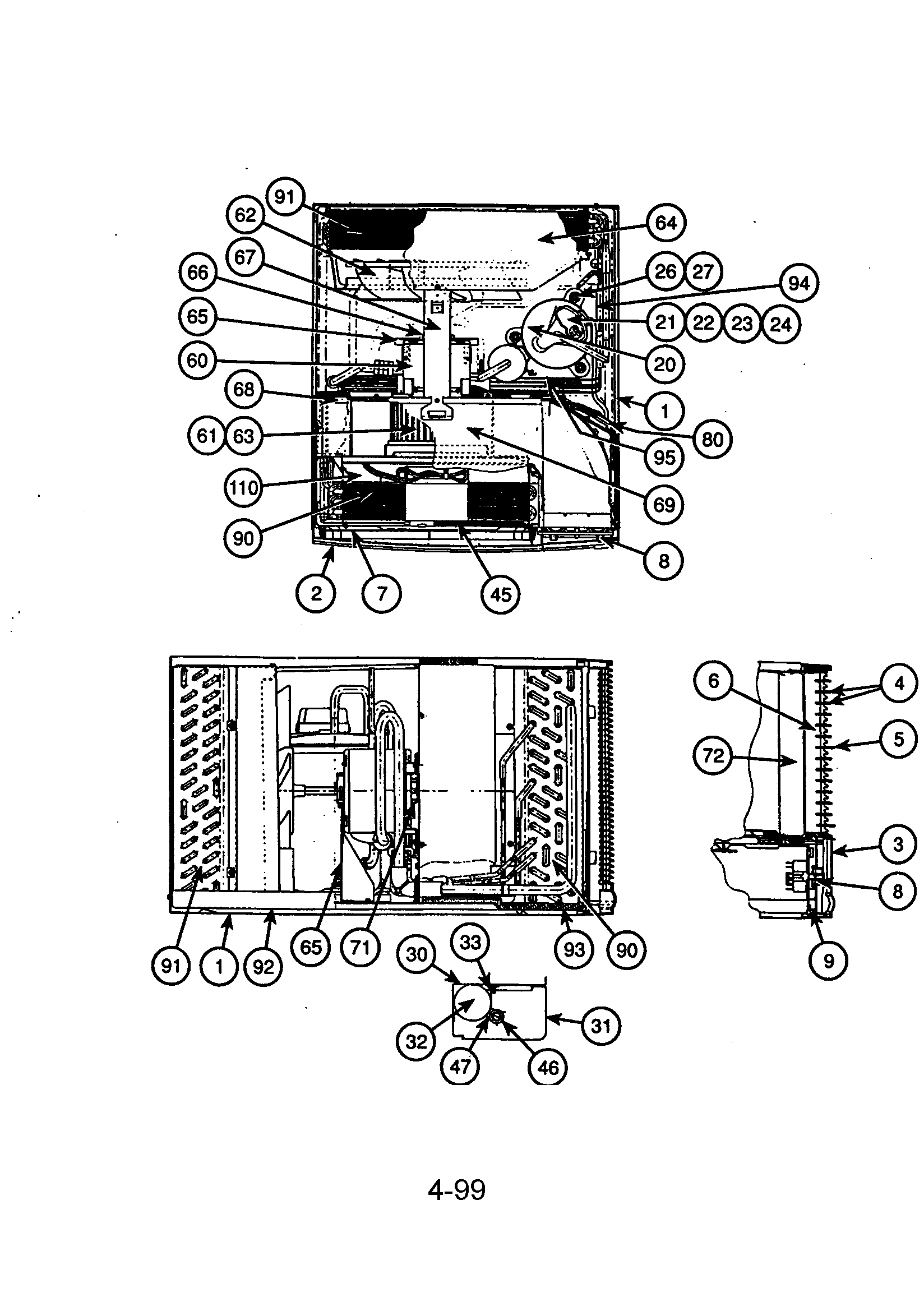

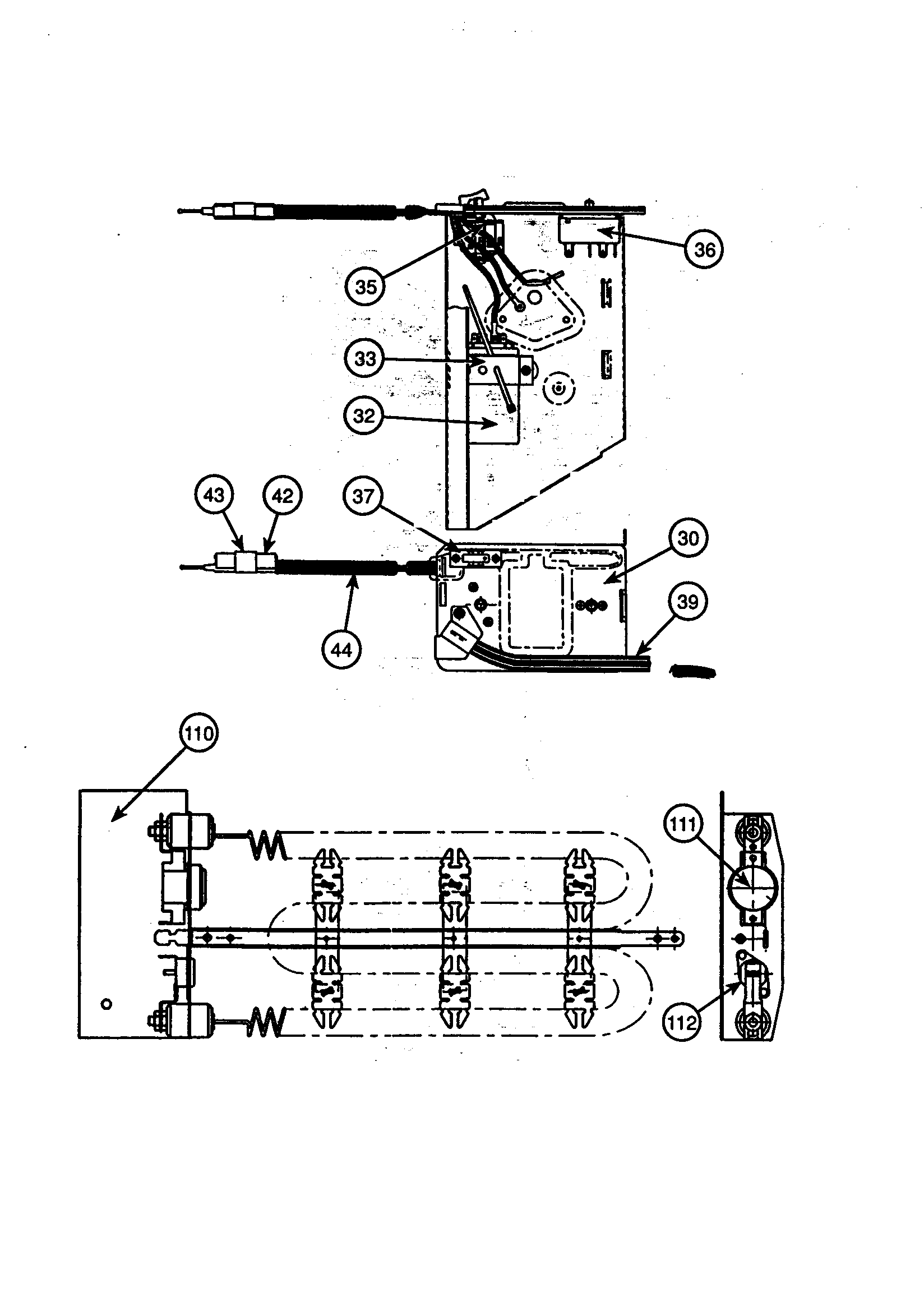

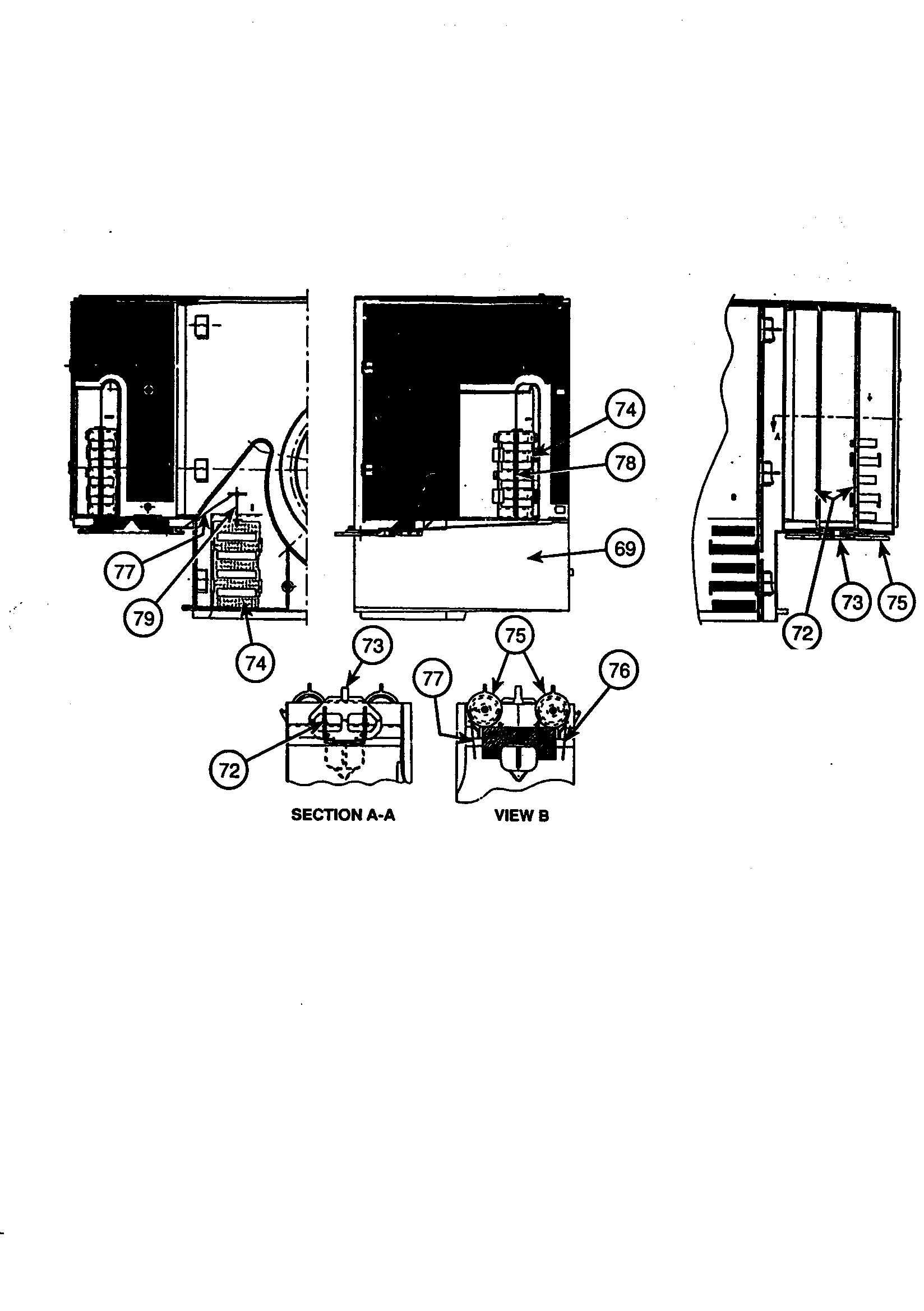

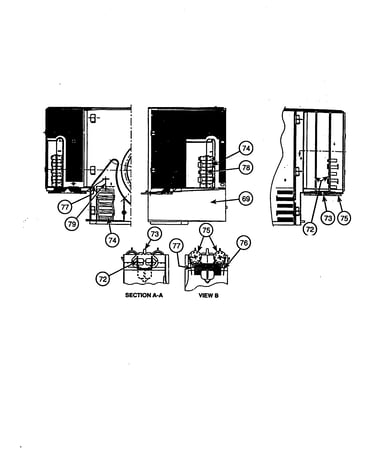

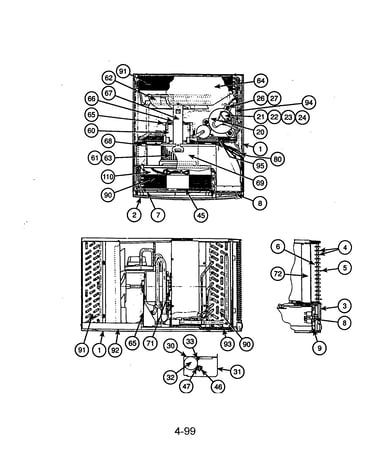

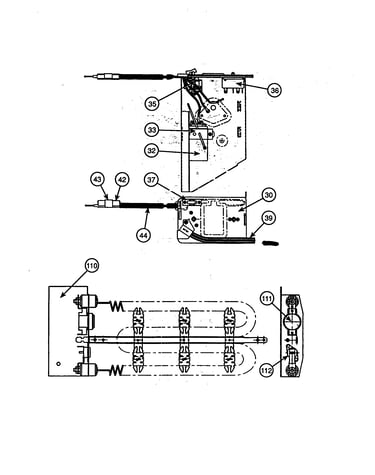

All parts diagram

Air conditioner exhaust vent

Part #03501031

$33.53
In Stock
Limit Switch HH19ZA140

#111

All parts diagram

Limit switch

Part #HH19ZA140

$52.60
In Stock
Fan Blade 17604014

#62

All parts diagram

Fan blade

Part #17604014

Replaced by #17604014

?
Manufacturer substitution
This part replaces 17604014. Substitute parts can look different from the original.
$97.51
In Stock
Switch 06305012

#37

All parts diagram

Switch

Part #06305012

Replaced by #06305012

?
Manufacturer substitution
This part replaces 06305012. Substitute parts can look different from the original.
This item is not returnable
$5.34
In Stock
Vent Wire 06650003

#77

All parts diagram

Vent wire

Part #06650003

The manufacturer no longer makes this part, and there's no substitute part

Condensation Pan 06701017

#93

All parts diagram

Condensation pan

Part #06701017

The manufacturer no longer makes this part, and there's no substitute part

Switch HR56AM025

#36

All parts diagram

Switch

Part #HR56AM025

The manufacturer no longer makes this part, and there's no substitute part

Orifice 02801005

#64

All parts diagram

Orifice

Part #02801005

The manufacturer no longer makes this part, and there's no substitute part

Clip, Bulb Heater (not Shown) 51CM502842

#43

All parts diagram

Clip, bulb heater (not shown)

Part #51CM502842

The manufacturer no longer makes this part, and there's no substitute part

Spring , Exhaust Door (model 73yca121301r) 25702002

#78

All parts diagram

Spring , exhaust door (model 73yca121301r)

Part #25702002

The manufacturer no longer makes this part, and there's no substitute part
