Model # 52850401200 Official LXI television

Here are the diagrams and repair parts for Official LXI 52850401200 television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Scale Dial 67-1024-0
#15B

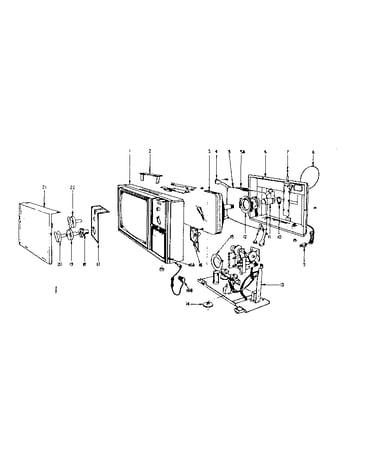

Cabinet parts diagram

Scale dial

Part #67-1024-0

The manufacturer no longer makes this part, and there's no substitute part

Uhf Chan Kno 84-23717
#22

Cabinet parts diagram

Uhf chan kno

Part #84-23717

The manufacturer no longer makes this part, and there's no substitute part

Kit Knob 52-3194-9
#15

Cabinet parts diagram

Kit knob

Part #52-3194-9

The manufacturer no longer makes this part, and there's no substitute part

Boot 28-551
Boot

Part #28-551

The manufacturer no longer makes this part, and there's no substitute part

Kit Knob 52-3295-9
#19

Cabinet parts diagram

Kit knob

Part #52-3295-9

The manufacturer no longer makes this part, and there's no substitute part

Knob Assembly 84-25013
#20

Cabinet parts diagram

Knob assembly

Part #84-25013

The manufacturer no longer makes this part, and there's no substitute part

Fastener 22-245-1
#19A

Cabinet parts diagram

Fastener

Part #22-245-1

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 23-245-0
#9

Cabinet parts diagram

Line cord

Part #23-245-0

The manufacturer no longer makes this part, and there's no substitute part

Ray Tube Harness Cathode 22-239-9
#5

Cabinet parts diagram

Ray tube harness cathode

Part #22-239-9

The manufacturer no longer makes this part, and there's no substitute part

Spkr 3x5 33-758-4
#16

Cabinet parts diagram

Spkr 3x5

Part #33-758-4

The manufacturer no longer makes this part, and there's no substitute part
