Model # AJHS10DCAM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AJHS10DCAM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Power Supply WJ35X10004
#1042

Control parts diagram

Power supply

Part #WJ35X10004

Replaced by #WJ35X10142

?
Manufacturer substitution
This part replaces WJ35X10004. Substitute parts can look different from the original.
$124.48 |
9% OFF Phone Price : $136.48
In Stock
Louver Holder WJ01X10142
#1169

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
$5.00
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Room Air Conditioner Fan Blade Nut WJ01X10041
#1020

Cabinet & components diagram

Room air conditioner fan blade nut

Part #WJ01X10041

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
J-line Contr 49-7397
#9999

Cabinet & components diagram

J-line contr

Part #49-7397

$8.49
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10005
#1232

Cabinet & components diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10005

$35.76 |
14% OFF Phone Price : $41.76
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10007
#1233

Cabinet & components diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10007

Replaced by #WP28X10013

?
Manufacturer substitution
This part replaces WP28X10007. Substitute parts can look different from the original.
$52.16 |
10% OFF Phone Price : $58.16
In Stock
Rear Gard WJ82X10001
#2018

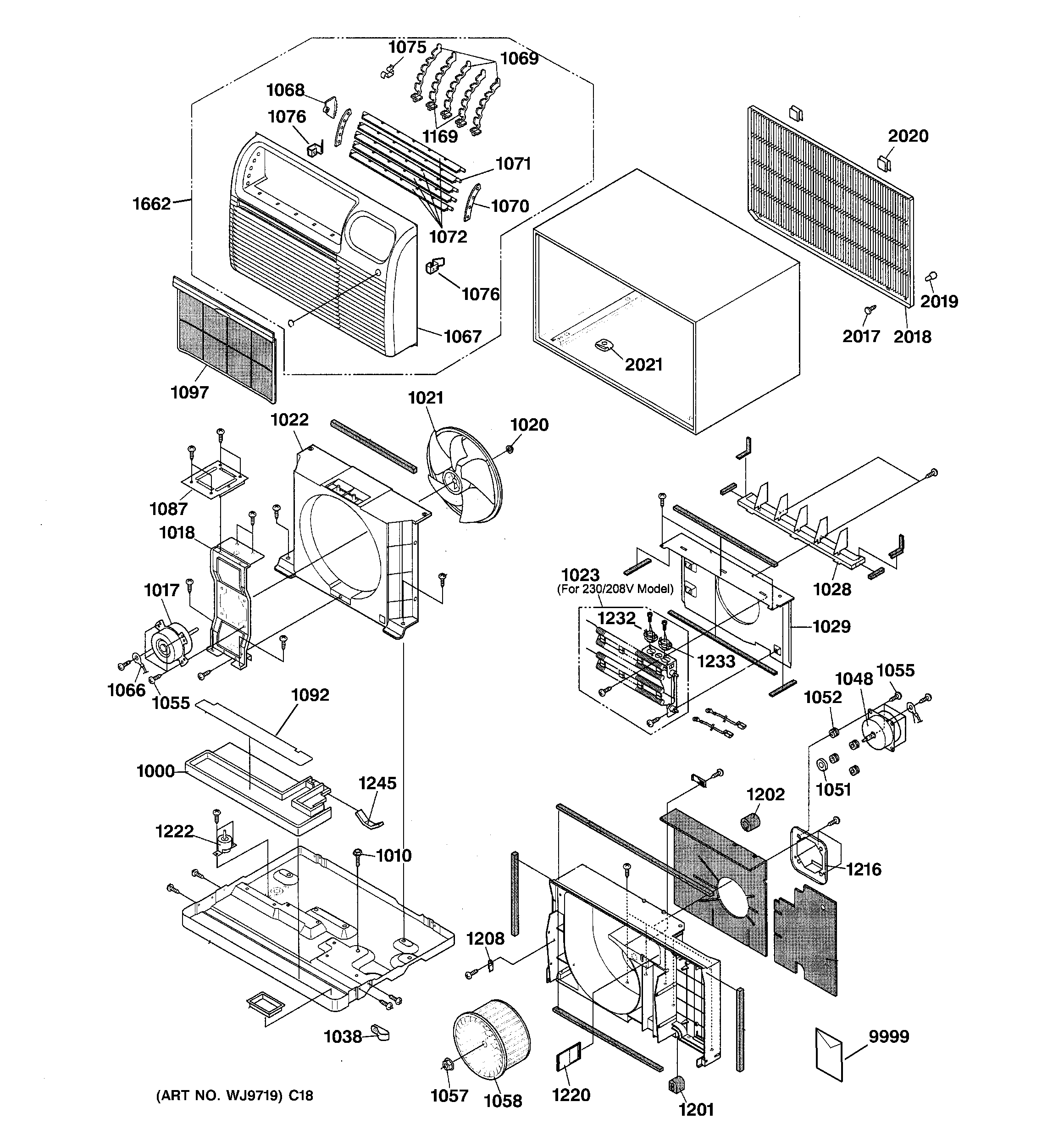

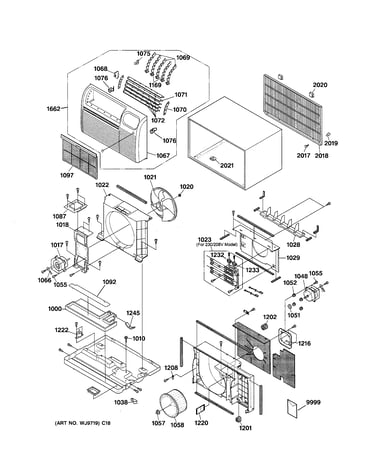

Cabinet & components diagram

Rear gard

Part #WJ82X10001

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Electronic Control Board WJ28X10018
#1035

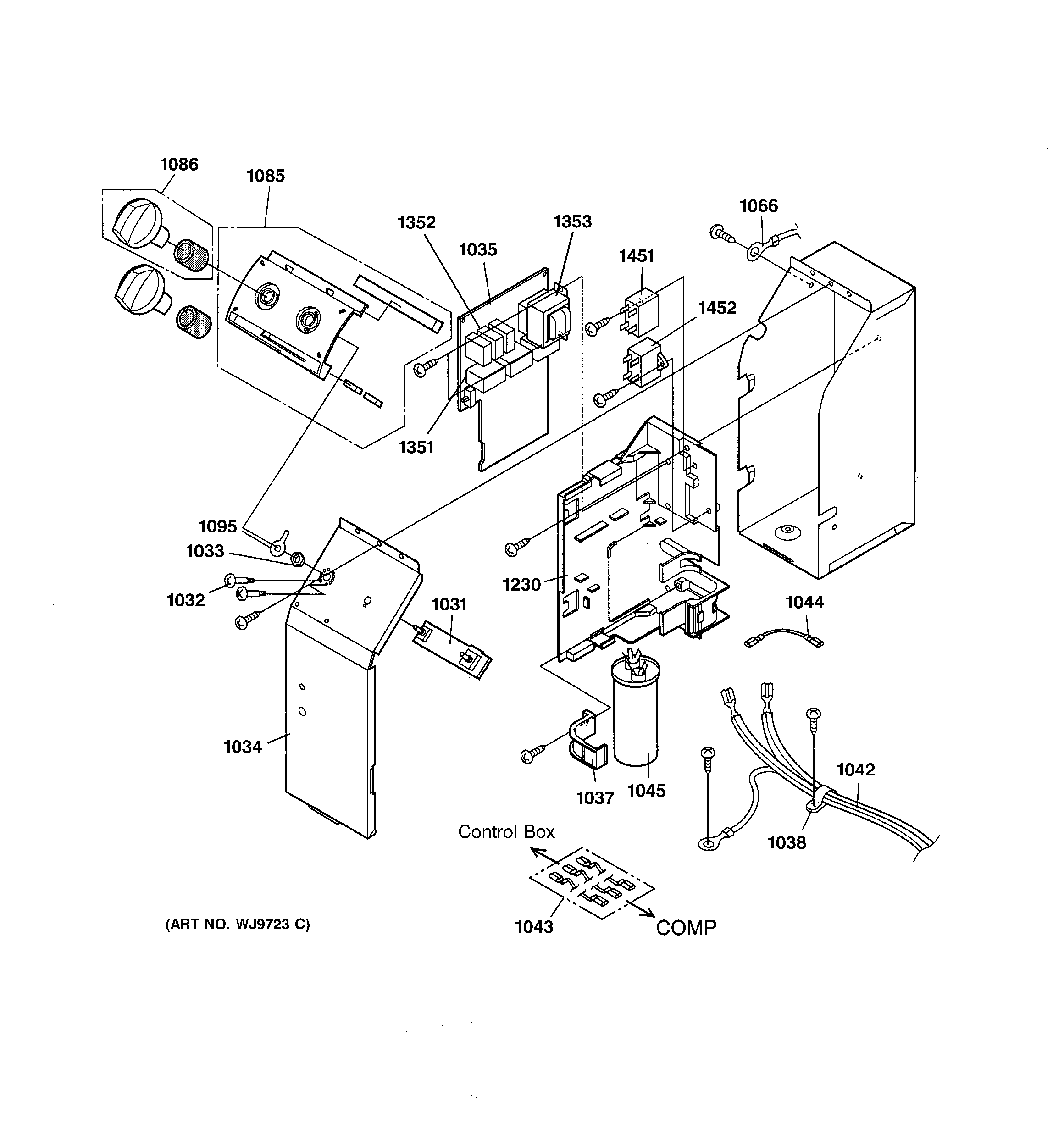

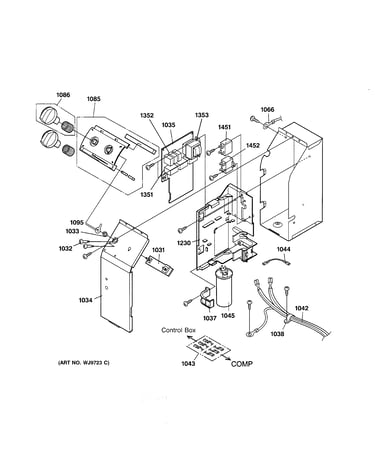

Control parts diagram

Room air conditioner electronic control board

Part #WJ28X10018

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Grommet WJ01X10046
#1084

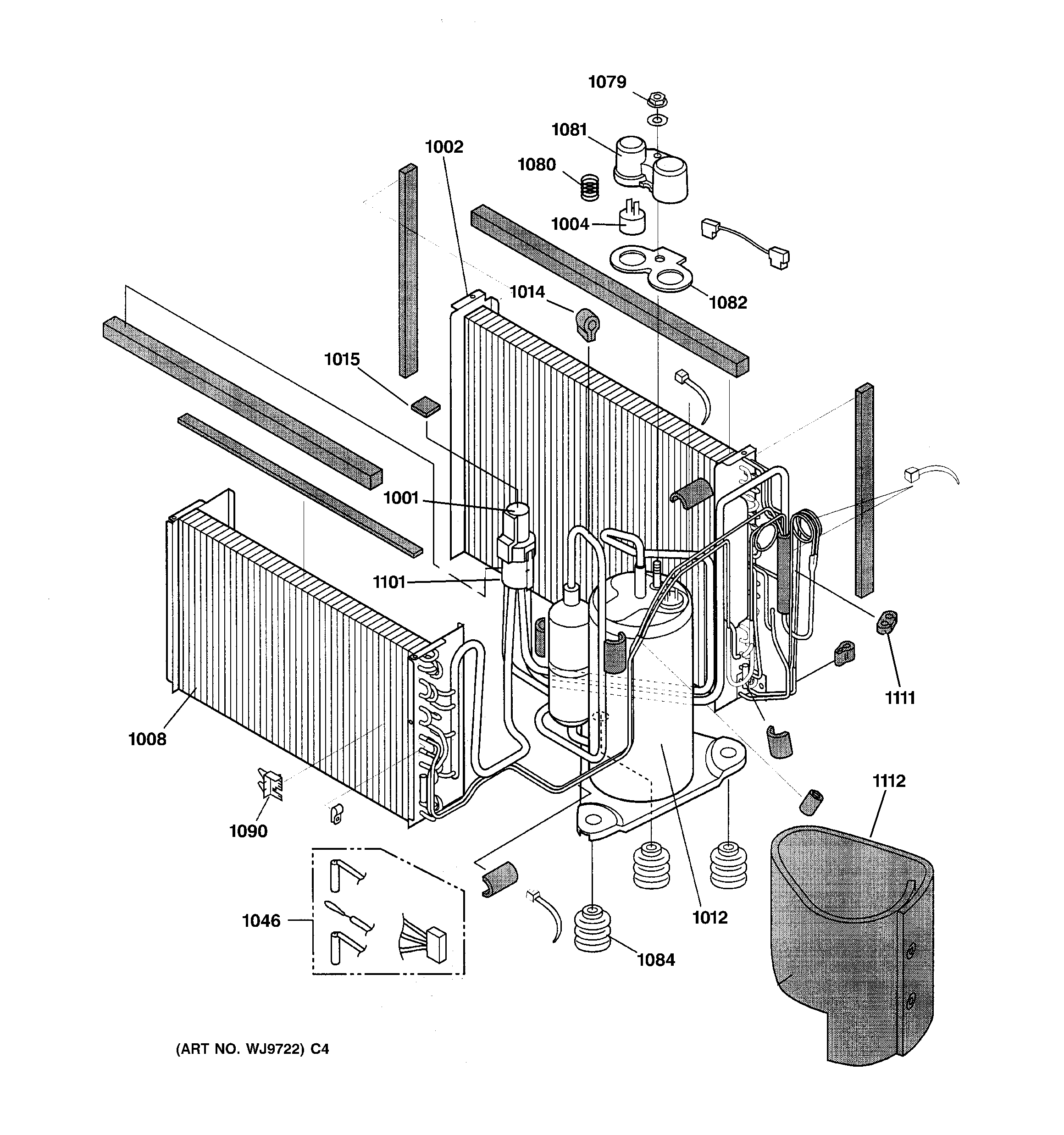

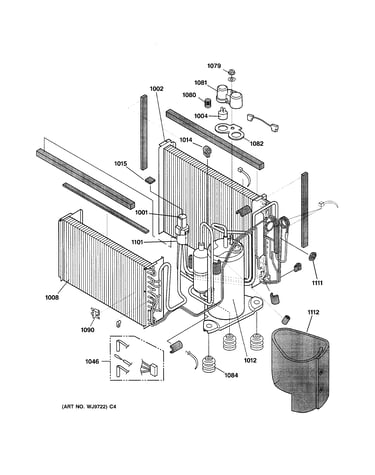

Sealed system components diagram

Room air conditioner compressor grommet

Part #WJ01X10046

The manufacturer no longer makes this part, and there's no substitute part
