Kenmore
Canister Vacuum

Model # 1163281690C Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163281690C vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Hose 4369962
#1

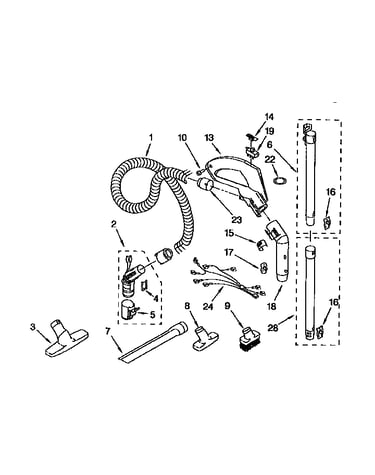

Hose and attachment diagram

Hose

Part #4369962

Replaced by #4369467

?
Manufacturer substitution
This part replaces 4369962. Substitute parts can look different from the original.
$34.76 |
15% OFF Phone Price : $40.76
In Stock
Vacuum Grip Handle 4155620
#44

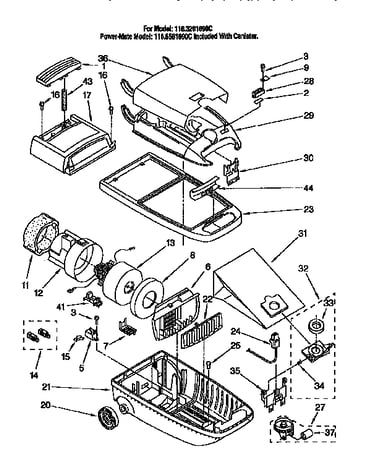

Canisters diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Wiring Harness 439244
#24

Hose and attachment diagram

Wiring harness

Part #439244

The manufacturer no longer makes this part, and there's no substitute part

Main Body 4152226
#2

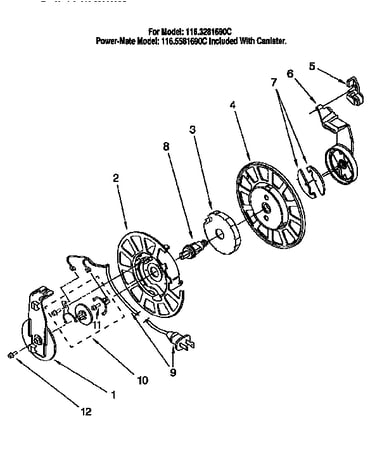

Power cord reel diagram

Main body

Part #4152226

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wire Harness 4369361
#24

Canisters diagram

Vacuum wire harness

Part #4369361

The manufacturer no longer makes this part, and there's no substitute part

Bag, Dust (sears No, 20-50555)(available At Any Sears Retail Or Catalog Store) 4156140
#31

Canisters diagram

Bag, dust (sears no, 20-50555)(available at any sears retail or catalog store)

Part #4156140

The manufacturer no longer makes this part, and there's no substitute part

Floor Brush 4147110
#3

Hose and attachment diagram

Floor brush

Part #4147110

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 780343
#12

Power cord reel diagram

Vacuum screw

Part #780343

The manufacturer no longer makes this part, and there's no substitute part

Canister Base 4369226
#21

Canisters diagram

Canister base

Part #4369226

The manufacturer no longer makes this part, and there's no substitute part

Slide 4369247
#14

Hose and attachment diagram

Slide

Part #4369247

The manufacturer no longer makes this part, and there's no substitute part
