Kenmore Elite
Countertop Microwave

Model # 72164282300 Official Kenmore Elite microwave

Here are the diagrams and repair parts for Official Kenmore Elite 72164282300 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

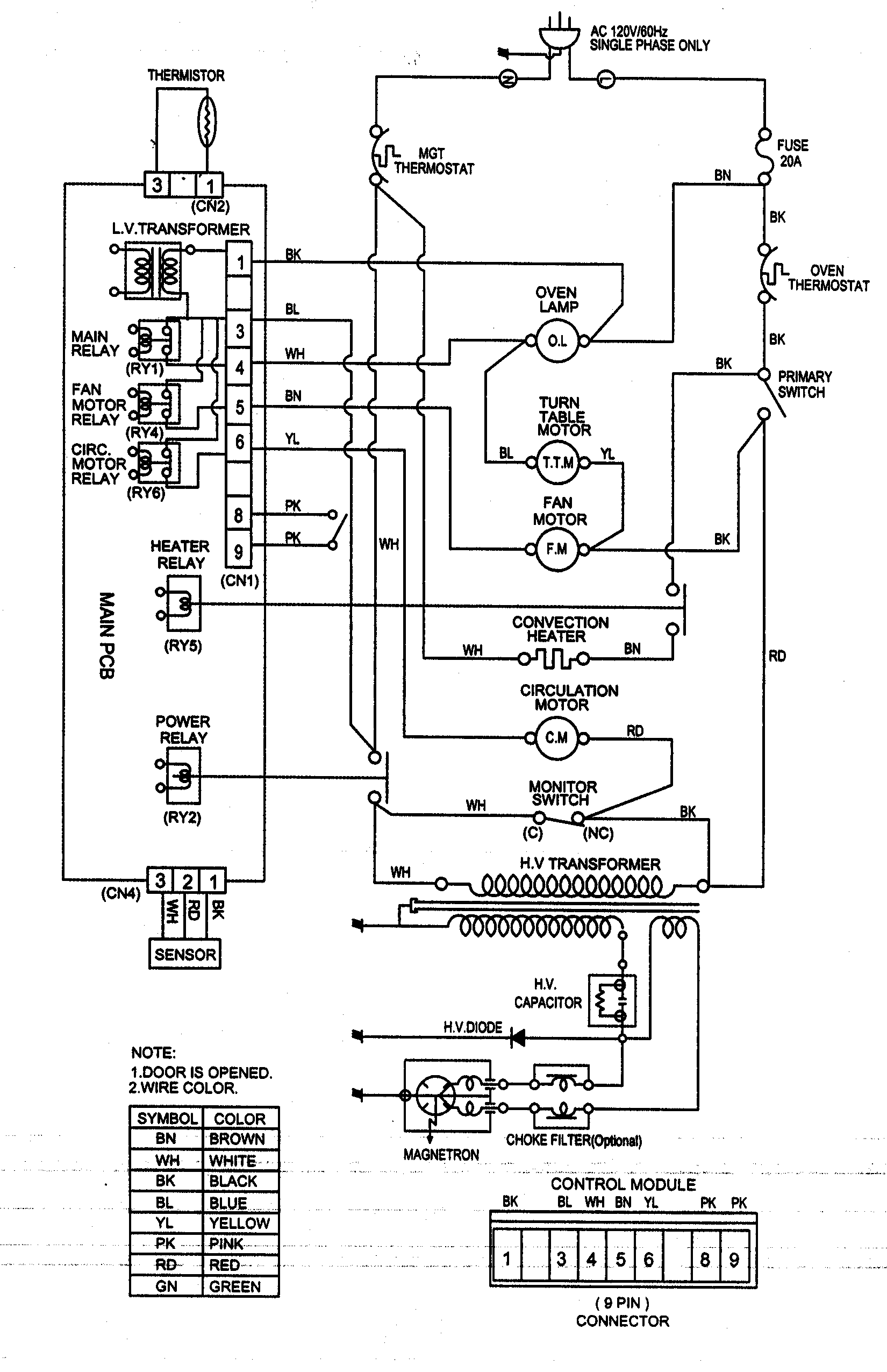

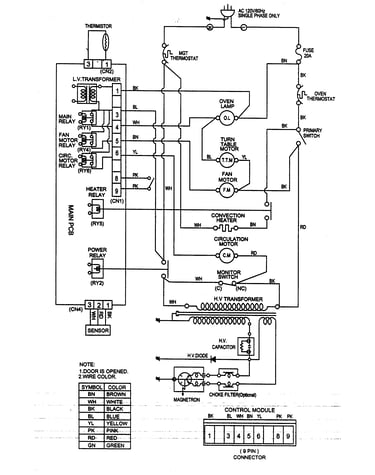

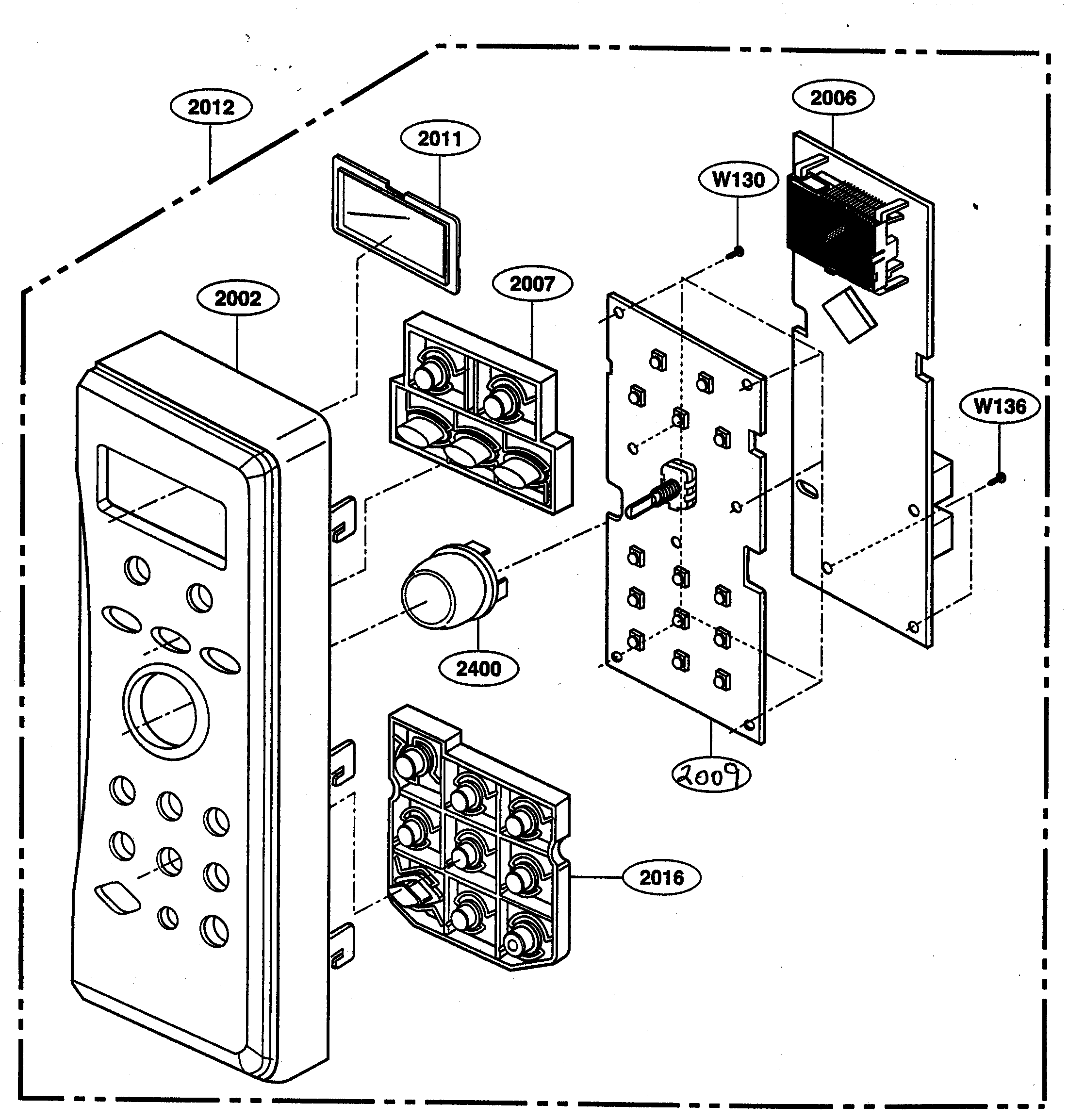

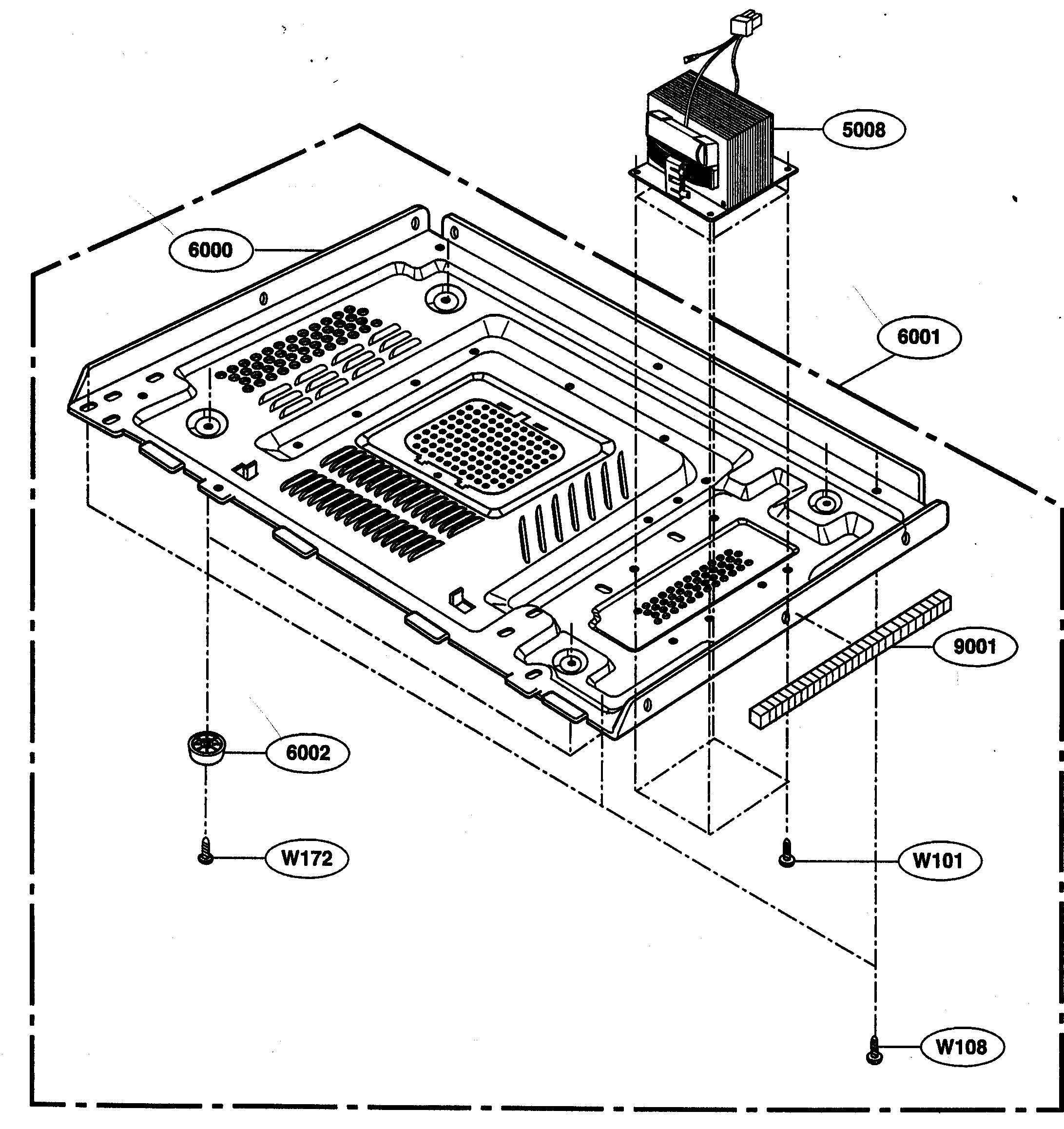

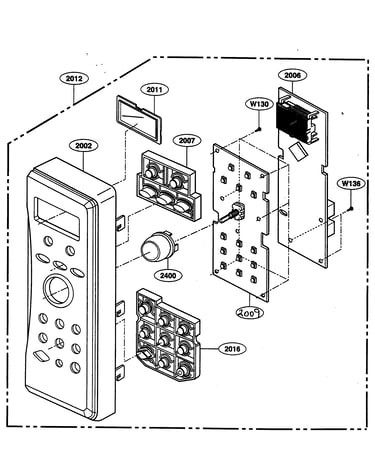

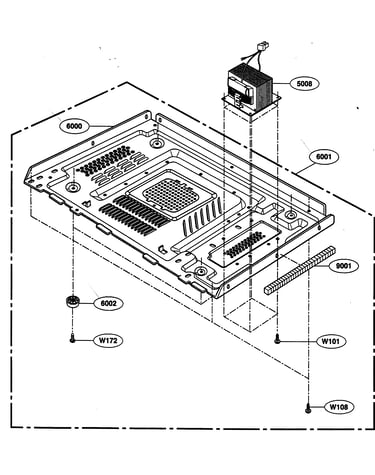

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Microwave Door Latch Hook 4026W2A015A
#1006

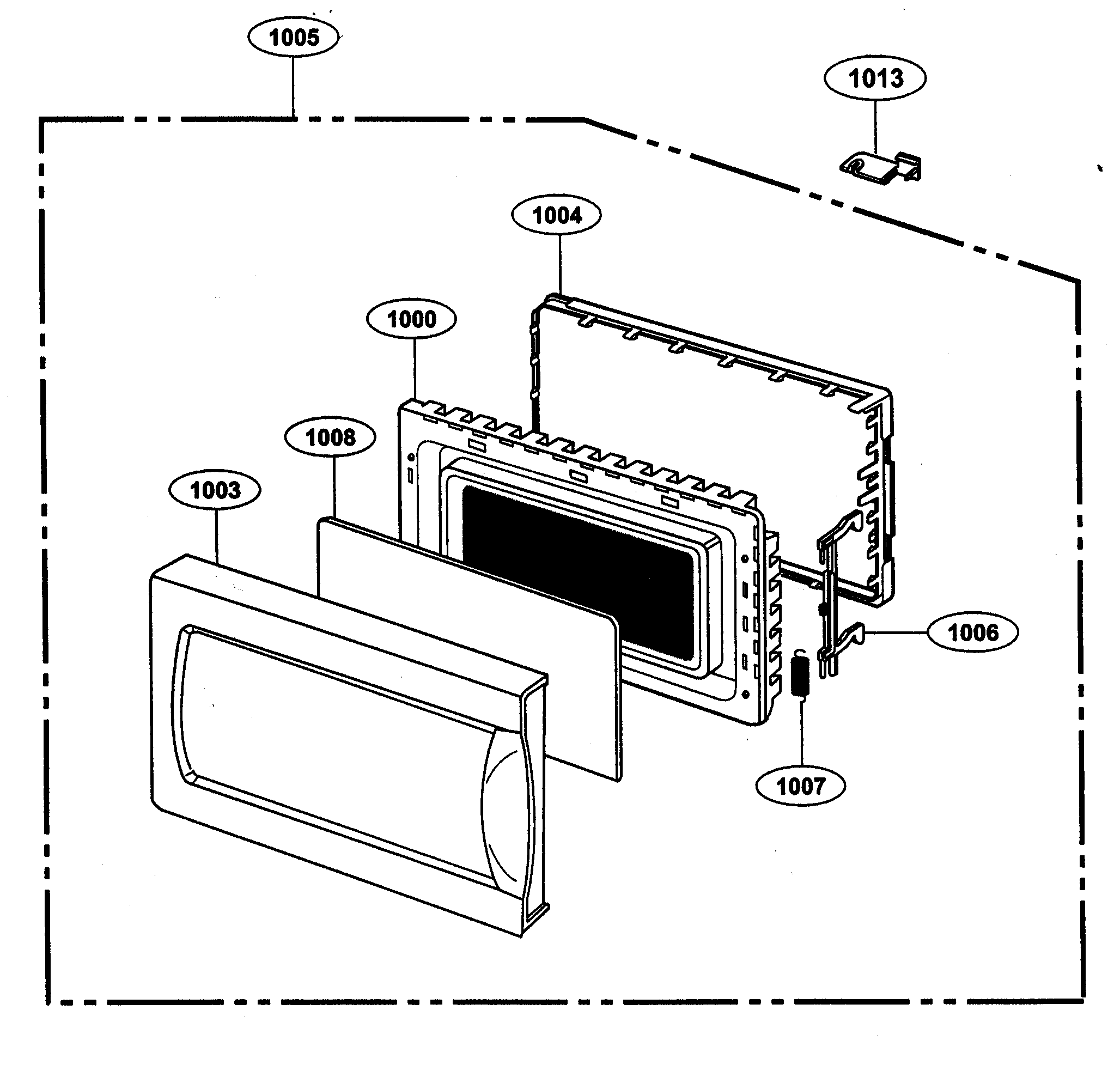

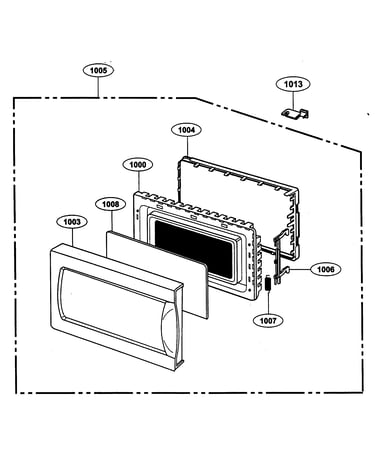

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

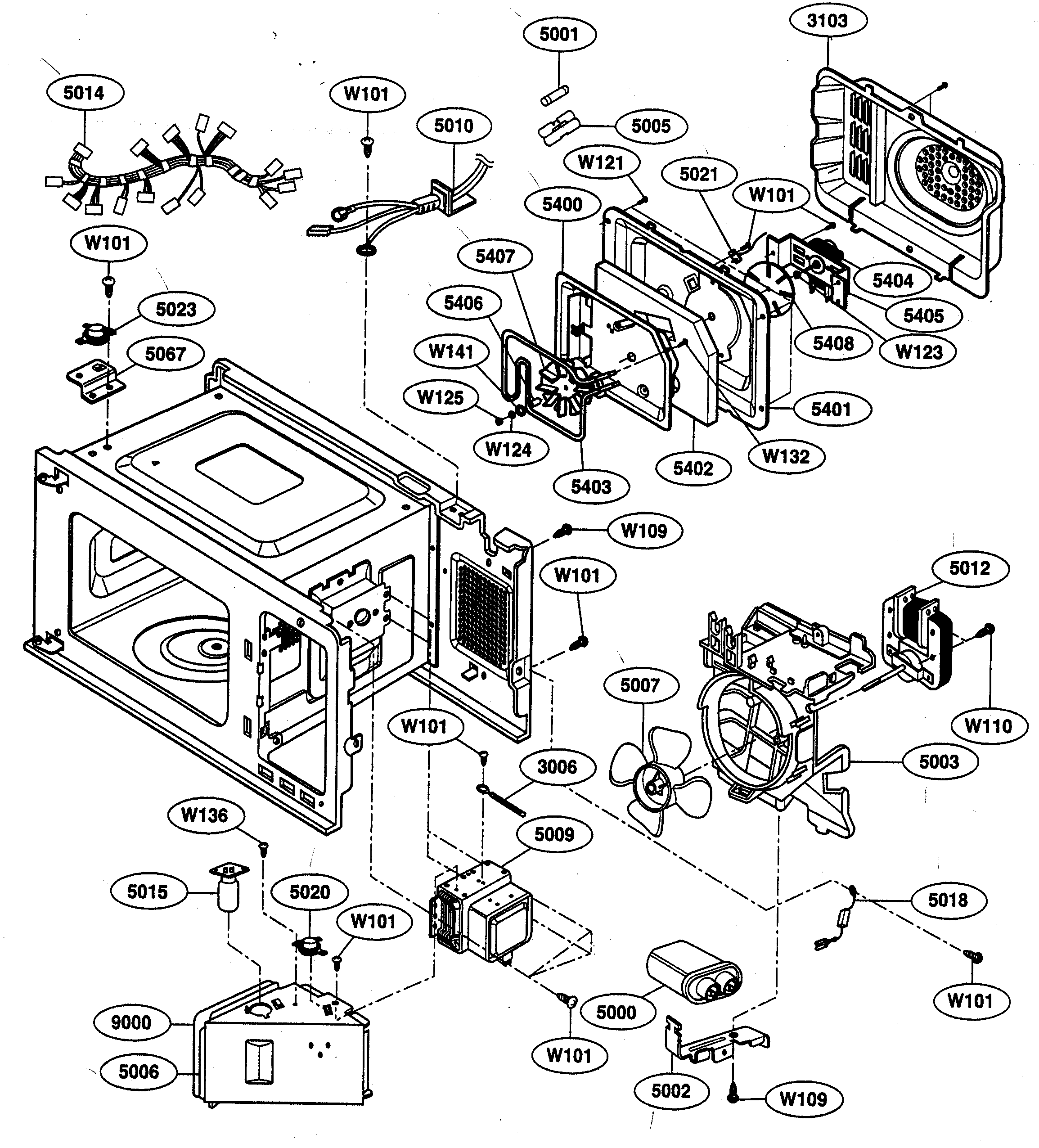

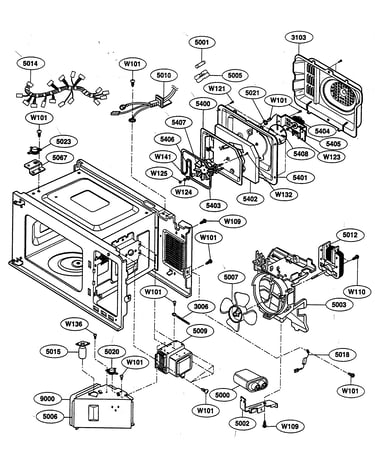

Oven interior parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Humidity Sensor 6501W1A013A
#5011

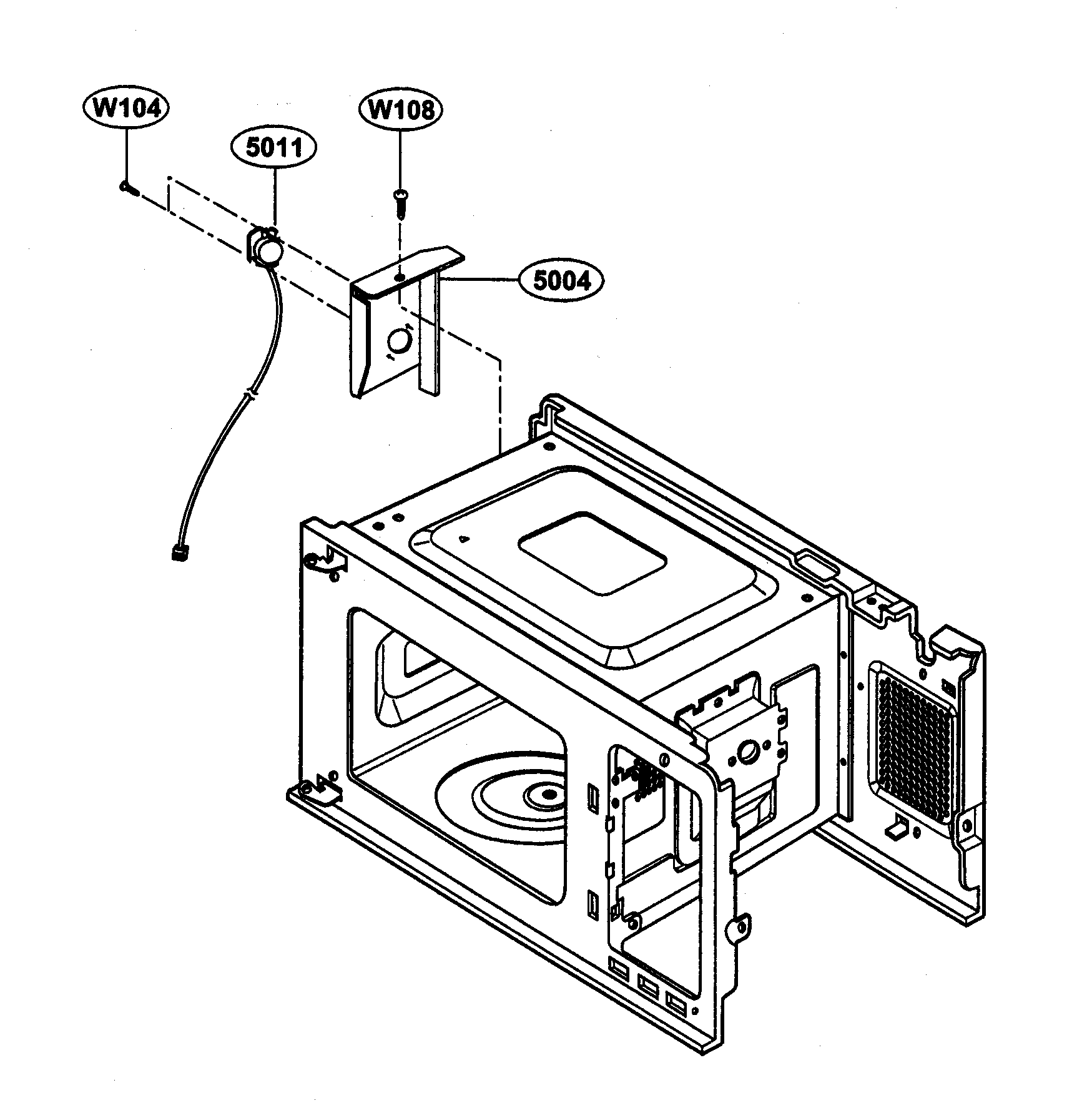

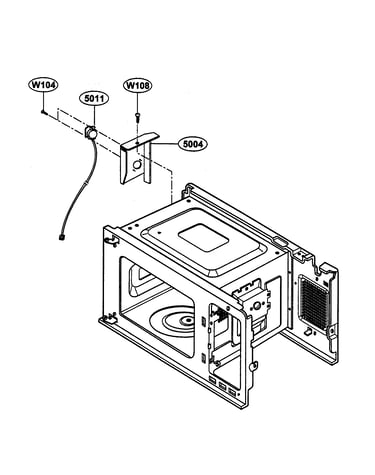

Sensor parts diagram

Microwave humidity sensor

Part #6501W1A013A

BEST SELLER
$45.81 |
12% OFF Phone Price : $51.81
In Stock
Microwave Door Latch Holder 3500W1A013A
#4000

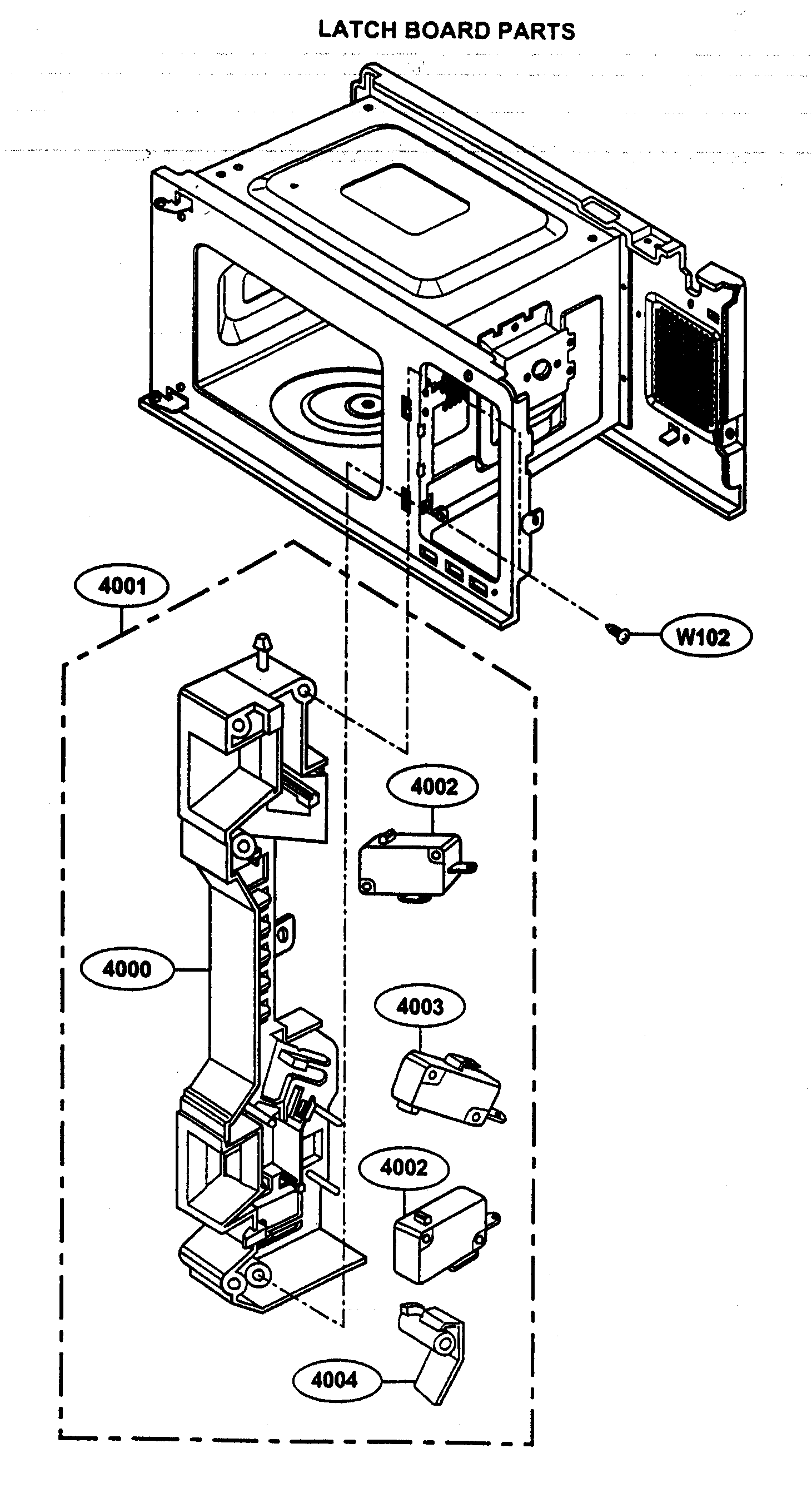

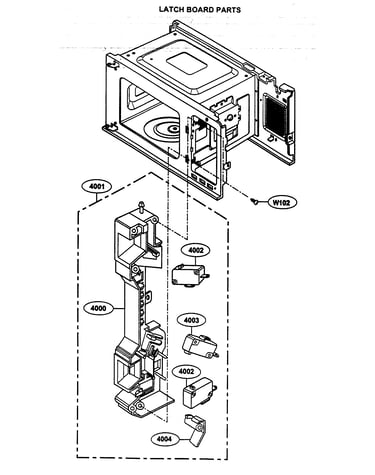

Latch board parts diagram

Microwave door latch holder

Part #3500W1A013A

Replaced by #3500W1A013R

?
Manufacturer substitution
This part replaces 3500W1A013A. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
Back Order
Us Pressed Steel Microwave Door Latch Lever 4510W4A005A
#4004

Latch board parts diagram

Us pressed steel microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Circulating Motor 6549W1S007G
#3009

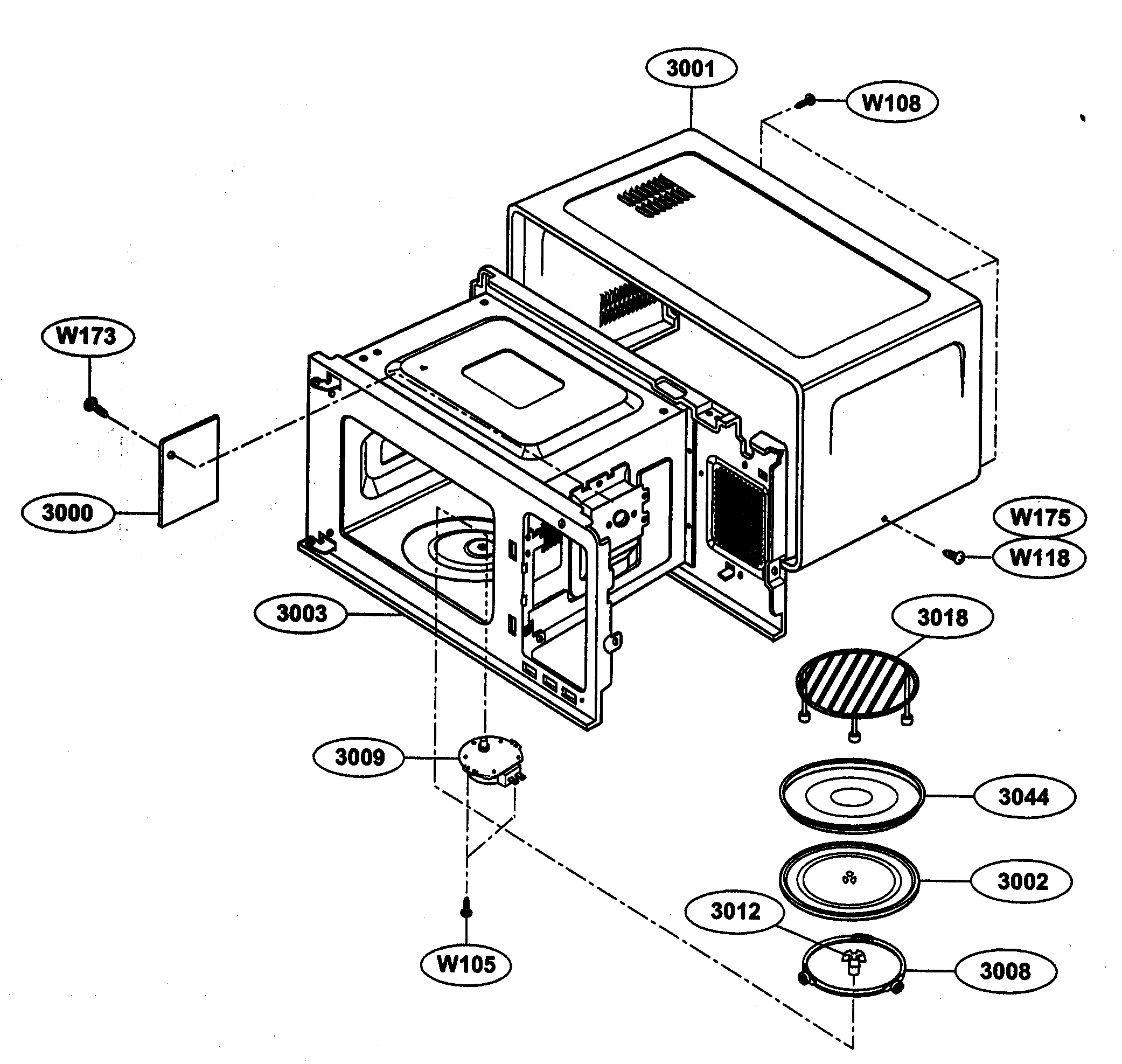

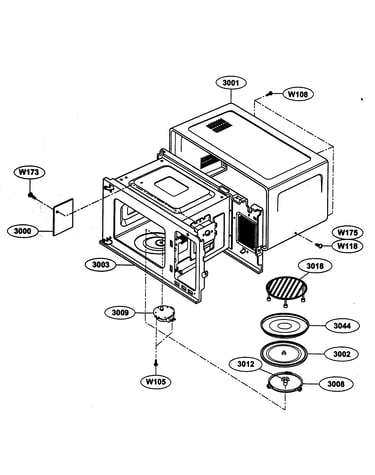

Oven cavity parts diagram

Circulating motor

Part #6549W1S007G

Replaced by #6549W1S013A

?
Manufacturer substitution
This part replaces 6549W1S007G. Substitute parts can look different from the original.
$29.52 |
17% OFF Phone Price : $35.52
In Stock
Us Pressed Steel Microwave Screw 4B70188C
#W102

Latch board parts diagram

Us pressed steel microwave screw

Part #4B70188C

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Temperature Sensor 6322W2A001A
#5021

Oven interior parts diagram

Microwave temperature sensor

Part #6322W2A001A

This item is not returnable
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Microwave Turntable Tray 3390W2P002F
#3044

Oven cavity parts diagram

Microwave turntable tray

Part #3390W2P002F

Replaced by #3390W2P002K

?
Manufacturer substitution
This part replaces 3390W2P002F. Substitute parts can look different from the original.
$70.30 |
8% OFF Phone Price : $76.30
In Stock
Goldstar Bracket 3B72717A
#5405

Oven interior parts diagram

Goldstar bracket

Part #3B72717A

$13.20
In Stock
