Model # 11057624 Official Kenmore permanent installation conversion kit

Here are the diagrams and repair parts for Official Kenmore 11057624 permanent installation conversion kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Clamp 370450
#8

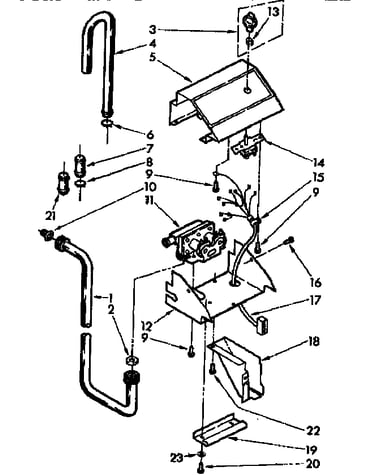

Conv from port water fill to reg water fill diagram

Clamp

Part #370450

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 370450. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp 357821
#6

Conv from port water fill to reg water fill diagram

Clamp

Part #357821

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 357821. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 343641
#9

Conv from port water fill to reg water fill diagram

Screw

Part #343641

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 343641. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Hose Assembly 81339
#1

Conv from port water fill to reg water fill diagram

Hose assembly

Part #81339

Replaced by #WP76314

?
Manufacturer substitution
This part replaces 81339. Substitute parts can look different from the original.
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Washer 355521
#10

Conv from port water fill to reg water fill diagram

Washer

Part #355521

Replaced by #285452A

?
Manufacturer substitution
This part replaces 355521. Substitute parts can look different from the original.
This item is not returnable
$5.66 |
15% OFF Phone Price : $6.66
In Stock
Valve 363425
#11

Conv from port water fill to reg water fill diagram

Valve

Part #363425

Replaced by #358277

?
Manufacturer substitution
This part replaces 363425. Substitute parts can look different from the original.
$87.19 |
6% OFF Phone Price : $93.19
In Stock
Laundry Appliance Screw, #10-16 X 1-1/2-in 340184
#20

Conv from port water fill to reg water fill diagram

Laundry appliance screw, #10-16 x 1-1/2-in

Part #340184

$12.49
In Stock
Washing Machine Washer 16123
#2

Conv from port water fill to reg water fill diagram

Washing machine washer

Part #16123

Replaced by #WP16123

?
Manufacturer substitution
This part replaces 16123. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Compression Ring 90015
#13

Conv from port water fill to reg water fill diagram

Compression ring

Part #90015

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 90918
#23

Conv from port water fill to reg water fill diagram

Lock washer

Part #90918

The manufacturer no longer makes this part, and there's no substitute part
