Model # SS-B3000 Official Sony audio speaker

Here are the diagrams and repair parts for Official Sony SS-B3000 audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Tweeter Assembly X21762391
#103

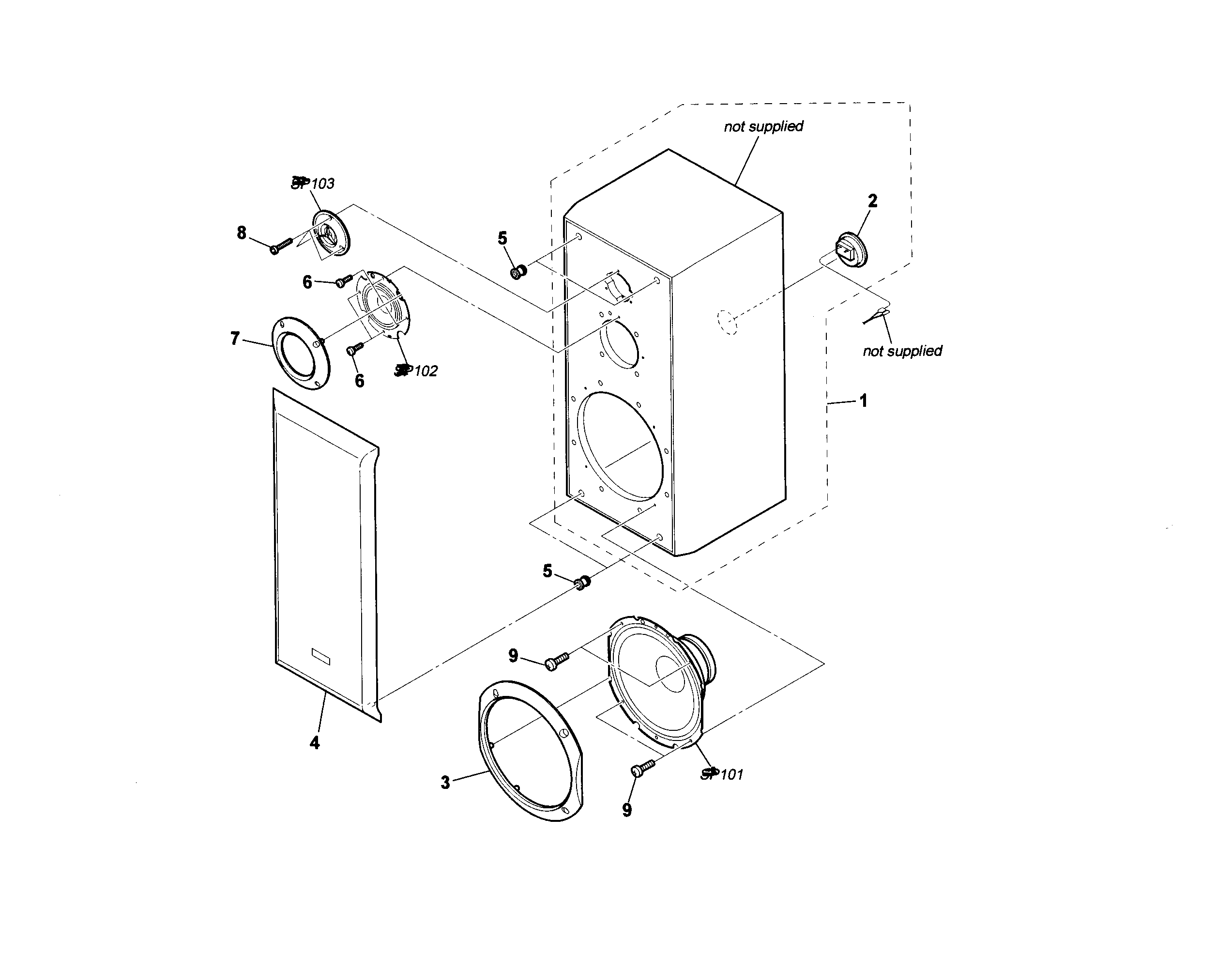

Speaker assy diagram

Tweeter assembly

Part #X21762391

The manufacturer no longer makes this part, and there's no substitute part

Screw (1) 487461412
#6

Speaker assy diagram

Screw (1)

Part #487461412

The manufacturer no longer makes this part, and there's no substitute part

Screw 4x20 234902211
#9

Speaker assy diagram

Screw 4x20

Part #234902211

The manufacturer no longer makes this part, and there's no substitute part

Grille Frame A1226004A
#4

Speaker assy diagram

Grille frame

Part #A1226004A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet A1226003A
#1

Speaker assy diagram

Cabinet

Part #A1226003A

The manufacturer no longer makes this part, and there's no substitute part

Woofer,20c 182659711
#101

Speaker assy diagram

Woofer,20c

Part #182659711

The manufacturer no longer makes this part, and there's no substitute part

Ring,midra 289882601
#7

Speaker assy diagram

Ring,midra

Part #289882601

The manufacturer no longer makes this part, and there's no substitute part

Ring,woofe 289882701
#3

Speaker assy diagram

Ring,woofe

Part #289882701

The manufacturer no longer makes this part, and there's no substitute part

Loudspeaker 182659411
#102

Speaker assy diagram

Loudspeaker

Part #182659411

The manufacturer no longer makes this part, and there's no substitute part

Catcher 425418201
#5

Speaker assy diagram

Catcher

Part #425418201

The manufacturer no longer makes this part, and there's no substitute part
