Model # 183321362 Official Kenmore dual lowboy electric water heater

Here are the diagrams and repair parts for Official Kenmore 183321362 dual lowboy electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Gasket 053037
#3

Controls group diagram

Gasket

Part #053037

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 053037. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
240 Volt 2500 Watt 074305
#2G

Controls group diagram

240 volt 2500 watt

Part #074305

The manufacturer no longer makes this part, and there's no substitute part

Cover Junction 047062
#8

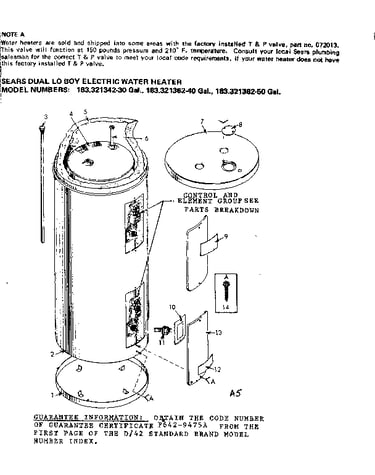

Replacement parts diagram

Cover junction

Part #047062

The manufacturer no longer makes this part, and there's no substitute part

Lower Thermostat 2 Pole 018032
#5

Controls group diagram

Lower thermostat 2 pole

Part #018032

The manufacturer no longer makes this part, and there's no substitute part

F/183.320580, 183.320980 & 183.321580 119691
#1A

Replacement parts diagram

F/183.320580, 183.320980 & 183.321580

Part #119691

The manufacturer no longer makes this part, and there's no substitute part

F/183.320580, 183.320980 & 183.321580 013150
#5A

Replacement parts diagram

F/183.320580, 183.320980 & 183.321580

Part #013150

The manufacturer no longer makes this part, and there's no substitute part

F/183.321381 119653
#1C

Replacement parts diagram

F/183.321381

Part #119653

The manufacturer no longer makes this part, and there's no substitute part

F/183.320810 119658
#7B

Replacement parts diagram

F/183.320810

Part #119658

The manufacturer no longer makes this part, and there's no substitute part

Protector, Terminal 047096
#7

Controls group diagram

Protector, terminal

Part #047096

The manufacturer no longer makes this part, and there's no substitute part

F/183.320610 183.320710 119648
#7A

Replacement parts diagram

F/183.320610 183.320710

Part #119648

The manufacturer no longer makes this part, and there's no substitute part
