Model # E1FD018S06D Official York heat pump

Here are the diagrams and repair parts for Official York E1FD018S06D heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Capacitor 024-23296-700
#3

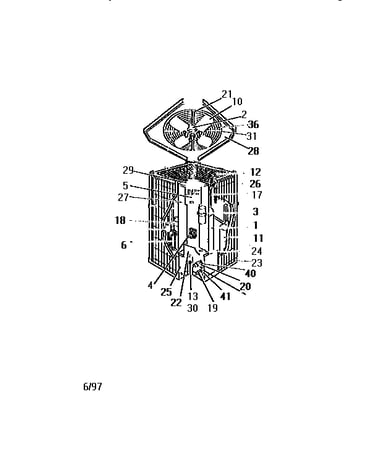

Unit parts diagram

Capacitor

Part #024-23296-700

The manufacturer no longer makes this part, and there's no substitute part

Cap Seal 023-10745-000
#30

Unit parts diagram

Cap seal

Part #023-10745-000

The manufacturer no longer makes this part, and there's no substitute part

Accumulato 526-31681-701
#11

Unit parts diagram

Accumulato

Part #526-31681-701

The manufacturer no longer makes this part, and there's no substitute part

Panel, Connection 073-14327-000
#25

Unit parts diagram

Panel, connection

Part #073-14327-000

The manufacturer no longer makes this part, and there's no substitute part

Clamp Channel 021-17302-000
#31

Unit parts diagram

Clamp channel

Part #021-17302-000

The manufacturer no longer makes this part, and there's no substitute part

Pan Base 073-05504-001
#23

Unit parts diagram

Pan base

Part #073-05504-001

The manufacturer no longer makes this part, and there's no substitute part

Guard, Coil (13 X 28) (note: Style "c" Models Are The Same As Style "b" Except For The Following Parts) 026-34618-000

#NI

All parts diagram

Guard, coil (13 x 28) (note: style "c" models are the same as style "b" except for the following parts)

Part #026-34618-000

The manufacturer no longer makes this part, and there's no substitute part

Guard, Coil (16 X 28) (note: Style "c" Models Are The Same As Style "b" Except For The Following Parts) 026-34622-000

#NI

All parts diagram

Guard, coil (16 x 28) (note: style "c" models are the same as style "b" except for the following parts)

Part #026-34622-000

The manufacturer no longer makes this part, and there's no substitute part

Coil Solenoid (ranco) (1) Check Reversing Valve To Determine Vendor.) 025-30214-700
#9

Unit parts diagram

Coil solenoid (ranco) (1) check reversing valve to determine vendor.)

Part #025-30214-700

The manufacturer no longer makes this part, and there's no substitute part

Coil, Solenoid (alco ) ( (1) Check Reversing Valve To Determine Vendor.) 025-29766-000
#8

Unit parts diagram

Coil, solenoid (alco ) ( (1) check reversing valve to determine vendor.)

Part #025-29766-000

The manufacturer no longer makes this part, and there's no substitute part
