Model # 153312260 Official Kenmore electric water heater

Here are the diagrams and repair parts for Official Kenmore 153312260 electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 13 parts |

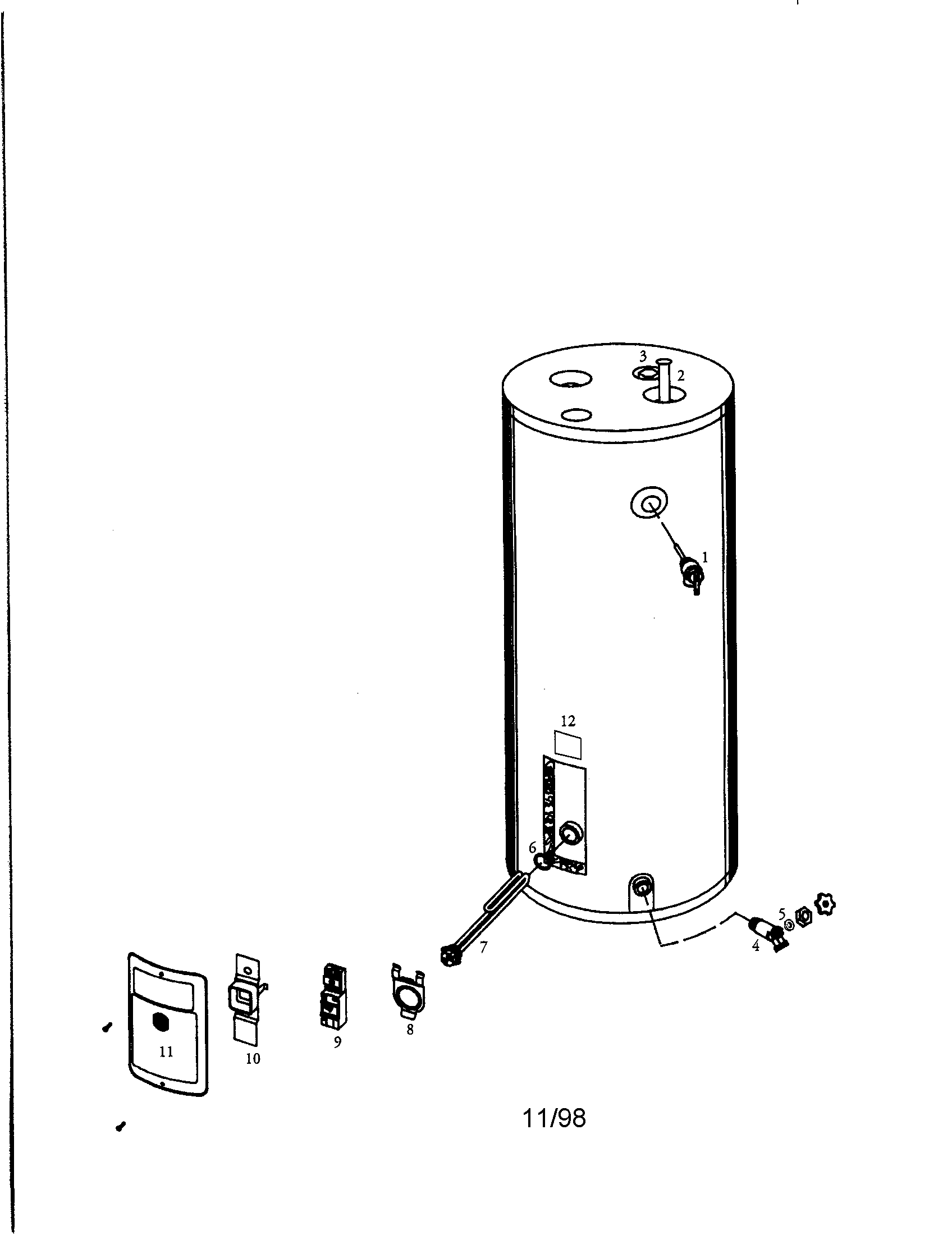

40 gallon electric water heater diagram

Water heater heating element gasket

Part #9000308

Replaced by #9000308005

$30.62 |

16% OFF Phone Price : $36.62

In Stock

Qty

40 gallon electric water heater diagram

Element

Part #31906

The manufacturer no longer makes this part, and there's no substitute part

40 gallon electric water heater diagram

Temp pressur

Part #33085

The manufacturer no longer makes this part, and there's no substitute part

40 gallon electric water heater diagram

Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)

Part #9000309

Replaced by #100108380

$27.78

In Stock

Qty

40 gallon electric water heater diagram

Dip tube

Part #9001825

Replaced by #100108763

$26.67

In Stock

Qty

40 gallon electric water heater diagram

Thermostat

Part #31918

Replaced by #100108424

$30.00

In Stock

Qty

40 gallon electric water heater diagram

Anode rod

Part #9001822

Replaced by #100109624

$31.11

In Stock

Qty

40 gallon electric water heater diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

$24.44

In Stock

Qty

40 gallon electric water heater diagram

Drain

Part #9000058

Replaced by #100108269

$18.57

In Stock

Qty

#NI

All parts diagram

Owner's manual

Part #0291512-00

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your water heaters

Choose a symptom to see related water heater repairs.

View all

Why isn't my water heater heating my water?

Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…

Why isn't my water heater making the water hot enough?

Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…

Why is there water in my water heater's drain pan?

Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…

Why does my hot water smell like rotten eggs?

Main causes: water supply needs chlorine treatment, anode rod too reactive…

Why isn't my water heater making enough hot water?

Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…

Why is my water heater making the water too hot?

Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…

Why is my water heater's pressure relief valve dripping water?

Main causes: faulty pressure relief valve, water is overheating…

Repair guides for electric water heaters

View all

How to replace a water heater element

If your water heater runs out of hot water quickly and one of the two heating elements has failed, replace the element f…

Repair difficulty

Time required

30 minutes or less

How to replace an electric water heater thermostat

If the water temperature fluctuates or you don't get enough hot water, follow these instructions to replace your water h…

Repair difficulty

Time required

30 minutes or less

How to replace a water heater temperature and pressure (T&P) relief valve

Replace a broken temperature/pressure (T&P) relief valve on an electric water heater using these instructions.…

Repair difficulty

Time required

15 minutes or less
