Model # 1165451290 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 1165451290 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Spring 742002
#44

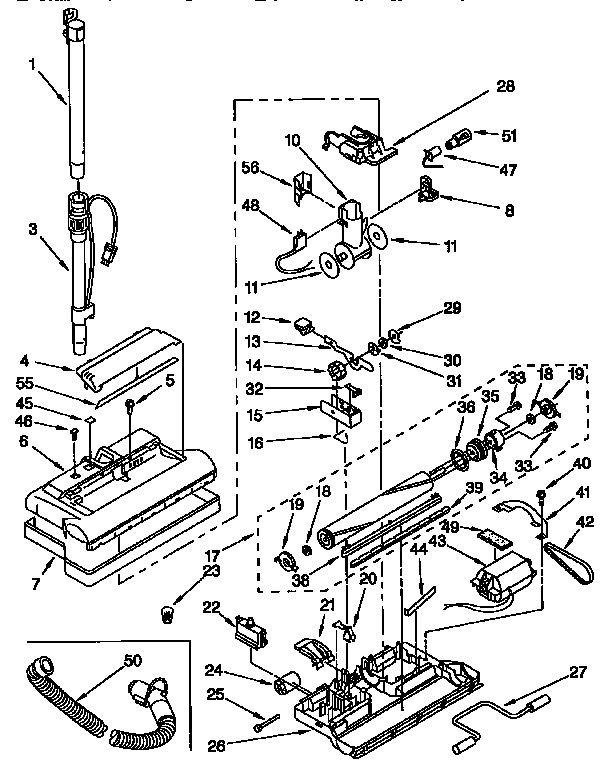

Power mate diagram

Spring

Part #742002

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 747096
#47

Power mate diagram

Bulb socket

Part #747096

The manufacturer no longer makes this part, and there's no substitute part

Spring 725775
#16

Power mate diagram

Spring

Part #725775

The manufacturer no longer makes this part, and there's no substitute part

End Brush (black) 742509
#34

Power mate diagram

End brush (black)

Part #742509

The manufacturer no longer makes this part, and there's no substitute part

Belt 742024
#42

Power mate diagram

Belt

Part #742024

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base 4369306
#26

Power mate diagram

Nozzle base

Part #4369306

The manufacturer no longer makes this part, and there's no substitute part

Bumper 4156173
#7

Power mate diagram

Bumper

Part #4156173

The manufacturer no longer makes this part, and there's no substitute part

Catch 722955
#31

Power mate diagram

Catch

Part #722955

The manufacturer no longer makes this part, and there's no substitute part

Screw (silver) 681605
#33

Power mate diagram

Screw (silver)

Part #681605

The manufacturer no longer makes this part, and there's no substitute part

Washer 725635
#30

Power mate diagram

Washer

Part #725635

The manufacturer no longer makes this part, and there's no substitute part
