Amana
Room Air Conditioner

Model # 14C2MY-P1203201R Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana 14C2MY-P1203201R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

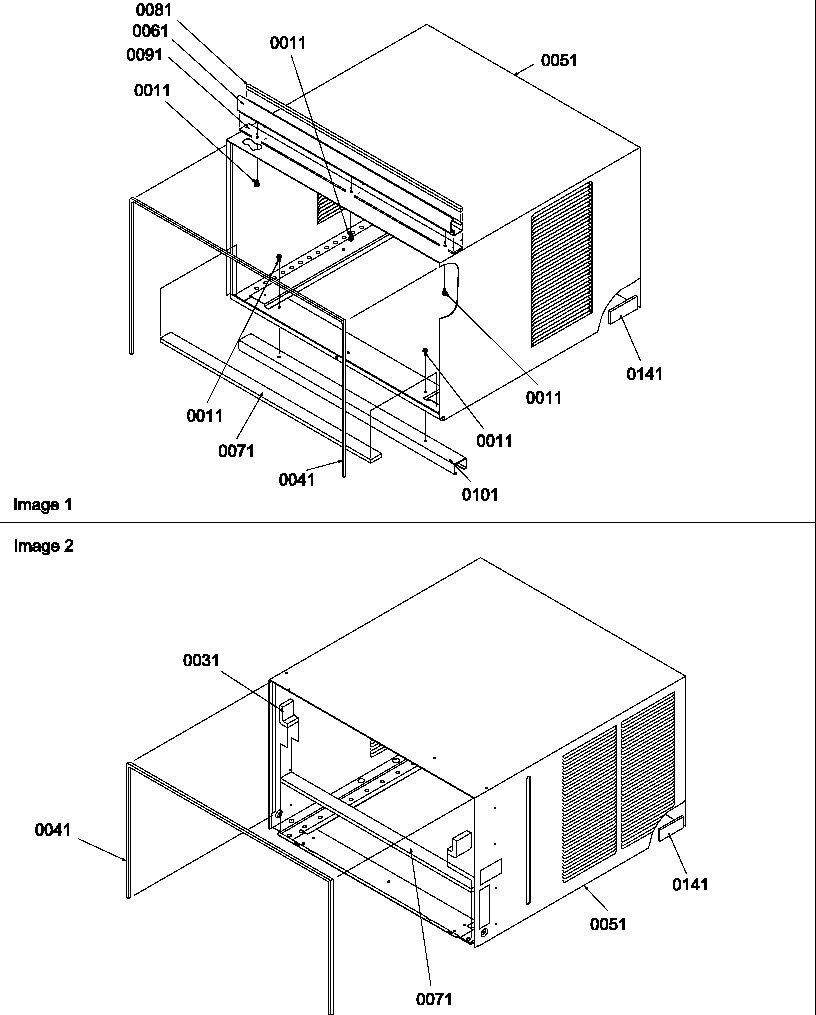

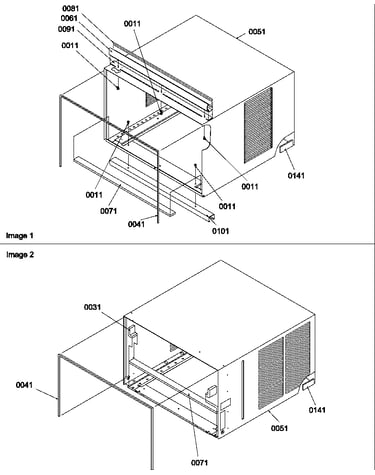

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Screw M0211017
Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Terminal Nut A3436601
#532

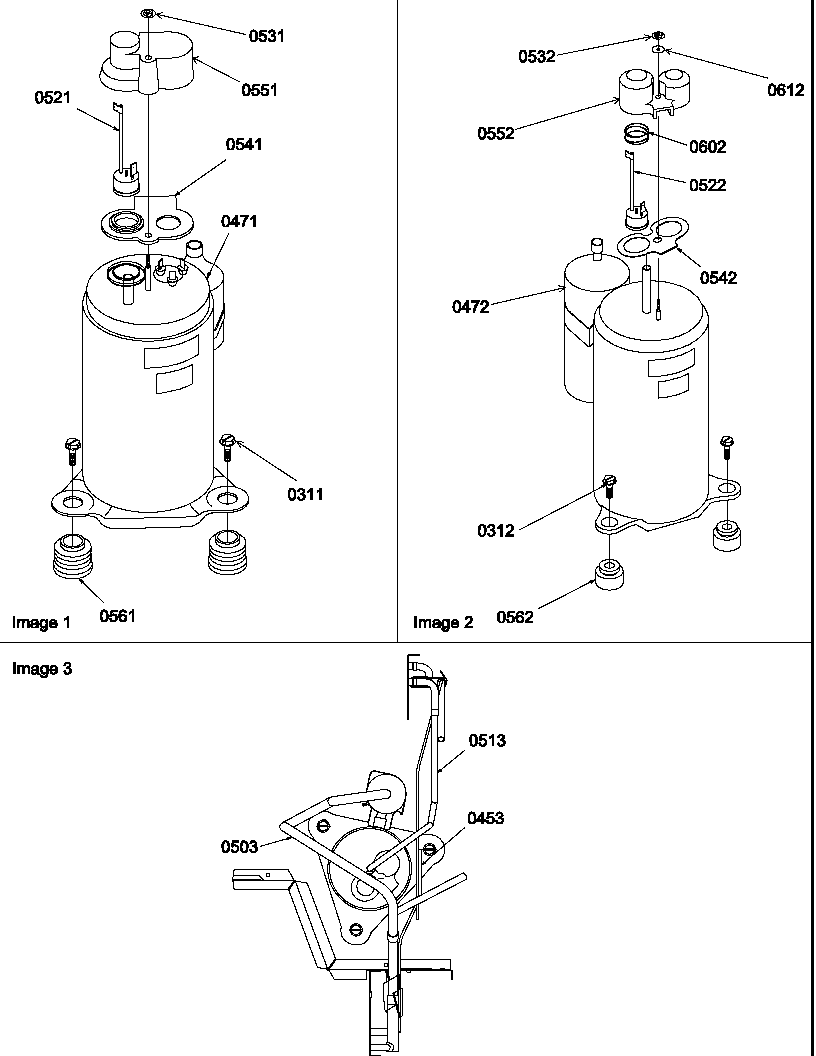

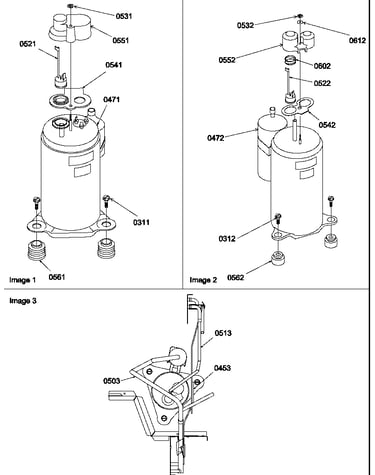

Compressor & tubing diagram

Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
$11.34
In Stock
Screw M0241118
#771

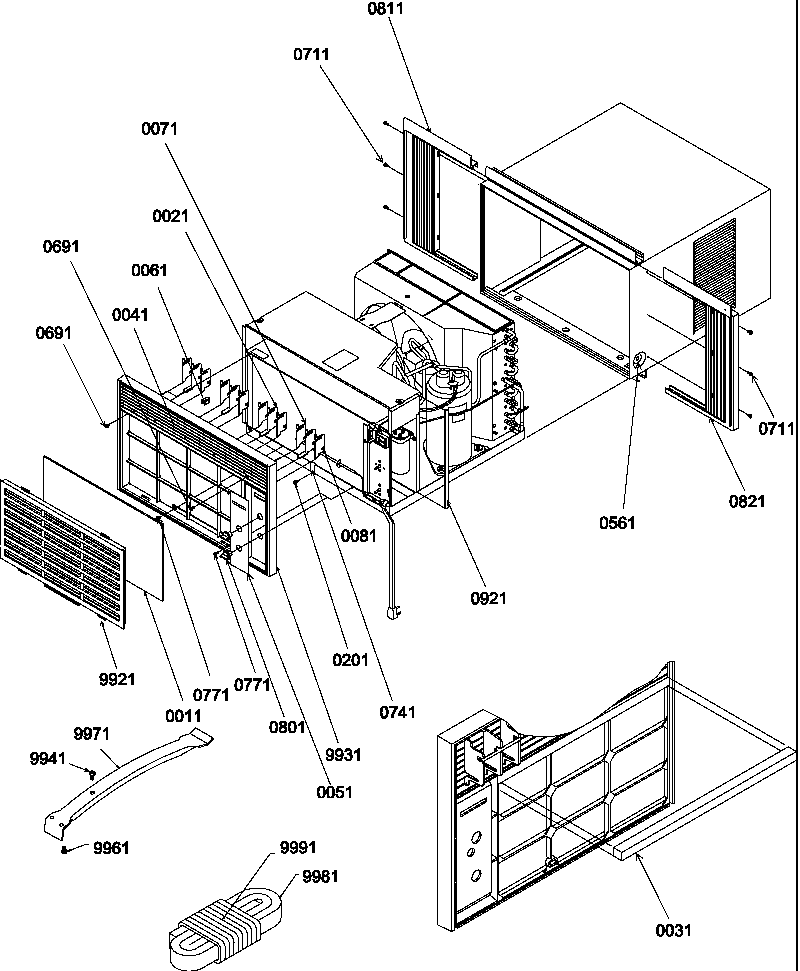

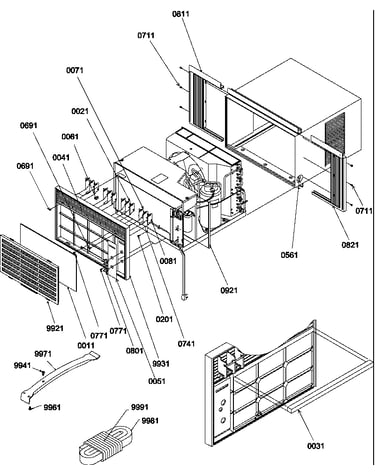

Front diagram

Screw

Part #M0241118

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0241118. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw M0202321
#92

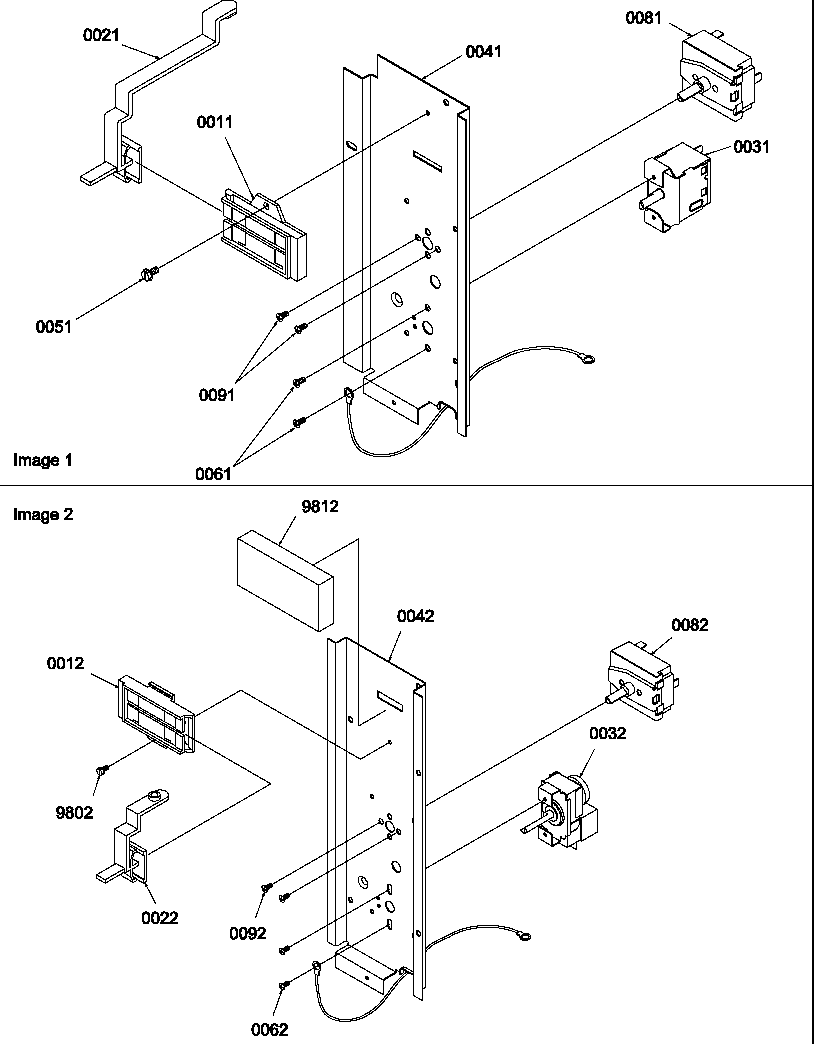

Control panel diagram

Screw

Part #M0202321

Replaced by #W11214483

?
Manufacturer substitution
This part replaces M0202321. Substitute parts can look different from the original.
$12.49
In Stock
Screw M0211016
#551

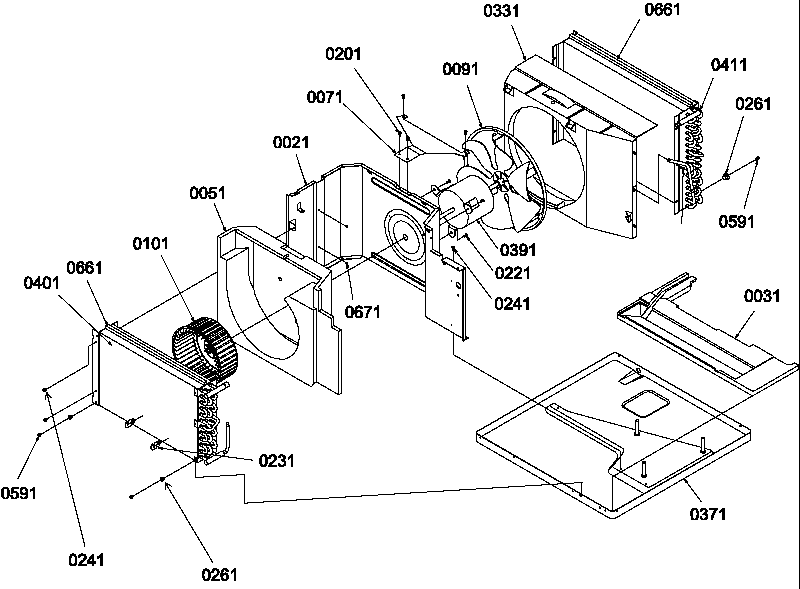

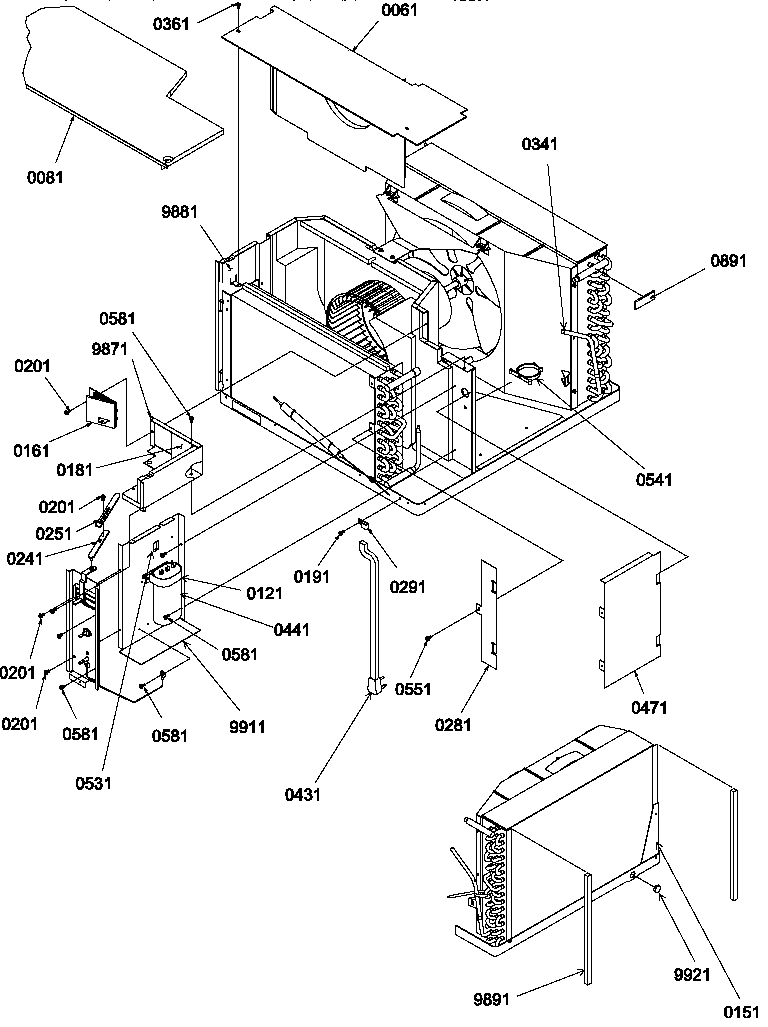

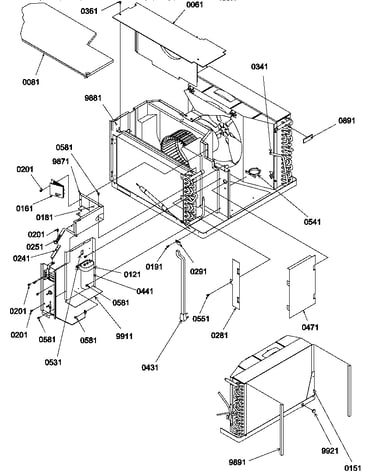

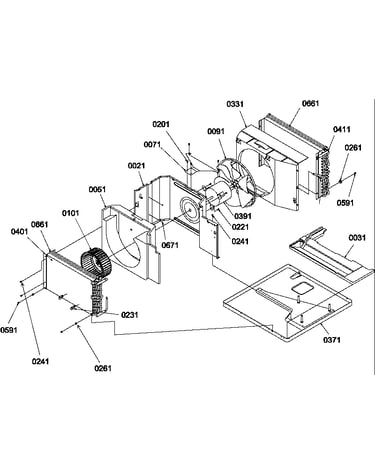

Chassis diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0245116
#361

Chassis diagram

Screw

Part #M0245116

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces M0245116. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Tap Screw M0224956
#221

Chassis diagram

Tap screw

Part #M0224956

Replaced by #WP489427

?
Manufacturer substitution
This part replaces M0224956. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Condenser Assembly 10365102
#411

Chassis diagram

Condenser assembly

Part #10365102

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube 10365301
#453

Compressor & tubing diagram

Capillary tube

Part #10365301

The manufacturer no longer makes this part, and there's no substitute part

Gasket A4684201
#201

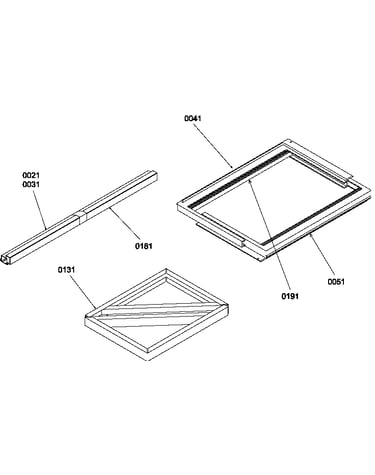

Mtg kit assy diagram

Gasket

Part #A4684201

The manufacturer no longer makes this part, and there's no substitute part
