Model # FS22A Official Canon camcorder

Here are the diagrams and repair parts for Official Canon FS22A camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

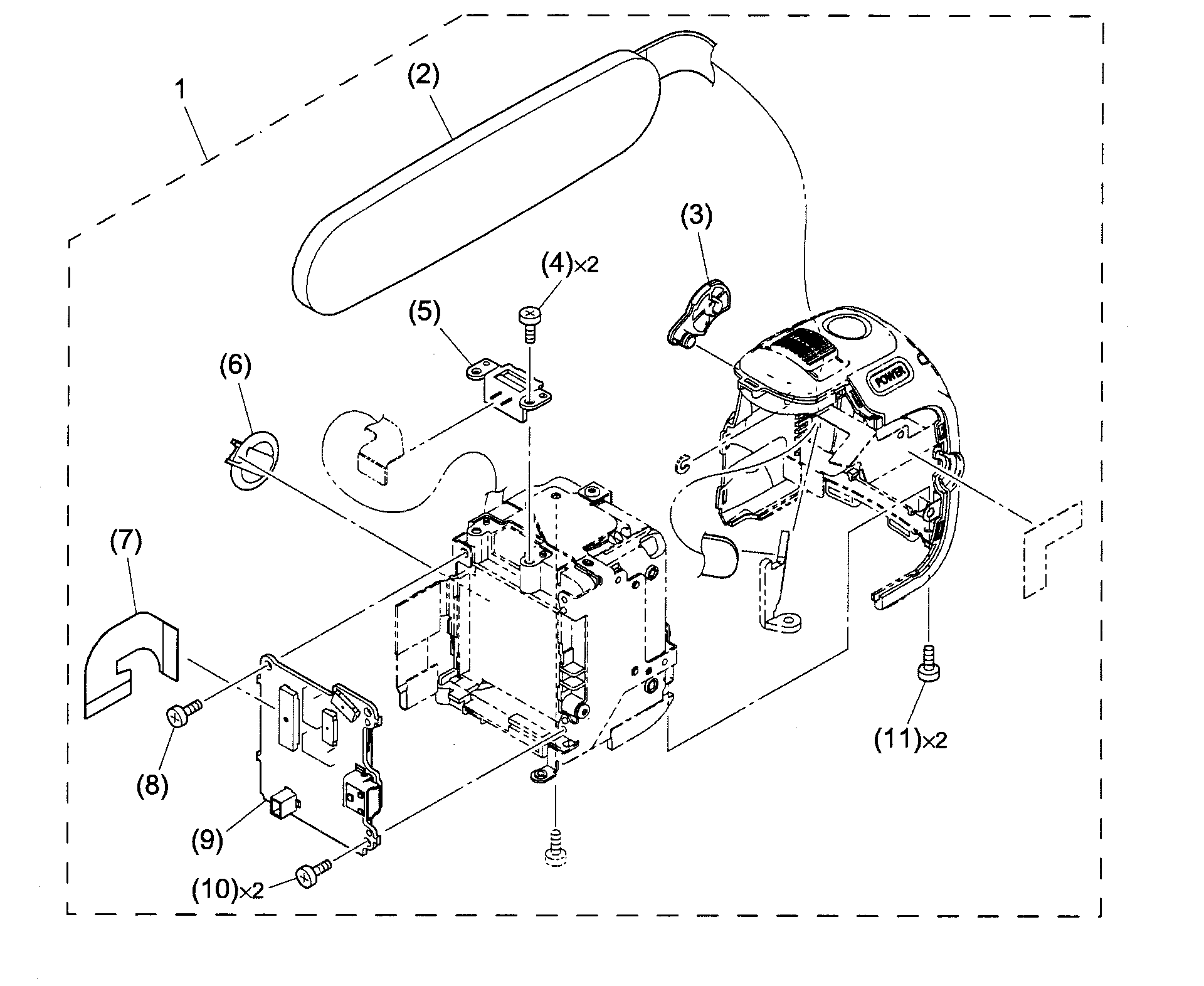

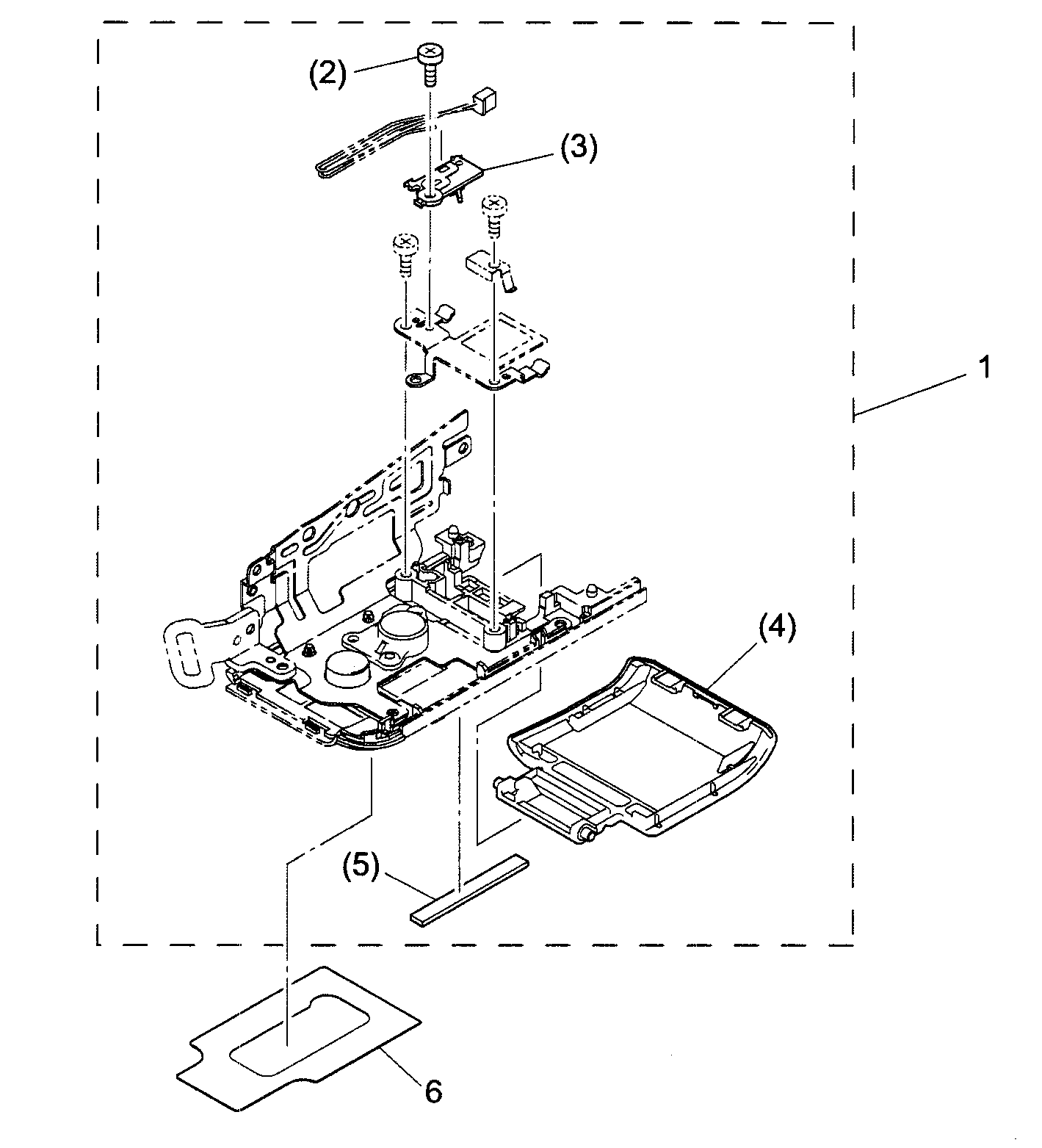

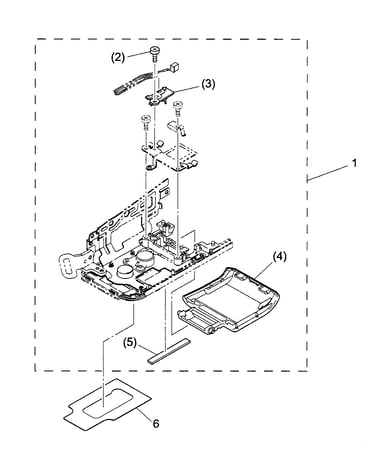

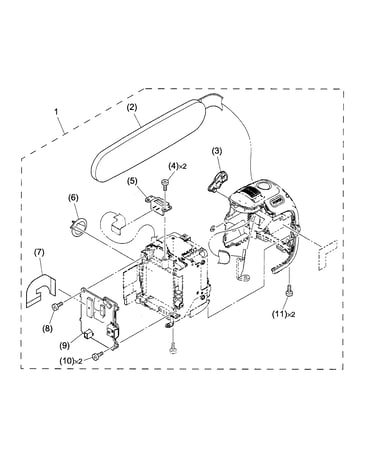

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Lens Assembly DG3-2590-000
#2

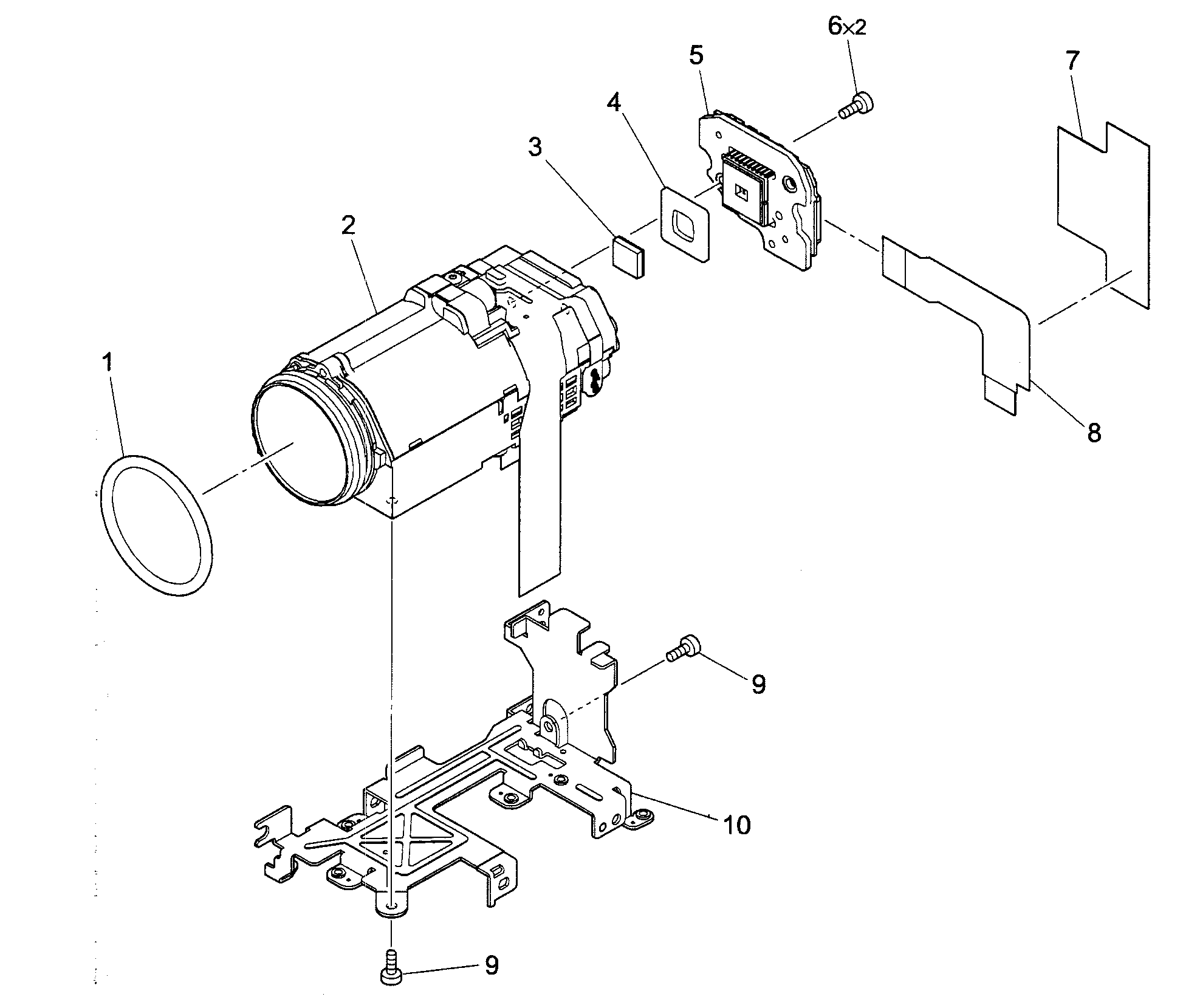

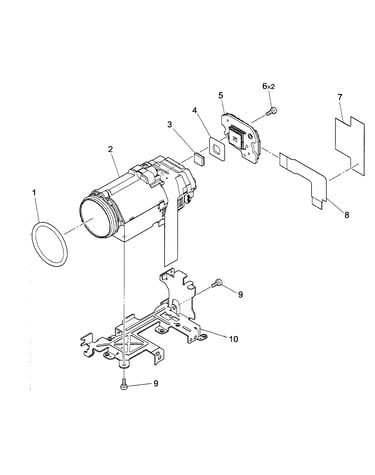

Lens assy diagram

Lens assembly

Part #DG3-2590-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker WR1-5142-000
#18

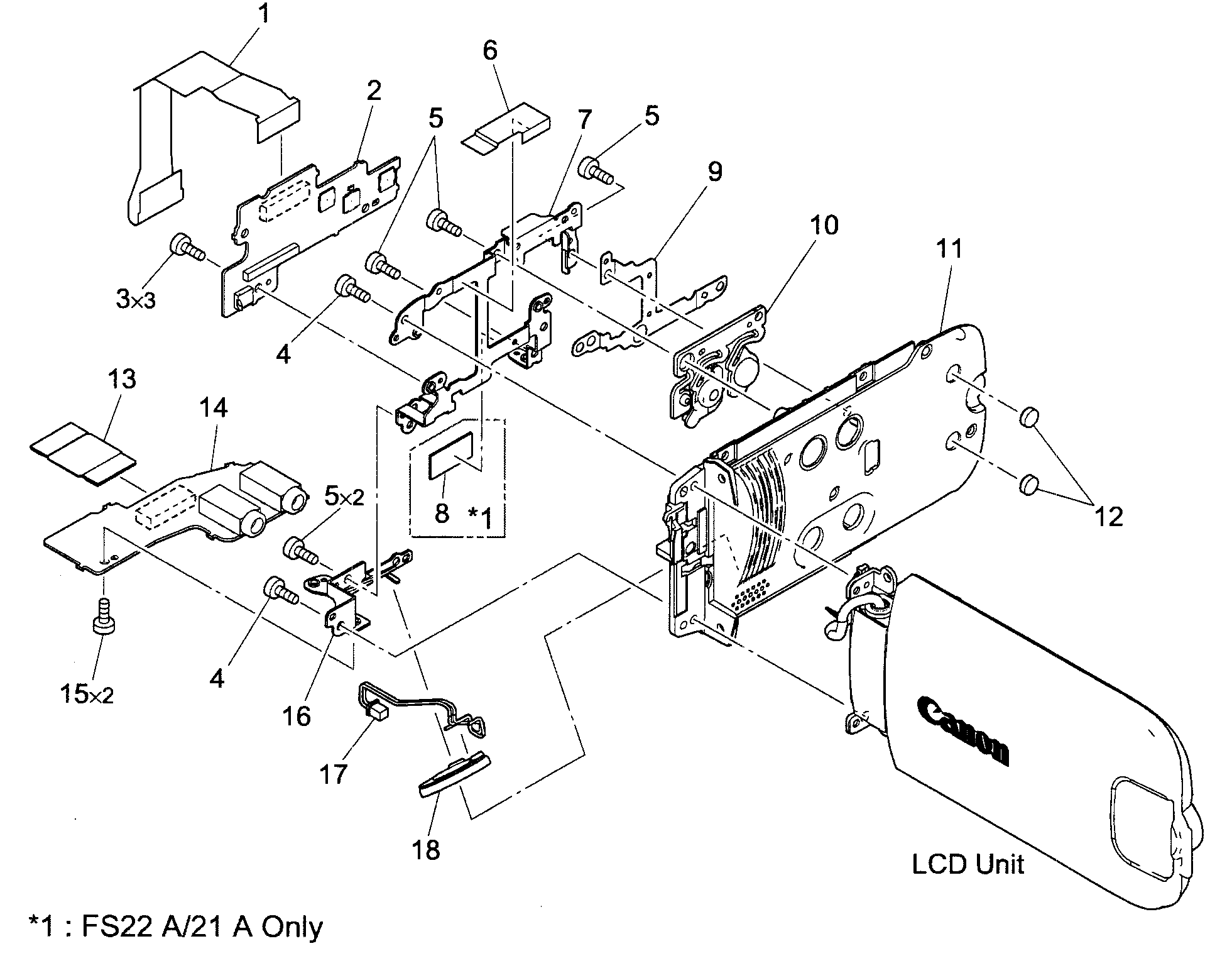

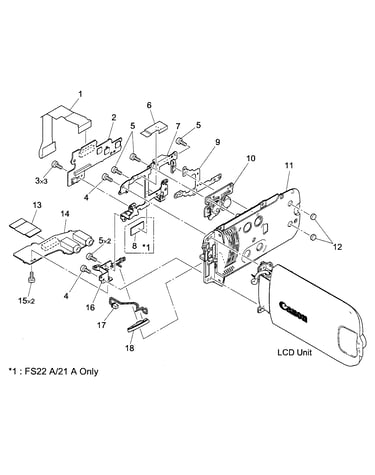

R-lcd unit diagram

Camcorder speaker

Part #WR1-5142-000

The manufacturer no longer makes this part, and there's no substitute part

Battery BP-808
#7

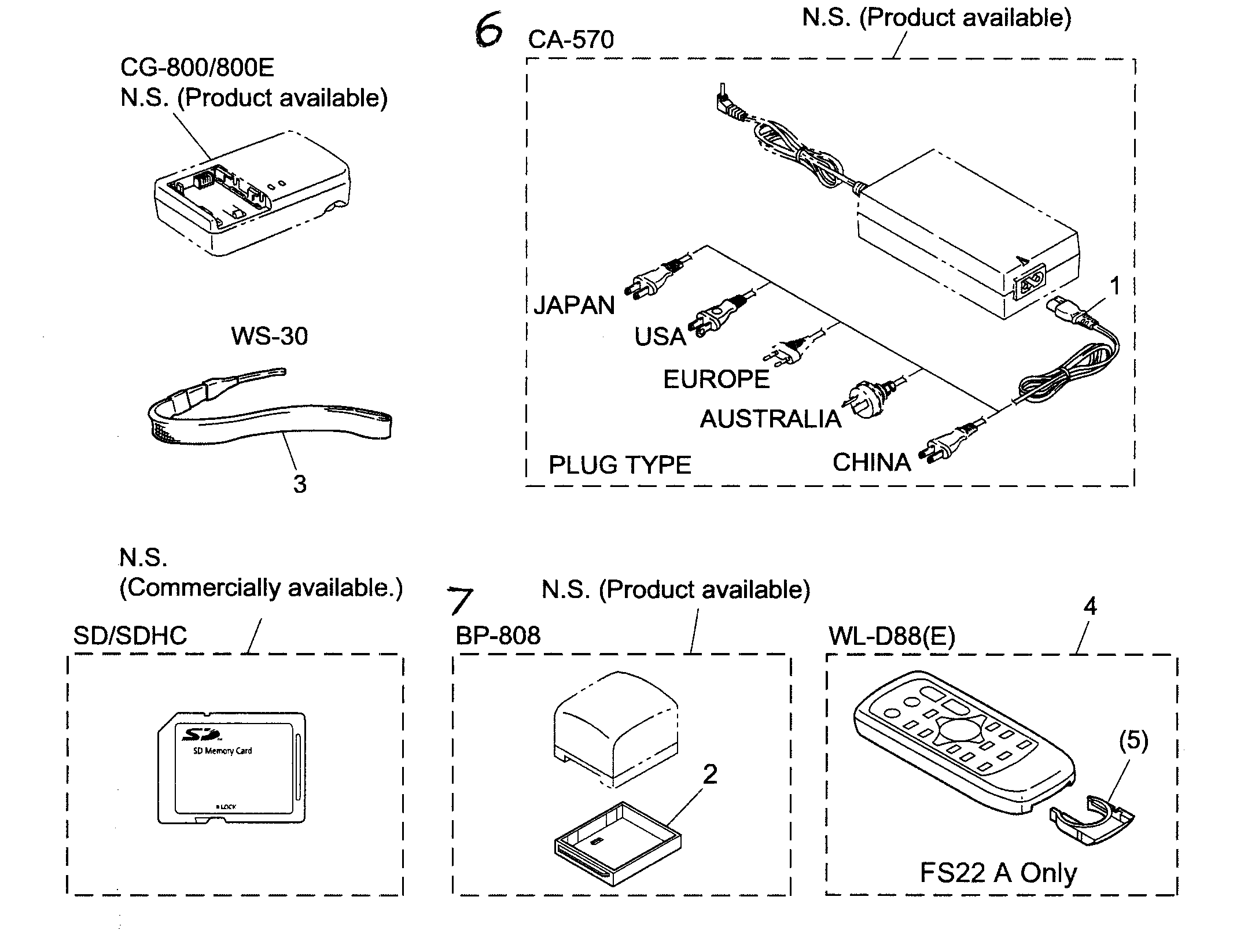

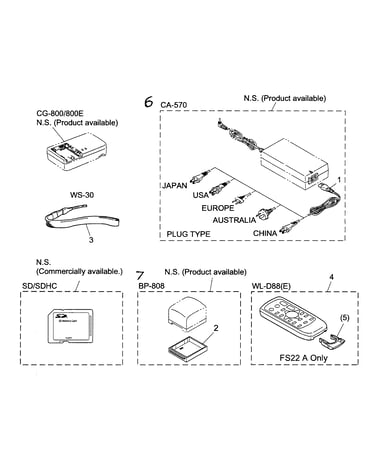

Accessory diagram

Battery

Part #BP-808

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-407
Screw

Part #XA4-9170-407

The manufacturer no longer makes this part, and there's no substitute part

Lcd DY1-8959-000
#10

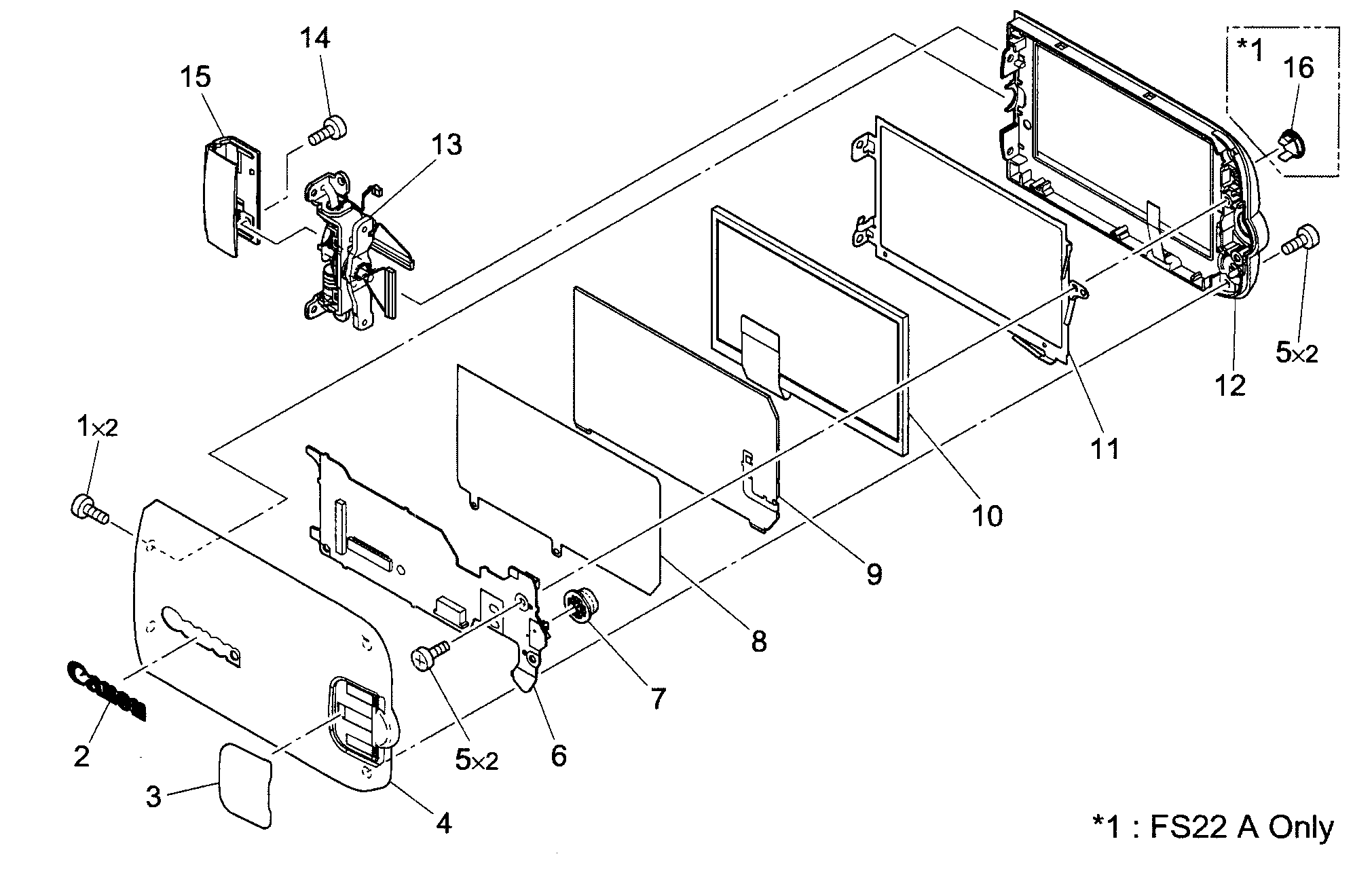

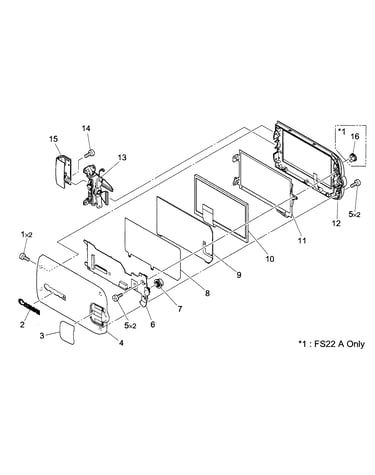

Lcd assy diagram

Lcd

Part #DY1-8959-000

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-507
#3

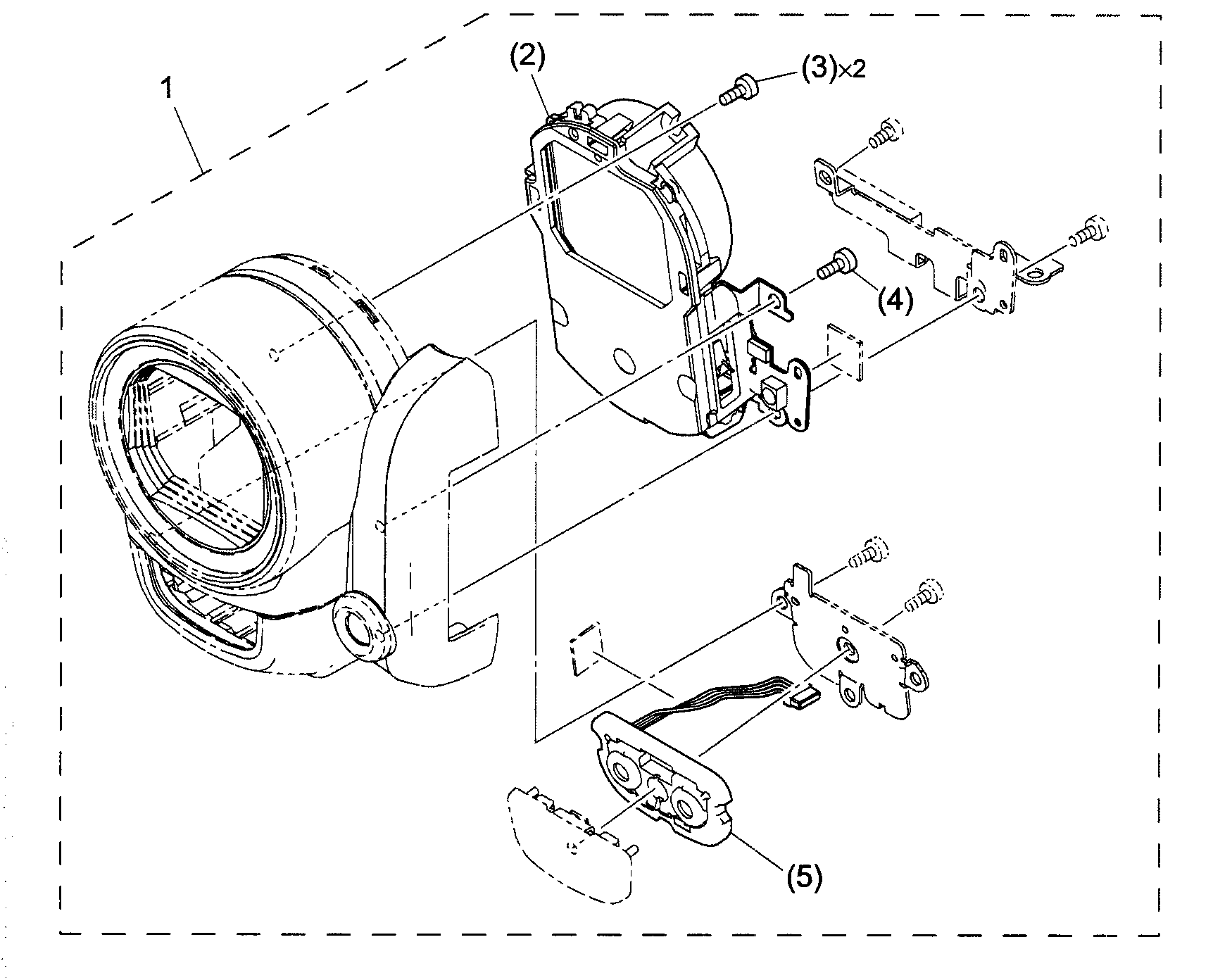

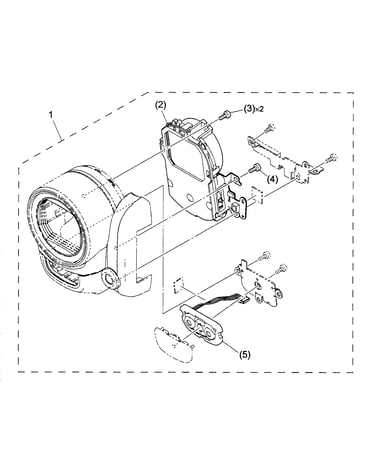

Front cover diagram

Screw

Part #XA4-9170-507

The manufacturer no longer makes this part, and there's no substitute part

Ring Lens DA3-6126-000
#1

Lens assy diagram

Ring lens

Part #DA3-6126-000

The manufacturer no longer makes this part, and there's no substitute part

Fpc,memory DH2-5856-000
#8

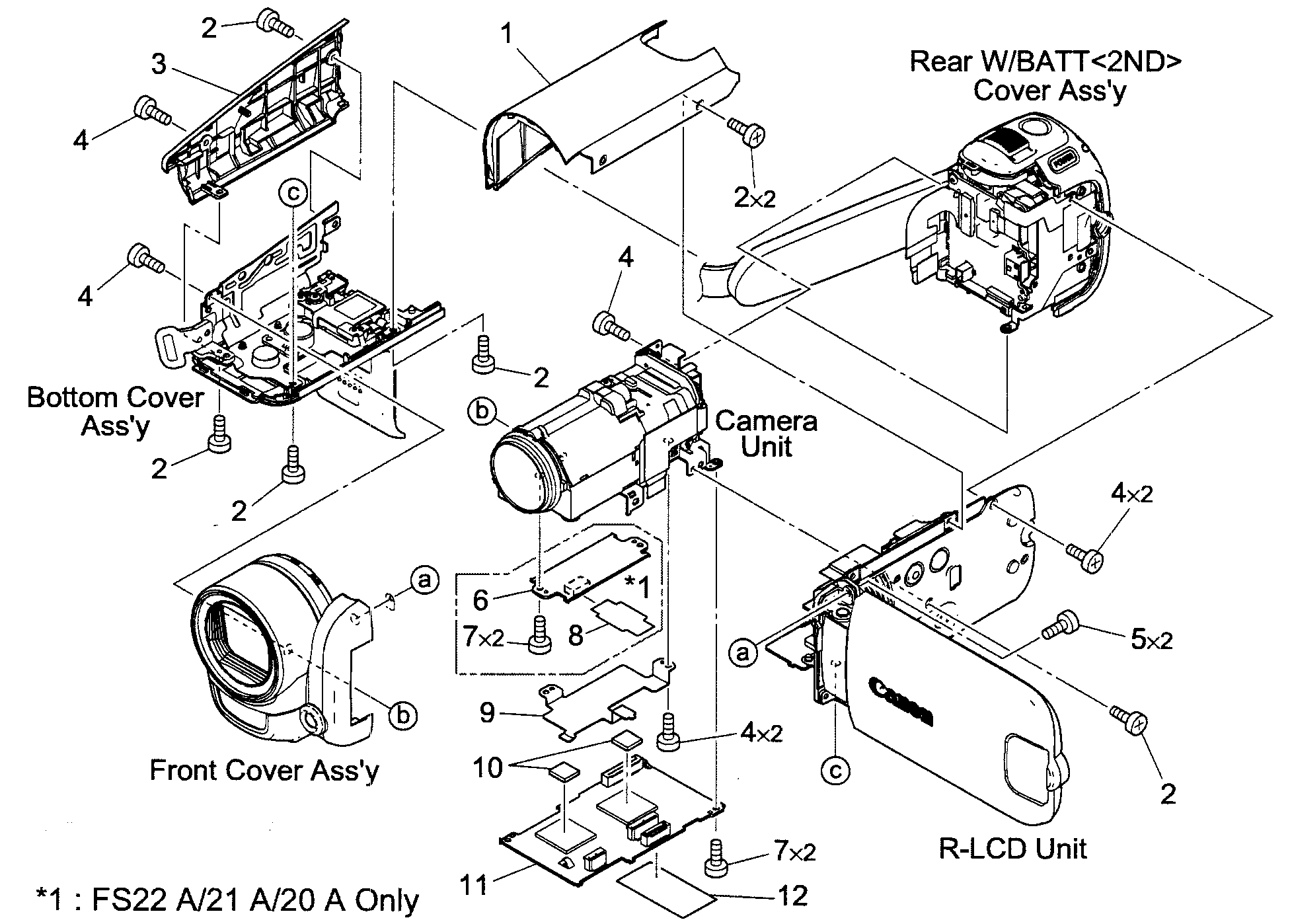

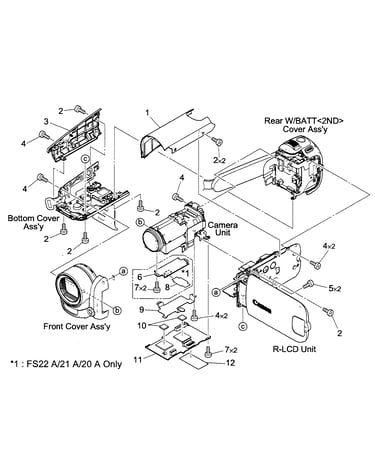

Cabinet parts diagram

Fpc,memory

Part #DH2-5856-000

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord D82-0642-000
#1

Accessory diagram

Ac cord

Part #D82-0642-000

The manufacturer no longer makes this part, and there's no substitute part

Cushion DA3-6124-000
#4

Lens assy diagram

Cushion

Part #DA3-6124-000

The manufacturer no longer makes this part, and there's no substitute part
