Craftsman
Lawn Tractor Attachment

Model # 917253190 Official Craftsman leaf mulcher attachment

Here are the diagrams and repair parts for Official Craftsman 917253190 leaf mulcher attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Leaf Mulcher 529R
#5

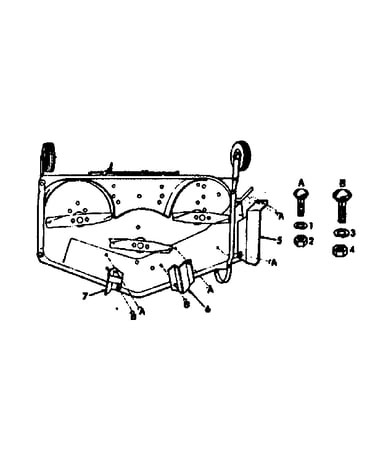

Replacement parts diagram

Leaf mulcher

Part #529R

The manufacturer no longer makes this part, and there's no substitute part

Bolt 17P
#8A

Replacement parts diagram

Bolt

Part #17P

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 1003P
#1

Replacement parts diagram

Lock washer

Part #1003P

The manufacturer no longer makes this part, and there's no substitute part

Baffle Plate 634A402
#7

Replacement parts diagram

Baffle plate

Part #634A402

The manufacturer no longer makes this part, and there's no substitute part

Square Nut 504P
#2

Replacement parts diagram

Square nut

Part #504P

The manufacturer no longer makes this part, and there's no substitute part

Plate 537R
#6A

Replacement parts diagram

Plate

Part #537R

The manufacturer no longer makes this part, and there's no substitute part

Baffle Plate 634A403
#7A

Replacement parts diagram

Baffle plate

Part #634A403

The manufacturer no longer makes this part, and there's no substitute part

Engine, Briggs & Stratton, Model #120k02 N/P
#8

Replacement parts diagram

Engine, briggs & stratton, model #120k02

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Bolt 21P
#8B

Replacement parts diagram

Bolt

Part #21P

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 1004P
#3

Replacement parts diagram

Lock washer

Part #1004P

The manufacturer no longer makes this part, and there's no substitute part
