Model # 14366251 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 14366251 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

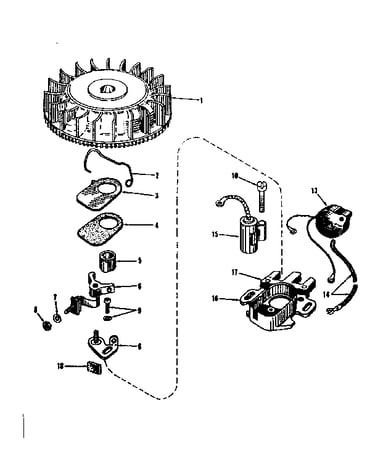

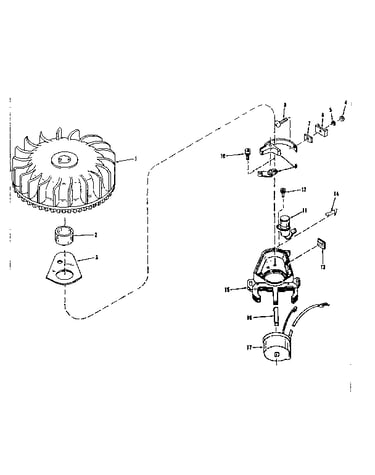

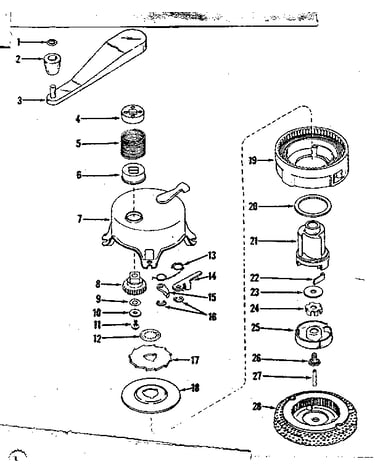

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 219 parts  |

Plug Cover 27276
#93

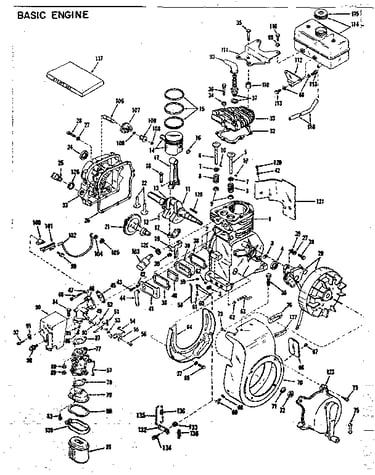

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Element 27233
#40

Basic engine diagram

Element

Part #27233

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#44

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Valve Kit 29314
#5

Basic engine diagram

Valve kit

Part #29314

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27677
#26

Basic engine diagram

Gasket

Part #27677

The manufacturer no longer makes this part, and there's no substitute part

Gasket 630750
#21

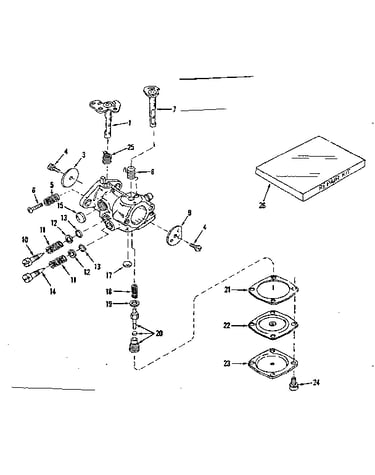

Carburetor no. 29780 diagram

Gasket

Part #630750

The manufacturer no longer makes this part, and there's no substitute part

Cover 27667
#41

Basic engine diagram

Cover

Part #27667

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#5

Carburetor no. 29780 diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Shaft 29194
#106

Basic engine diagram

Shaft

Part #29194

The manufacturer no longer makes this part, and there's no substitute part

Hsg Ext 27071
#121

Basic engine diagram

Hsg ext

Part #27071

The manufacturer no longer makes this part, and there's no substitute part
