AO Smith
Gas Water Heater

Model # GCNH50100 Official AO Smith water heater

Here are the diagrams and repair parts for Official AO Smith GCNH50100 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Water Heater Manifold Door Gasket 9006141015
#15

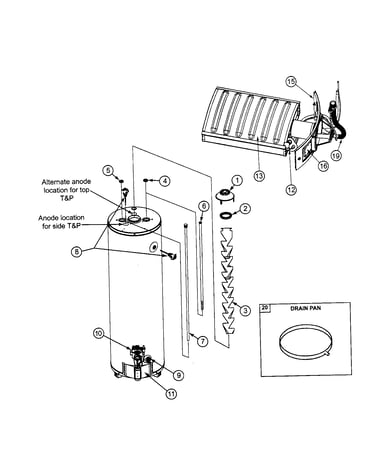

Water heater diagram

Water heater manifold door gasket

Part #9006141015

This item is not returnable
$25.49 |
19% OFF Phone Price : $31.49
In Stock
Ring 700795-021
#2

Water heater diagram

Ring

Part #700795-021

$16.25
In Stock
Control Valve 9006439005
#10

Water heater diagram

Control valve

Part #9006439005

$182.20 |
6% OFF Phone Price : $194.20
In Stock
Thermocouple 9000056015
#NI

Water heater diagram

Thermocouple

Part #9000056015

Replaced by #100108267

?
Manufacturer substitution
This part replaces 9000056015. Substitute parts can look different from the original.
$28.57
In Stock
Temperature Valve 9000728015
#8

Water heater diagram

Temperature valve

Part #9000728015

The manufacturer no longer makes this part, and there's no substitute part

View Port 9006142015
#16

Water heater diagram

View port

Part #9006142015

Replaced by #9006142015

?
Manufacturer substitution
This part replaces 9006142015. Substitute parts can look different from the original.
$17.99
In Stock
Drafthood 700795-020
#1

Water heater diagram

Drafthood

Part #700795-020

Replaced by #100111362

?
Manufacturer substitution
This part replaces 700795-020. Substitute parts can look different from the original.
$34.44
In Stock
Dip Tube 9006431005
#6

Water heater diagram

Dip tube

Part #9006431005

Replaced by #100111192

?
Manufacturer substitution
This part replaces 9006431005. Substitute parts can look different from the original.
$28.89
In Stock
Flue Baffle 9006437005
#3

Water heater diagram

Flue baffle

Part #9006437005

Replaced by #100111198

?
Manufacturer substitution
This part replaces 9006437005. Substitute parts can look different from the original.
$72.22
In Stock
Water Heater Pilot Igniter (replaces 6910430, 9006143) 9006143015
#NI

Water heater diagram

Water heater pilot igniter (replaces 6910430, 9006143)

Part #9006143015

Replaced by #100110936

?
Manufacturer substitution
This part replaces 9006143015. Substitute parts can look different from the original.
$32.22
In Stock
