Frigidaire
Room Air Conditioner

Model # FAS184P2A1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAS184P2A1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Bulkhead 5304447813
#41

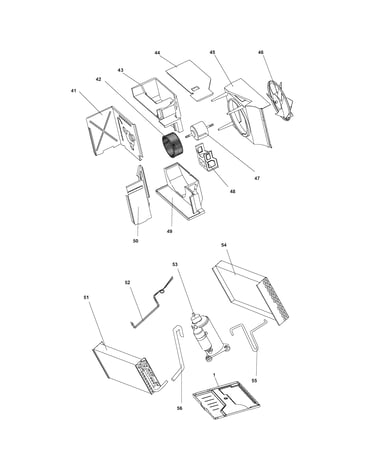

Cooling & air flow systems diagram

Bulkhead

Part #5304447813

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5304447932
#53

Cooling & air flow systems diagram

Compressor

Part #5304447932

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5304447933
#54

Cooling & air flow systems diagram

Condenser

Part #5304447933

The manufacturer no longer makes this part, and there's no substitute part

Transformer 5304447937
#35

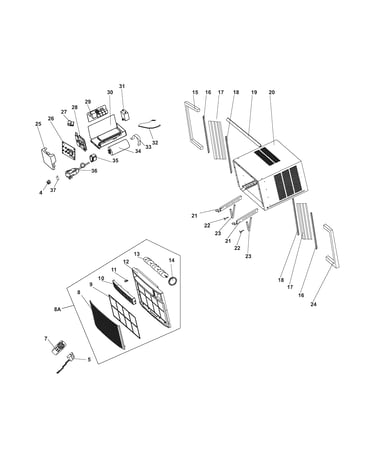

Cabinet/front/controls diagram

Transformer

Part #5304447937

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5304447826
#54

Cooling & air flow systems diagram

Condenser

Part #5304447826

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 5304447782
#7

Cabinet/front/controls diagram

Remote control

Part #5304447782

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5304447930
#51

Cooling & air flow systems diagram

Evaporator

Part #5304447930

The manufacturer no longer makes this part, and there's no substitute part

Base 5304447892
#1

Cooling & air flow systems diagram

Base

Part #5304447892

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5304447941
#51

Cooling & air flow systems diagram

Evaporator

Part #5304447941

The manufacturer no longer makes this part, and there's no substitute part

Clip 5304447786
#11

Cabinet/front/controls diagram

Clip

Part #5304447786

The manufacturer no longer makes this part, and there's no substitute part
