Model # NPH5060AKB1 Official ICP single-package heat pump

Here are the diagrams and repair parts for Official ICP NPH5060AKB1 single-package heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Contactor 1054736
#18

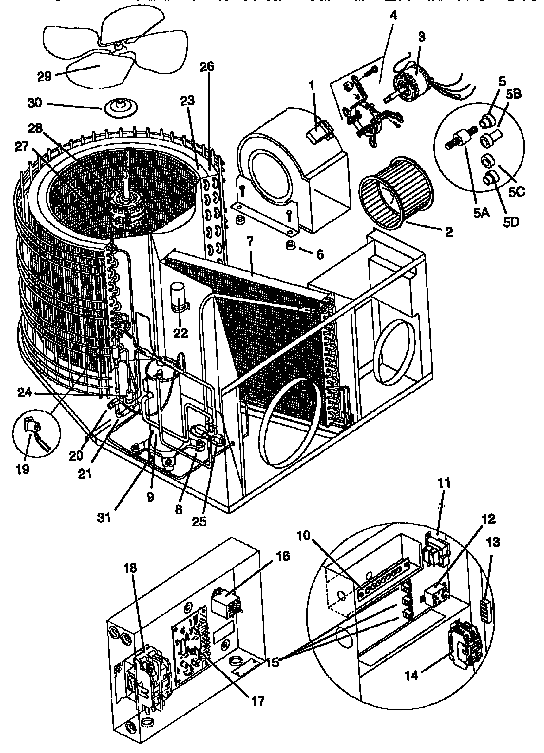

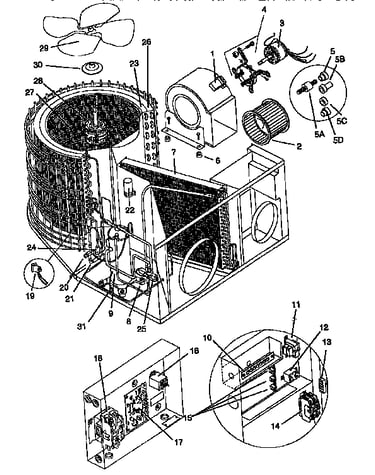

Functional replacement parts diagram

Contactor

Part #1054736

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 1053918
#1

Functional replacement parts diagram

Capacitor

Part #1053918

Replaced by #PAKTRCF10

?
Manufacturer substitution
This part replaces 1053918. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Central Air Conditioner Condenser Top Cover (replaces 1057353, 708927) 512848
#30

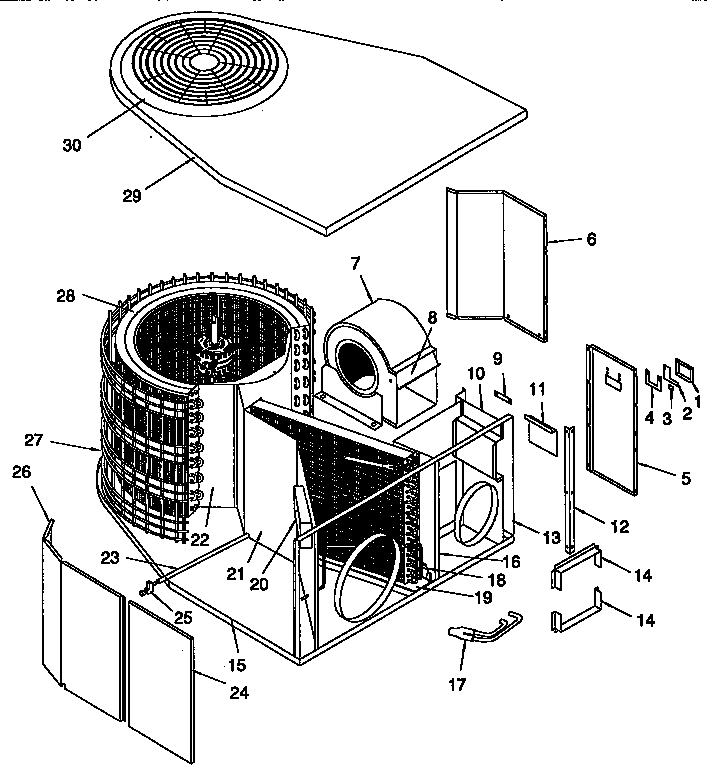

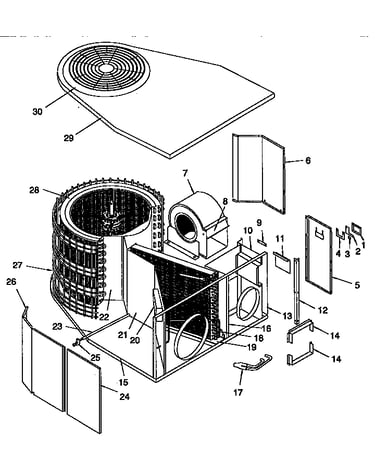

Non-functional replacement parts diagram

Central air conditioner condenser top cover (replaces 1057353, 708927)

Part #512848

$164.46 |
7% OFF Phone Price : $176.46
In Stock
Relay V Pdt 1065280
#16

Functional replacement parts diagram

Relay v pdt

Part #1065280

$102.04
In Stock
Central Air Conditioner Heat Pump Defrost Control Board 1093410
#17

Functional replacement parts diagram

Central air conditioner heat pump defrost control board

Part #1093410

The manufacturer no longer makes this part, and there's no substitute part

Sequencer 1059432
#12

Functional replacement parts diagram

Sequencer

Part #1059432

$51.89
In Stock
Blower Wheel 706038
#2

Functional replacement parts diagram

Blower wheel

Part #706038

Replaced by #2120143

?
Manufacturer substitution
This part replaces 706038. Substitute parts can look different from the original.
$175.60
In Stock
Control Lo P 1071317
#31

Functional replacement parts diagram

Control lo p

Part #1071317

Replaced by #1082129

?
Manufacturer substitution
This part replaces 1071317. Substitute parts can look different from the original.
$123.16
In Stock
Transformer 1056443
#11

Functional replacement parts diagram

Transformer

Part #1056443

Replaced by #90-4031F

?
Manufacturer substitution
This part replaces 1056443. Substitute parts can look different from the original.
$10.99
In Stock
Sensor 1053015
#19

Functional replacement parts diagram

Sensor

Part #1053015

Replaced by #1172766

?
Manufacturer substitution
This part replaces 1053015. Substitute parts can look different from the original.
$28.80 |
17% OFF Phone Price : $34.80
In Stock
