Model # 40QNQ012301 Official Carrier air handler

Here are the diagrams and repair parts for Official Carrier 40QNQ012301 air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Body Assembly 42AH6A3002B
#1

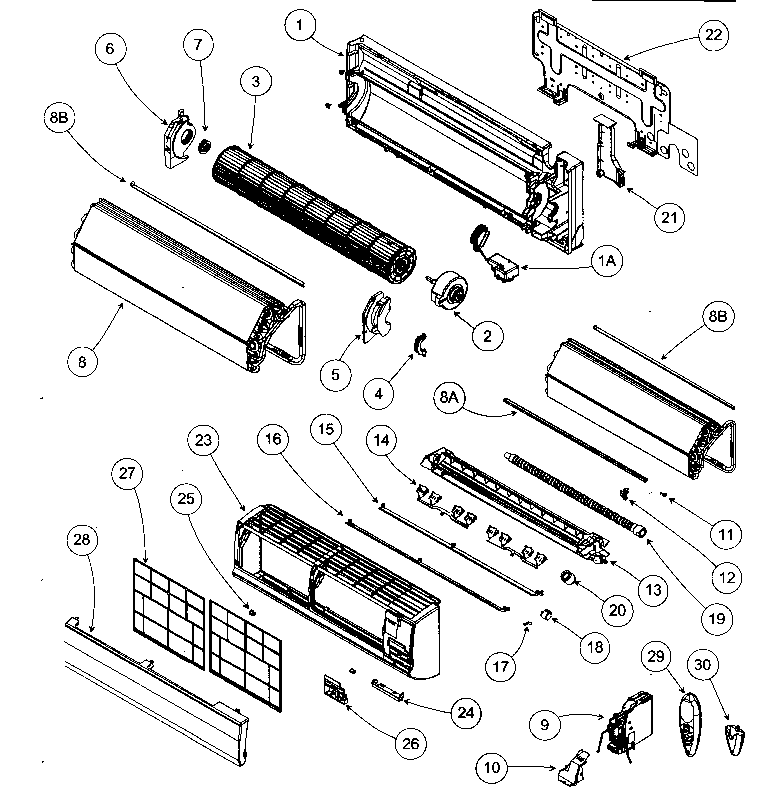

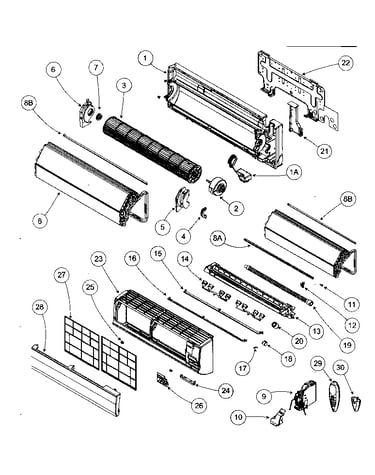

Cabinet parts diagram

Body assembly

Part #42AH6A3002B

$434.93
In Stock
Guard,coil 42KP6A32230
#8B

Cabinet parts diagram

Guard,coil

Part #42KP6A32230

$26.40
In Stock
Box Cover 42AH5A3060A
#10

Cabinet parts diagram

Box cover

Part #42AH5A3060A

$23.98
In Stock
Cover,term 42VH5A32060
#26

Cabinet parts diagram

Cover,term

Part #42VH5A32060

$15.89
In Stock
Carrier Control Box 40QN660004
#9

Cabinet parts diagram

Carrier control box

Part #40QN660004

$826.51
In Stock
Disply,led 42AH5A3210C
#24

Cabinet parts diagram

Disply,led

Part #42AH5A3210C

$15.26
In Stock
Cap,screws 42AH5A32340
#25

Cabinet parts diagram

Cap,screws

Part #42AH5A32340

$11.23
In Stock
Guard,coil 42KP5A32280
#8A

Cabinet parts diagram

Guard,coil

Part #42KP5A32280

$23.18
In Stock
Remote,kit 40QN660001
#29

Cabinet parts diagram

Remote,kit

Part #40QN660001

$267.45
In Stock
Evaporator Coil 42AP6D20050
#8

Cabinet parts diagram

Evaporator coil

Part #42AP6D20050

The manufacturer no longer makes this part, and there's no substitute part
