Amana
Countertop Microwave

Model # LA15500.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana LA15500A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Fuse Holder M4D39
#39A

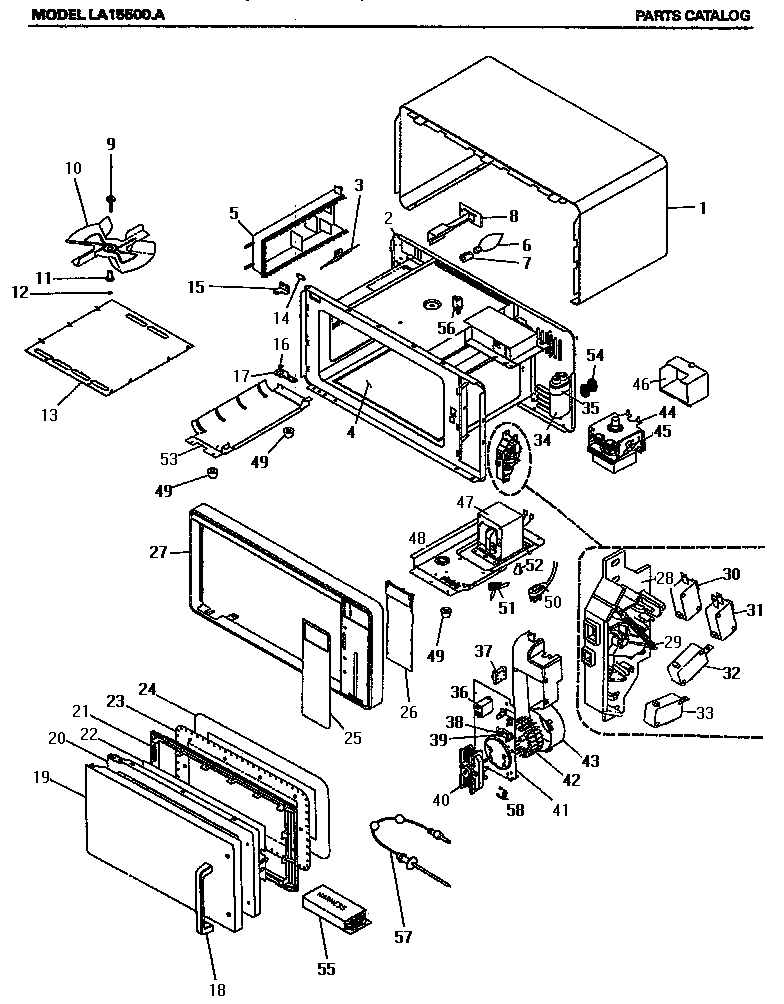

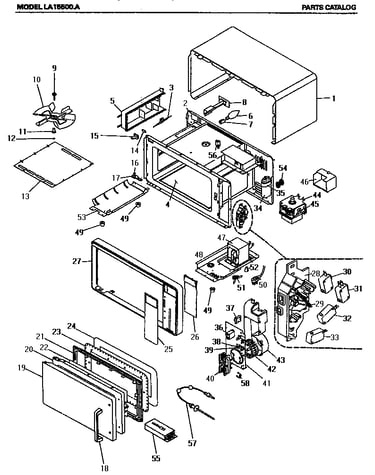

Microwave parts diagram

Fuse holder

Part #M4D39

The manufacturer no longer makes this part, and there's no substitute part

Handle (includes Ref. No. 24) M11D93
#18A

Microwave parts diagram

Handle (includes ref. no. 24)

Part #M11D93

The manufacturer no longer makes this part, and there's no substitute part

Door Frame (includes Ref. No. 24) M70D182
#20

Microwave parts diagram

Door frame (includes ref. no. 24)

Part #M70D182

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Bracket M20D332
#41A

Microwave parts diagram

Microwave blower bracket

Part #M20D332

The manufacturer no longer makes this part, and there's no substitute part

Screw, Blower Motor Mounting M1D731
#40B

Microwave parts diagram

Screw, blower motor mounting

Part #M1D731

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Housing M65D361
#43A

Microwave parts diagram

Microwave blower housing

Part #M65D361

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover M45D44
#13A

Microwave parts diagram

Stirrer cover

Part #M45D44

The manufacturer no longer makes this part, and there's no substitute part

Front Dec. Frame (includes Ref. No. 25) M75D124
#27A

Microwave parts diagram

Front dec. frame (includes ref. no. 25)

Part #M75D124

The manufacturer no longer makes this part, and there's no substitute part

E-ring Blower Wheel M1D892
#42B

Microwave parts diagram

E-ring blower wheel

Part #M1D892

The manufacturer no longer makes this part, and there's no substitute part

Power Tesr Kit (includes Thermomether) M95D5
#58D

Microwave parts diagram

Power tesr kit (includes thermomether)

Part #M95D5

The manufacturer no longer makes this part, and there's no substitute part
