GE
Wine & Beverage Cooler

Model # PCR06BATJSS Official GE beverage center

Here are the diagrams and repair parts for Official GE PCR06BATJSS beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

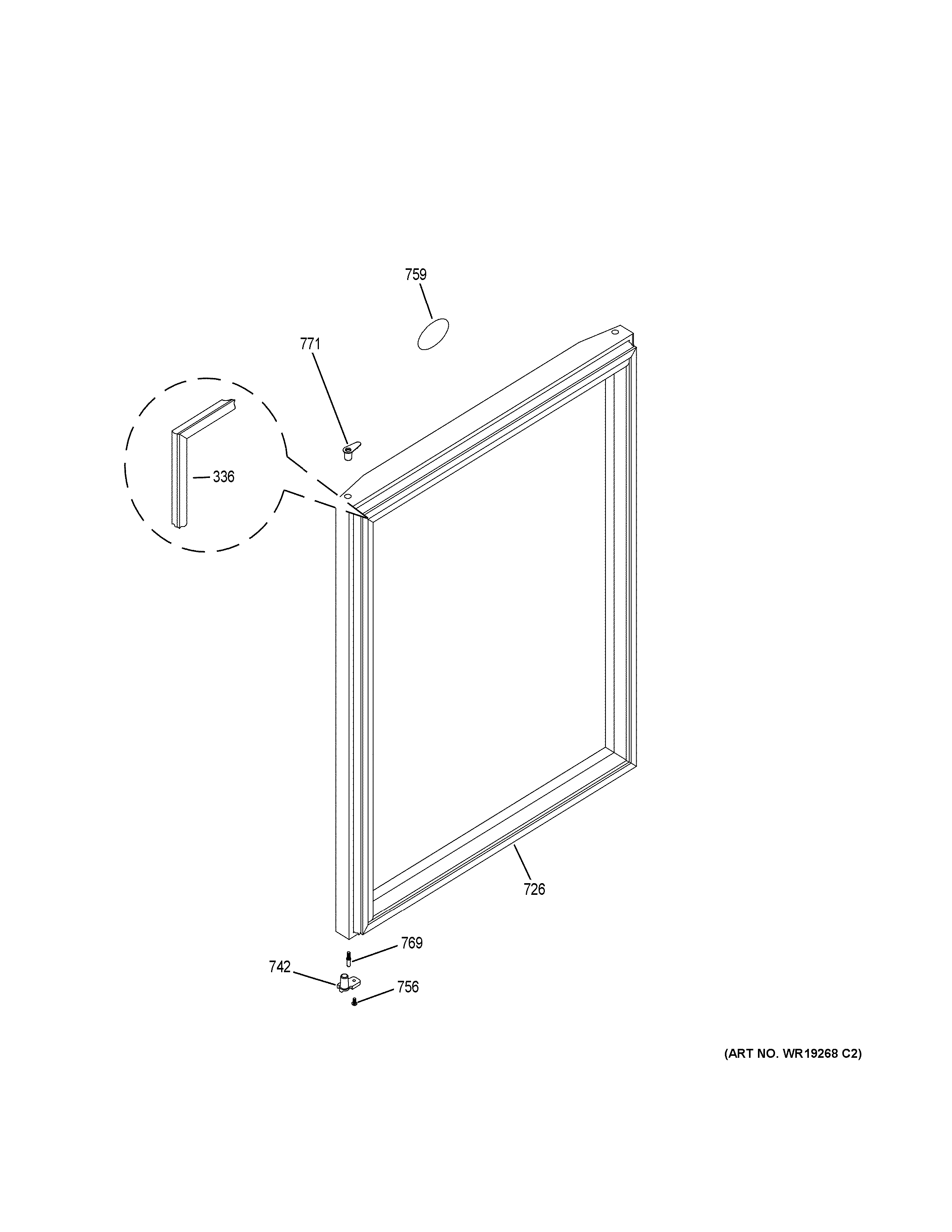

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
R600 Drier W/ Red Cap WR87X30875
#35

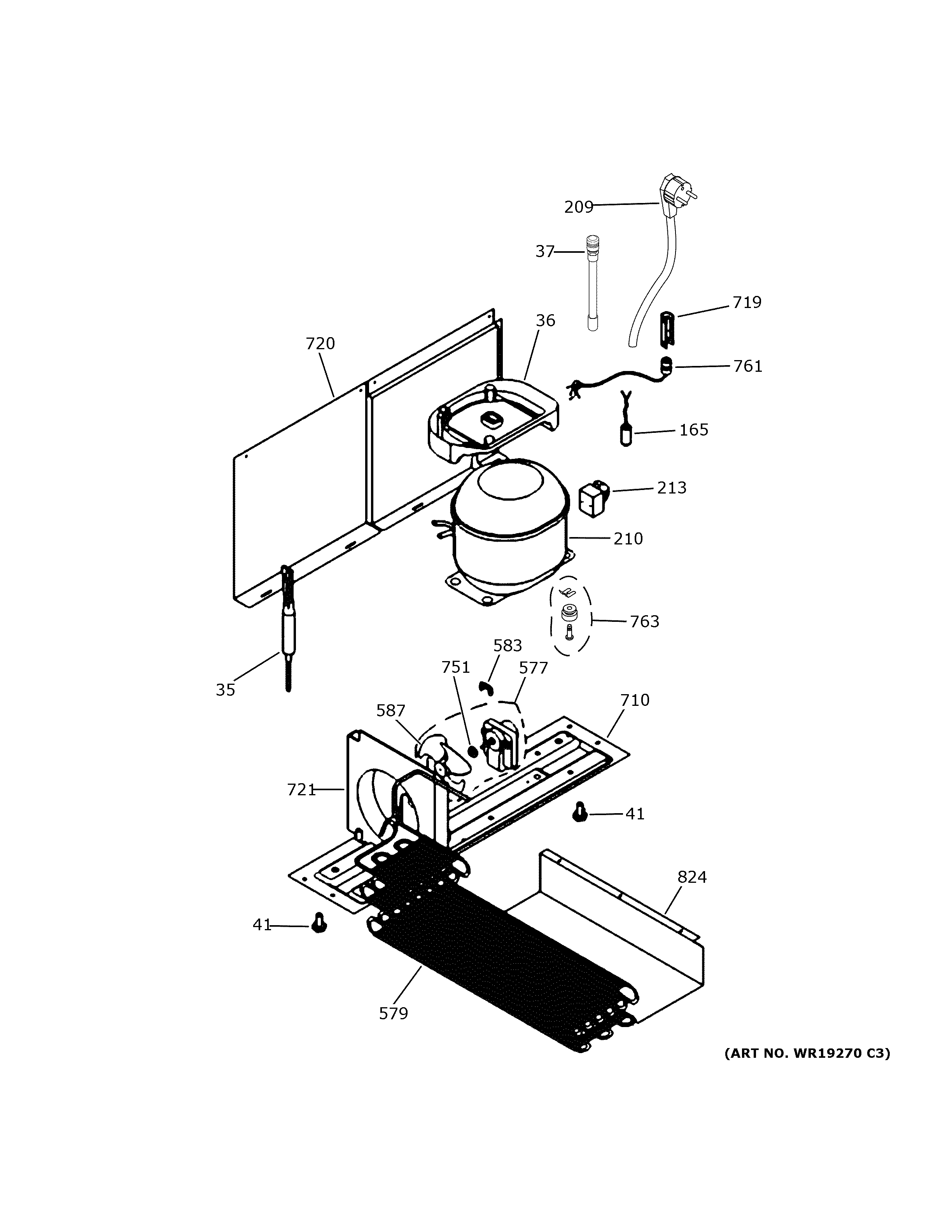

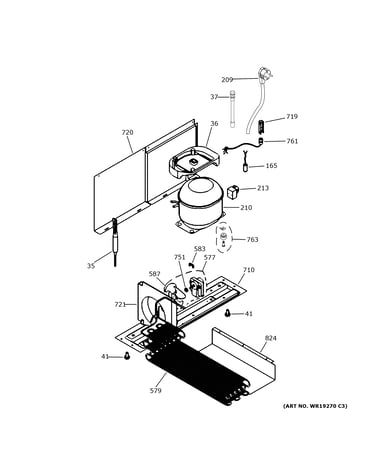

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
#37

Machine compartment diagram

R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Br 1/4-.071 WR97X10085
#7001

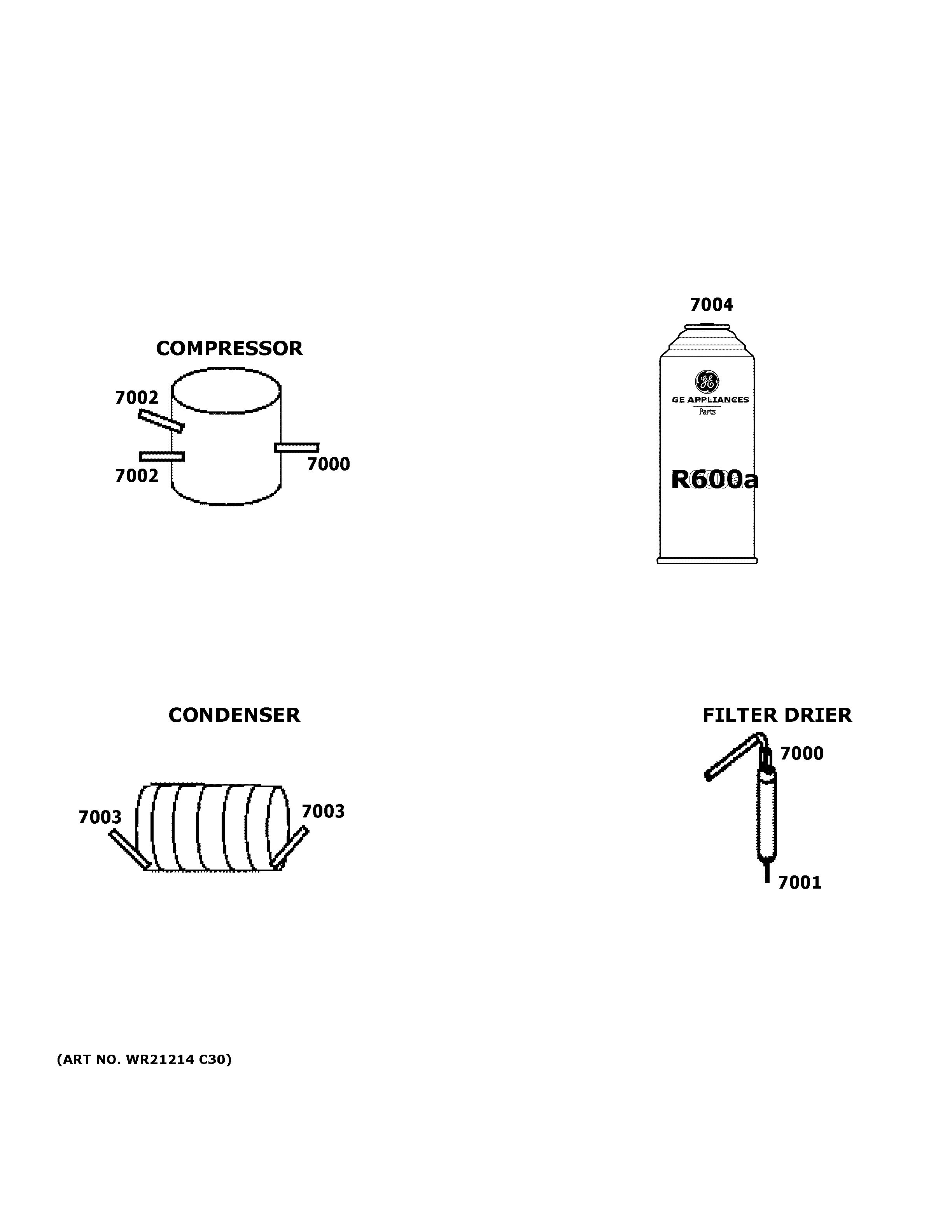

Lokring connectors diagram

Br 1/4-.071

Part #WR97X10085

$37.04
In Stock
5/32 - 5/32 WR97X10137
#7003

Lokring connectors diagram

5/32 - 5/32

Part #WR97X10137

$23.56 |
20% OFF Phone Price : $29.56
In Stock
Beverage Cooler Glass Shelf WR71X10470
#713

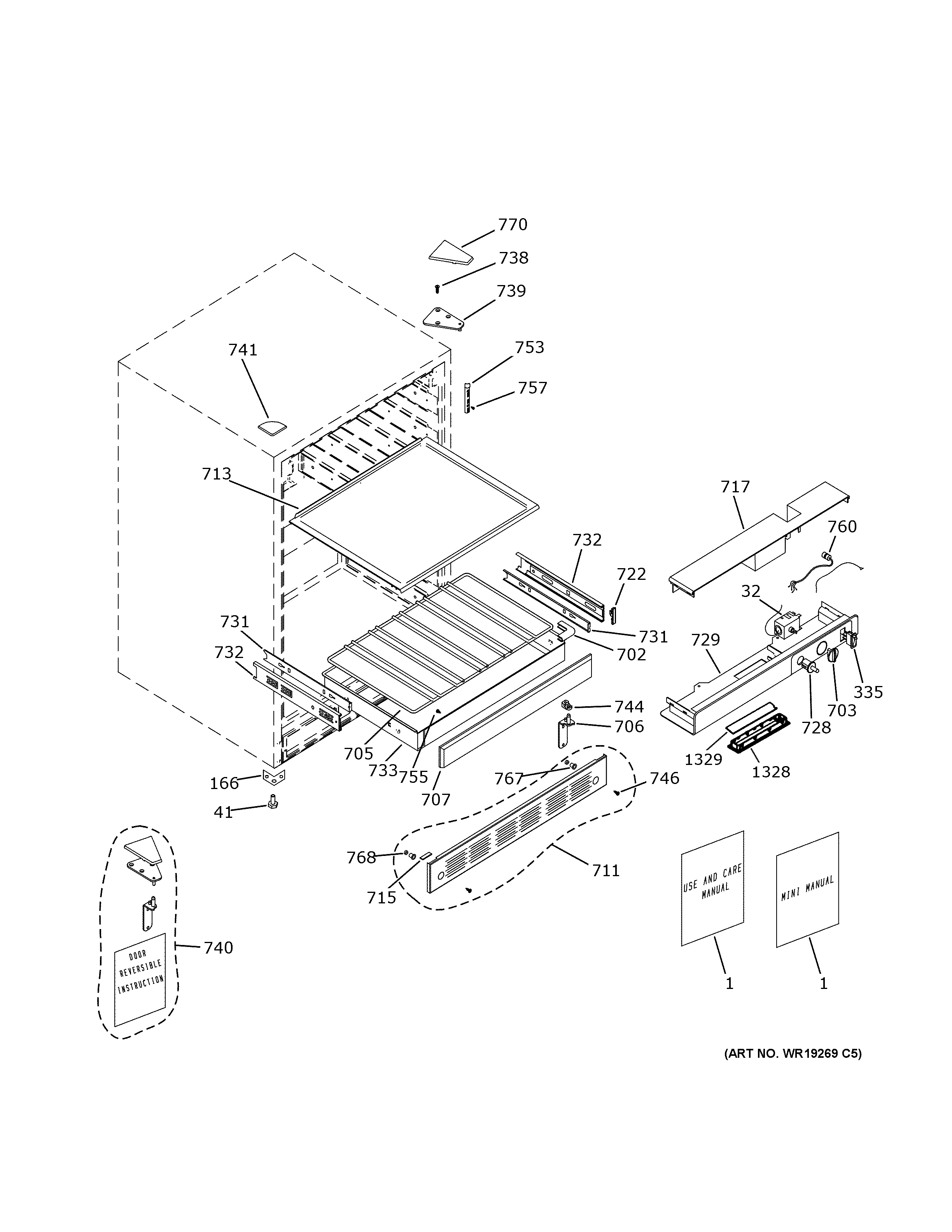

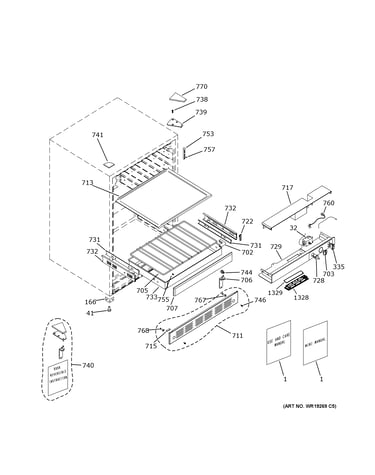

Cabinet & shelves diagram

Beverage cooler glass shelf

Part #WR71X10470

$101.16 |
11% OFF Phone Price : $113.16
In Stock
Union 1/4 WR97X10031
#7002

Lokring connectors diagram

Union 1/4

Part #WR97X10031

$25.40
In Stock
Leveling Leg WR01X10384
Leveling leg

Part #WR01X10384

$26.60 |
18% OFF Phone Price : $32.60
In Stock
Led Board WR55X35305
#1329

Cabinet & shelves diagram

Led board

Part #WR55X35305

$165.70
In Stock
Compressor WR87X35307
#210

Machine compartment diagram

Compressor

Part #WR87X35307

$300.11
In Stock
Led Housing WR02X35309
#1328

Cabinet & shelves diagram

Led housing

Part #WR02X35309

$37.58
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Leveling Leg WR01X10384
    Leveling leg
    $26.60 |
    18% OFF Phone Price : $32.60
