Electrolux
Canister Vacuum

Model # EL7001A Official Electrolux canister only

Here are the diagrams and repair parts for Official Electrolux EL7001A canister only, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Handle 1130940-01
#27

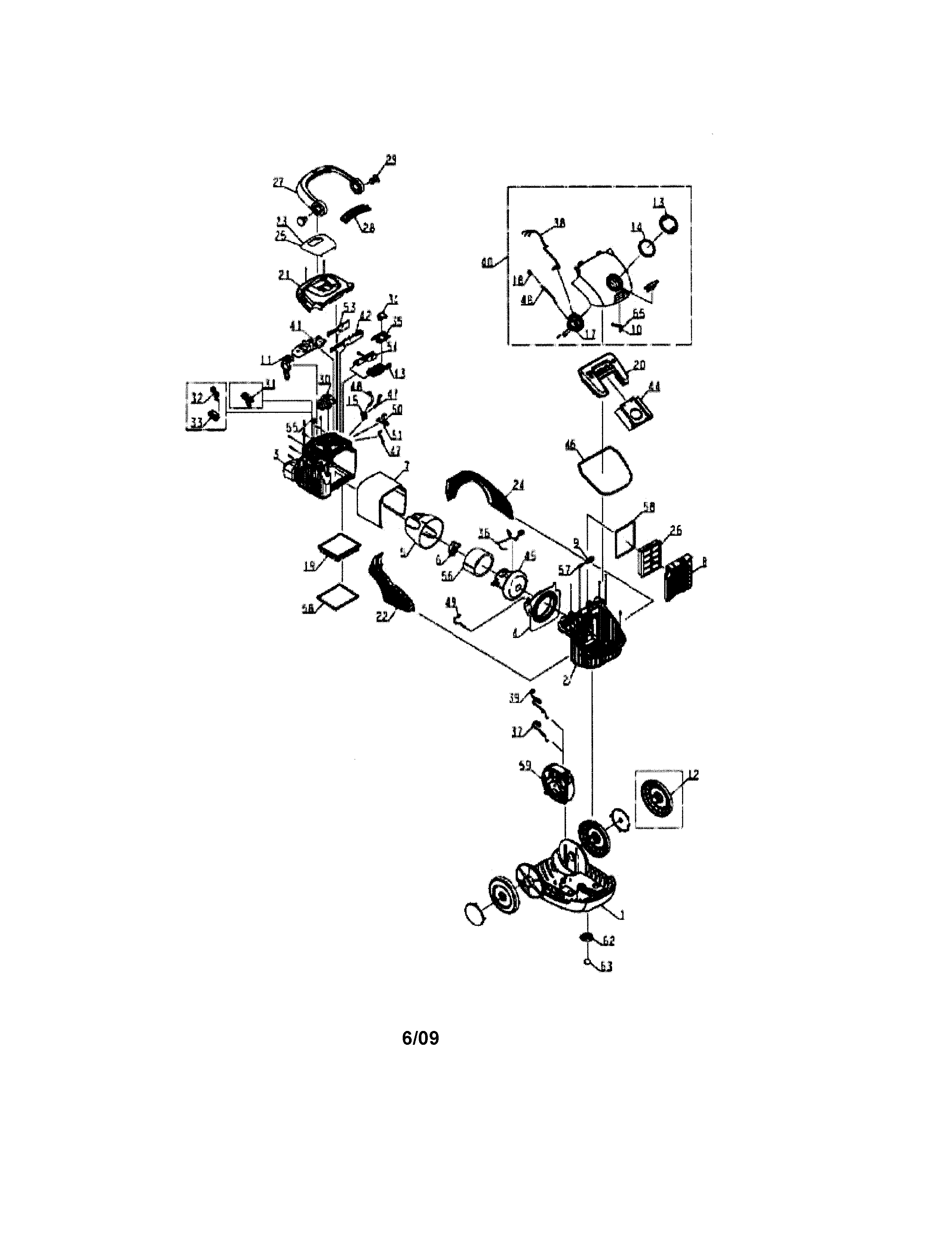

Canister diagram

Handle

Part #1130940-01

The manufacturer no longer makes this part, and there's no substitute part

Comp Out 1130935-02
#22

Canister diagram

Comp out

Part #1130935-02

The manufacturer no longer makes this part, and there's no substitute part

Grip 1130941-01
#28

Canister diagram

Grip

Part #1130941-01

The manufacturer no longer makes this part, and there's no substitute part

Pedal 1130946-01
#33

Canister diagram

Pedal

Part #1130946-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 1130939-01
#26

Canister diagram

Vacuum motor safety filter

Part #1130939-01

The manufacturer no longer makes this part, and there's no substitute part

Comp Out 1130937-02
#24

Canister diagram

Comp out

Part #1130937-02

The manufacturer no longer makes this part, and there's no substitute part

Ring Hose 1130920-01
#14

Canister diagram

Ring hose

Part #1130920-01

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 1130927-01
#17

Canister diagram

Sleeve

Part #1130927-01

The manufacturer no longer makes this part, and there's no substitute part

Cable 1130958-01
#38

Canister diagram

Cable

Part #1130958-01

The manufacturer no longer makes this part, and there's no substitute part

Permanent Filter 1130929-01
#19

Canister diagram

Permanent filter

Part #1130929-01

The manufacturer no longer makes this part, and there's no substitute part
