Amana
Room Air Conditioner

Model # ACE185R Official Amana air conditioner

Here are the diagrams and repair parts for Official Amana ACE185R air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Haier Evaporator AC-2650-32
#10

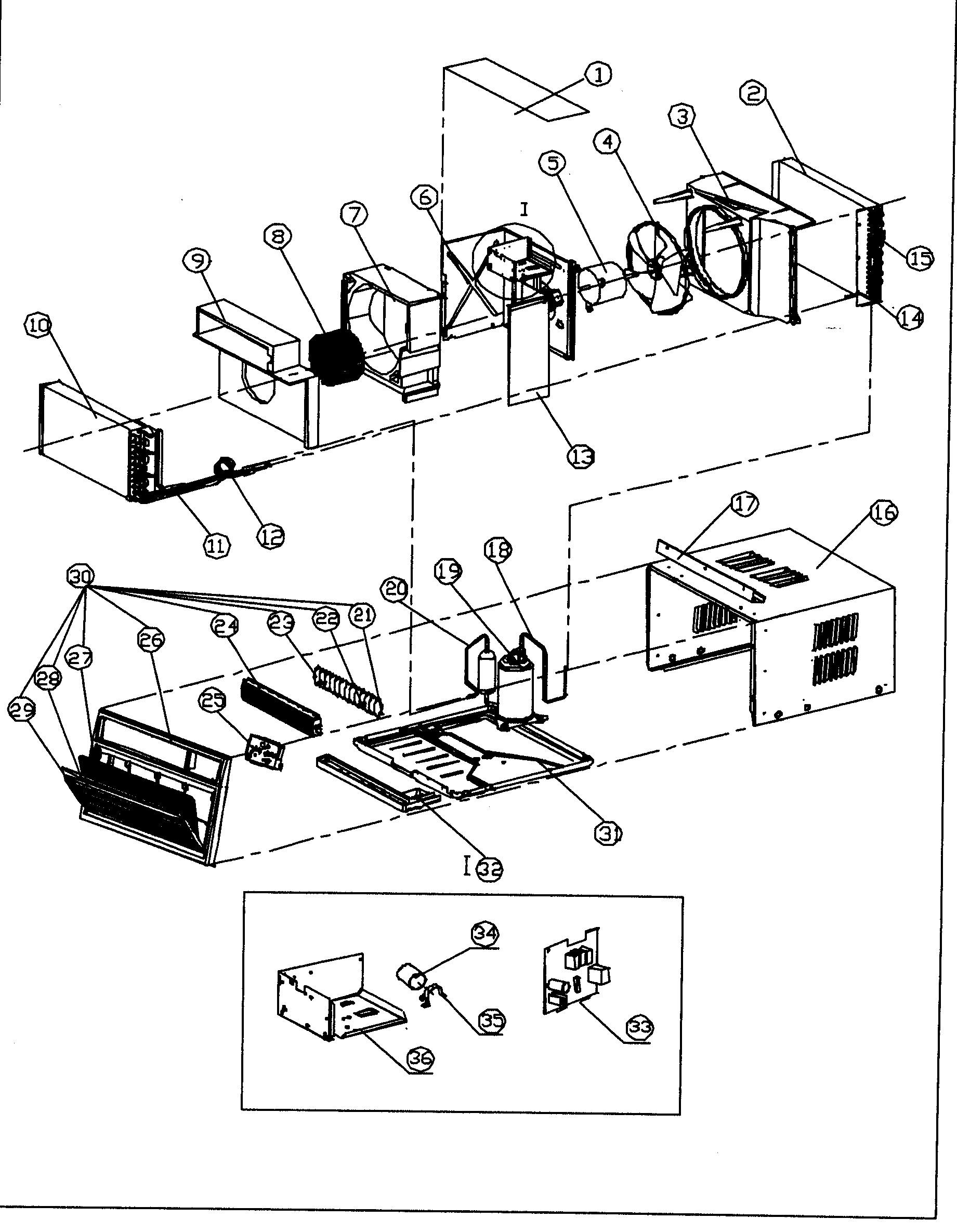

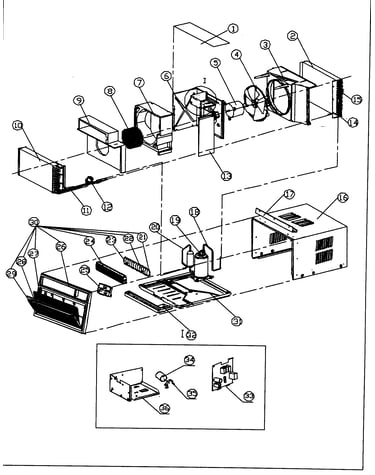

Cabinet parts diagram

Haier evaporator

Part #AC-2650-32

$182.99
In Stock
Amana Electronic Box AC-0800-49
#36

Cabinet parts diagram

Amana electronic box

Part #AC-0800-49

$8.99
In Stock
Haier Condenser AC-1800-30
#2

Cabinet parts diagram

Haier condenser

Part #AC-1800-30

$184.49
In Stock
Clip AC-1650-16
#35

Cabinet parts diagram

Clip

Part #AC-1650-16

This item is not returnable
$2.49
In Stock
Amana Room Air Conditioner Condenser Fan Blade AC-2750-28
#4

Cabinet parts diagram

Amana room air conditioner condenser fan blade

Part #AC-2750-28

$103.19 |
10% OFF Phone Price : $115.19
In Stock
Haier Connection Rod AC-5950-29
#21

Cabinet parts diagram

Haier connection rod

Part #AC-5950-29

This item is not returnable
$2.16
In Stock
Amana Case AC-1470-22
#7

Cabinet parts diagram

Amana case

Part #AC-1470-22

$13.99
In Stock
Haier Room Air Conditioner Control Panel AC-5200-249
#25

Cabinet parts diagram

Haier room air conditioner control panel

Part #AC-5200-249

$8.99
In Stock
Amana Louver AC-4440-40
#23

Cabinet parts diagram

Amana louver

Part #AC-4440-40

This item is not returnable
$2.16
In Stock
Amana Styrofoam AC-6998-11
#9

Cabinet parts diagram

Amana styrofoam

Part #AC-6998-11

$23.99
In Stock
