Canon
Digital Camcorder

Model # DC420 Official Canon camcorder

Here are the diagrams and repair parts for Official Canon DC420 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

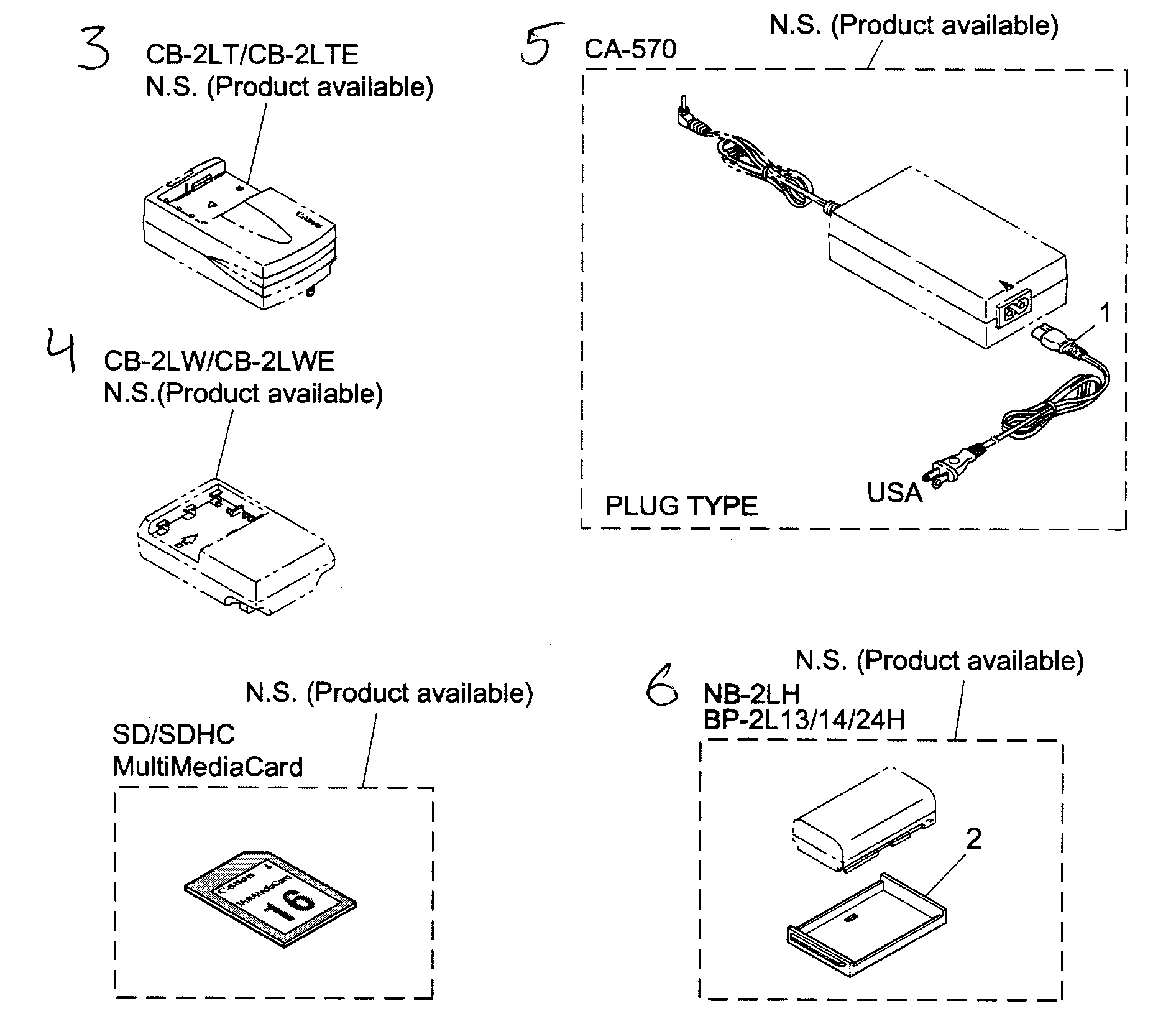

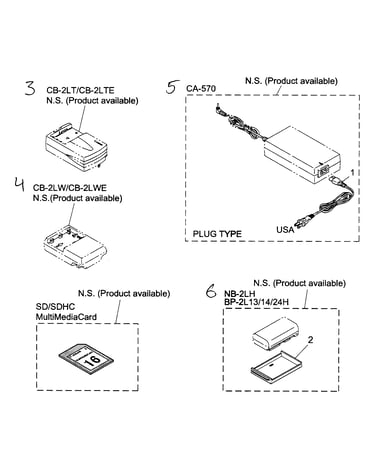

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Camcorder Speaker WR1-5142-000
#4

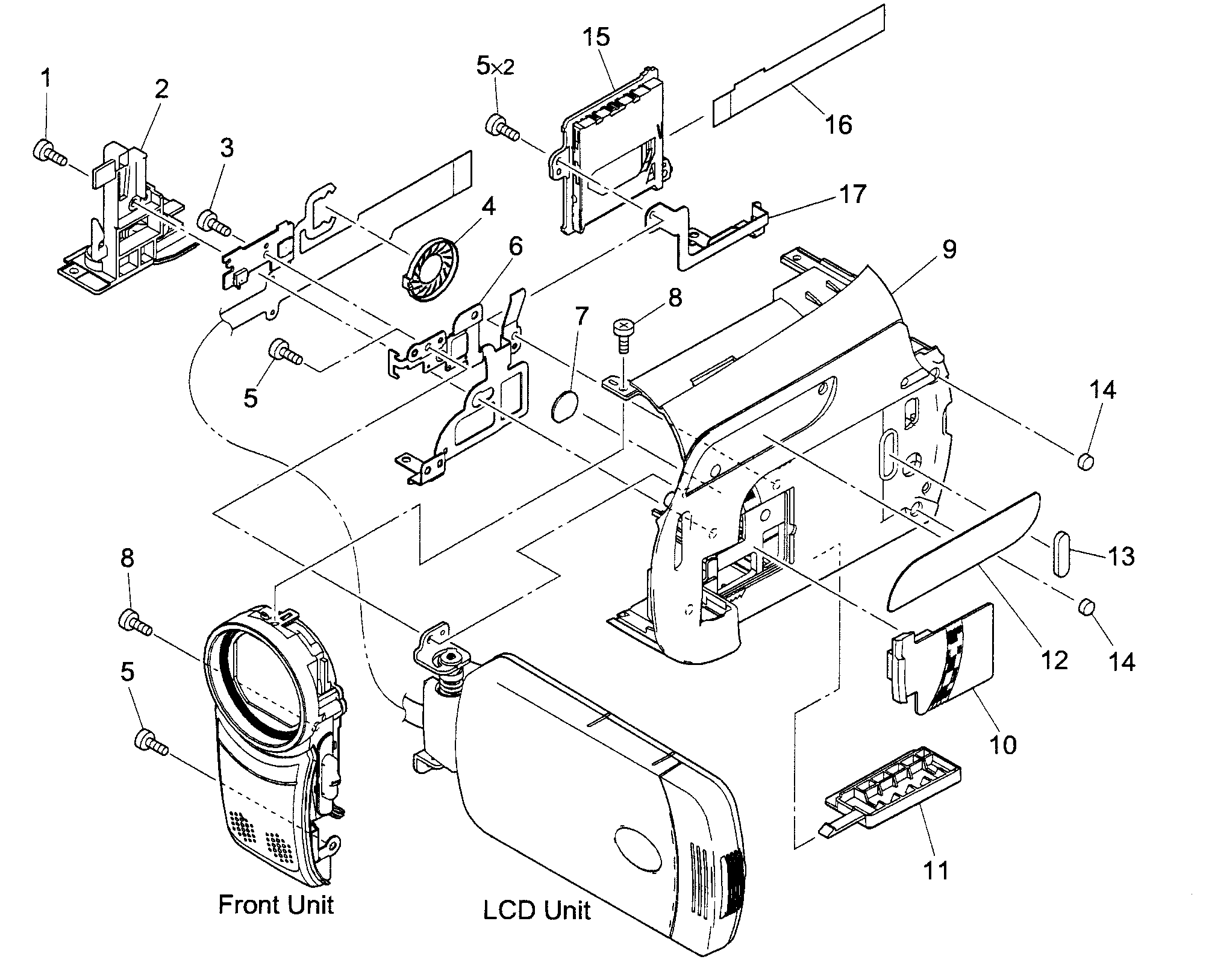

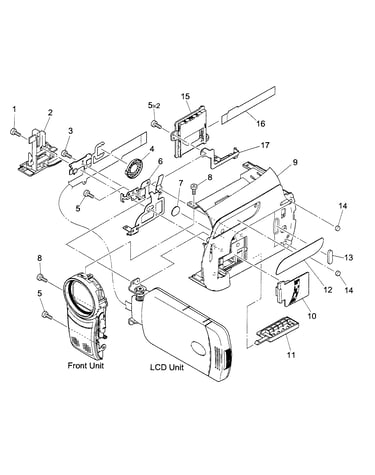

Right side diagram

Camcorder speaker

Part #WR1-5142-000

The manufacturer no longer makes this part, and there's no substitute part

Recorder DG3-2514-000
#5

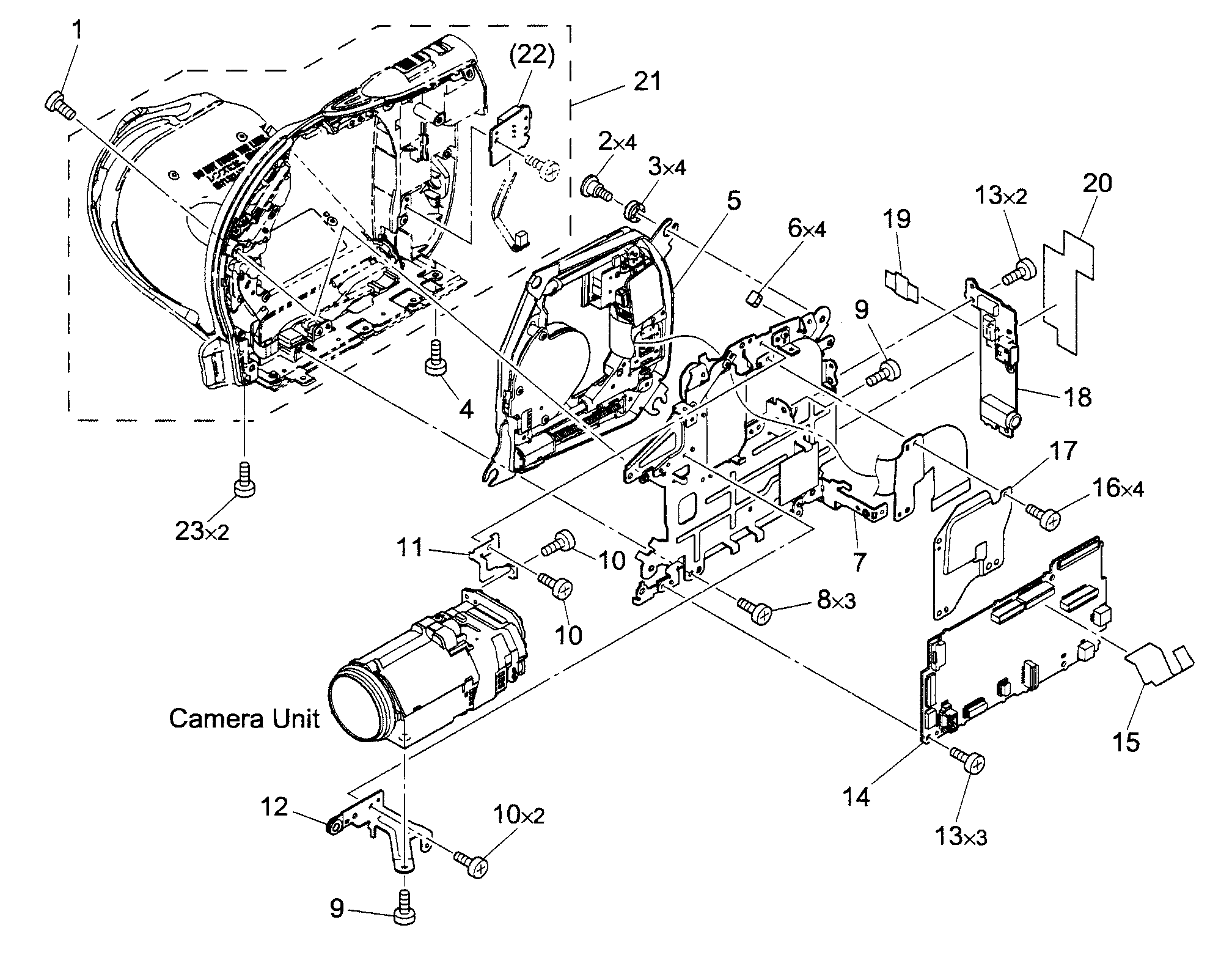

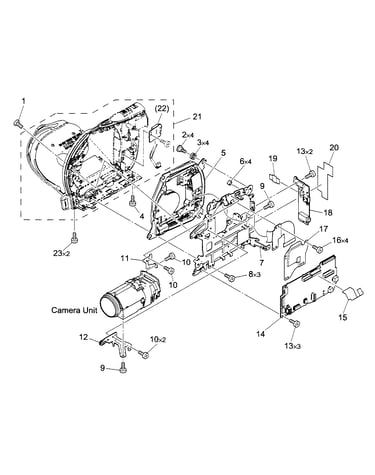

Left side diagram

Recorder

Part #DG3-2514-000

The manufacturer no longer makes this part, and there's no substitute part

Light DG3-2260-000
#10

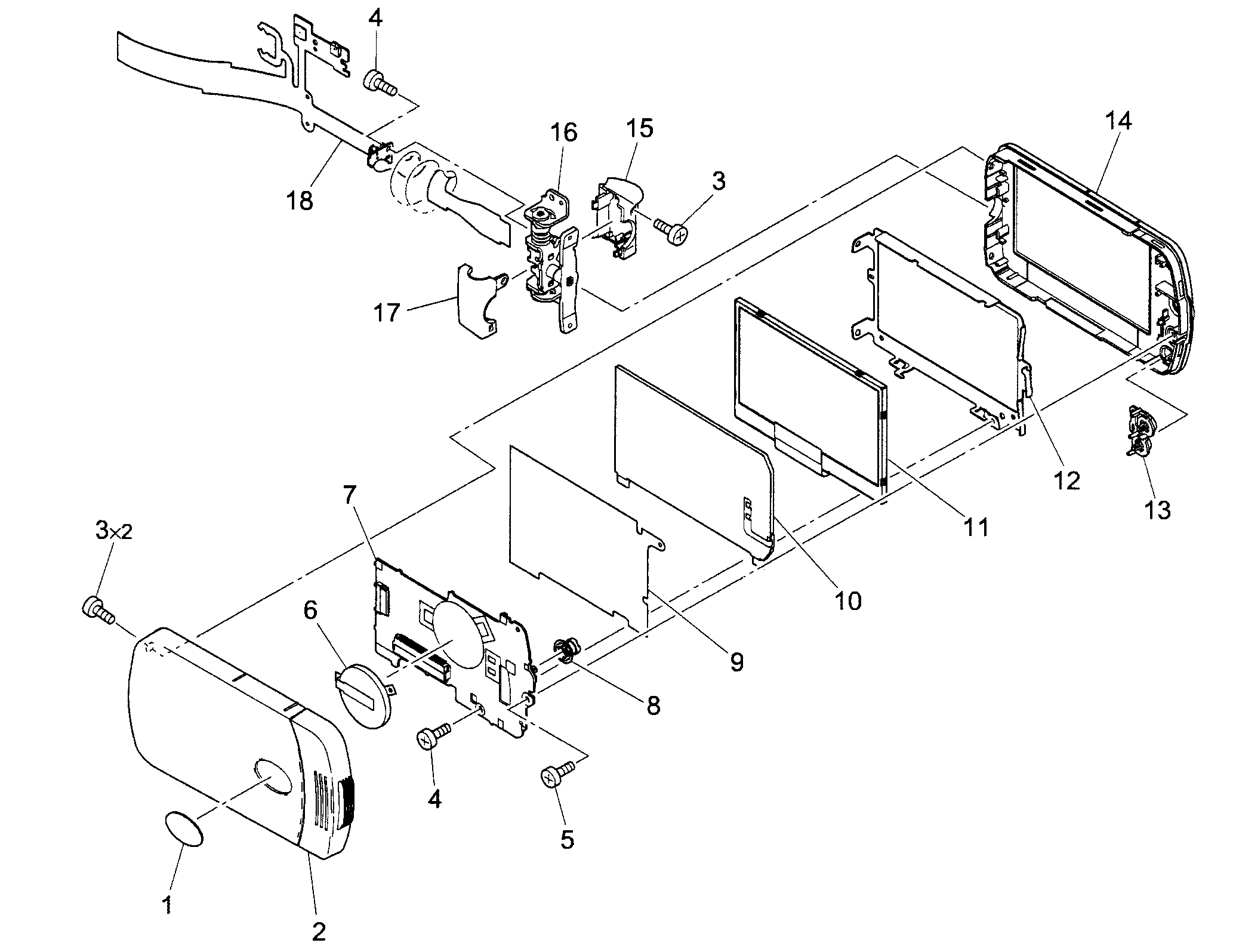

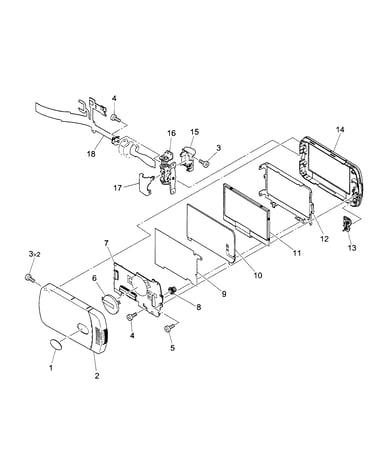

Lcd assy diagram

Light

Part #DG3-2260-000

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-707
#1

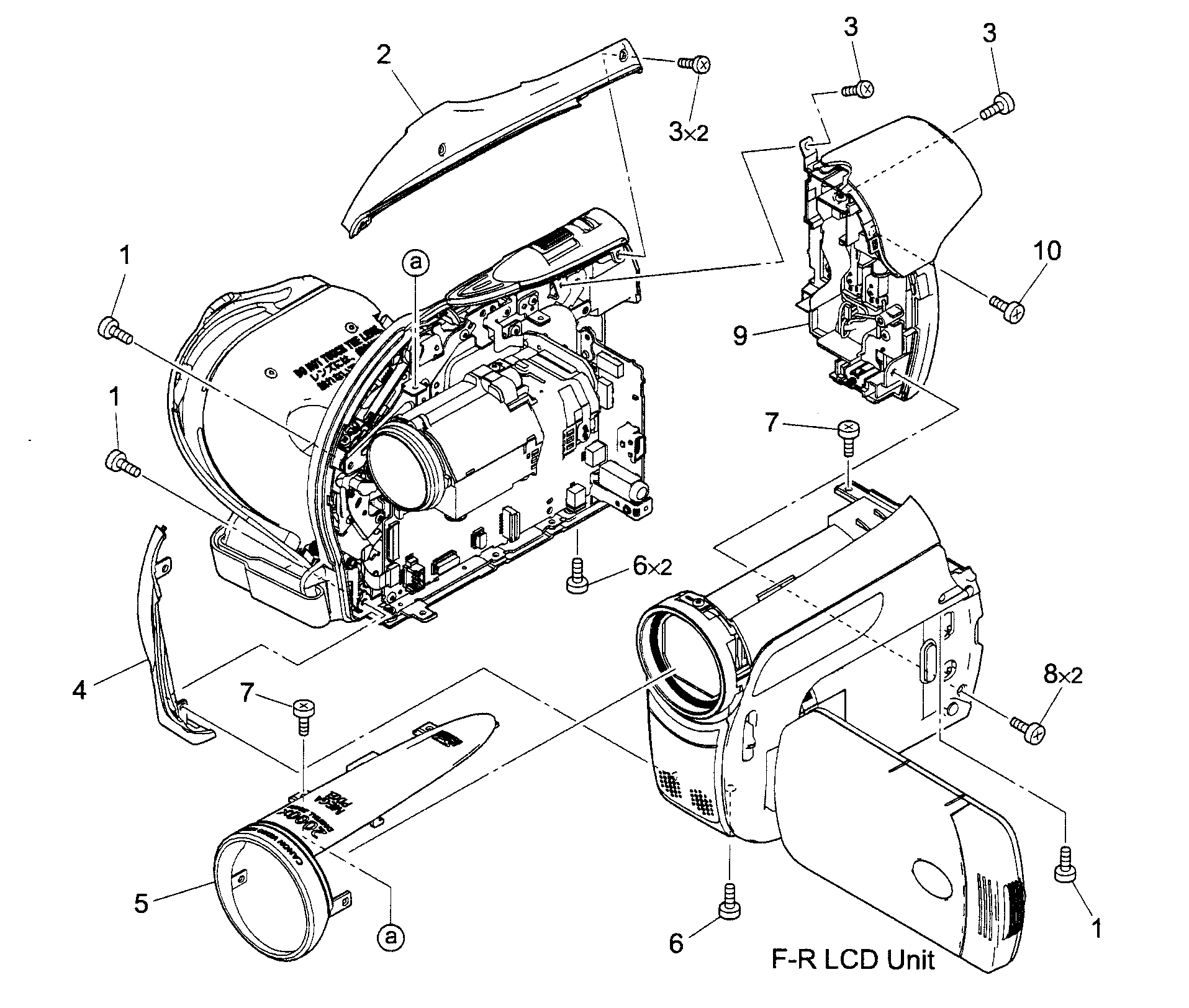

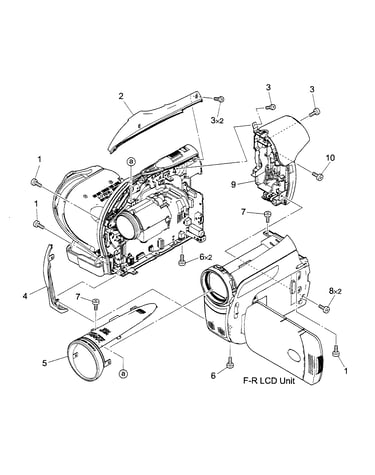

Cabinet assy diagram

Screw

Part #XA4-9170-707

The manufacturer no longer makes this part, and there's no substitute part

Lcd Panel WG2-5309-000
#11A

Lcd assy diagram

Lcd panel

Part #WG2-5309-000

The manufacturer no longer makes this part, and there's no substitute part

Ring Lens DA3-6126-000
#1

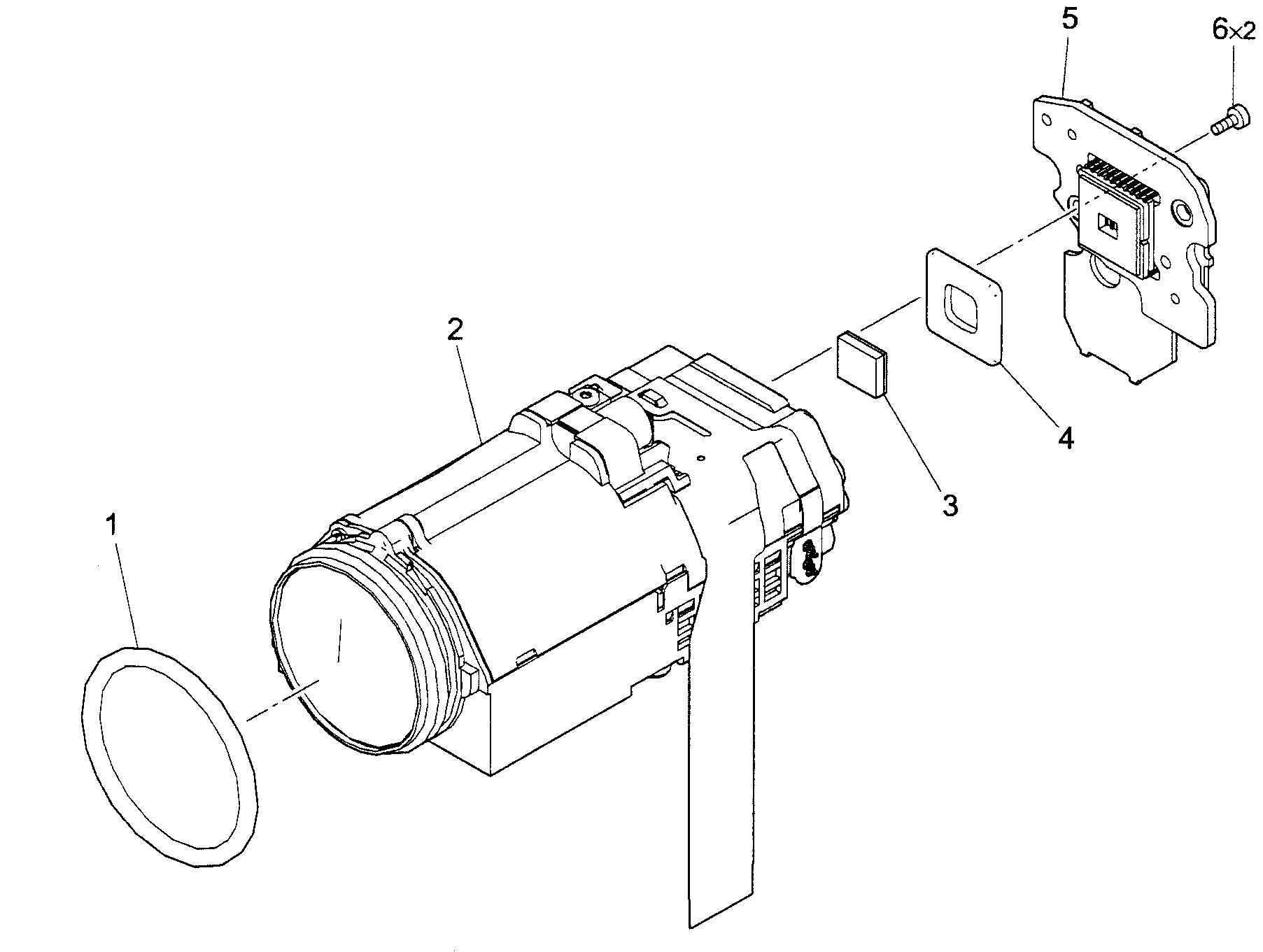

Lens assy diagram

Ring lens

Part #DA3-6126-000

The manufacturer no longer makes this part, and there's no substitute part

Capacitor DY4-4765-000
#2

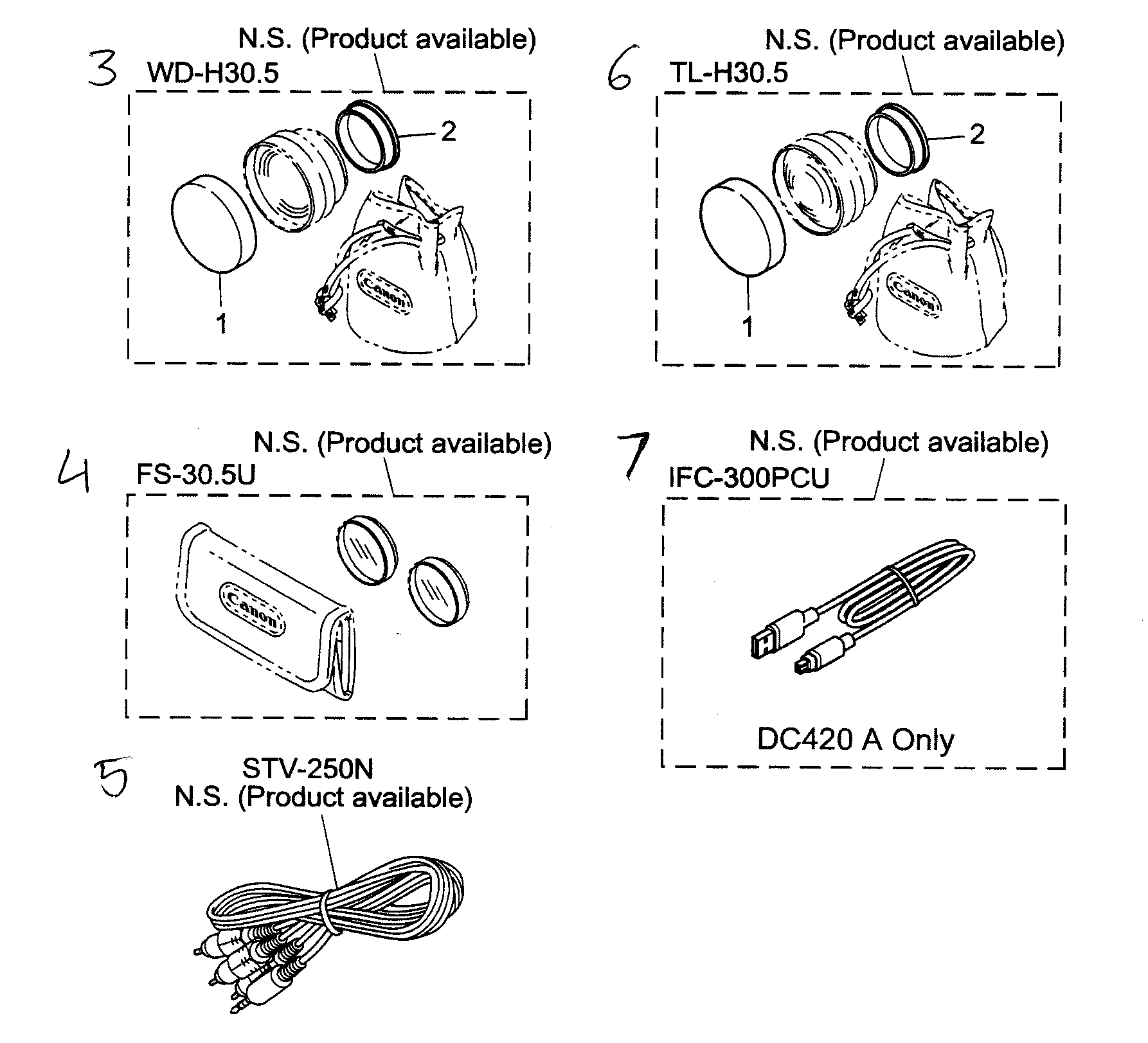

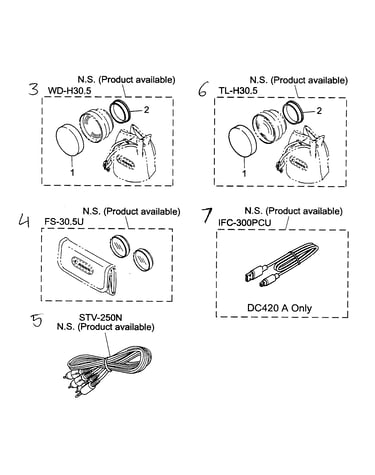

Accessory 2 diagram

Capacitor

Part #DY4-4765-000

The manufacturer no longer makes this part, and there's no substitute part

Screw XA1-7170-309
#1

Left side diagram

Screw

Part #XA1-7170-309

The manufacturer no longer makes this part, and there's no substitute part

Filter,opt DH9-3066-000
#3

Lens assy diagram

Filter,opt

Part #DH9-3066-000

The manufacturer no longer makes this part, and there's no substitute part

Microphone DG3-2266-000
#8

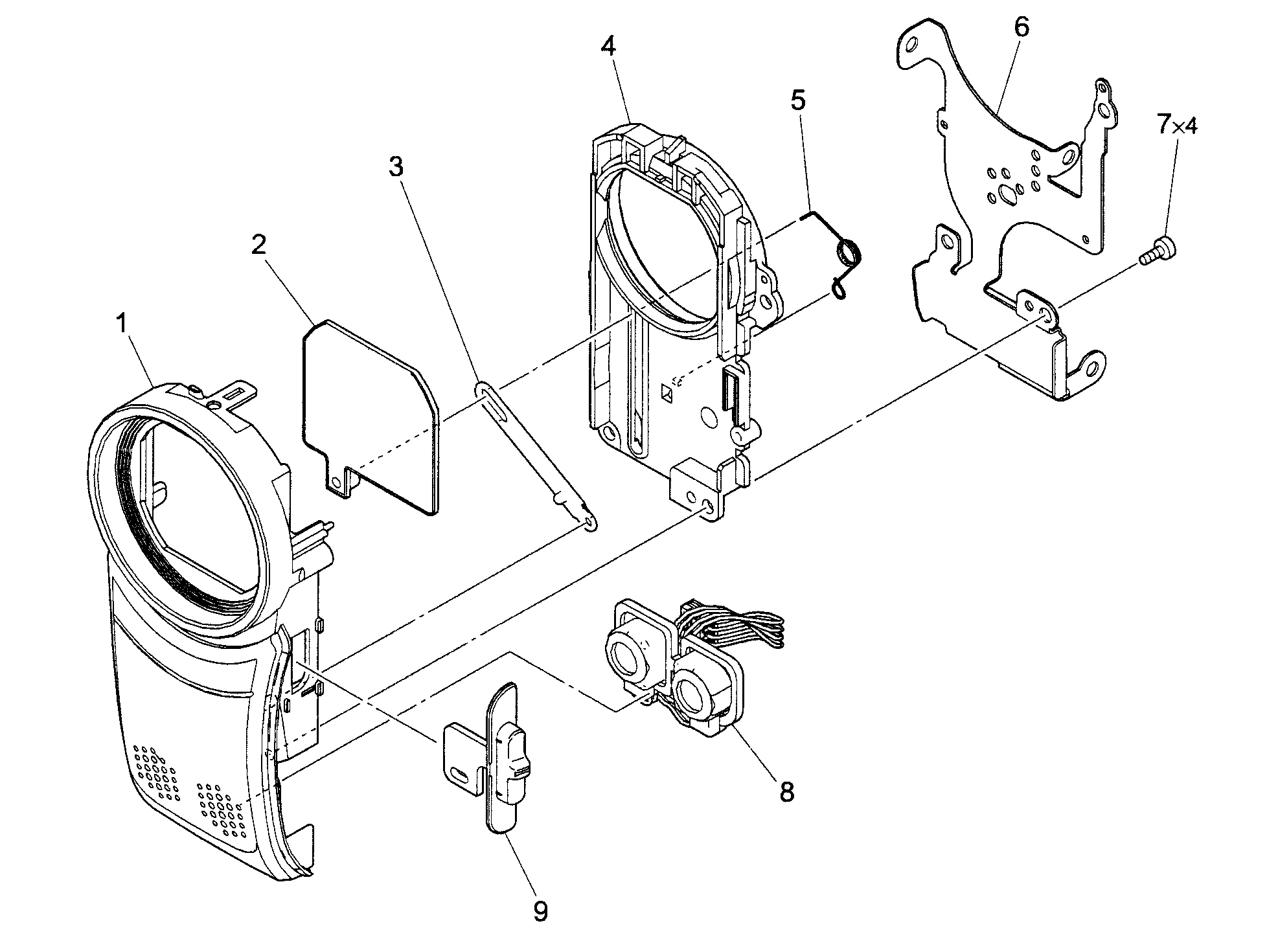

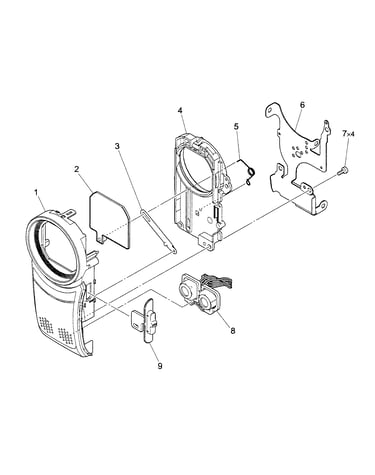

Front unit diagram

Microphone

Part #DG3-2266-000

The manufacturer no longer makes this part, and there's no substitute part
