Weslo
Exercise Cycle

Model # WLEX20480 Official Weslo pursuit 612s exercise cycle

Here are the diagrams and repair parts for Official Weslo WLEX20480 pursuit 612s exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Exercise Equipment Reed Switch (replaces 113959, 115524, 115570, 115571) 117882
#49

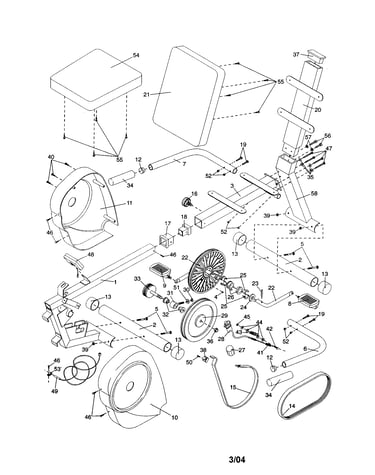

Cycle diagram

Exercise equipment reed switch (replaces 113959, 115524, 115570, 115571)

Part #117882

In Stock
Black & Decker Treadmill Washer 014063
#35

Cycle diagram

Black & decker treadmill washer

Part #014063

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Nut,hex Nyl 121050
#30

Cycle diagram

Nut,hex nyl

Part #121050

Replaced by #148710

?
Manufacturer substitution
This part replaces 121050. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lifestyler Resistance Spring 105434
#41

Cycle diagram

Lifestyler resistance spring

Part #105434

This item is not returnable
In Stock
Exercise Equipment Screw 013529
#40

Cycle diagram

Exercise equipment screw

Part #013529

This item is not returnable
In Stock
Deflecto Allen Wrench, 4-mm 119894

#NI03

All parts diagram

Deflecto allen wrench, 4-mm

Part #119894

This item is not returnable
In Stock
Magnet,rnd,1 107094
#4

Cycle diagram

Magnet,rnd,1

Part #107094

This item is not returnable
In Stock
Rlr Grd Scrw 126942
Rlr grd scrw

Part #126942

This item is not returnable
In Stock
Weslo Om,wlex20480 202204

#NI05

All parts diagram

Weslo om,wlex20480

Part #202204

This item is not returnable
In Stock
Deflecto Exercise Equipment Screw 134537
#19

Cycle diagram

Deflecto exercise equipment screw

Part #134537

This item is not returnable
In Stock
