Model # R-215EW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-215EW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Microwave Thermal Cut-off QFS-TA038WRE0
#1-10

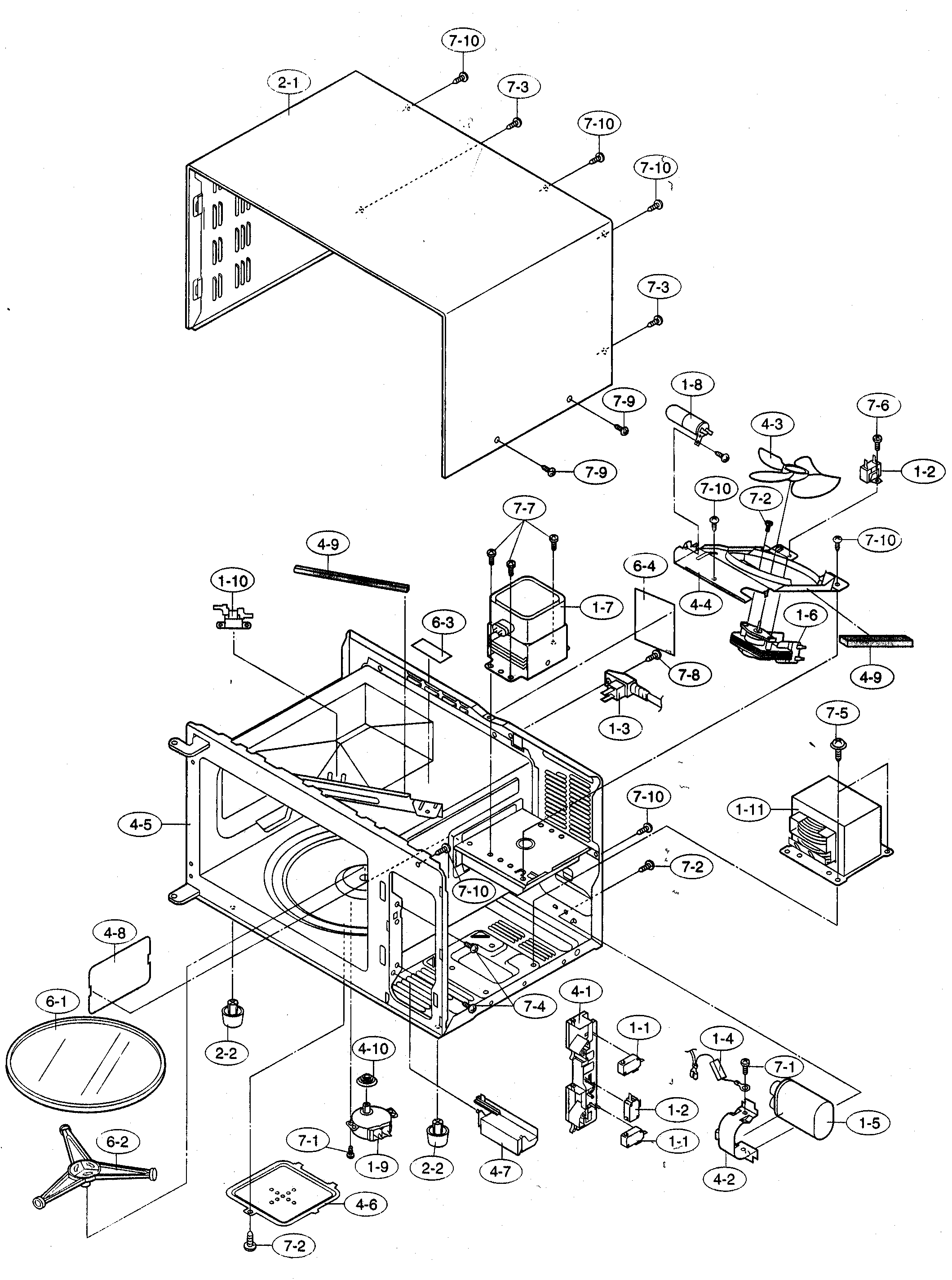

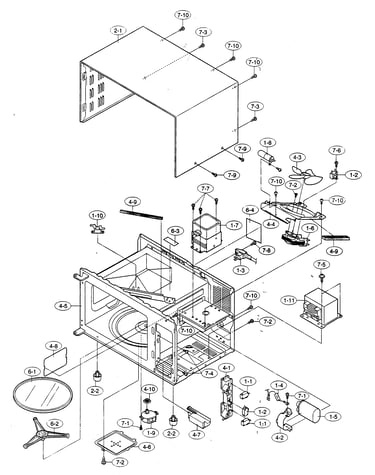

Oven/cabinet parts diagram

Microwave thermal cut-off

Part #QFS-TA038WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sharp Door Frame GWAKPA809WRRZ
#5-2

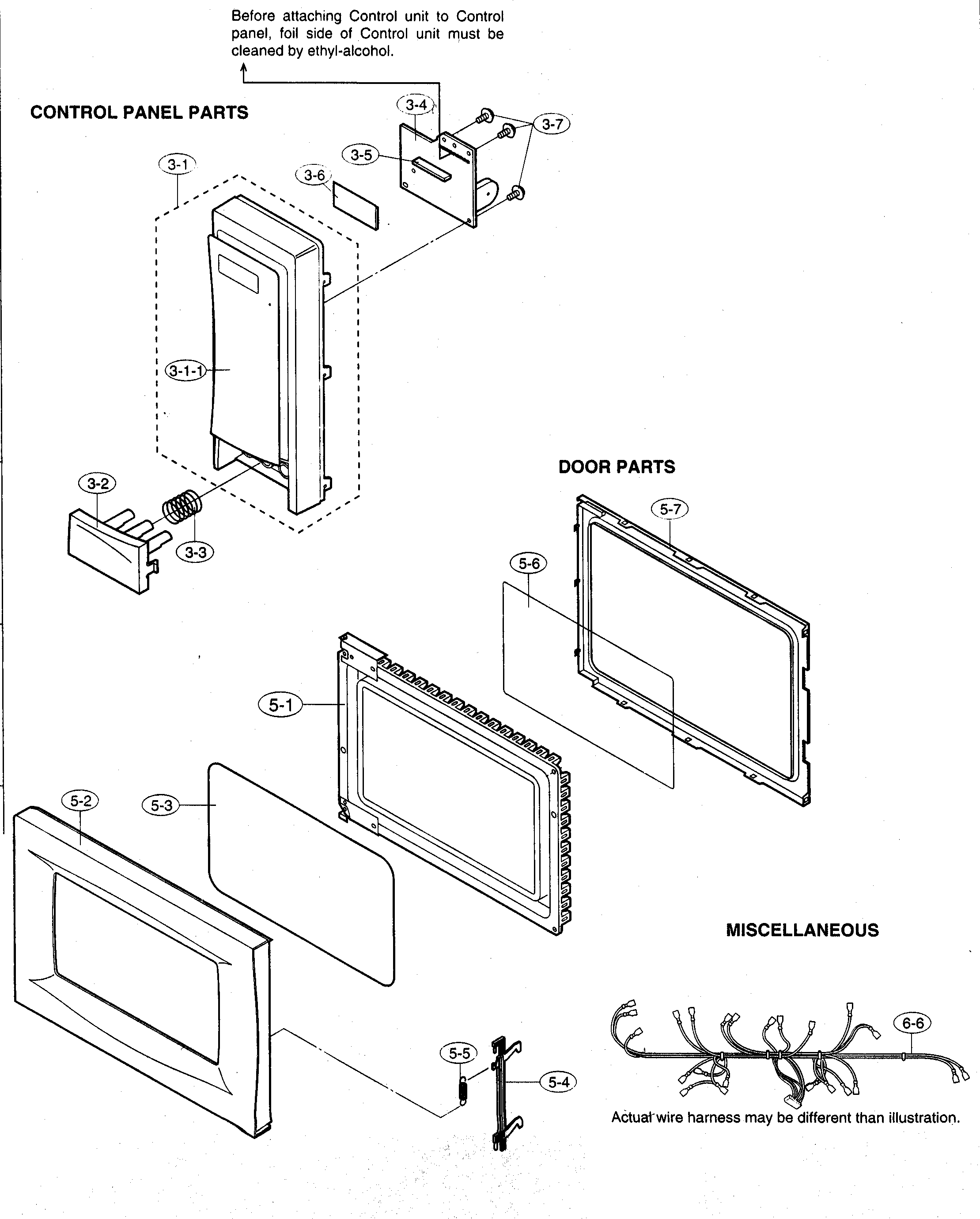

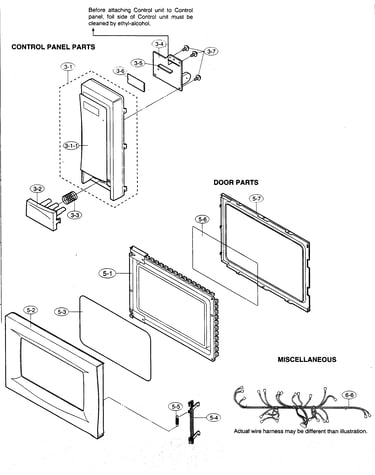

Control panel/door/miscellaneous diagram

Sharp door frame

Part #GWAKPA809WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ
#1-8

Oven/cabinet parts diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Latch Head LSTPPA205WRFZ
#5-4

Control panel/door/miscellaneous diagram

Latch head

Part #LSTPPA205WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Transformer RTRN-A648WRZZ
#1-11

Oven/cabinet parts diagram

Transformer

Part #RTRN-A648WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA307WRZZ
#1-5

Oven/cabinet parts diagram

Capacitor

Part #RC-QZA307WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA306WRZZ
#1-7A

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA306WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Packing PPACGA176WREZ
#4-10

Oven/cabinet parts diagram

Packing

Part #PPACGA176WREZ

The manufacturer no longer makes this part, and there's no substitute part

Connector QCNC-A014WRZZ
#3-5

Control panel/door/miscellaneous diagram

Connector

Part #QCNC-A014WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor RMOTDA211WRE0
#1-9A

Oven/cabinet parts diagram

Microwave turntable motor

Part #RMOTDA211WRE0

The manufacturer no longer makes this part, and there's no substitute part
