Model # AL125N1A1 Official White-Westinghouse room air conditioner - lw34090150

Here are the diagrams and repair parts for Official White-Westinghouse AL125N1A1 room air conditioner - lw34090150, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

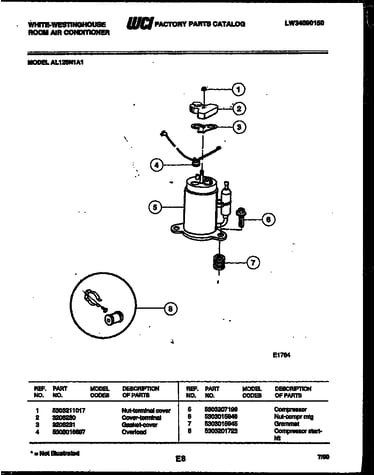

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#2

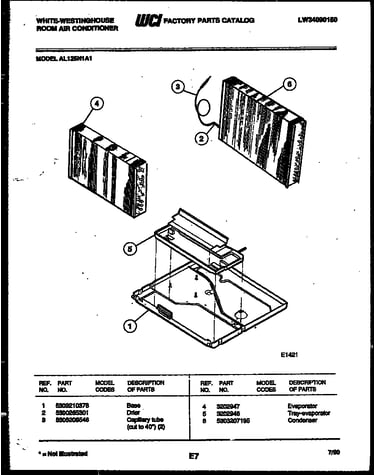

Unit parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Nut-hex 3017023
#6

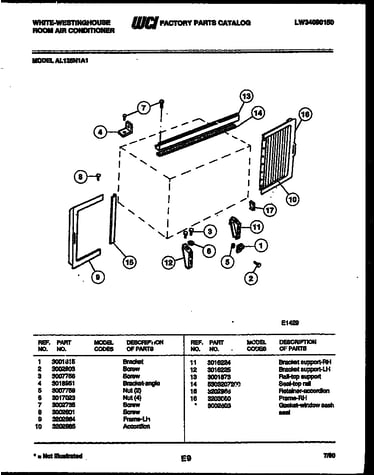

Cabinet and installation parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Gasket 3002603

#NI

All parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock

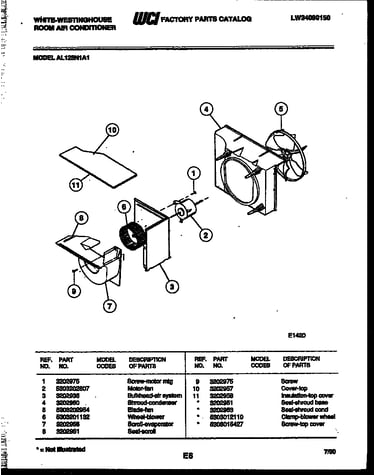

Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
220v Cord 5308017362
#7

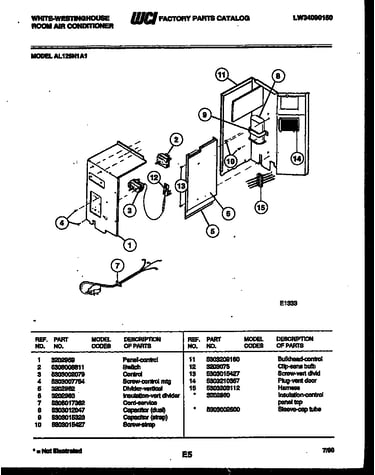

Electrical parts diagram

220v cord

Part #5308017362

Replaced by #5303301021

?
Manufacturer substitution
This part replaces 5308017362. Substitute parts can look different from the original.
$49.98
In Stock
Strap 5303015323
#9

Electrical parts diagram

Strap

Part #5303015323

The manufacturer no longer makes this part, and there's no substitute part

Clip 5303001844
#8

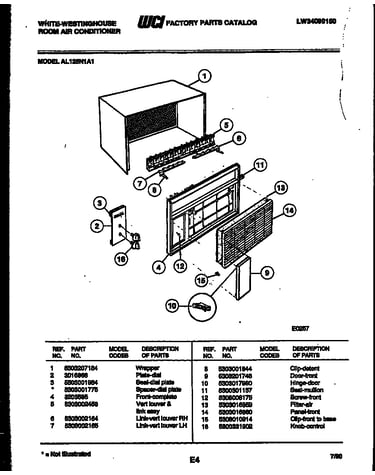

Cabinet parts diagram

Clip

Part #5303001844

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Tray 3202948
#5

Unit parts diagram

Evaporator tray

Part #3202948

The manufacturer no longer makes this part, and there's no substitute part

Partition 5303209160
#11

Electrical parts diagram

Partition

Part #5303209160

The manufacturer no longer makes this part, and there's no substitute part
