Tecumseh
Lawn & Garden Engine

Model # TYPE 640-12 Official Tecumseh engine

Here are the diagrams and repair parts for Official Tecumseh TYPE-640-12 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
O-ring 631028
#25

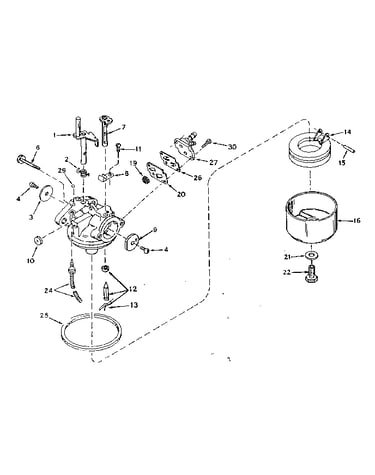

Carburetor no. 631728 diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 631023
#14

Carburetor no. 631728 diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#43

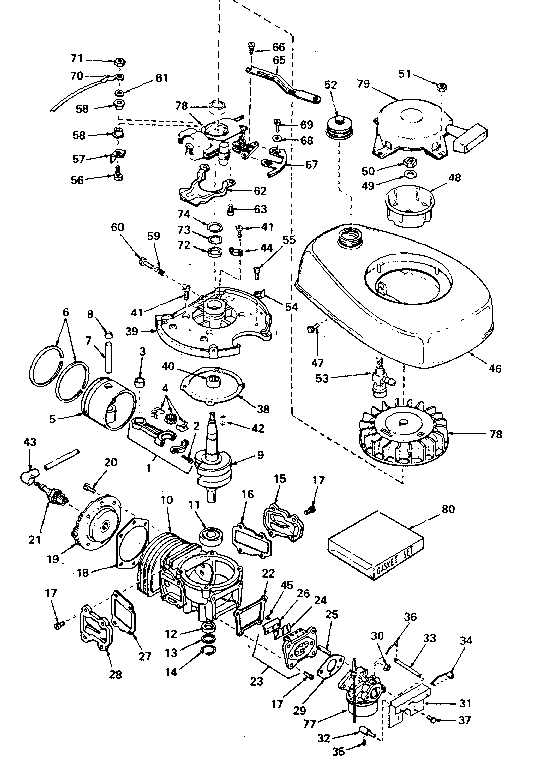

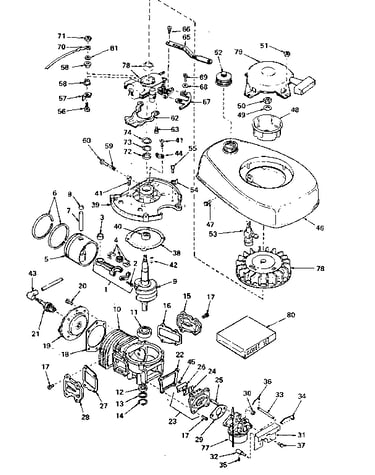

Basic engine diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

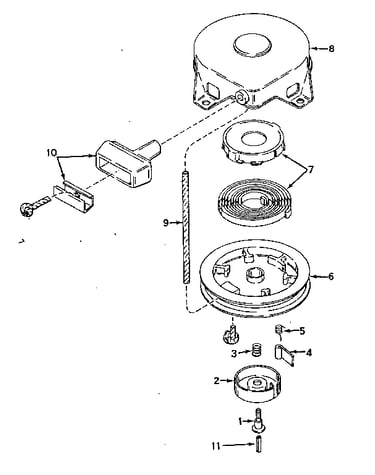

Rewnd Startr 590420
#79

Basic engine diagram

Rewnd startr

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#59

Basic engine diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Pump Element 630953
#6

Carburetor no. 631728 diagram

Pump element

Part #630953

The manufacturer no longer makes this part, and there's no substitute part

Bowl Gasket 631334
#21

Carburetor no. 631728 diagram

Bowl gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

Coil 30560A
#11

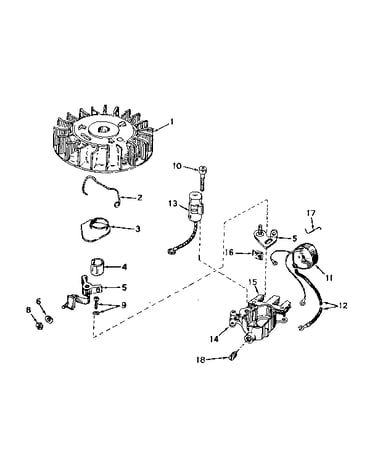

Magneto no. 610945 diagram

Coil

Part #30560A

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor no. 631728 diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Spring 510109
#14

Basic engine diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part
