Plasma Television

Model # 42PB4DT-UBAUSXLJR Official LG plasma television

Here are the diagrams and repair parts for Official LG 42PB4DT-UBAUSXLJR plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Pdp Module EAJ35511204
#200

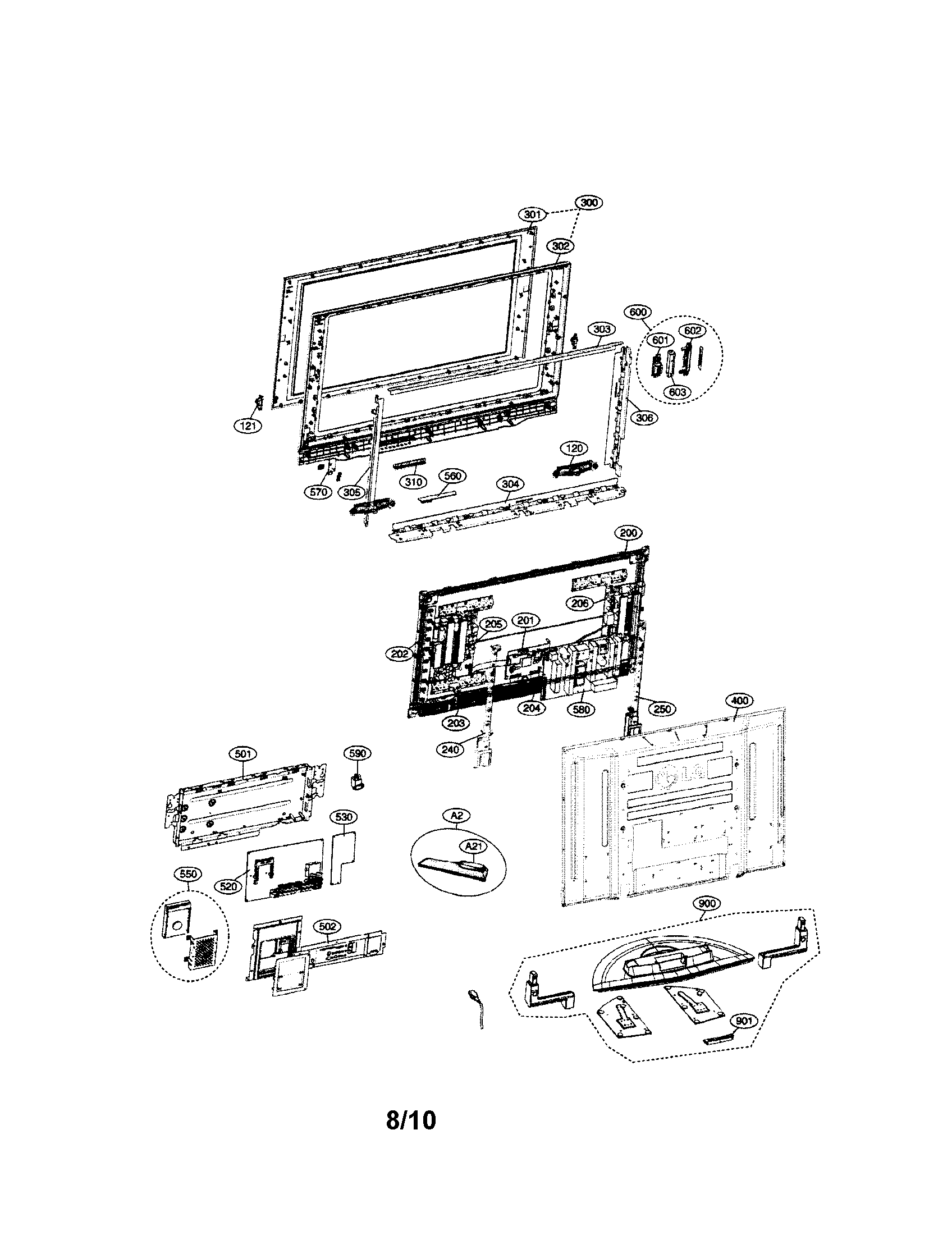

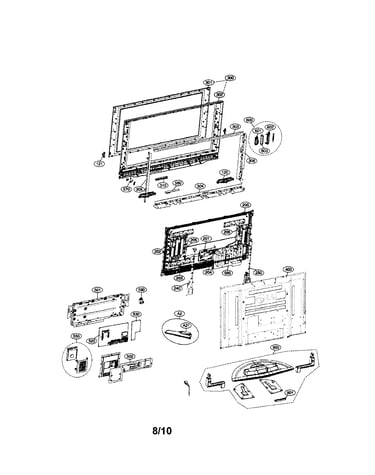

Plasma tv diagram

Pdp module

Part #EAJ35511204

In Stock
Hand Insert EBR35912801
#530

Plasma tv diagram

Hand insert

Part #EBR35912801

In Stock
Cover MCK32604801
#901

Plasma tv diagram

Cover

Part #MCK32604801

This item is not returnable
In Stock
Zenith Remote Control MKJ39927804
#A2

Plasma tv diagram

Zenith remote control

Part #MKJ39927804

In Stock
Z-sus Brd EBR36630601
#206

Plasma tv diagram

Z-sus brd

Part #EBR36630601

In Stock
Television Speaker EAB33893101
#121

Plasma tv diagram

Television speaker

Part #EAB33893101

In Stock
Plate Assembly AGU30996804
#501

Plasma tv diagram

Plate assembly

Part #AGU30996804

In Stock
Television Power Cord EAD36401701

#NI02

All parts diagram

Television power cord

Part #EAD36401701

In Stock
Chassis Assembly EBT37774401
#570

Plasma tv diagram

Chassis assembly

Part #EBT37774401

This item is not returnable
In Stock
Pcb Y Drvr EBR36630701
#202

Plasma tv diagram

Pcb y drvr

Part #EBR36630701

In Stock
